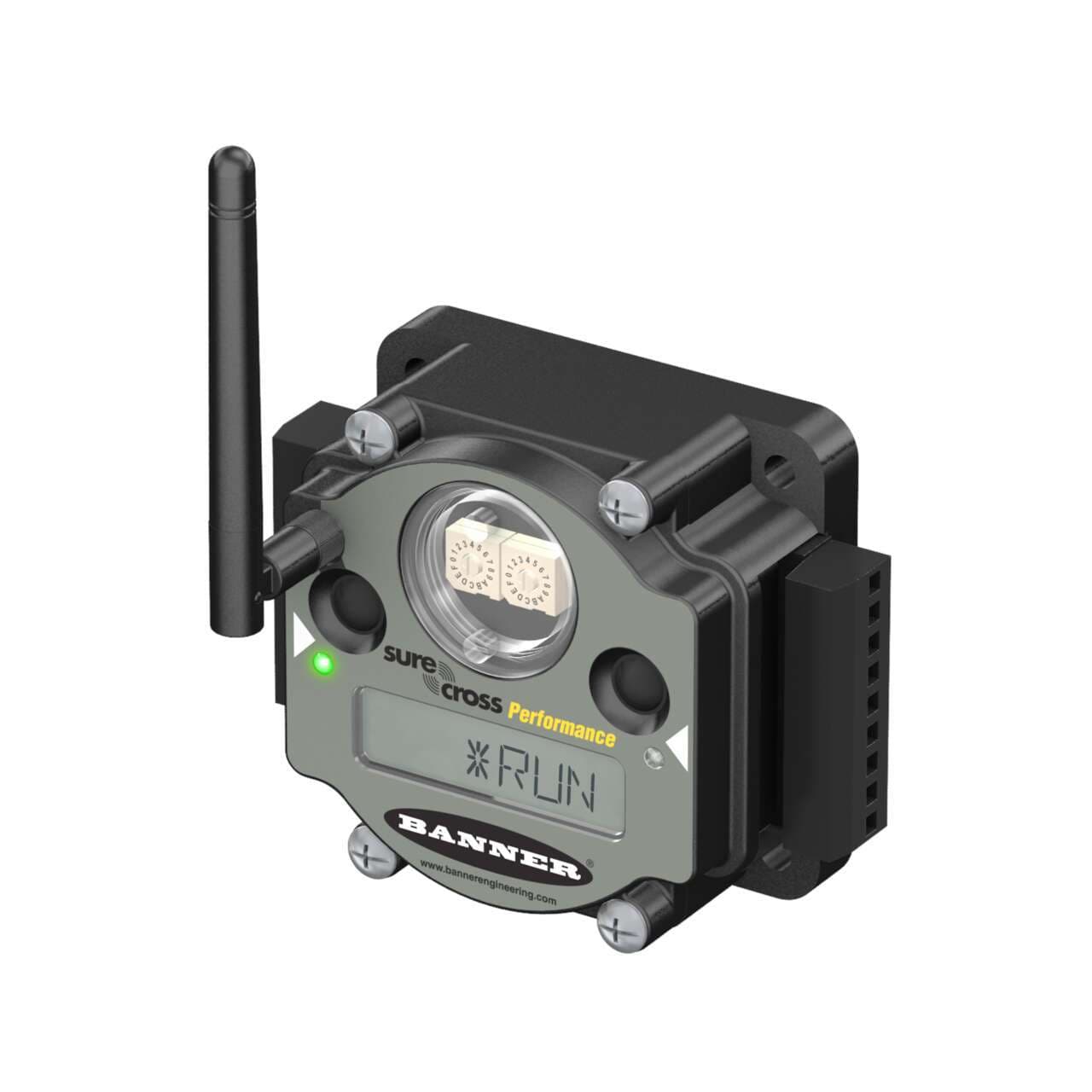

DX80N2X2S-P3C Banner I/O Modules
Part#:DX80N2X2S-P3C
Manufacturer:Banner
Alt. Part#:18800
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 2.4 GHz Node 65 mW IP20; FlexPower External Antenna; Input: 2 Discrete 4 Thermocouple; Output: 1 Discrete NMOS; External Terminals
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N2X2S-P3C Banner price in the box on the right side or send a quick quote.
Product Details
- Weight385.5532 g
- Country Of OriginUS
- Output Details 1 NMOS Discrete
- Min Operating Temperature ( °C) -20
- Application: Temperature Input Yes
- Wireless Radio Frequency 2.4 GHz
- Power Supply 10-30 V dc or 3.6-5.5 V dc low power option
- Ships With Battery No
- Tree Topology No
- Discrete Outputs Yes
- LCD Display Yes
- Relative Humidity 95%
- Device Type Node
- Environmental Rating (NEMA) NEMA 1
- Feature: Hazardous Area Yes
- 1-wire Serial Interface No
- Input/Output Thermocouple
- Point-to-Multipoint Topology Yes
- PROFINET No
- Input Details 2 Selectable Discrete, 4 Thermocouple, 1 Thermistor
- Min Temp Operating Conditions -20
- Star Topology Yes
- Power Flex Power
- Environmental Rating (IP) IP20
- Max Operating Temperature ( °C) 80
- Modbus RTU No
- Housing Style External Terminals
- Max Temp Operating Conditions 80
- Point-to-Point Topology Yes
- Modbus/TCP No
- Discrete Inputs Yes
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- EtherNet/IP No
- Wireless Yes
- RS-232 No
- RS-485 No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N2X2S-P3C Description
Banner Engineering DX80N2X2S-P3C is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It features a polycarbonate housing, rotary dial cover, polyester labels, an EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 and NEMA 1. Its dimensions are H44.5mm x W103.3mm x D80.1mm. The RTU includes 1 digital output (30Vdc; NMOS; 1A), 4 analog inputs for thermocouples (types B, C, E, J, K, L, N, R, S, T, U with 24-bit A/D conversion), and 1 analog input for a thermistor (for CJC with 24-bit A/D conversion). It also features 2 digital inputs (30Vdc 3mA; PNP/NPN), operates on a 2400 MHz transmission frequency with FHSS technology, and has a rectangular shape. The design incorporates 2 buttons, 2 bi-color LEDs for Ex e II applications, detachable screw-clamp connectors, and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates on a 2.4GHz ISM band frequency with 65mW power, capable of a maximum transmission distance of 3.2km at nominal emission power.
