DX80N2X1W-P6L Banner I/O Modules
Part#:DX80N2X1W-P6L
Manufacturer:Banner
Alt. Part#:803754
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 2.4 GHz Node 65 mW; Integrated Battery Internal Antenna; 1-wire Serial Interface; No LCD No Rotary Dials
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N2X1W-P6L Banner price in the box on the right side or send a quick quote.
Product Details
- Weight517.09488 g
- Country Of OriginUS
- Min Temp Operating Conditions -20
- EtherNet/IP No
- Wireless Yes
- Device Type Node
- Relative Humidity 95%
- Application: Ultrasonic Yes
- 1-wire Serial Interface Yes
- Input Details 1 Wire Serial interface
- Star Topology Yes
- RS-485 No
- Power Supply D Cell Lithium Battery
- Feature: Hazardous Area No
- Input/Output Serial
- Point-to-Multipoint Topology Yes
- RS-232 No
- Max Temp Operating Conditions 80
- Point-to-Point Topology Yes
- Modbus RTU No
- Environmental Rating (NEMA) NEMA 6
- Power Battery
- Application: Relative Humidity Input Yes
- Modbus/TCP No
- Environmental Rating (IP) IP67
- Tree Topology No
- Application: Vibration Sensor Input Yes
- Wireless Radio Frequency 2.4 GHz
- Housing Style Integrated Battery
- Ships With Battery Yes
- Application: Temperature Input Yes
- PROFINET No
- Application: Tank Level Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N2X1W-P6L Description

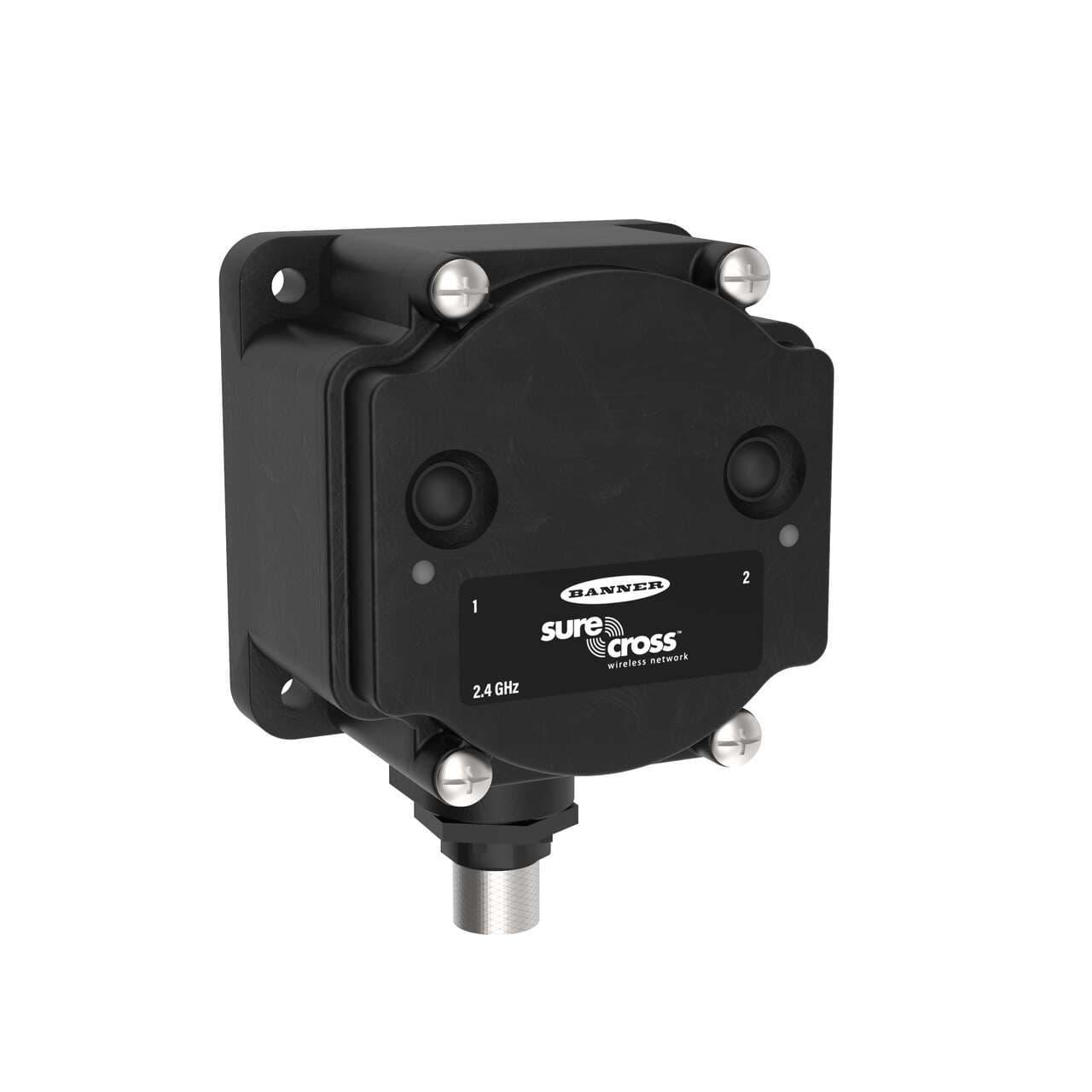

Banner Engineering DX80N2X1W-P6L is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 and NEMA 6. This rectangular-shaped RTU measures H56.6mm x W93.4mm x D80.9mm and utilizes a transmission frequency of 2400 MHz. It is equipped with 2 buttons, 2 bi-color LEDs, and employs FHSS (Frequency Hopping Spread Spectrum) technology for enhanced communication performance. The DX80N2X1W-P6L features a 5-pin M12 female connector for connections and operates on a 3.6Vdc supply voltage from an internal battery. Its black housing encases the technology that allows for a maximum transmission distance of 1km using an internal antenna at nominal emission power, within the 2.4GHz ISM band at 65mW frequency.
Related documents DX80N2X1W-P6L Specs
