DX80N2X1S-P6 Banner I/O Modules
Part#:DX80N2X1S-P6
Manufacturer:Banner
Alt. Part#:18657
Product Lifecycle:Active
Get a quick Quote!

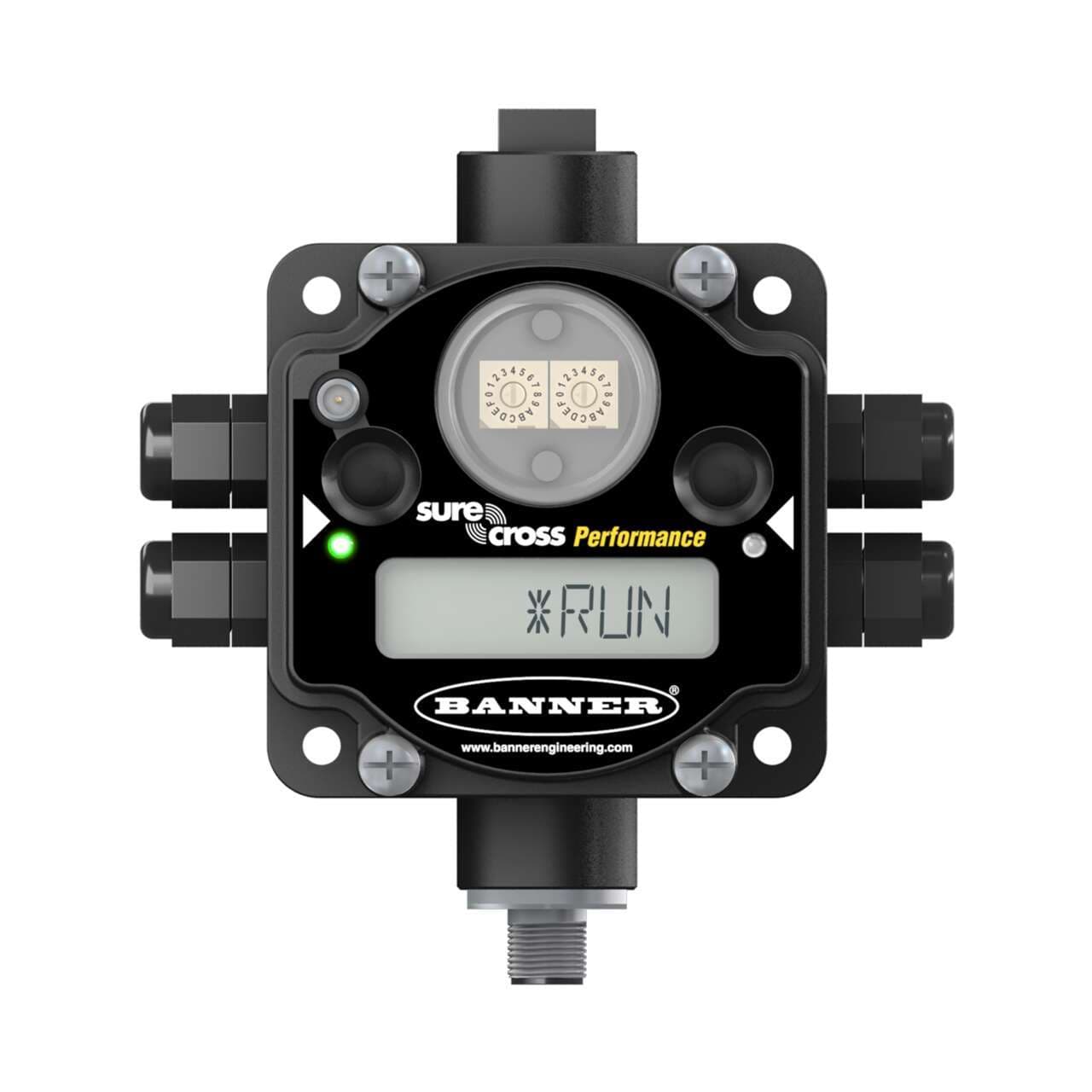

DX80 Performance 2.4 GHz Node 65 mW IP67; 1-Wire Serial Interface; Integrated Battery
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N2X1S-P6 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight680.388 g
- Country Of OriginUS
- Input/Output Serial
- Point-to-Point Topology Yes
- Relative Humidity 95%
- Wireless Radio Frequency 2.4 GHz
- Environmental Rating (IP) IP67
- Feature: Hazardous Area Yes
- Application: Tank Level Yes
- Wireless Yes
- Device Type Node
- Min Temp Operating Conditions -40
- Application: Temperature Input Yes
- RS-232 No
- Power Battery
- Ships With Battery Yes
- Application: Ultrasonic Yes
- PROFINET No
- Input Details 1 Wire Serial interface
- LCD Display Yes
- Application: Vibration Sensor Input Yes
- RS-485 No
- Power Supply D Cell Lithium Battery
- Max Operating Temperature ( °C) 85
- Environmental Rating (NEMA) NEMA 6
- Point-to-Multipoint Topology Yes
- Modbus RTU No
- Housing Style Integrated Battery
- Min Operating Temperature ( °C) -40
- Application: Relative Humidity Input Yes
- 1-wire Serial Interface Yes
- Max Temp Operating Conditions 85
- Star Topology Yes
- EtherNet/IP No
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Tree Topology No
- Modbus/TCP No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N2X1S-P6 Description
Banner Engineering DX80N2X1S-P6 is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 and NEMA 6, suitable for demanding conditions. It utilizes a 2400 MHz transmission frequency within the 2.4GHz ISM band, supported by FHSS (Frequency Hopping Spread Spectrum) technology and Time Division Multiple Access (TDMA) for enhanced communication reliability. The rectangular-shaped RTU includes performance node functionality with a 1-wire serial interface, 2 buttons, 2 bi-color LEDs for Ex e II applications, and supports a maximum transmission distance of 3.2km at nominal emission power. Connection is facilitated through a 5-pin M12 female connector and an RP-SMA connector, with a supply voltage requirement of 3.6Vdc from an internal battery.
Related documents DX80N2X1S-P6 Specs
