DX80N2X1S-P4E Banner I/O Modules
Part#:DX80N2X1S-P4E
Manufacturer:Banner
Alt. Part#:18093
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 2.4 GHz Node 65 mW IP65; Integrated Battery External Antenna; Input: 4 RTD
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N2X1S-P4E Banner price in the box on the right side or send a quick quote.
Product Details
- Weight521.6308 g
- Country Of OriginUS
- Power Supply D Cell Lithium Battery
- Min Temp Operating Conditions -40
- Feature: Hazardous Area Yes
- Input Details 4 RTDs
- Max Operating Temperature ( °C) 85
- Tree Topology No
- Power Battery
- Ships With Battery Yes
- Star Topology Yes
- RS-485 No
- Input/Output RTD
- Min Operating Temperature ( °C) -40
- EtherNet/IP No
- Wireless Radio Frequency 2.4 GHz
- Environmental Rating (IP) IP65
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Relative Humidity 95%
- RS-232 No
- Environmental Rating (NEMA) NEMA 4x
- Point-to-Point Topology Yes
- PROFINET No
- Max Temp Operating Conditions 85
- Point-to-Multipoint Topology Yes
- Modbus/TCP No
- Device Type Node
- LCD Display Yes
- Modbus RTU No
- Housing Style Integrated Battery
- Application: Temperature Input Yes
- Wireless Yes
- 1-wire Serial Interface No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N2X1S-P4E Description

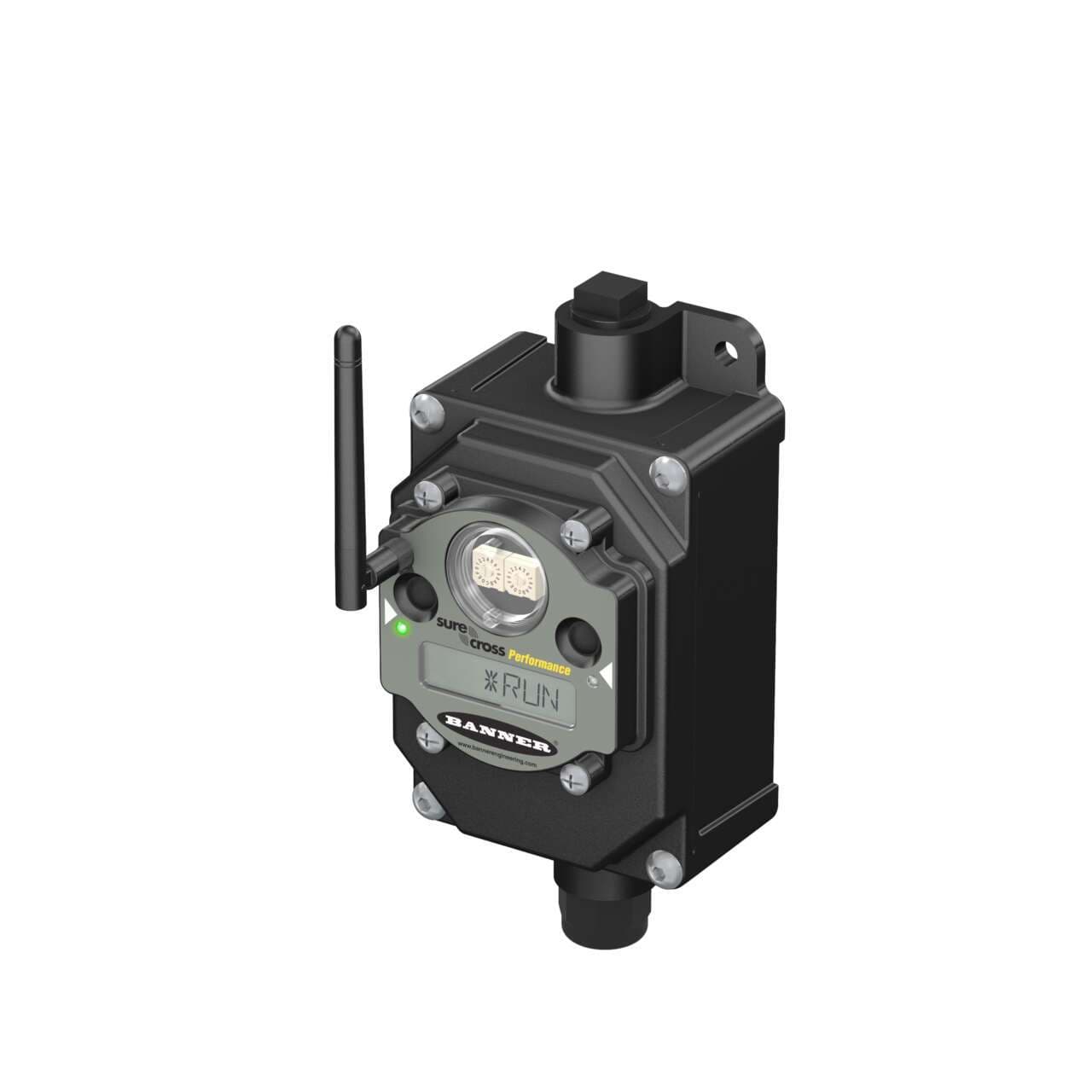

Banner Engineering DX80N2X1S-P4E is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. The unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP65 NEMA 4X. With dimensions of H81.3mm x W167.4mm x D87.6mm, this rectangular-shaped RTU includes 4 analog inputs for 3-wire RTD Pt100 probes. It utilizes a 2400 MHz transmission frequency and is part of the SureCross DX80 series. The design incorporates 2 buttons, 2 bi-color LEDs suitable for Ex e II applications, and an environmental housing with an internal battery. It employs FHSS (Frequency Hopping Spread Spectrum) technology for communication. Connection is facilitated through a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses, alongside an RP-SMA connector. The supply voltage requirement is 10-30Vdc (12Vdc-24Vdc nom.), operating on a 2.4GHz ISM band 65mW frequency. It can achieve a maximum transmission distance of 3.2km at nominal emission power.
