DX80N2X1S-P1E Banner I/O Modules
Part#:DX80N2X1S-P1E
Manufacturer:Banner
Alt. Part#:18089
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 2.4 GHz Node 65 mW IP65; Integrated Battery External Antenna; Input: 2 Discrete 2 Analog 2 Thermistor; Output: 2 Discrete NMOS
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N2X1S-P1E Banner price in the box on the right side or send a quick quote.
Product Details
- Weight396.893 g
- Country Of OriginUS
- Input Details 2 Selectable Discrete, two analog and two thermistor
- Min Temp Operating Conditions -20
- Application: Temperature Input Yes
- Power Supply D Cell Lithium Battery
- Relative Humidity 95%
- Modbus/TCP No
- Discrete Outputs Yes
- Min Operating Temperature ( °C) -20
- PROFINET No
- Housing Style Integrated Battery
- Environmental Rating (NEMA) NEMA 4x
- Point-to-Multipoint Topology Yes
- RS-485 No
- Environmental Rating (IP) IP65
- Point-to-Point Topology Yes
- RS-232 No
- Discrete Inputs Yes
- Ships With Battery Yes
- EtherNet/IP No
- Input/Output Analog & Discrete
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Feature: Hazardous Area Yes
- Device Type Node
- Max Temp Operating Conditions 65
- Star Topology Yes
- Wireless Yes
- Power Battery
- Output Details 2 NMOS Discrete
- Max Operating Temperature ( °C) 65
- Analog Inputs Yes
- LCD Display Yes
- Tree Topology No
- Wireless Radio Frequency 2.4 GHz
- Modbus RTU No
- 1-wire Serial Interface No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N2X1S-P1E Description

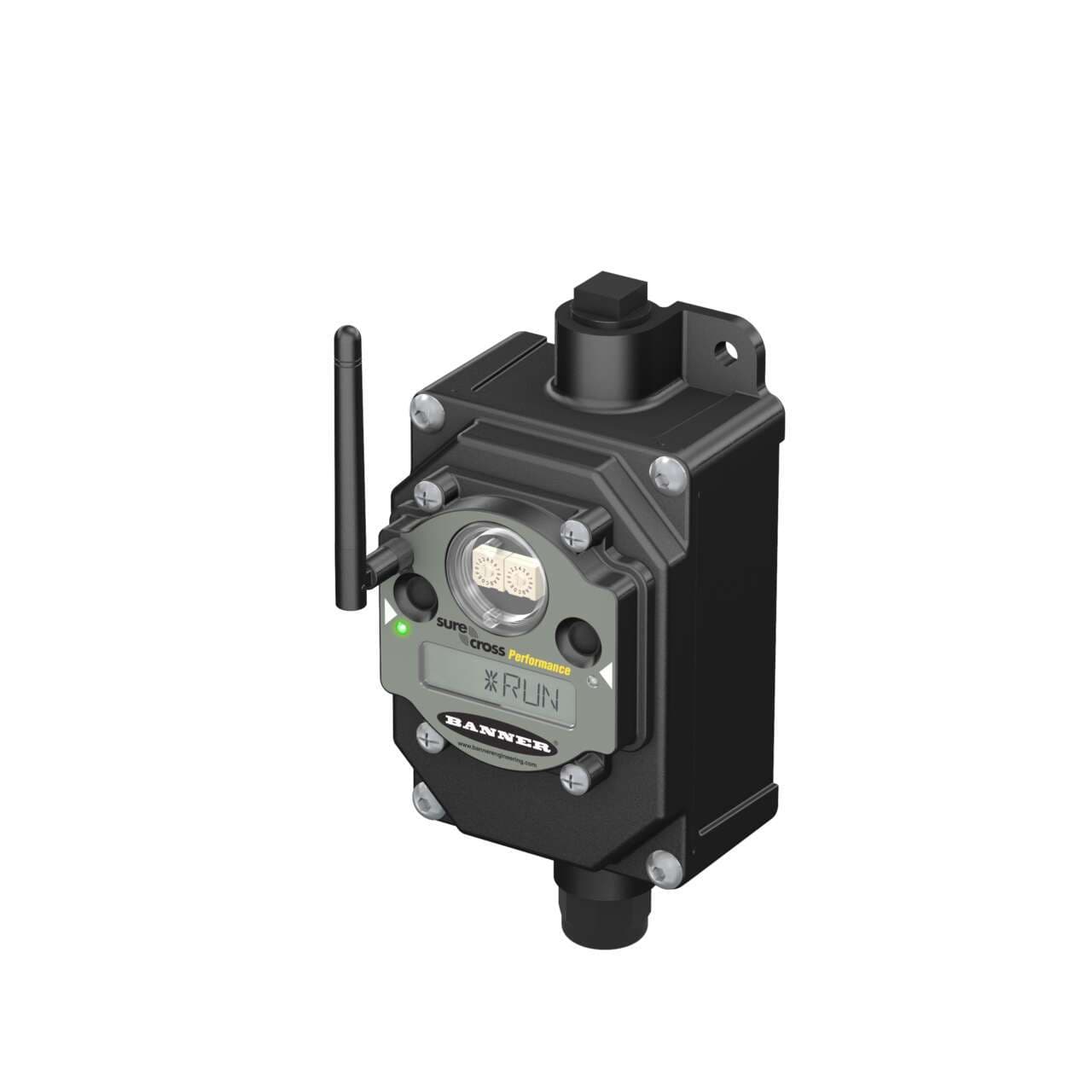

Banner Engineering DX80N2X1S-P1E is a Remote Terminal Unit (RTU) designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP65 and NEMA 4X. The dimensions of this rectangular-shaped unit are H81.3mm x W167.4mm x D87.6mm. It features 2 digital outputs (30Vdc; NMOS Sinking; 1A), 2 analog inputs (0-20mA / 0-10Vdc / Thermistor 10kΩ; 12-bit), and 2 digital inputs (30Vdc 3mA; PNP/NPN). This part of the SureCross DX80 series incorporates performance node functions, 2 buttons, 2 bi-color LEDs for Ex e II applications, and an environmental housing with an internal battery. It utilizes FHSS (Frequency Hopping Spread Spectrum) technology for communication, with a transmission frequency of 2400 MHz. The connection type is a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses alongside an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.), operates on a 2.4GHz ISM band at 65mW, and can achieve a maximum transmission distance of 3.2km at nominal emission power.
Related documents DX80N2X1S-P1E Specs
