DX80N2X1S-P16E Banner I/O Modules
Part#:DX80N2X1S-P16E
Manufacturer:Banner
Alt. Part#:802354
Product Lifecycle:Active
Get a quick Quote!
DX80 Perf 2.4 GHz Node 65 mW IP65; Internal Battery External Antenna; Input: 2 Configurable Discrete 2 Asynchronous Counters; Output: 4 Discrete NMOS
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N2X1S-P16E Banner price in the box on the right side or send a quick quote.
Product Details
- Weight861.8248 g
- Country Of OriginUS
- Input/Output Discrete
- Min Temp Operating Conditions -20
- Application: Object Counting Yes
- LCD Display Yes
- Modbus RTU Yes
- Wireless Yes
- Power DC
- Output Details 4 NMOS
- EtherNet/IP No
- 1-wire Serial Interface No
- Device Type Node
- Relative Humidity 95%
- PROFINET No
- Max Temp Operating Conditions 65
- Feature: Hazardous Area No
- Discrete Outputs Yes
- Point-to-Multipoint Topology Yes
- RS-232 No
- Environmental Rating (IP) IP65
- Tree Topology No
- Input Details 2 Configurable asynchronous counters
- Ships With Battery Yes
- Modbus/TCP No
- Housing Style Integrated Battery
- Power Supply 10-30 V dc or D Cell Lithium Battery
- Star Topology Yes
- Environmental Rating (NEMA) NEMA 4x
- Point-to-Point Topology Yes
- RS-485 Yes
- Wireless Radio Frequency 2.4 GHz
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N2X1S-P16E Description

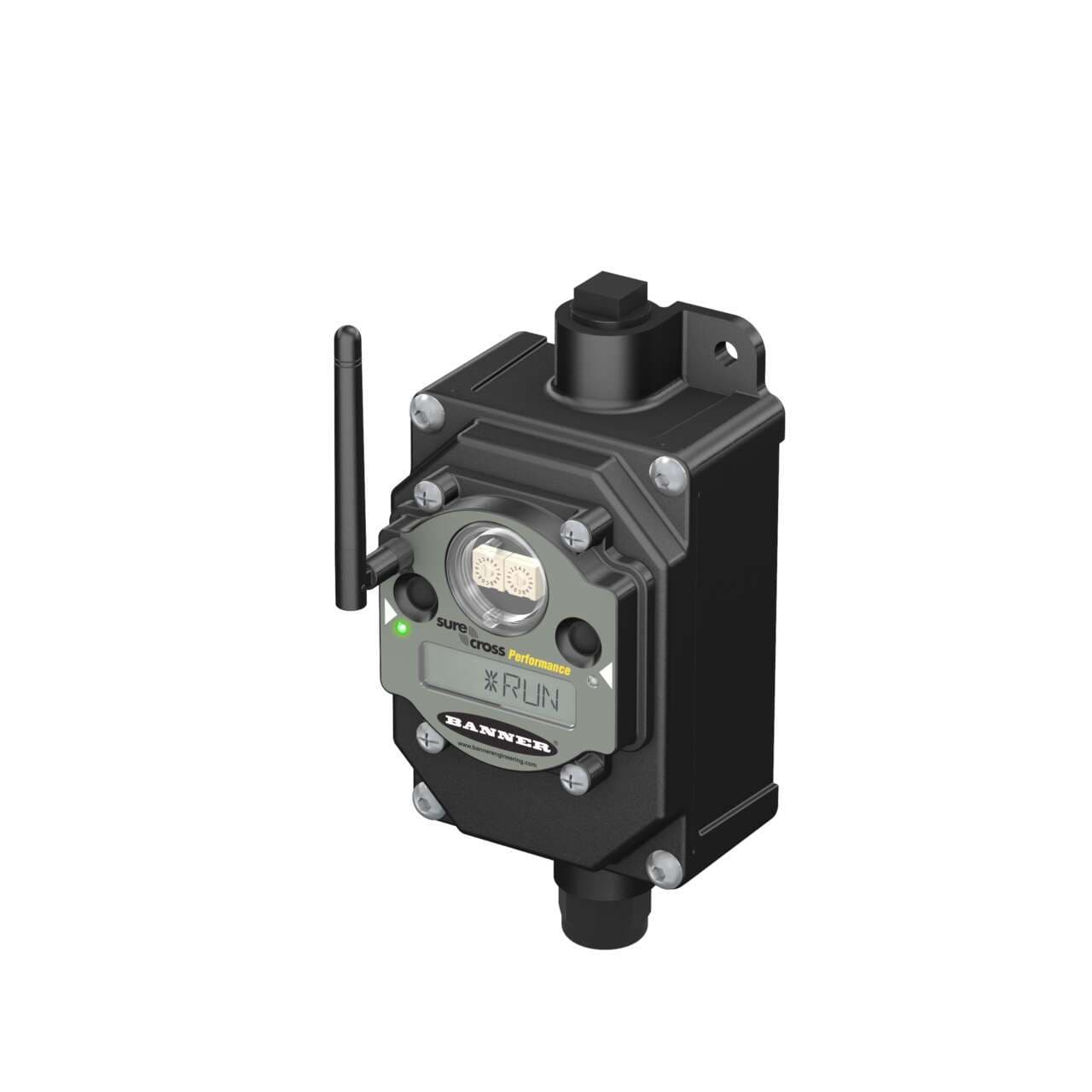

Banner Engineering DX80N2X1S-P16E is a Remote Terminal Unit (RTU) designed for surface mounting, featuring a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP65 NEMA 4X. The dimensions of this rectangular-shaped unit are H81.3mm x W167.4mm x D87.6mm. It includes 4 NMOS digital outputs and 2 digital inputs (30Vdc 3mA; PNP/NPN; 10kHz counters), supporting a performance universal counter node function. Part of the SureCross DX80 series, it features a design that includes 2 buttons, 2 bi-color LEDs, an environmental housing with an internal battery, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. The connection type is a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses alongside an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.), uses the RS-485 communication protocol, operates on a 2.4GHz ISM band frequency with 65mW power, and can achieve a maximum transmission distance of 3.2km at nominal emission power.
Related documents DX80N2X1S-P16E Specs
