DX80N2Q120PPB11 Banner I/O Modules
Part#:DX80N2Q120PPB11
Manufacturer:Banner
Alt. Part#:806118
Product Lifecycle:Active
Get a quick Quote!
Wireless Q120 Pendant Node 2.4 Ghz; Integrated Battery; Two Operator Inputs (2 Flush Push Buttons); Four Color LED Indicator Light Output
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N2Q120PPB11 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight544.3104 g
- Country Of OriginUS
- Power Battery
- Relative Humidity 90% at 50° C
- Application: Indicator Light Yes
- Device Type Push Button
- RS-232 No
- Wireless Yes
- Discrete Inputs Yes
- Min Temp Operating Conditions -25
- Point-to-Point Topology Yes
- Environmental Rating (IP) IP65
- Number of Buttons 2
- PROFINET No
- Power Supply 2 AA Batteries
- Tree Topology No
- Feature: Hazardous Area No
- Input/Output Discrete
- Operator Type Flush Button - Flush Button
- RS-485 No
- Input Details Two Button
- Point-to-Multipoint Topology Yes
- Modbus RTU No
- Output Details Light
- Ships With Battery Yes
- Modbus/TCP No
- Housing Style Integrated Battery
- Max Temp Operating Conditions 70
- Star Topology Yes
- EtherNet/IP No
- Wireless Radio Frequency 2.4 GHz
- 1-wire Serial Interface No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N2Q120PPB11 Description

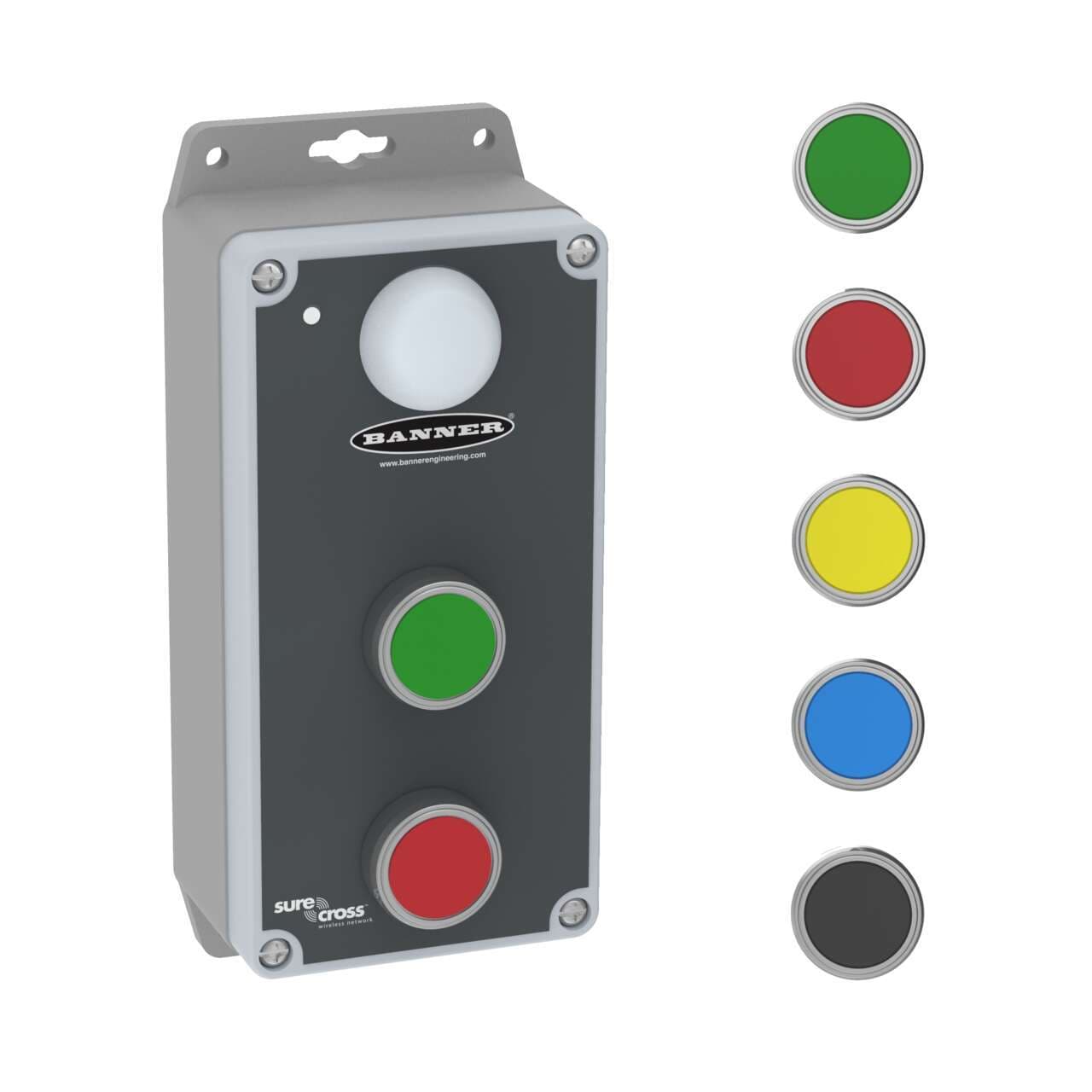

Banner Engineering DX80N2Q120PPB11 is a control station from the SureCross series, featuring a polycarbonate housing with stainless steel hardware designed for durability. It operates within an ambient air temperature range of -25°C to +70°C and offers an IP65 degree of protection, ensuring its suitability for various environmental conditions. This model operates on a 3.6Vdc supply voltage and utilizes a 2.4GHz ISM band with a 65mW wireless battery-powered pendant station that includes indicators. It is designed with 2 flush push-buttons with LED illumination for clear operation status visibility. The operating mode can be set to either momentary or latched NO (Normally Open) touch output, and it comes in a gray housing color.
Related documents DX80N2Q120PPB11 Specs
