DX80N2Q120BL-RG Banner I/O Modules
Part#:DX80N2Q120BL-RG
Manufacturer:Banner
Alt. Part#:800826
Product Lifecycle:Active
Get a quick Quote!
Wireless Q120 Pendant Node 2.4 GHz 65 mW; Battery Included and 10-30 V dc power terminals; Six independently controlled push button inputs; Six sets of green and red LED indicator lights
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N2Q120BL-RG Banner price in the box on the right side or send a quick quote.
Product Details
- Weight338.379632 g
- Country Of OriginUS
- Power Supply D Cell Lithium Battery
- Point-to-Point Topology Yes
- RS-232 No
- Device Type Push Button
- Min Temp Operating Conditions -40
- Star Topology Yes
- Modbus/TCP No
- Power Flex Power
- Operator Type 6 Push Buttons
- 1-wire Serial Interface No
- Discrete Inputs Yes
- Point-to-Multipoint Topology Yes
- Wireless Radio Frequency 2.4 GHz
- Input Details Six Buttons
- Number of Buttons 6
- Application: Indicator Light Yes
- Discrete Outputs Yes
- Max Temp Operating Conditions 70
- Feature: Hazardous Area No
- Wireless Yes
- Input/Output Discrete
- Environmental Rating (NEMA) NEMA 6
- Tree Topology No
- RS-485 No
- Ships With Battery Yes
- Housing Style Integrated Battery
- EtherNet/IP No
- PROFINET No
- Output Details Twelve LED lights
- Relative Humidity 90% at 50° C
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N2Q120BL-RG Description

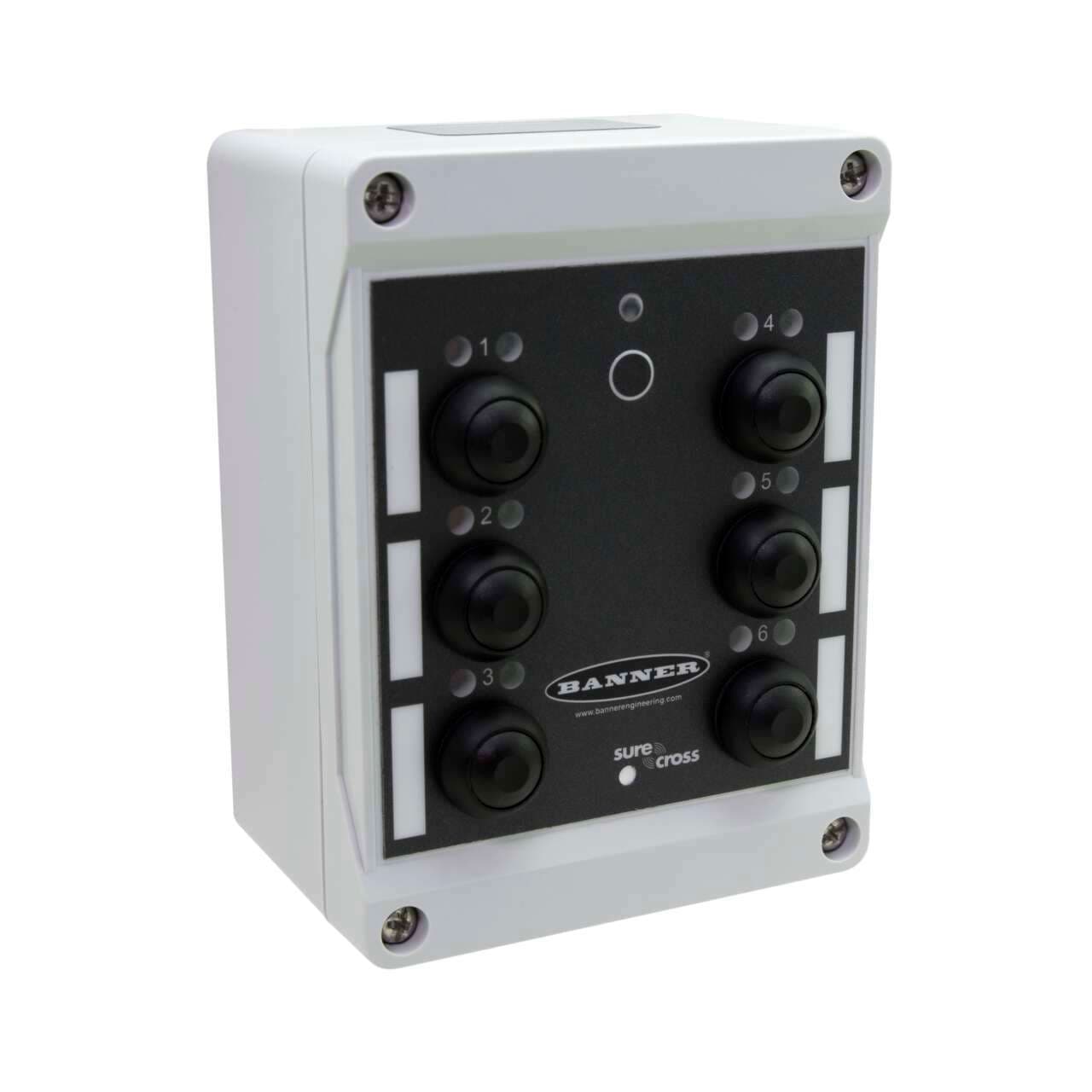

Banner Engineering DX80N2Q120BL-RG is a control station designed with a polycarbonate housing, polyester labels, an EPDM rubber cover gasket, and nylon buttons. It operates within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6. The dimensions of this product are H64.5mm x W120mm x D90mm. It features red and green light colors and supports both momentary or latched NO (Normally Open) touch output operating modes. The transmission frequency is set at 2400 MHz. As part of the Wireless Q120 series, it functions as a pendant station with a design that includes 6 flush push-buttons and 12 LEDs, utilizing FHSS (Frequency Hopping Spread Spectrum) technology. The supply voltage requirement is 3.6Vdc from an internal battery. The housing is gray, and it operates on a 2.4GHz ISM band with a 65mW frequency. It is capable of a maximum 1km transmission distance at nominal emission power.
Related documents DX80N2Q120BL-RG Specs
