DX80K2M6-PM2 Banner I/O Modules
Part#:DX80K2M6-PM2
Manufacturer:Banner
Alt. Part#:92938
Product Lifecycle:Active
Get a quick Quote!

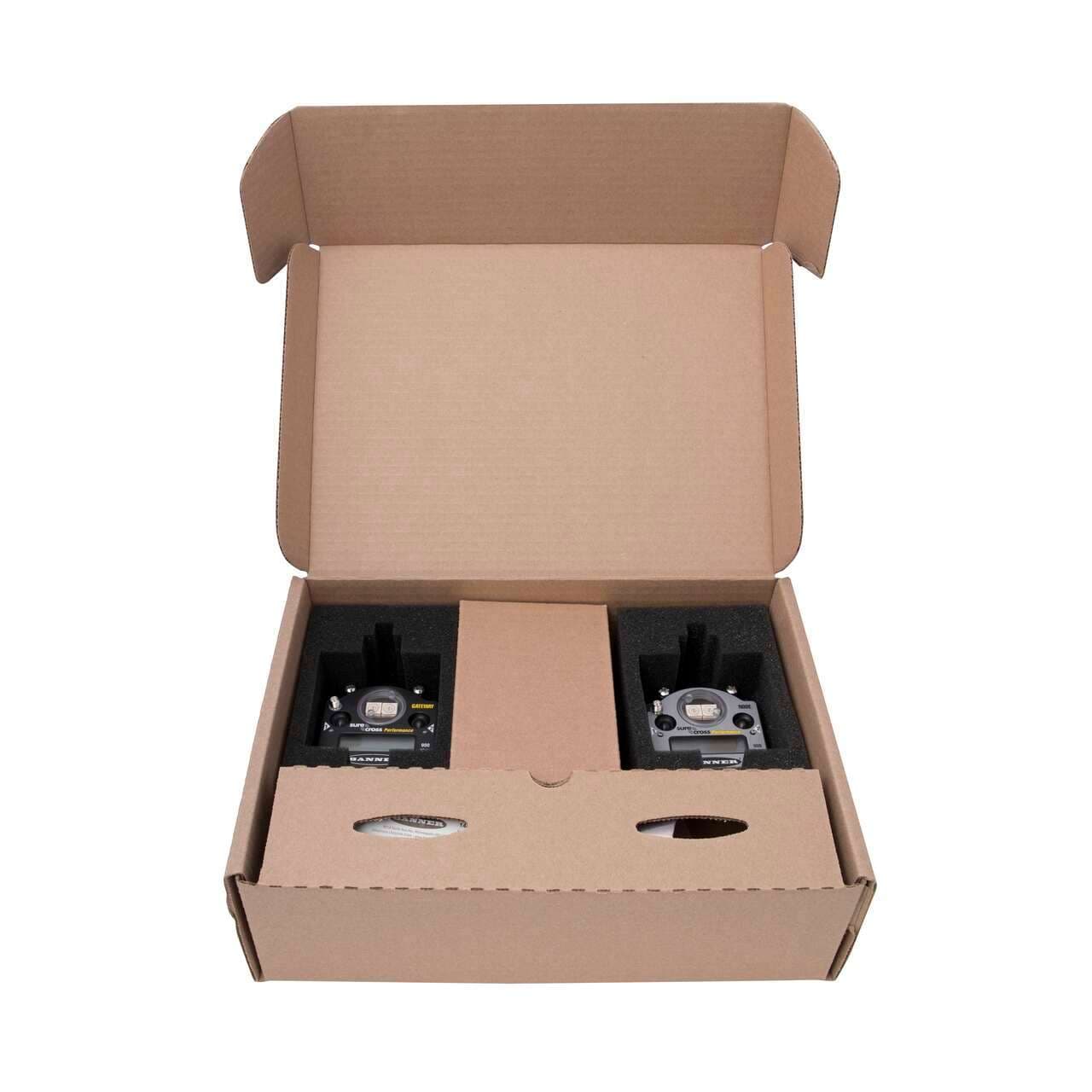

PM2 Series Kit; Includes one gateway and one node; pre-mapped and pre-bound; 2.4 GHz 100 mW; LCD Selectable I/O Mapping; IP67 / NEMA 6; In: Four selectable NPN/PNP Discrete; Two 0-20 mA
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80K2M6-PM2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight907.184 g
- Country Of OriginUS
- Power DC
- Discrete Outputs Yes
- Min Operating Temperature ( °C) -40
- Modbus/TCP No
- Input Details 4 Selectable Discrete, 2 0-20 mA Analog
- Output Details 4 Sourcing Discrete, 2 0-20mA Analog
- Point-to-Multipoint Topology Yes
- Housing Style Enclosed Terminals
- Environmental Rating (IP) IP67
- Point-to-Point Topology Yes
- Analog Outputs Yes
- Environmental Rating (NEMA) NEMA 6
- Tree Topology No
- Wireless Radio Frequency 2.4 GHz
- Input/Output Analog & Discrete
- Max Temp Operating Conditions 85
- Star Topology Yes
- RS-485 Yes
- Device Type Kit
- Min Temp Operating Conditions -40
- EtherNet/IP No
- Discrete Inputs Yes
- Max Operating Temperature ( °C) 85
- Feature: Hazardous Area No
- Wireless Yes
- Analog Inputs Yes
- LCD Display Yes
- Modbus RTU Yes
- 1-wire Serial Interface No
- Power Supply 10-30 V dc
- Relative Humidity 95%
- PROFINET No
- RS-232 No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80K2M6-PM2 Description
Banner Engineering DX80K2M6-PM2 is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, an EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers two analog outputs (0-20mA; 12-bit) alongside four digital outputs (30Vdc; PNP; 100mA). It is equipped with two analog inputs (0-20mA; 12-bit) and four digital inputs (30Vdc 3mA; PNP/NPN), supporting versatile connectivity options. The DX80K2M6-PM2 operates at a transmission frequency of 2400 MHz within the 2.4GHz ISM band, capable of a maximum transmission distance of 3.2km at nominal emission power. It has an IP67 and NEMA 6 degree of protection, ensuring resistance to dust and water ingress. The unit's design includes one gateway and one node, with a supply voltage requirement of 10-30Vdc (12Vdc-24Vdc nom.). It utilizes the RS-485 Modbus RTU communication protocol for efficient data exchange. This part is part of the PM series, aimed at wire replacement, and is designed for performance mapping applications.
