DX80G9M6S-PM8 Banner I/O Modules
Part#:DX80G9M6S-PM8
Manufacturer:Banner
Alt. Part#:87098
Product Lifecycle:Active
Get a quick Quote!
PM Series Gateway - LCD Selectable I/O Mapping; 900 MHz IP67, NEMA 6; Inputs: Six Sourcing/PNP Discrete; Outputs: Six Sourcing/PNP Discrete
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80G9M6S-PM8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight421.84056 g
- Country Of OriginUS
- Power DC
- Discrete Inputs Yes
- Max Operating Temperature ( °C) 85
- Modbus RTU Yes
- Environmental Rating (NEMA) NEMA 6
- Point-to-Multipoint Topology Yes
- RS-232 No
- Star Topology Yes
- 1-wire Serial Interface No
- Housing Style Enclosed Terminals
- Input Details 6 PNP Discrete
- Max Temp Operating Conditions 85
- Device Type Gateway
- Environmental Rating (IP) IP67
- Point-to-Point Topology Yes
- RS-485 Yes
- Power Supply 10-30 V dc
- Relative Humidity 95%
- Wireless Radio Frequency 900 MHz
- Min Temp Operating Conditions -40
- Wireless Yes
- Discrete Outputs Yes
- LCD Display Yes
- Tree Topology No
- Output Details 6 PNP Discrete
- Input/Output Discrete
- Min Operating Temperature ( °C) -40
- EtherNet/IP No
- PROFINET No
- Modbus/TCP No
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80G9M6S-PM8 Description

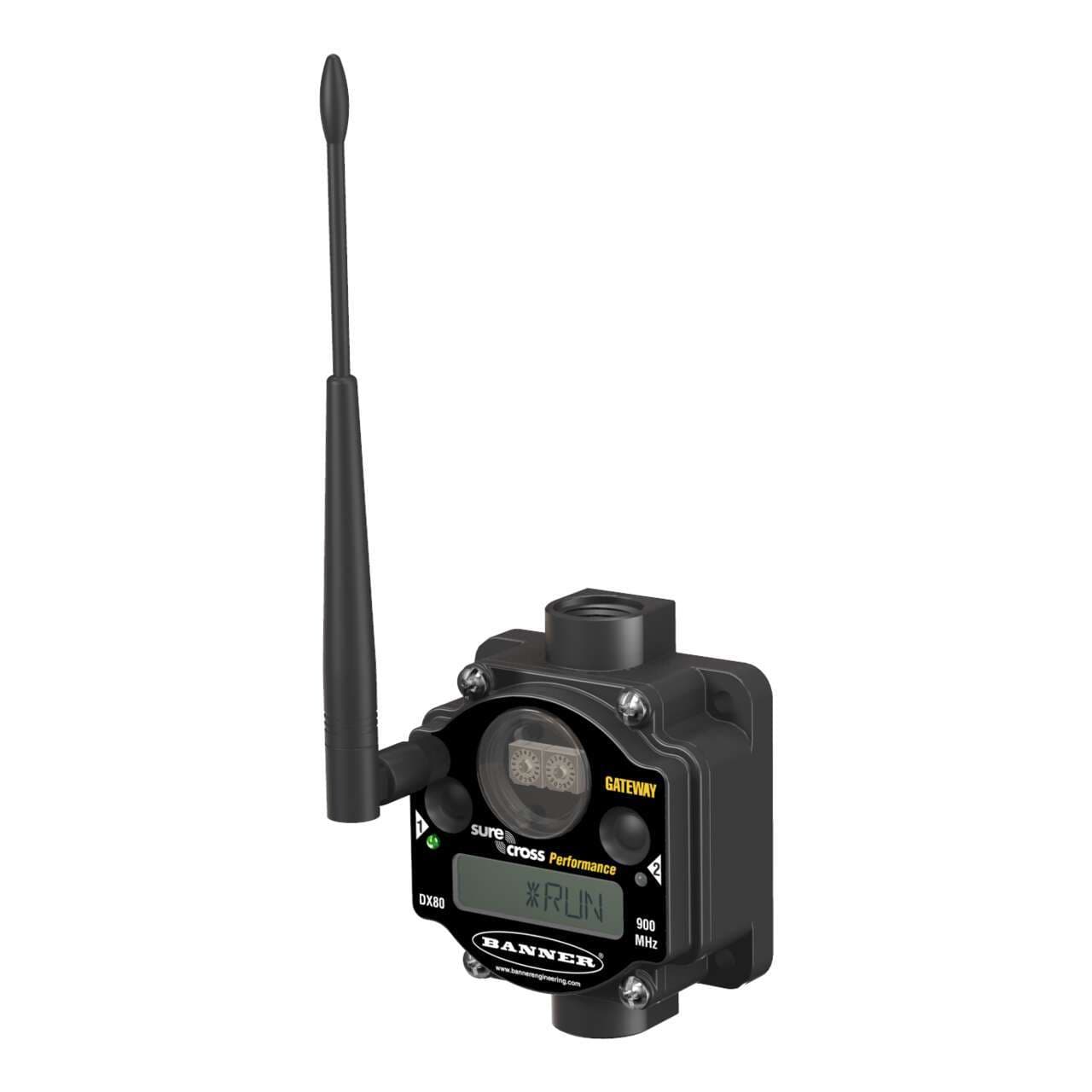

Banner Engineering DX80G9M6S-PM8 is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 and NEMA 6. The dimensions of this rectangular-shaped gateway are H47.3mm x W80.9mm x D80.1mm. It features 6 digital outputs (30Vdc; PNP; 100mA) and 6 digital inputs (30Vdc 3mA; Sourcing). This part of the PM series is designed for wire replacement and includes I.O. mapping, 2 buttons, 2 bi-color LEDs, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. The connection type is a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses alongside an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and communicates via RS-485 Modbus RTU protocol. The transmission frequency is 900MHz on the ISM band with 1W power, capable of a maximum 9.6km transmission distance at nominal emission power.
Related documents DX80G9M6S-PM8 Specs
