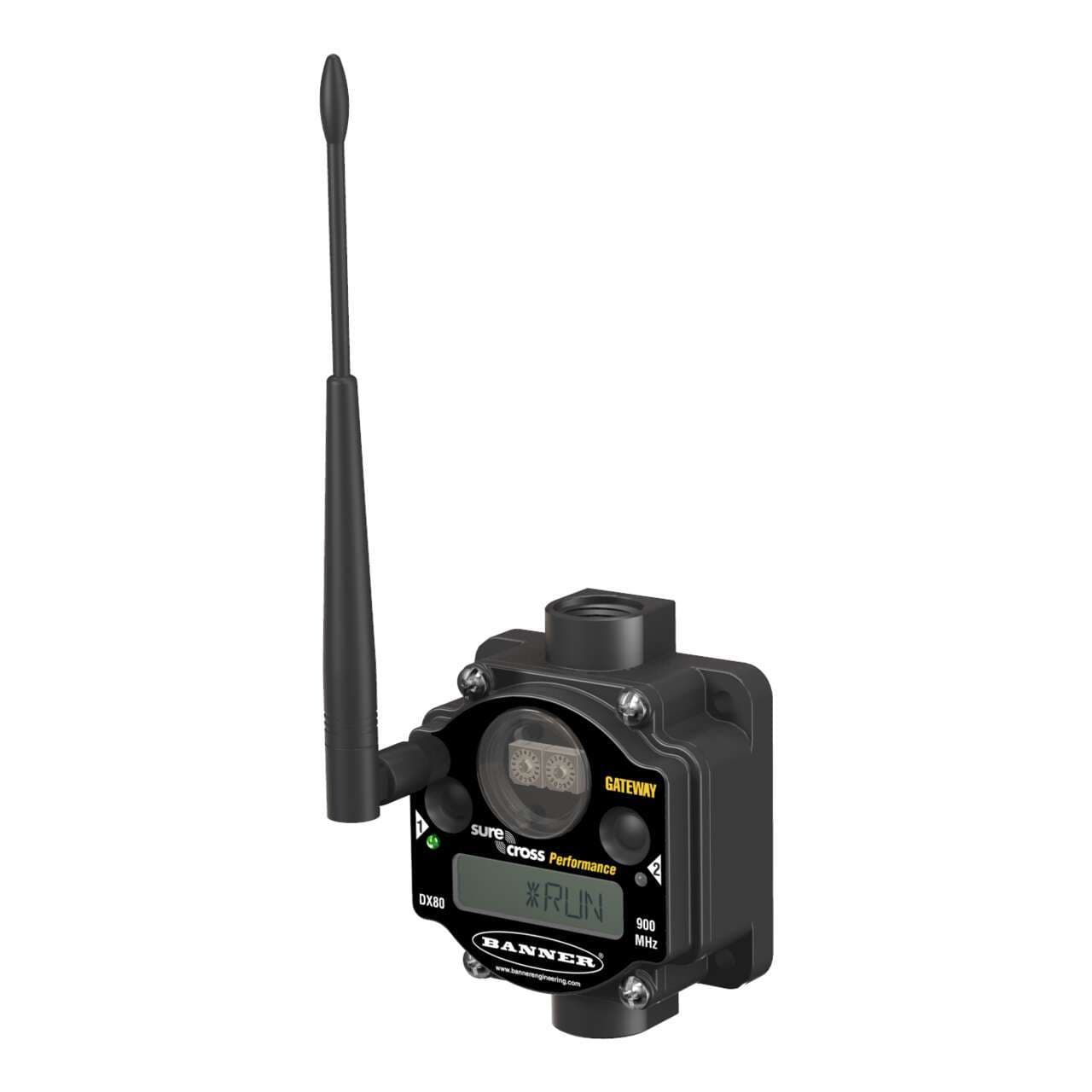

DX80G9M6S-PM2 Banner I/O Modules
Part#:DX80G9M6S-PM2
Manufacturer:Banner
Alt. Part#:87096
Product Lifecycle:Active
Get a quick Quote!
PM Series Gateway -LCD Selectable I/O Mapping; 900 MHz, IP67 /NEMA 6; Inputs:Four Selectable NPN/PNP Discrete; Two 0-20 mA; Outputs: Four PNP Discrete; Two 0-20 mA
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80G9M6S-PM2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight453.592 g
- Country Of OriginUS
- Input Details 4 Selectable Discrete, 2 0-20 mA Analog
- Relative Humidity 95%
- EtherNet/IP No
- Analog Inputs Yes
- Max Temp Operating Conditions 85
- Modbus RTU Yes
- Input/Output Analog & Discrete
- Max Operating Temperature ( °C) 85
- PROFINET No
- Discrete Inputs Yes
- Min Temp Operating Conditions -40
- RS-232 No
- Power Supply 10-30 V dc
- Star Topology Yes
- RS-485 Yes
- Output Details 4 Sourcing Discrete, 2 0-20mA Analog
- Point-to-Multipoint Topology Yes
- Modbus/TCP No
- Power DC
- Environmental Rating (NEMA) NEMA 6
- Tree Topology No
- Wireless Yes
- Housing Style Enclosed Terminals
- Analog Outputs Yes
- LCD Display Yes
- Feature: Hazardous Area No
- Discrete Outputs Yes
- Min Operating Temperature ( °C) -40
- Wireless Radio Frequency 900 MHz
- Device Type Gateway
- Environmental Rating (IP) IP67
- Point-to-Point Topology Yes
- 1-wire Serial Interface No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80G9M6S-PM2 Description
Banner Engineering DX80G9M6S-PM2 is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers 2 x analog outputs (0-20mA; 12-bit), ensuring compatibility with various industrial applications. This part provides an IP67 NEMA 6 degree of protection and has dimensions of H47.3mm x W80.9mm x D80.1mm. It features 4 x digital outputs (30Vdc; PNP; 100mA) and 2 x analog inputs (0-20mA; 12-bit), alongside 4 x digital inputs (30Vdc 3mA; PNP/NPN), catering to diverse connectivity needs. The DX80G9M6S-PM2 operates on a 900 MHz transmission frequency and has a rectangular shape. Its functions are enhanced by I.O. mapping, 2 x buttons, 2 x bi-color LEDs, and FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses, plus an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and communicates via RS-485 Modbus RTU protocol. The frequency is set at the 900MHz ISM band 1W, with a maximum transmission distance of 9.6km at nominal emission power.
