DX80G9M6S-PM2-AN Banner I/O Modules

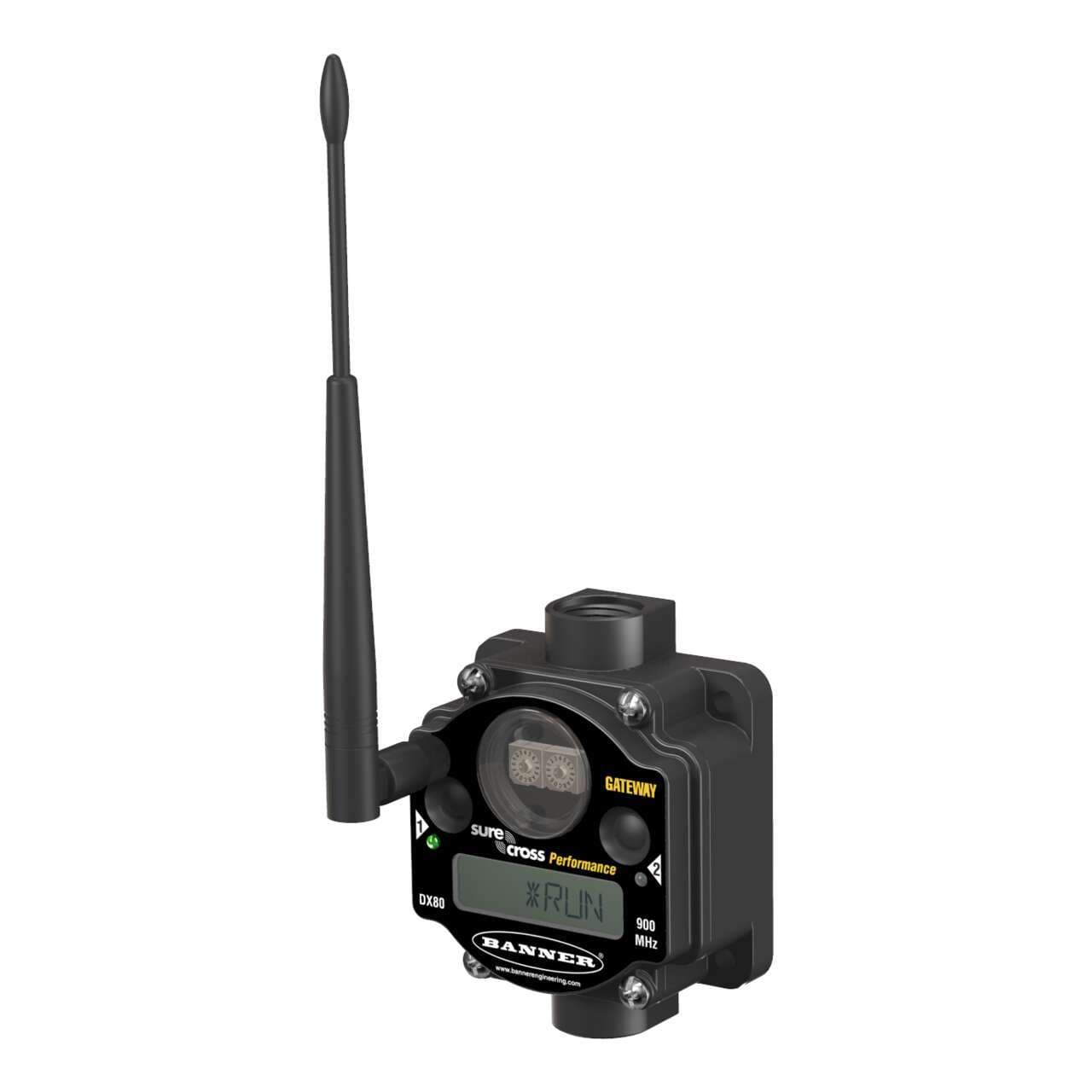

Banner DX80G9M6S-PM2-AN PM Series Gateway -LCD Selectable I/O Mapping; 900 MHz IP67; Inputs: 4 selectable discrete 2 Analog; Outputs: 4 PNP Discrete 2 Analog; Certified for Australia and New Zealand
Banner

Part#:DX80G9M6S-PM2-AN

Manufacturer:Banner

Alt. Part#:801565

Product Lifecycle:Active

Get a quick Quote!

PM Series Gateway -LCD Selectable I/O Mapping; 900 MHz IP67; Inputs: 4 selectable discrete 2 Analog; Outputs: 4 PNP Discrete 2 Analog; Certified for Australia and New Zealand

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80G9M6S-PM2-AN Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight521.6308 g
  • Country Of OriginUS
  • Housing Style
    Enclosed Terminals
  • Power Supply
    10-30 V dc
  • Point-to-Point Topology
    Yes
  • RS-485
    Yes
  • Power
    DC
  • Relative Humidity
    95%
  • Input Details
    4 Selectable Discrete, 2 0-20 mA Analog
  • PROFINET
    No
  • Analog Inputs
    Yes
  • Max Temp Operating Conditions
    85
  • EtherNet/IP
    No
  • Discrete Outputs
    Yes
  • Min Temp Operating Conditions
    -40
  • Discrete Inputs
    Yes
  • LCD Display
    Yes
  • Modbus RTU
    Yes
  • Input/Output
    Analog & Discrete
  • Environmental Rating (NEMA)
    NEMA 6
  • Environmental Rating (IP)
    IP67
  • Device Type
    Gateway
  • Tree Topology
    No
  • Feature: Hazardous Area
    No
  • Star Topology
    Yes
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    900 MHz
  • Analog Outputs
    Yes
  • RS-232
    No
  • Wireless
    Yes
  • Output Details
    4 Sourcing Discrete, 2 0-20mA Analog
  • Point-to-Multipoint Topology
    Yes
  • Modbus/TCP
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

DX80G9M6S-PM2-AN Description

Banner Engineering DX80G9M6S-PM2-AN is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers 2 x analog outputs (0-20mA; 12-bit), 4 x digital outputs (30Vdc; PNP; 100mA), 2 x analog inputs (0-20mA; 12-bit), and 4 x digital inputs (30Vdc 3mA; PNP/NPN). This device features an IP67 NEMA 6 degree of protection, dimensions of H47.3mm x W80.9mm x D80.1mm, and operates on a 900 MHz transmission frequency. Its rectangular shape is part of the PM series, designed for wire replacement with I.O. mapping, 2 x buttons, 2 x bi-color LEDs, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology for Australia and New Zealand. The connection type includes a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses alongside an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.), uses RS-485 Modbus RTU communication protocol, operates on a 900MHz ISM band with 1W power, and can achieve a maximum transmission distance of 9.6km at nominal emission power.

Related documents DX80G9M6S-PM2-AN Specs

DX80G9M6S-PM2-AN 173566.pdf
