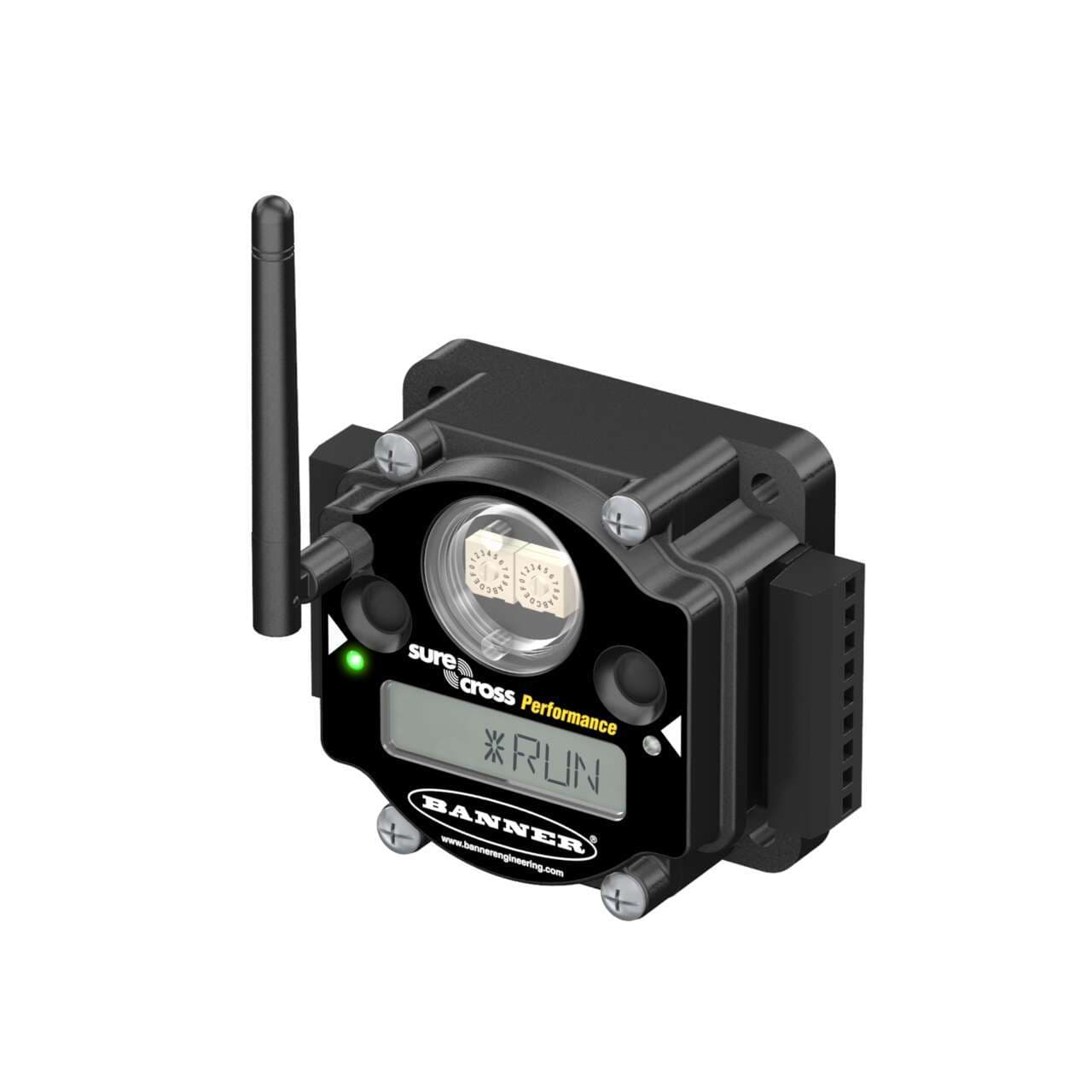

DX80G9M6S-P2C Banner I/O Modules
Part#:DX80G9M6S-P2C
Manufacturer:Banner
Alt. Part#:18787
Product Lifecycle:Active
Get a quick Quote!
DX80 Perf 900 mHz Gateway 1 W IP20 C; 10-30 V dc Ext Antenna RS485; In: 4 Disc 2 Anlg Uni; Out: 4 Disc PNP 2 Anlg 0-20 mA; External Terminals
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80G9M6S-P2C Banner price in the box on the right side or send a quick quote.
Product Details
- Weight498.9512 g
- Country Of OriginUS
- Wireless Radio Frequency 900 MHz
- Power DC
- Max Temp Operating Conditions 85
- Star Topology Yes
- Modbus RTU Yes
- Discrete Outputs Yes
- Power Supply 10-30 V dc
- Relative Humidity 95%
- Modbus/TCP No
- Housing Style External Terminals
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Point-to-Multipoint Topology Yes
- RS-485 Yes
- Input Details 4 Selectable Discrete, 2 0-20 mA or 0-10 V
- LCD Display Yes
- RS-232 No
- Analog Inputs Yes
- Environmental Rating (IP) IP20
- Point-to-Point Topology Yes
- Device Type Gateway
- Environmental Rating (NEMA) NEMA 1
- Wireless Yes
- PROFINET No
- Input/Output Analog & Discrete
- Max Operating Temperature ( °C) 85
- Tree Topology No
- Analog Outputs Yes
- Min Operating Temperature ( °C) -40
- EtherNet/IP No
- Discrete Inputs Yes
- Output Details 4 Sourcing Discrete, 2 0-20mA Analog
- Min Temp Operating Conditions -40
- Feature: Hazardous Area Yes
- 1-wire Serial Interface No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80G9M6S-P2C Description
Banner Engineering DX80G9M6S-P2C is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers 2 analog outputs (0-20mA; 12-bit), ensuring compatibility with various analog devices. This gateway is protected to IP20 and NEMA 1 standards, with dimensions of H44.5mm x W103.3mm x D80.1mm. It features 4 digital outputs (30Vdc; PNP; 100mA) and 2 analog inputs (0-20mA / 0-10Vdc; 12-bit), alongside 4 digital inputs (30Vdc 3mA; PNP/NPN), catering to a wide range of digital and analog signal requirements. The DX80G9M6S-P2C operates on a 900 MHz transmission frequency with a maximum transmission distance of 9.6km (at nominal emission power), utilizing FHSS (Frequency Hopping Spread Spectrum) technology for enhanced communication reliability. It is designed with 2 buttons, 2 bi-color LEDs for Ex e II applications, detachable screw-clamp connectors, and an RP-SMA connector for versatile connectivity options. The supply voltage ranges from 10-30Vdc (12Vdc-24Vdc nom.), and it supports RS-485 Modbus RTU communication protocol, making it suitable for a variety of industrial applications within the SureCross DX80 series.
Related documents DX80G9M6S-P2C Specs
