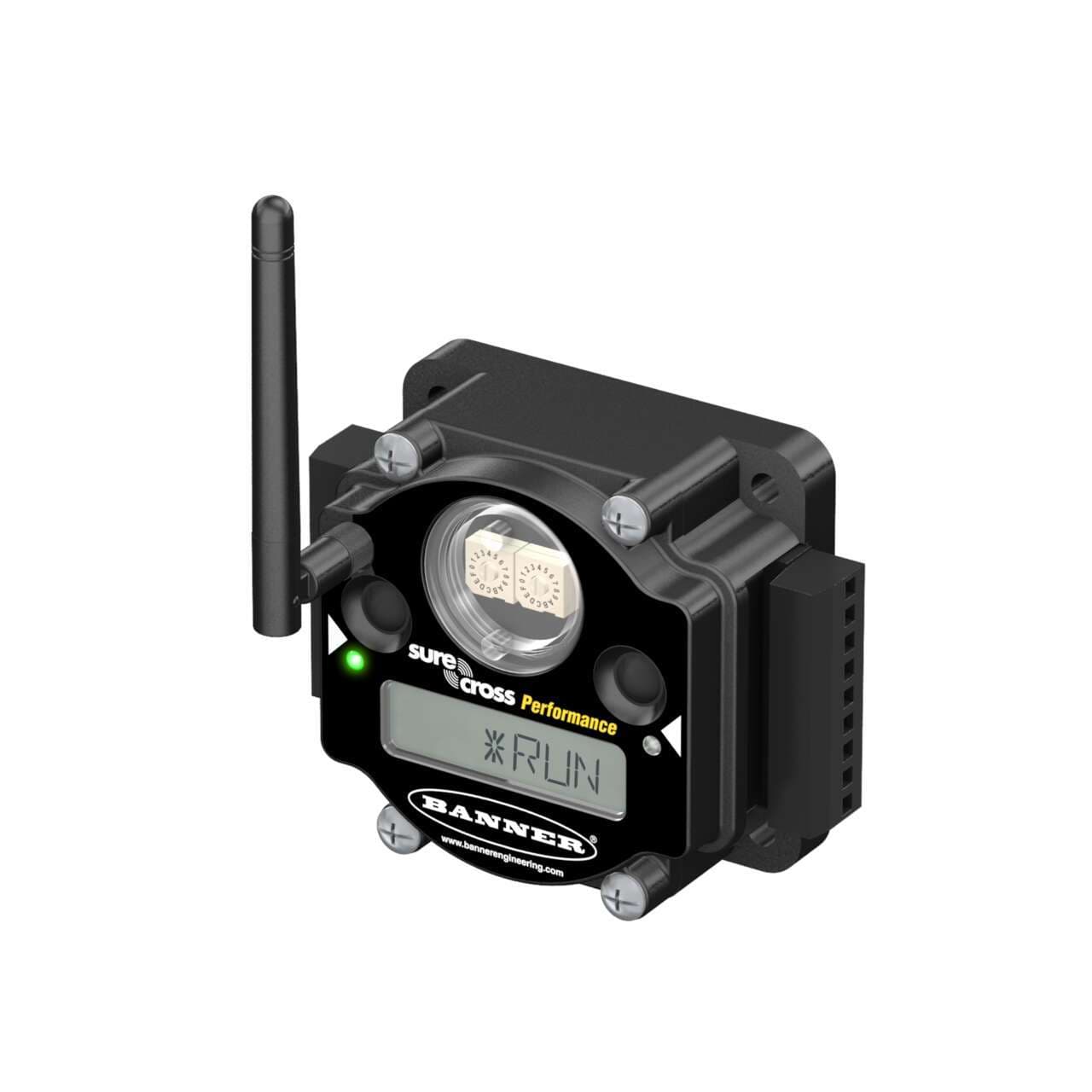

DX80G2M6S-PM8C Banner I/O Modules
Part#:DX80G2M6S-PM8C
Manufacturer:Banner
Alt. Part#:87103
Product Lifecycle:Active
Get a quick Quote!
PM Series Gateway - LCD Selectable I/O Mapping; 2.4 GHz IP20, NEMA 1; Inputs: Six Sourcing/PNP Discrete; Outputs: Six Sourcing/PNP Discrete; External Terminals
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80G2M6S-PM8C Banner price in the box on the right side or send a quick quote.
Product Details
- Weight421.84056 g
- Country Of OriginUS
- Power DC
- Min Temp Operating Conditions -40
- Modbus RTU Yes
- Output Details 6 PNP Discrete
- Max Operating Temperature ( °C) 85
- Feature: Hazardous Area Yes
- 1-wire Serial Interface No
- Wireless Yes
- Input Details 6 PNP Discrete
- Relative Humidity 95%
- RS-485 Yes
- Discrete Outputs Yes
- Environmental Rating (IP) IP20
- PROFINET No
- Point-to-Multipoint Topology Yes
- Input/Output Discrete
- LCD Display Yes
- EtherNet/IP No
- Device Type Gateway
- Max Temp Operating Conditions 85
- RS-232 No
- Discrete Inputs Yes
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Star Topology Yes
- Housing Style External Terminals
- Min Operating Temperature ( °C) -40
- Tree Topology No
- Power Supply 10-30 V dc
- Environmental Rating (NEMA) NEMA 1
- Point-to-Point Topology Yes
- Modbus/TCP No
- Wireless Radio Frequency 2.4 GHz
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80G2M6S-PM8C Description
Banner Engineering DX80G2M6S-PM8C is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. The dimensions of this rectangular-shaped gateway are H44.5mm x W103.3mm x D80.1mm. It features 6 digital outputs (30Vdc; PNP; 100mA) and 6 digital inputs (30Vdc 3mA; Sourcing), suitable for diverse applications. The DX80G2M6S-PM8C operates on a transmission frequency of 2400 MHz and utilizes FHSS (Frequency Hopping Spread Spectrum) technology for enhanced communication reliability. It is part of the PM series, designed for wire replacement in Ex e II applications, and includes I.O. mapping, 2 buttons, and 2 bi-color LEDs for operational status indication. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector, with a supply voltage requirement of 10-30Vdc (12Vdc-24Vdc nom.). This gateway supports RS-485 Modbus RTU communication protocol and operates on the 2.4GHz ISM band with a 65mW frequency, capable of achieving a maximum transmission distance of 3.2km at nominal emission power.
Related documents DX80G2M6S-PM8C Specs
