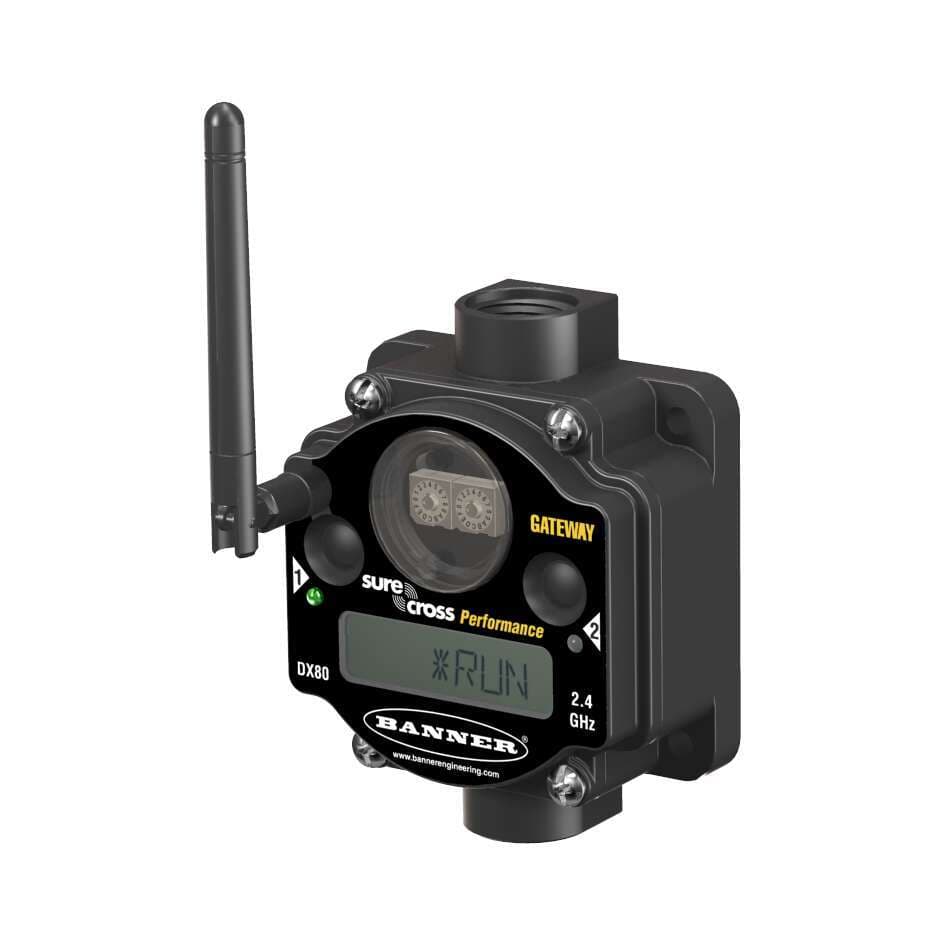

DX80G2M6S-PM8 Banner I/O Modules
Part#:DX80G2M6S-PM8
Manufacturer:Banner
Alt. Part#:87099
Product Lifecycle:Active
Get a quick Quote!
PM Series Gateway - LCD Selectable I/O Mapping; 2.4 GHz IP67, NEMA 6; Inputs: Six Sourcing/PNP Discrete; Outputs: Six Sourcing/PNP Discrete
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80G2M6S-PM8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight421.84056 g
- Country Of OriginUS
- Input Details 6 PNP Discrete
- Point-to-Multipoint Topology Yes
- PROFINET No
- Housing Style Enclosed Terminals
- Environmental Rating (NEMA) NEMA 6
- Feature: Hazardous Area No
- RS-232 No
- Input/Output Discrete
- Max Operating Temperature ( °C) 85
- Modbus RTU Yes
- Power Supply 10-30 V dc
- Power DC
- EtherNet/IP No
- Device Type Gateway
- Environmental Rating (IP) IP67
- Point-to-Point Topology Yes
- Min Operating Temperature ( °C) -40
- Modbus/TCP No
- Discrete Inputs Yes
- Min Temp Operating Conditions -40
- LCD Display Yes
- Star Topology Yes
- RS-485 Yes
- Discrete Outputs Yes
- Max Temp Operating Conditions 85
- Tree Topology No
- Output Details 6 PNP Discrete
- Relative Humidity 95%
- 1-wire Serial Interface No
- Wireless Yes
- Wireless Radio Frequency 2.4 GHz
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80G2M6S-PM8 Description
Banner Engineering DX80G2M6S-PM8 is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. The dimensions of this rectangular-shaped gateway are H47.3mm x W80.9mm x D80.1mm. It features 6 digital outputs (30Vdc; PNP; 100mA) and 6 digital inputs (30Vdc 3mA; Sourcing). This part of the PM series supports I.O. mapping, has 2 buttons, 2 bi-color LEDs, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology for communication. The connection is facilitated through a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses alongside an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and communicates via RS-485 Modbus RTU protocol. Operating on a frequency of 2.4GHz ISM band 65mW, it can achieve a maximum transmission distance of 3.2km at nominal emission power.
