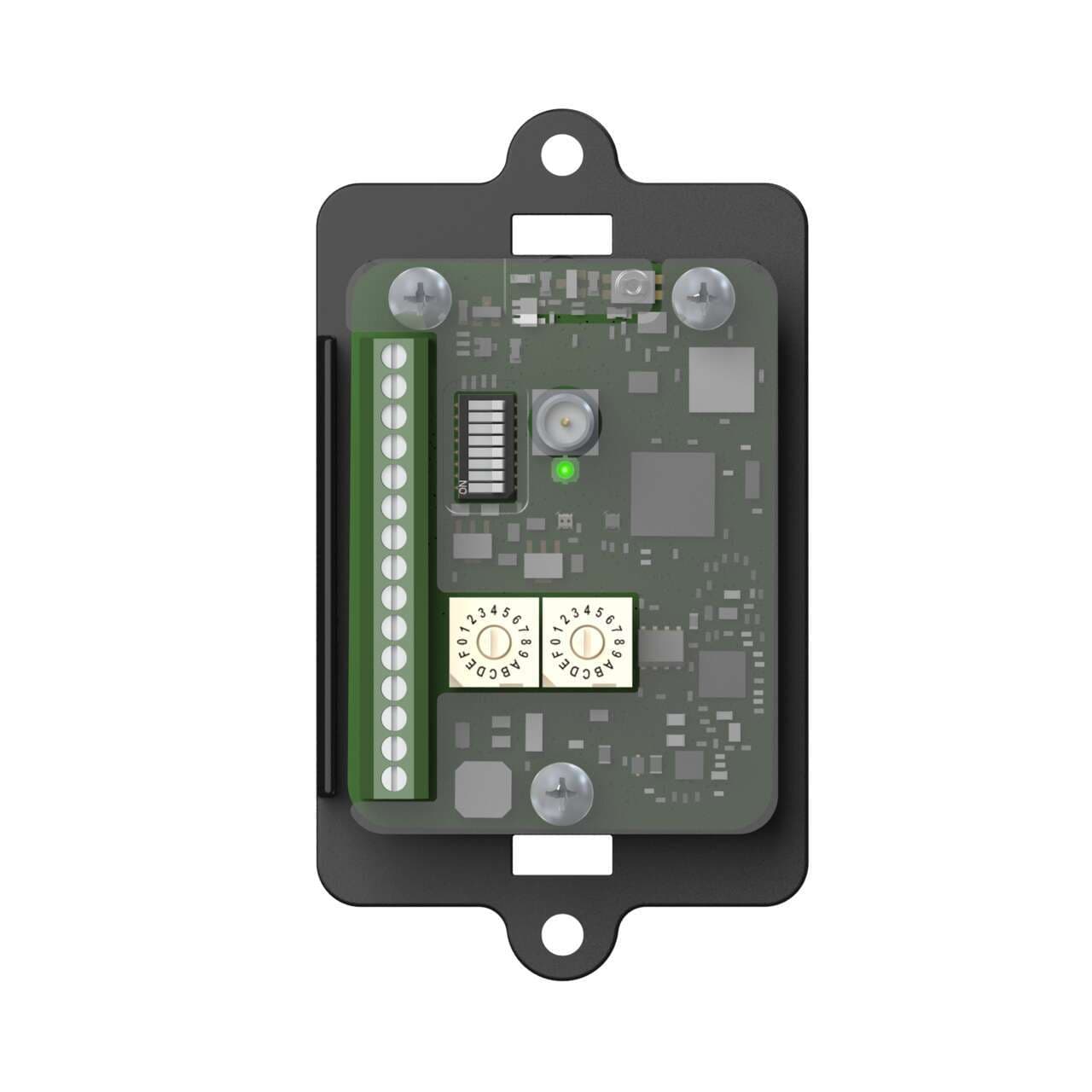

DX80G2M6S-PB2 Banner I/O Modules
Part#:DX80G2M6S-PB2
Manufacturer:Banner
Alt. Part#:25756
Product Lifecycle:Active
Get a quick Quote!
DX80 Perf 2.4 GHz Gateway 65 mW Board; 10-30 V dc Ext Antenna; In: 2 Disc 2 Anlg; Out: 2 Disc 2 Anlg
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80G2M6S-PB2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1066.757666 g
- Country Of OriginUS
- Input/Output Analog & Discrete
- Analog Inputs Yes
- Discrete Inputs Yes
- Input Details 2 Sourcing Discrete, 2 0-20 mA Analog
- Max Temp Operating Conditions 85
- RS-485 Yes
- Analog Outputs Yes
- Relative Humidity 95%
- Tree Topology No
- Modbus/TCP No
- Power DC
- EtherNet/IP No
- Point-to-Point Topology Yes
- Device Type Gateway
- Power Supply 10-30 V dc
- Feature: Hazardous Area Yes
- Housing Style Board Level
- Point-to-Multipoint Topology Yes
- Modbus RTU Yes
- Discrete Outputs Yes
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Wireless Radio Frequency 2.4 GHz
- Min Temp Operating Conditions -40
- Max Operating Temperature ( °C) 85
- RS-232 No
- Min Operating Temperature ( °C) -40
- Star Topology Yes
- Wireless Yes
- Output Details 2 Sourcing Discrete, 2 0-20 mA analog
- PROFINET No
- 1-wire Serial Interface No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80G2M6S-PB2 Description
Banner Engineering DX80G2M6S-PB2 is a gateway designed for surface mounting with a rectangular shape and dimensions of H26.8mm x W94mm x D53mm. It operates within an ambient air temperature range of -40 to +85°C and features 2 analog inputs and 2 analog outputs, both supporting 0-20mA with 12-bit resolution. Additionally, it includes 2 digital inputs and 2 digital outputs, with the digital inputs accepting 30Vdc 3mA (PNP) and the outputs handling 30Vdc at 100mA (PNP). This part of the SureCross DX80 series utilizes Frequency Hopping Spread Spectrum (FHSS) technology for enhanced communication reliability and is equipped with detachable screw-clamp connectors and an RP-SMA connector for connectivity. It supports a supply voltage range of 10-30Vdc (12Vdc-24Vdc nominal) and uses the RS-485 Modbus RTU communication protocol. Operating on a 2.4GHz ISM band frequency with a 65mW power output, it can achieve a maximum transmission distance of 3.2km at nominal emission power.
Related documents DX80G2M6S-PB2 Specs
