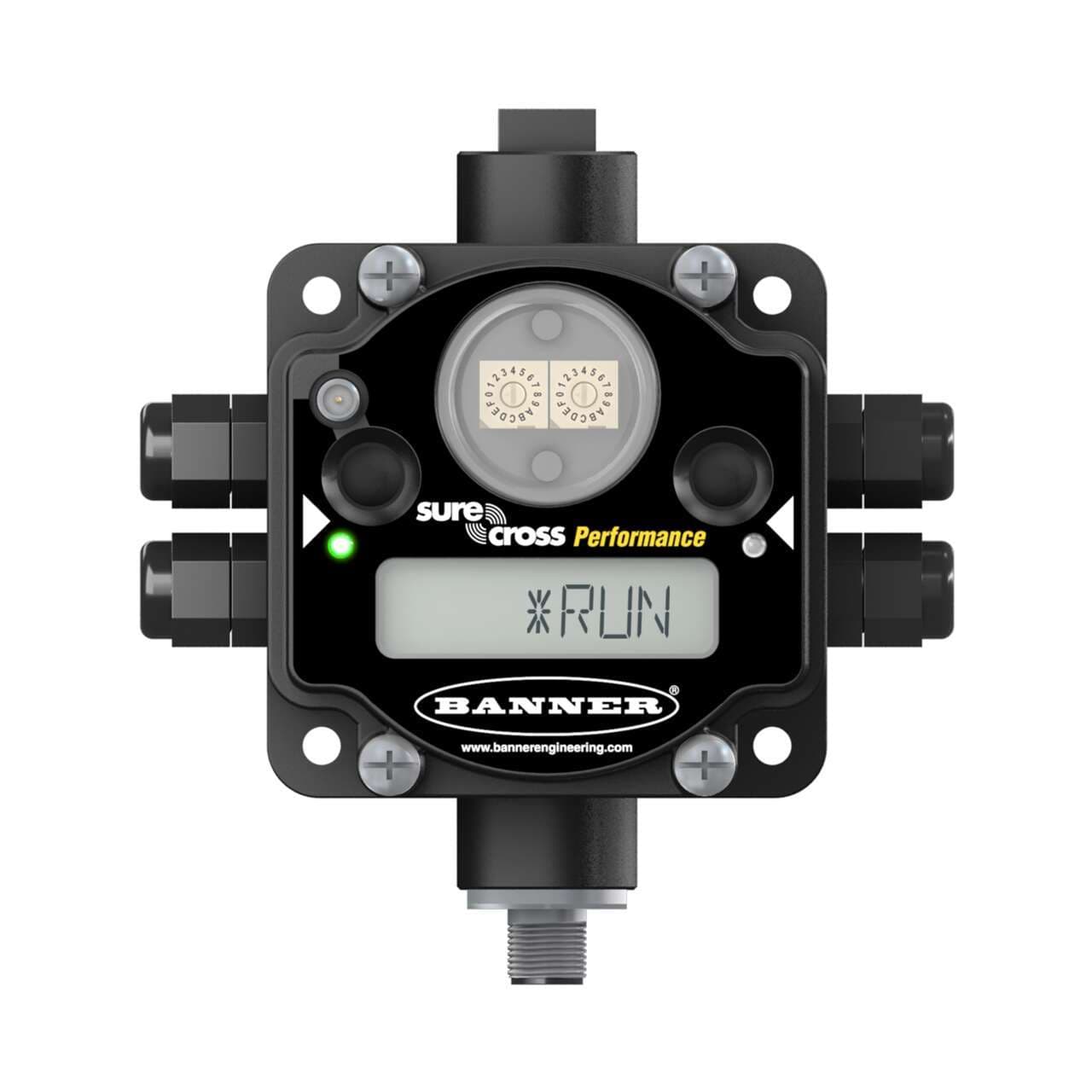

DX80G2M6S-P2 Banner I/O Modules
Part#:DX80G2M6S-P2
Manufacturer:Banner
Alt. Part#:17533
Product Lifecycle:Active
Get a quick Quote!
DX80 Perf 2.4 GHz Gateway 65 mW IP67; 10-30 V dc Ext Antenna RS485; In: 4 Disc 2 Anlg Uni; Out: 4 Disc PNP 2 Anlg 0-20 mA
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80G2M6S-P2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight436.8998144 g
- Country Of OriginUS
- Device Type Gateway
- Min Temp Operating Conditions -40
- Modbus RTU Yes
- Discrete Inputs Yes
- Output Details 4 Sourcing Discrete, 2 0-20mA Analog
- Point-to-Point Topology Yes
- Wireless Yes
- Input/Output Analog & Discrete
- Environmental Rating (IP) IP67
- Point-to-Multipoint Topology Yes
- Modbus/TCP No
- Analog Outputs Yes
- Max Operating Temperature ( °C) 85
- EtherNet/IP No
- 1-wire Serial Interface No
- Power Supply 10-30 V dc
- Feature: Hazardous Area No
- Analog Inputs Yes
- Environmental Rating (NEMA) NEMA 6
- Star Topology Yes
- Wireless Radio Frequency 2.4 GHz
- Input Details 4 Selectable Discrete, 2 0-20 mA or 0-10 V
- LCD Display Yes
- Tree Topology No
- RS-485 Yes
- Housing Style Enclosed Terminals
- Power DC
- Min Operating Temperature ( °C) -40
- PROFINET No
- Discrete Outputs Yes
- Max Temp Operating Conditions 85
- Relative Humidity 95%
- RS-232 No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80G2M6S-P2 Description
Banner Engineering DX80G2M6S-P2 is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. It operates within an ambient air temperature range of -40 to +85°C and offers two analog outputs (0-20mA; 12-bit), alongside four digital outputs (30Vdc; PNP; 100mA). This part also features two analog inputs (0-20mA / 0-10Vdc; 12-bit) and four digital inputs (30Vdc 3mA; PNP/NPN), suitable for diverse connectivity needs. With dimensions of H59.8mm x W126.7mm x D117.4mm and a rectangular shape, it provides an IP67 NEMA 6 degree of protection. The DX80G2M6S-P2 utilizes Frequency Hopping Spread Spectrum (FHSS) technology, has a wiring chamber with screw-clamp connections, and includes 4 x Pg7 cable accesses, a gld. 1/2" NPT threaded cable access, a 5-pin M12 male connector, and an RP-SMA connector for versatile connectivity options. It supports a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.), uses RS-485 Modbus RTU communication protocol, operates on a 2.4GHz ISM band frequency with 65mW power, and can achieve a maximum transmission distance of 3.2km at nominal emission power.
Related documents DX80G2M6S-P2 Specs
