DX80G2M2S-P7 Banner I/O Modules

Banner DX80G2M2S-P7 DX80 Perf 2.4 GHz Gateway 65 mW IP67; Flex Ext Antenna RS485; Up to 12 Disc NPN IO
Banner

Part#:DX80G2M2S-P7

Manufacturer:Banner

Alt. Part#:17456

Product Lifecycle:Active

Get a quick Quote!

DX80 Perf 2.4 GHz Gateway 65 mW IP67; Flex Ext Antenna RS485; Up to 12 Disc NPN IO

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80G2M2S-P7 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight589.6696 g
  • Country Of OriginUS
  • Device Type
    Gateway
  • Tree Topology
    No
  • Wireless
    Yes
  • Discrete Inputs
    Yes
  • Min Temp Operating Conditions
    -40
  • Star Topology
    Yes
  • Power Supply
    10-30 V dc or 3.6-5.5 V dc low power option
  • LCD Display
    Yes
  • EtherNet/IP
    No
  • Max Temp Operating Conditions
    85
  • Modbus/TCP
    No
  • Wireless Radio Frequency
    2.4 GHz
  • Output Details
    up to 12 NMOS sinking outputs
  • Max Operating Temperature ( °C)
    85
  • RS-485
    Yes
  • Housing Style
    Enclosed Terminals
  • Relative Humidity
    95%
  • Modbus RTU
    Yes
  • Input/Output
    Discrete
  • Point-to-Point Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Power
    Flex Power
  • Ships With Battery
    No
  • PROFINET
    No
  • Discrete Outputs
    Yes
  • Environmental Rating (IP)
    IP67
  • Min Operating Temperature ( °C)
    -40
  • RS-232
    No
  • Input Details
    up to 12 sinking inputs
  • Environmental Rating (NEMA)
    NEMA 6
  • Feature: Hazardous Area
    No
  • 1-wire Serial Interface
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

DX80G2M2S-P7 Description

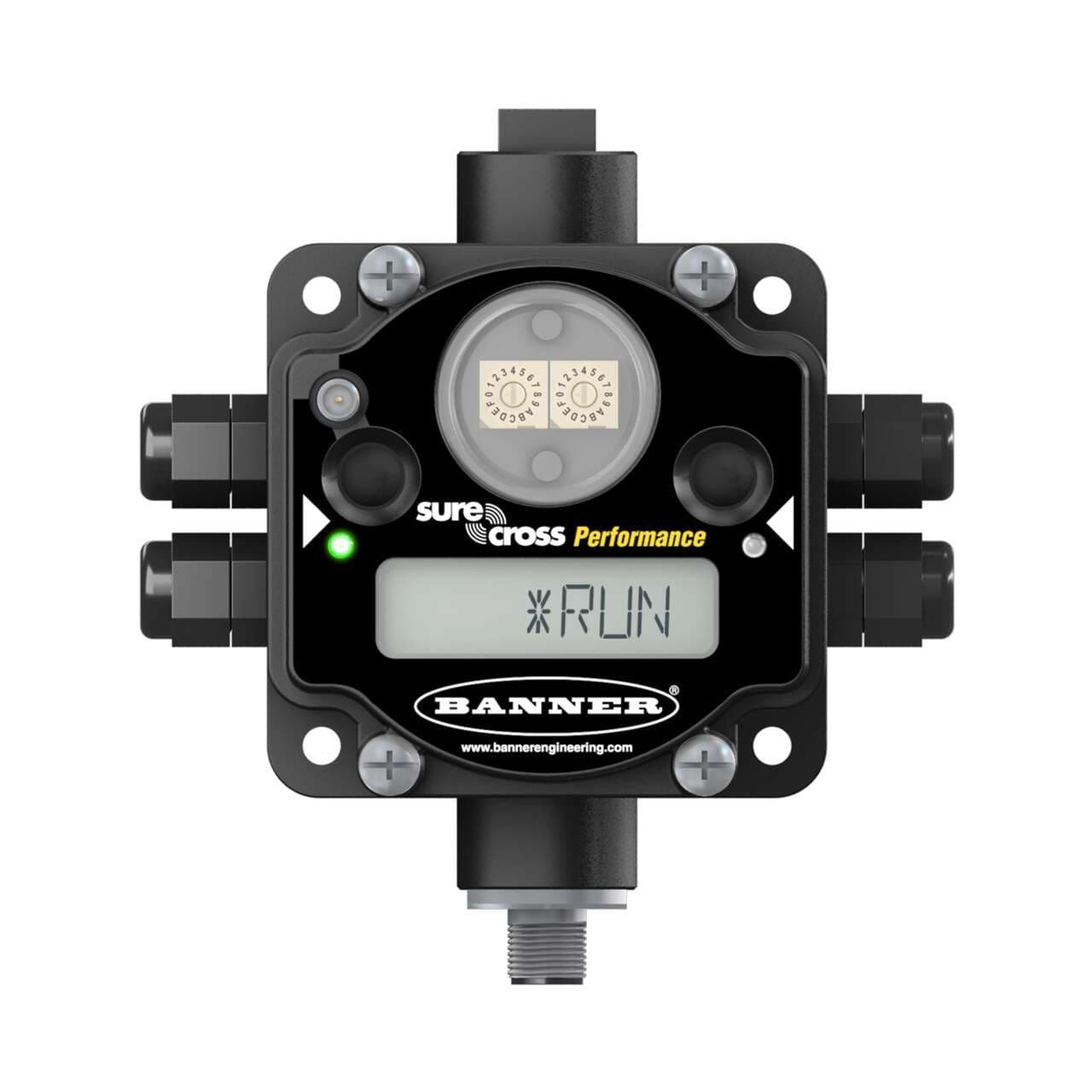

Banner Engineering DX80G2M2S-P7 is a gateway featuring a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, designed for surface mounting. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 and NEMA 6. The dimensions of this rectangular-shaped gateway are H59.8mm x W126.7mm x D117.4mm. It operates on a transmission frequency of 2400 MHz and includes 12 digital inputs (30Vdc 3mA; Sinking) that can also function as digital NMOS 100mA 30Vdc outputs. This Flexpower performance gateway, part of the SureCross DX80 series, incorporates I.O. with 2 buttons, 2 bi-color LEDs, utilizes FHSS (Frequency Hopping Spread Spectrum) technology, and supports Time Division Multiple Access (TDMA). The connection is facilitated through a wiring chamber with screw-clamp connections, 4 x Pg7 cable accesses, a gld. 1/2" NPT threaded cable access, a 5-pin M12 male connector, and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and communicates via RS-485 Modbus RTU protocol. The frequency is set in the 2.4GHz ISM band at 65mW, capable of a maximum transmission distance of 3.2km at nominal emission power.

Related documents DX80G2M2S-P7 Specs

DX80G2M2S-P7 155285.pdf

1-year warranty
