DX80ER9M-H Banner Electronic Components

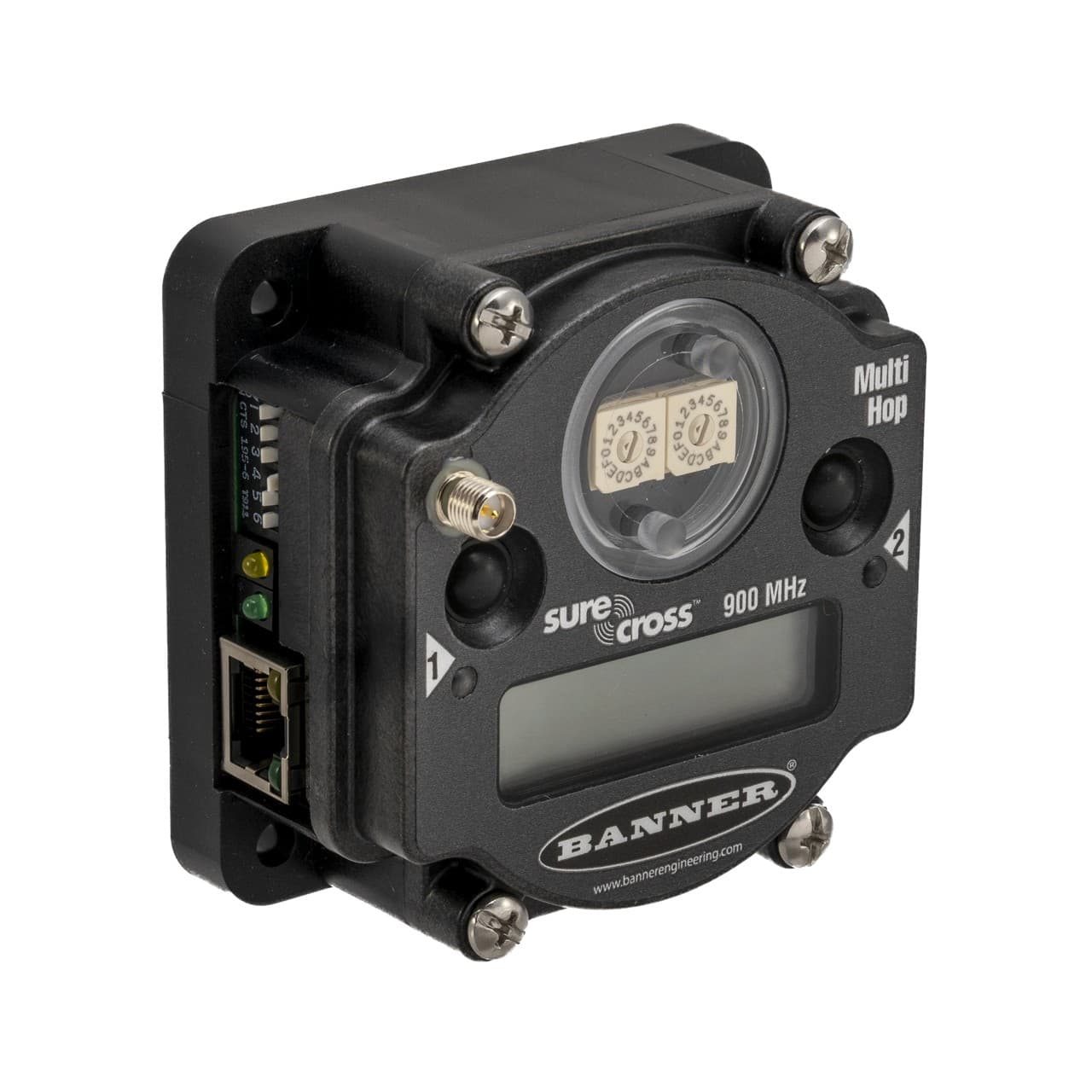

Banner DX80ER9M-H Banner Engineering DX80ER9M-H is a Gateway designed for surface mounting, featuring a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. The dimensions of this rectangular-shaped gateway are H41.3mm x W80.14mm x D80.14mm. It utilizes a 900 MHz transmission frequency and is equipped with MultiHop flexpower data radio functionality, falling under the MultiHop Modbus IO data radios sub-range. The design incorporates 2 buttons, 2 bi-color LEDs, and employs FHSS (Frequency Hopping Spread Spectrum) technology. For connections, it uses an RJ45 connector (Ethernet), screw connections, and an RP-SMA connector. The supply voltage required is 12-30Vdc (12Vdc-24Vdc nom.). It supports RS-485, RS-232, Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Operating on a 900MHz ISM band with 1W power, it can achieve a maximum transmission distance of 9.6km at nominal emission power.
Banner

Part#:DX80ER9M-H

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Banner Engineering DX80ER9M-H is a Gateway designed for surface mounting, featuring a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. The dimensions of this rectangular-shaped gateway are H41.3mm x W80.14mm x D80.14mm. It utilizes a 900 MHz transmission frequency and is equipped with MultiHop flexpower data radio functionality, falling under the MultiHop Modbus IO data radios sub-range. The design incorporates 2 buttons, 2 bi-color LEDs, and employs FHSS (Frequency Hopping Spread Spectrum) technology. For connections, it uses an RJ45 connector (Ethernet), screw connections, and an RP-SMA connector. The supply voltage required is 12-30Vdc (12Vdc-24Vdc nom.). It supports RS-485, RS-232, Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Operating on a 900MHz ISM band with 1W power, it can achieve a maximum transmission distance of 9.6km at nominal emission power.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80ER9M-H Banner price in the box on the right side or send a quick quote.

Product Details

  • Power
    Flex Power
  • Power Supply
    10-30 V dc or 3.6-5.5 V dc low power option
  • Environmental Rating (NEMA)
    NEMA 1
  • Max Operating Temperature ( °C)
    85
  • Point-to-Point Topology
    Yes
  • Tree Topology
    Yes
  • Wireless Radio Frequency
    900 MHz
  • Min Temp Operating Conditions
    -40
  • Modbus/TCP
    Yes
  • RS-485
    Yes
  • Housing Style
    External Terminals
  • Modbus RTU
    Yes
  • Wireless
    Yes
  • Device Type
    Multihop Data Radio
  • Environmental Rating (IP)
    IP20
  • Relative Humidity
    95%
  • Star Topology
    Yes
  • RS-232
    Yes
  • 1-wire Serial Interface
    No
  • Max Temp Operating Conditions
    85
  • LCD Display
    Yes
  • Point-to-Multipoint Topology
    Yes
  • EtherNet/IP
    Yes
  • Ships With Battery
    No
  • Min Operating Temperature ( °C)
    -40
  • Feature: Hazardous Area
    No
  • PROFINET
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents DX80ER9M-H Specs

DX80ER9M-H MultiHop Ethernet Data Radio-1630954279627.pdf
