DEE2R-819D Banner Cordsets

Banner DEE2R-819D Cordset: Double Ended M12; 8-pin Straight Female; 8-pin Straight Male; 5.79 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts
Banner

Part#:DEE2R-819D

Manufacturer:Banner

Alt. Part#:29141

Product Lifecycle:Active

Get a quick Quote!

Cordset: Double Ended M12; 8-pin Straight Female; 8-pin Straight Male; 5.79 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DEE2R-819D Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight362.8736 g
  • Country Of OriginTW
  • Trunk Length (m)
    No Trunk
  • Outside Cable Diameter (mm)
    6
  • Secondary Coupling Method
    M12 Single Key
  • Coupling Material/Color
    Nickel Plated Brass
  • IP Rating
    IP68
  • Secondary Gender
    Male
  • Cable Jacket Material
    PVC
  • Primary Coupling Method
    M12 Single Key
  • Secondary Orientation
    Straight
  • Number of Contacts
    8
  • Primary Connector Type
    EURO
  • Secondary Number of Conductors
    8
  • Connector Body Material/Color
    PUR Black
  • Primary Gender
    Female
  • Maximum Temp. (°C)
    105
  • Primary AWG
    22
  • Oil/Grease Resistant
    No
  • Number of Connectors
    2
  • Shield/No Shield
    No Shield
  • Secondary AWG
    22
  • Current Rating (A)
    2.0
  • Primary Orientation
    Straight
  • Feature: Hazardous Area
    No
  • Cordset Length (m)
    5.79
  • Minimum Temp. (°C)
    -40
  • Primary Number of Conductors
    8
  • Cable Jacket Color
    Yellow
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Secondary Connector Type
    EURO

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

DEE2R-819D Description

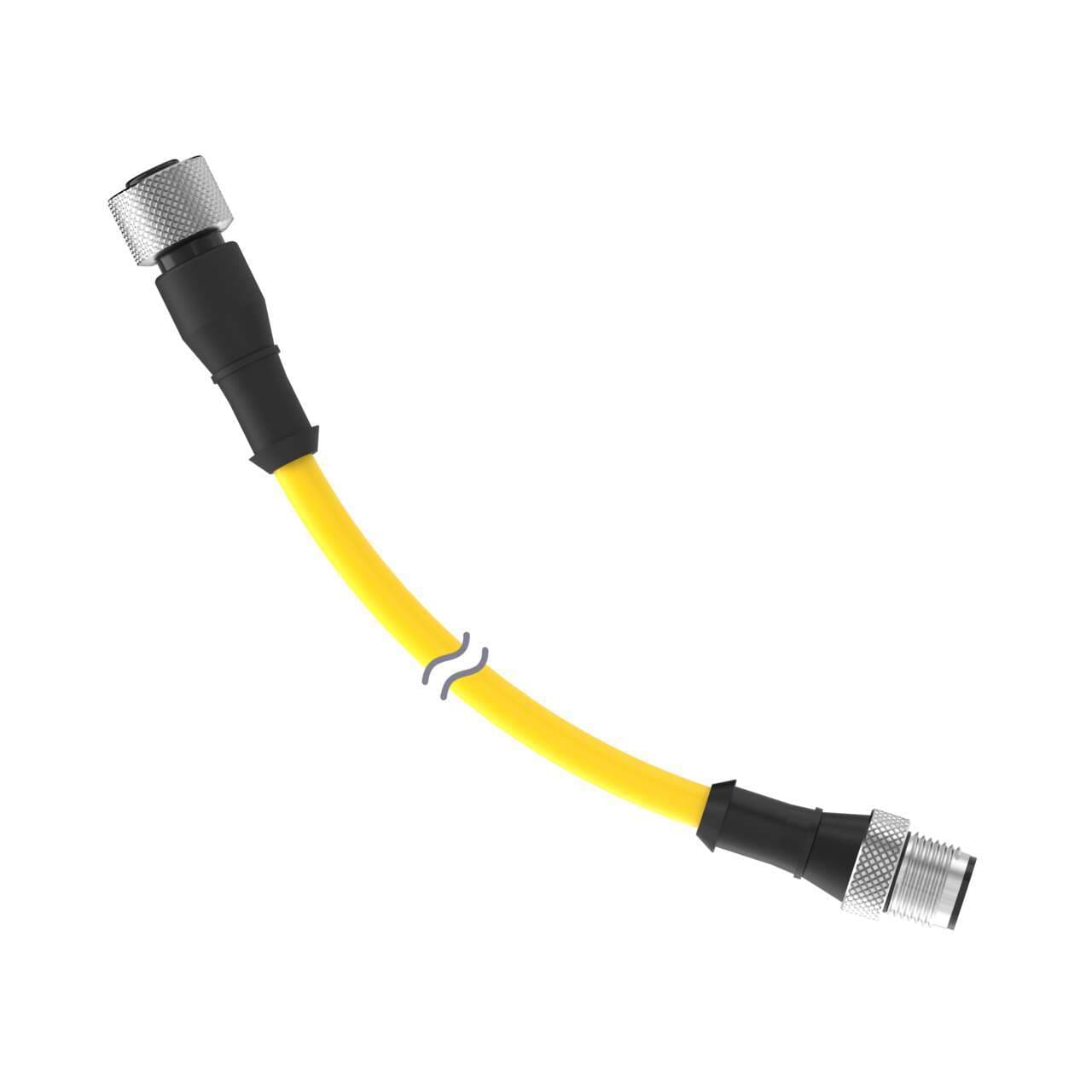

Banner Engineering DEE2R-819D is a pre-assembled cable/cordset designed with a double-ended configuration, featuring an 8-pin Euro-style M12 female connector on one end and an 8-pin Euro-style M12 male connector on the other. The cable is constructed with a chrome-plated brass coupling nut and PVC cable sheathing in yellow, ensuring durability and visibility. It has a diameter of 6mm and a length of 19ft (5.79m). This part is engineered to operate within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68, making it suitable for challenging environments. The DEE2R-819D is rated for a voltage of 60Vac and 75Vdc, accommodating a variety of electrical requirements.

1-year warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

By purchasing this item, you agree to the Terms & Conditions

Quotebeam is NOT an authorized distributor of Banner

Shipping and Delivery Worldwide

calculate costs and time

Secure Payment Processing

with money back guarantee

1 year warranty

on all parts

Responsive Customer Support

we're here to help!

Need more details?

Feel free to chat with us or check our FAQ

Banner Disclaimer:

The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
