DEE2R-515D Banner Cordsets
Part#:DEE2R-515D
Manufacturer:Banner
Alt. Part#:72335
Product Lifecycle:Active
Get a quick Quote!

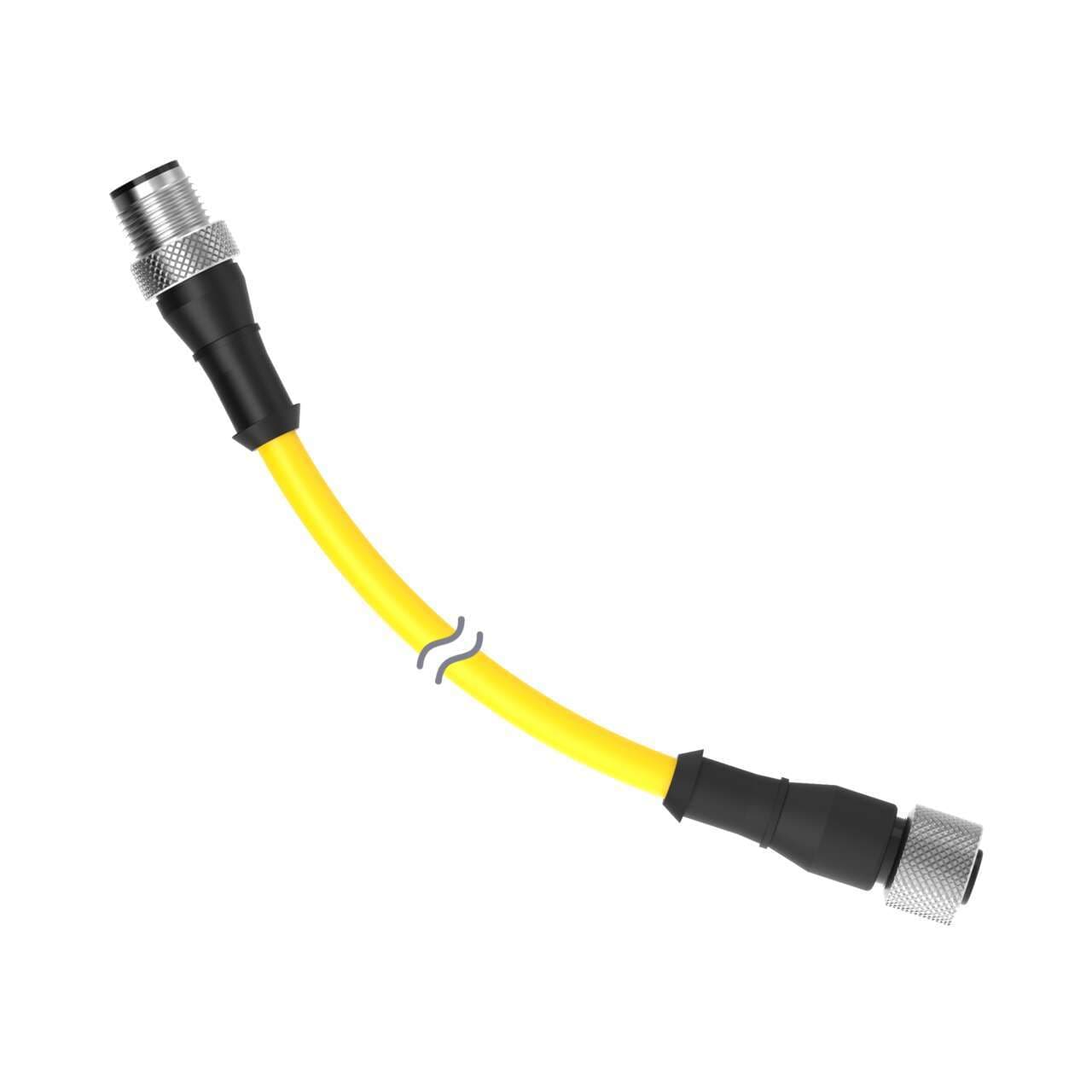

Cordset: Double Ended M12; 5-pin Straight Female; 5-pin Straight Male; 4.57 m 5x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DEE2R-515D Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginTW
- Cordset Length (m) 4.57
- Cable Jacket Color Yellow
- IP Rating IP67
- Feature: Hazardous Area No
- Outside Cable Diameter (mm) 5.6
- Primary Coupling Method M12 Single Key
- Secondary Number of Conductors 5
- Number of Connectors 2
- Current Rating (A) 4.0
- Secondary Coupling Method M12 Single Key
- Shield/No Shield No Shield
- Primary AWG 22
- Cable Jacket Material PVC
- Voltage Rating (V) 250 V ac/dc
- Secondary Gender Male
- Coupling Material/Color Nickel Plated Brass
- Primary Number of Conductors 5
- Oil/Grease Resistant No
- Number of Contacts 5
- Maximum Temp. (°C) 105
- Primary Orientation Straight
- Connector Body Material/Color PUR Black
- Minimum Temp. (°C) -40
- Secondary Connector Type EURO
- Trunk Length (m) No Trunk
- Primary Gender Female
- Secondary Orientation Straight
- Primary Connector Type EURO
- Secondary AWG 22
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DEE2R-515D Description
Banner Engineering DEE2R-515D is a pre-assembled cable/cordset designed with a double-ended configuration, featuring a 5-pin Euro-style M12 female connector on one end and a 5-pin Euro-style M12 male connector on the other. The cable is constructed with nickel-plated brass coupling nuts and PVC sheathing, ensuring durability and resistance to environmental factors with an ambient air temperature operation range of -40 to +105°C. It offers a degree of protection rated at IP67, making it suitable for use in environments where dust and moisture resistance is required. The cable has a rated voltage of 250Vac, a diameter of 5.6mm, and a length of 4.57m. The sheathing is black, aligning with standard color coding for industrial applications.
