DEE2R-815D Banner Cordsets

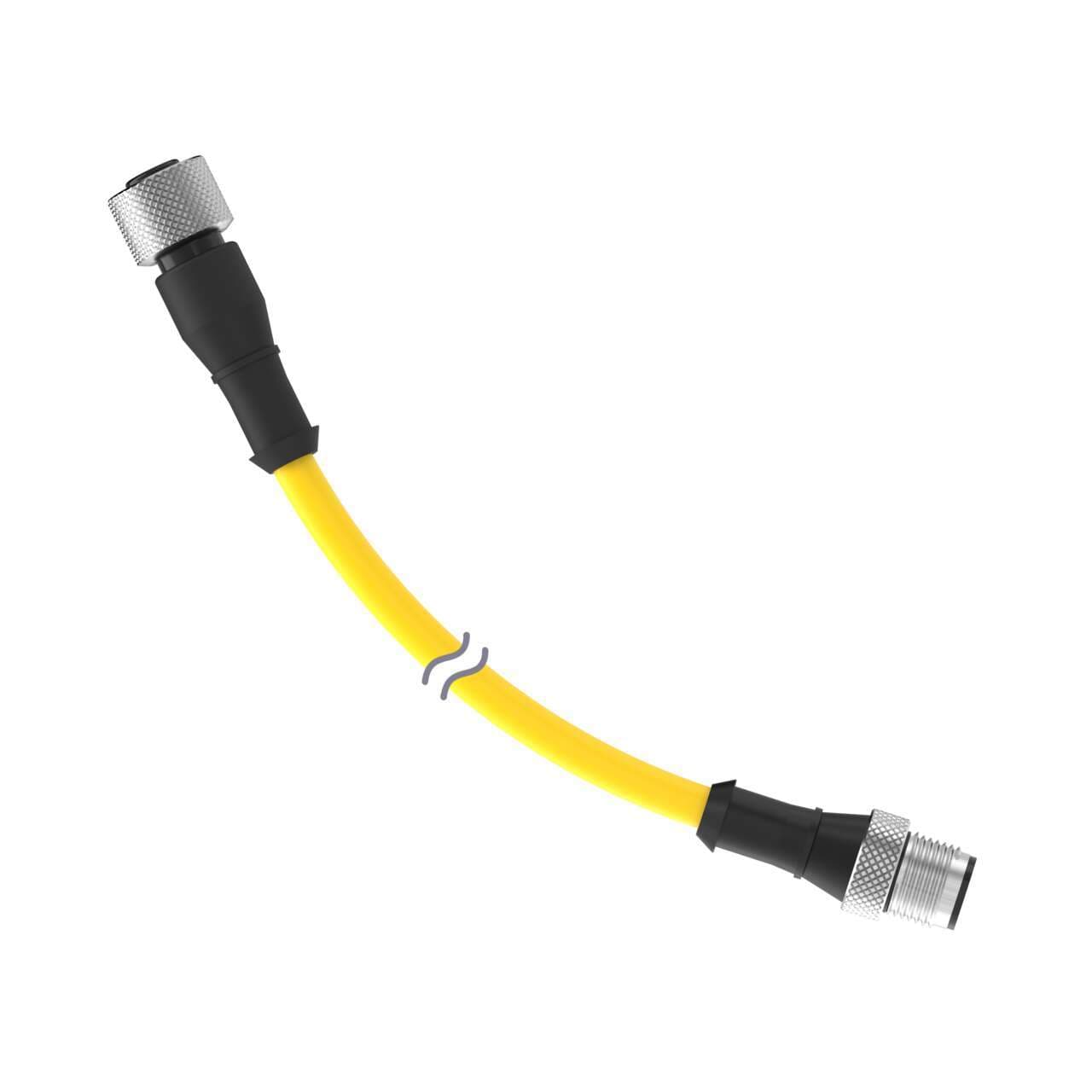

Banner DEE2R-815D Cordset: Double Ended M12; 8-pin Straight Female; 8-pin Straight Male; 4.57 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts
Banner

Part#:DEE2R-815D

Manufacturer:Banner

Alt. Part#:72207

Product Lifecycle:Active

Get a quick Quote!

Cordset: Double Ended M12; 8-pin Straight Female; 8-pin Straight Male; 4.57 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DEE2R-815D Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight290.29888 g
  • Country Of OriginTW
  • Number of Contacts
    8
  • Primary Connector Type
    EURO
  • Trunk Length (m)
    No Trunk
  • Oil/Grease Resistant
    No
  • Cable Jacket Color
    Yellow
  • Current Rating (A)
    2.0
  • Secondary Gender
    Male
  • Connector Body Material/Color
    PUR Black
  • IP Rating
    IP68
  • Secondary Connector Type
    EURO
  • Cable Jacket Material
    PVC
  • Maximum Temp. (°C)
    105
  • Primary Coupling Method
    M12 Single Key
  • Secondary Number of Conductors
    8
  • Shield/No Shield
    No Shield
  • Primary Gender
    Female
  • Secondary Orientation
    Straight
  • Outside Cable Diameter (mm)
    6
  • Secondary Coupling Method
    M12 Single Key
  • Cordset Length (m)
    4.57
  • Primary AWG
    22
  • Minimum Temp. (°C)
    -40
  • Number of Connectors
    2
  • Coupling Material/Color
    Nickel Plated Brass
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Feature: Hazardous Area
    No
  • Primary Number of Conductors
    8
  • Secondary AWG
    22
  • Primary Orientation
    Straight

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

DEE2R-815D Description

Banner Engineering DEE2R-815D is a pre-assembled, double-ended cable featuring an 8-pin Euro-style M12 female connector on one end and an 8-pin Euro-style M12 male connector on the other. The cable is constructed with a chrome-plated brass coupling nut and PVC sheathing in yellow, designed for durability and visibility. It has a diameter of 6mm and a length of 4.57m. This cable operates effectively within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68, making it suitable for challenging environments. It is rated for a voltage of 60Vac and 75Vdc, accommodating a variety of electrical requirements.
