DEE2R-875D Banner Cordsets
Part#:DEE2R-875D
Manufacturer:Banner
Alt. Part#:72210
Product Lifecycle:Active
In-stock parts: 1
Jun 20, 2025
Cordset: Double Ended M12; 8-pin Straight Female; 8-pin Straight Male; 22.86 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DEE2R-875D Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1403.86724 g
- Country Of OriginTW
- Shield/No Shield No Shield
- Primary Coupling Method M12 Single Key
- Secondary AWG 22
- Outside Cable Diameter (mm) 6
- Voltage Rating (V) 60 V ac/75 V dc
- Secondary Coupling Method M12 Single Key
- Cable Jacket Color Yellow
- Primary Orientation Straight
- Feature: Hazardous Area No
- Cordset Length (m) 22.9
- IP Rating IP68
- Secondary Orientation Straight
- Number of Connectors 2
- Minimum Temp. (°C) -40
- Secondary Gender Male
- Connector Body Material/Color PUR Black
- Primary Gender Female
- Oil/Grease Resistant No
- Maximum Temp. (°C) 105
- Primary AWG 22
- Coupling Material/Color Nickel Plated Brass
- Number of Contacts 8
- Primary Number of Conductors 8
- Cable Jacket Material PVC
- Current Rating (A) 2.0
- Secondary Connector Type EURO
- Trunk Length (m) No Trunk
- Primary Connector Type EURO
- Secondary Number of Conductors 8
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DEE2R-875D Description

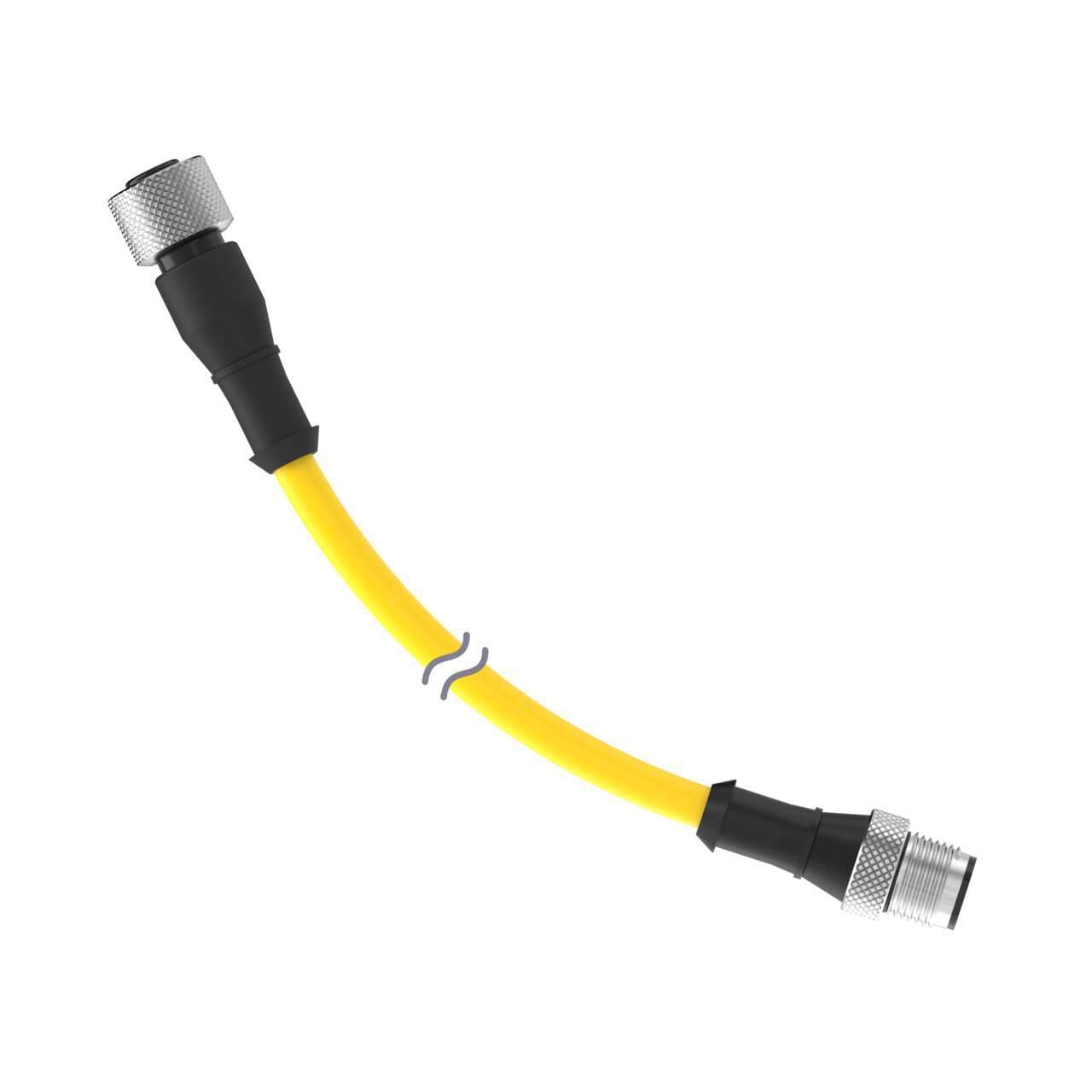

Banner Engineering DEE2R-875D is a pre-assembled, double-ended cable featuring chrome-plated brass coupling nuts and a PVC cable designed for robust applications. This part includes an 8-pin Euro-style M12 female connector and an 8-pin Euro-style M12 male connector, ensuring compatibility with a wide range of devices. The cable has a diameter of 6mm and a length of 22.86 meters, encased in yellow sheathing for visibility and identification. It operates effectively within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68, making it suitable for demanding environments. The DEE2R-875D is rated for 60Vac and 75Vdc, accommodating various power requirements.
