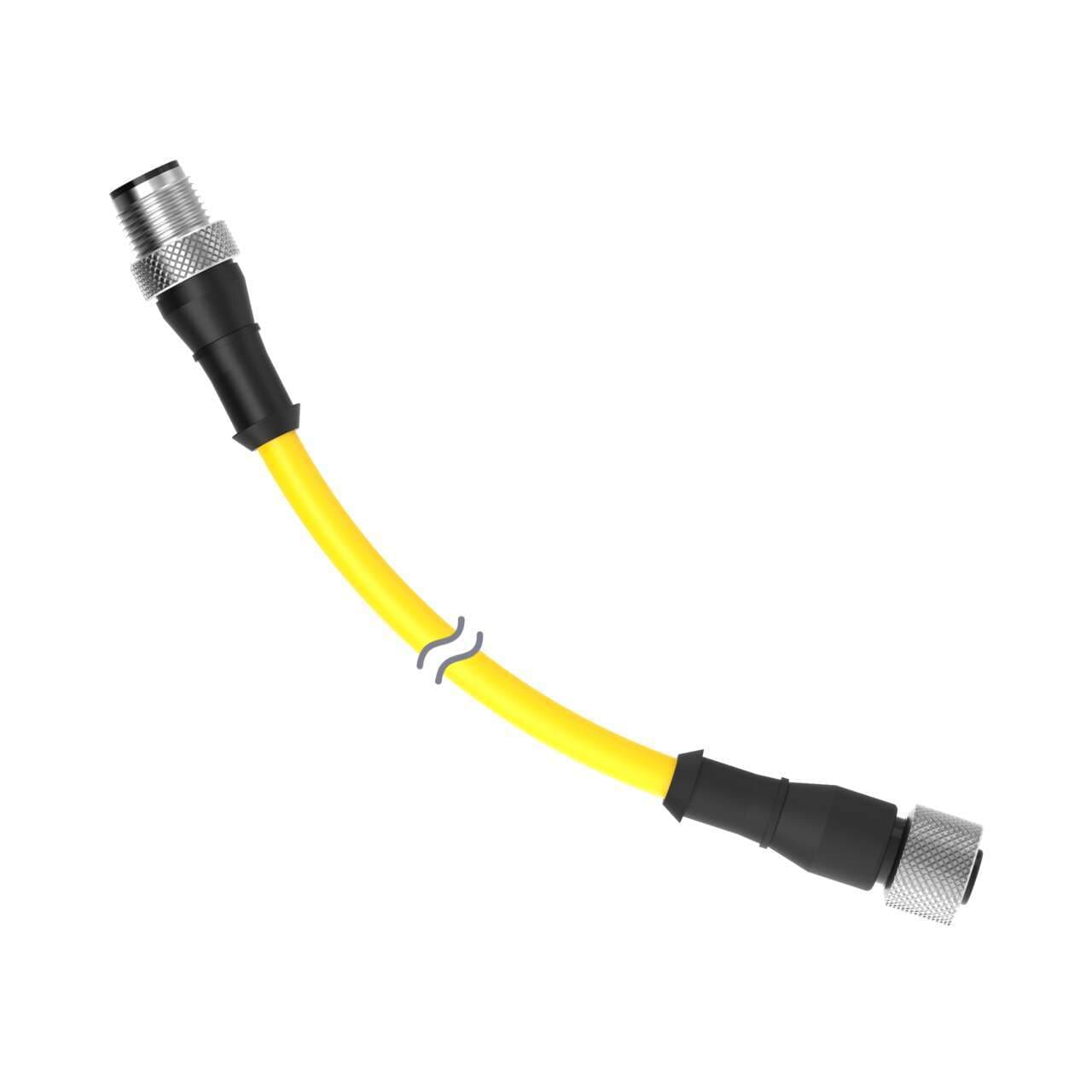

DEE2R-575D Banner Cordsets

Banner DEE2R-575D Cordset: Double Ended M12; 5-pin Straight Female; 5-pin Straight Male; 22.9 m 5x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts
Banner

Part#:DEE2R-575D

Manufacturer:Banner

Alt. Part#:72338

Product Lifecycle:Active

Get a quick Quote!

Cordset: Double Ended M12; 5-pin Straight Female; 5-pin Straight Male; 22.9 m 5x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DEE2R-575D Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight997.9024 g
  • Country Of OriginTW
  • Cordset Length (m)
    22.9
  • Primary Orientation
    Straight
  • Outside Cable Diameter (mm)
    5.6
  • Maximum Temp. (°C)
    105
  • Primary Number of Conductors
    5
  • Cable Jacket Material
    PVC
  • Primary Connector Type
    EURO
  • Feature: Hazardous Area
    No
  • Connector Body Material/Color
    PUR Black
  • IP Rating
    IP67
  • Number of Connectors
    2
  • Cable Jacket Color
    Yellow
  • Voltage Rating (V)
    250 V ac/dc
  • Primary AWG
    22
  • Current Rating (A)
    4.0
  • Secondary Orientation
    Straight
  • Trunk Length (m)
    No Trunk
  • Coupling Material/Color
    Nickel Plated Brass
  • Secondary Gender
    Male
  • Shield/No Shield
    No Shield
  • Primary Coupling Method
    M12 Single Key
  • Minimum Temp. (°C)
    -40
  • Secondary Number of Conductors
    5
  • Number of Contacts
    5
  • Primary Gender
    Female
  • Secondary Coupling Method
    M12 Single Key
  • Secondary Connector Type
    EURO
  • Secondary AWG
    22
  • Oil/Grease Resistant
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

DEE2R-575D Description

Banner Engineering DEE2R-575D is a pre-assembled, double-ended cable or cordset designed for various automation applications. It features a 5-pin Euro-style M12 female connector on one end and a 5-pin Euro-style M12 male connector on the other. The cable is constructed with a nickel-plated brass coupling nut and PVC sheathing, ensuring durability and resistance to environmental factors. It operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for use in demanding conditions. The cable has a diameter of 5.6mm and a length of 22.9m. Its sheathing is black, and it is rated for a voltage of 250Vac.

1-year warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

By purchasing this item, you agree to the Terms & Conditions

Quotebeam is NOT an authorized distributor of Banner

Shipping and Delivery Worldwide

calculate costs and time

Secure Payment Processing

with money back guarantee

1 year warranty

on all parts

Responsive Customer Support

we're here to help!

Need more details?

Feel free to chat with us or check our FAQ

Banner Disclaimer:

The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
