DEE2R-525D Banner Cordsets
Part#:DEE2R-525D
Manufacturer:Banner
Alt. Part#:72336
Product Lifecycle:Active
Get a quick Quote!

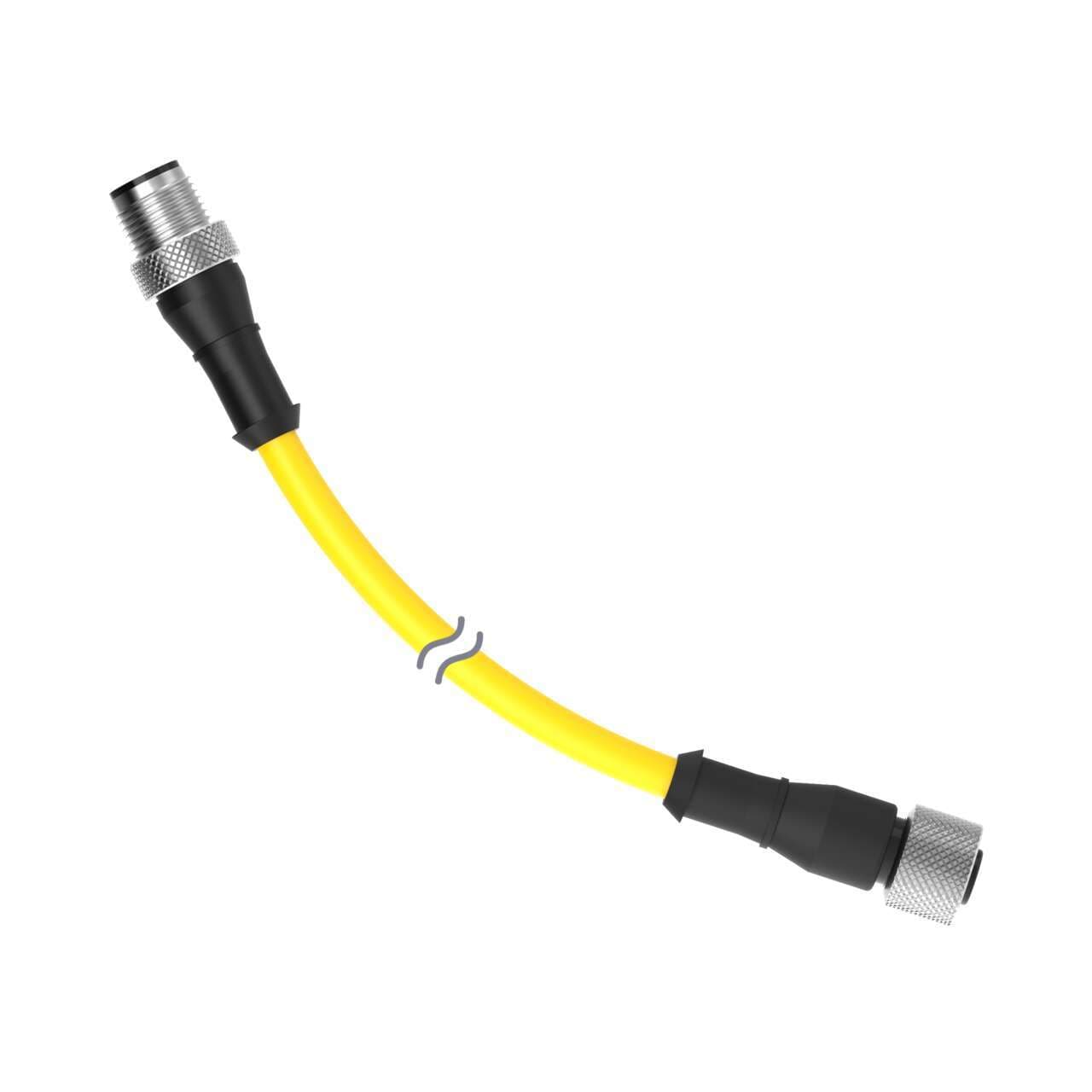

Cordset: Double Ended M12; 5-pin Straight Female; 5-pin Straight Male; 7.62 m 5x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DEE2R-525D Banner price in the box on the right side or send a quick quote.
Product Details
- Weight344.72992 g
- Country Of OriginTW
- Outside Cable Diameter (mm) 5.6
- Primary Gender Female
- Feature: Hazardous Area No
- Primary Number of Conductors 5
- Cable Jacket Color Yellow
- Primary AWG 22
- Oil/Grease Resistant No
- Shield/No Shield No Shield
- IP Rating IP67
- Secondary Coupling Method M12 Single Key
- Trunk Length (m) No Trunk
- Voltage Rating (V) 250 V ac/dc
- Secondary Orientation Straight
- Number of Connectors 2
- Coupling Material/Color Nickel Plated Brass
- Primary Coupling Method M12 Single Key
- Cable Jacket Material PVC
- Minimum Temp. (°C) -40
- Secondary Gender Male
- Connector Body Material/Color PUR Black
- Primary Connector Type EURO
- Secondary Number of Conductors 5
- Cordset Length (m) 7.62
- Current Rating (A) 4.0
- Secondary Connector Type EURO
- Number of Contacts 5
- Maximum Temp. (°C) 105
- Primary Orientation Straight
- Secondary AWG 22
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DEE2R-525D Description
Banner Engineering DEE2R-525D is a pre-assembled, double-ended cable or cordset designed for various automation applications. It features a 5-pin Euro-style M12 female connector on one end and a 5-pin Euro-style M12 male connector on the other. The cable is constructed with a nickel-plated brass coupling nut and PVC sheathing, ensuring durability and resistance to environmental factors. It operates within an ambient air temperature range of -40 to +105 degrees Celsius and offers a degree of protection rated at IP67, making it suitable for use in demanding conditions. The cable has a diameter of 5.6mm and a length of 7.62 meters. Its sheathing is black, and it is rated for a voltage of 250Vac.
