Variable Frequency Drives (VFD)

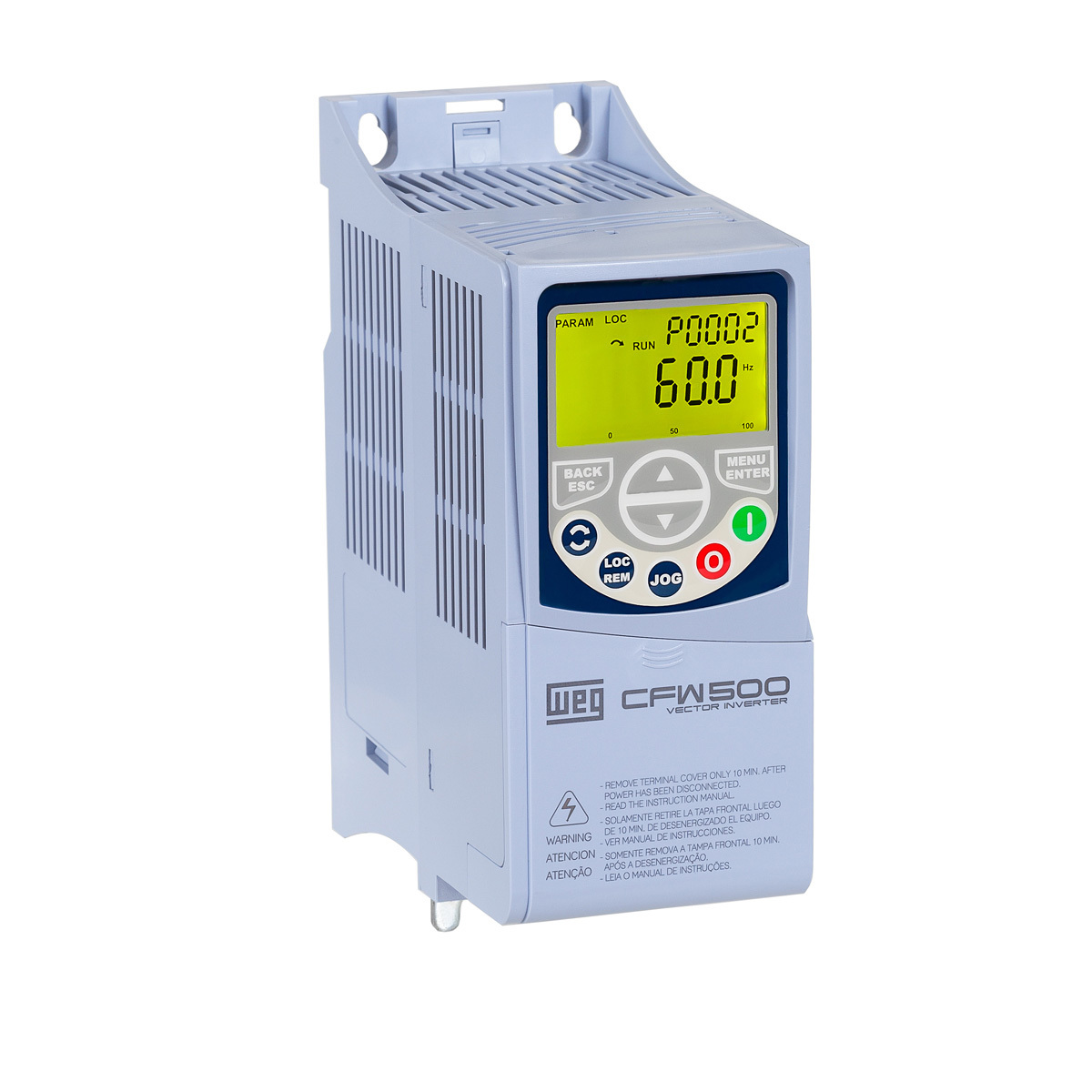

CFW500C14P0T4DB20Y2

WEG CFW500C14P0T4DB20Y2 - DRIVE CFW500C14P0T4DB20Y2, CFW500/700 Drives

WEG

CFW500A04P3B2NB20G2

DRIVE CFW500A04P3B2NB20G2

WEG

I55AE230F1AV1100WS

Lenze I55AE230F1AV1100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and supports Modbus TCP communication protocol. The device offers protection against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 8.8A for light-duty at 400Vac, 7.6A for light-duty at 480Vac, 7.3A for heavy-duty at 400Vac, and 6.3A for heavy-duty at 480Vac. The supply voltage is 400Vac / 480Vac, suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation is up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The unit includes 1 analog output, 5 digital inputs with optional uses for two of them, 2 analog inputs with optional voltage or current input, and 1 digital output. The rated active power is 4kW for light-duty and 3kW for heavy-duty operations at 400-480Vac, with a rated power of 5HP for light-duty and 4HP for heavy-duty applications.

Lenze

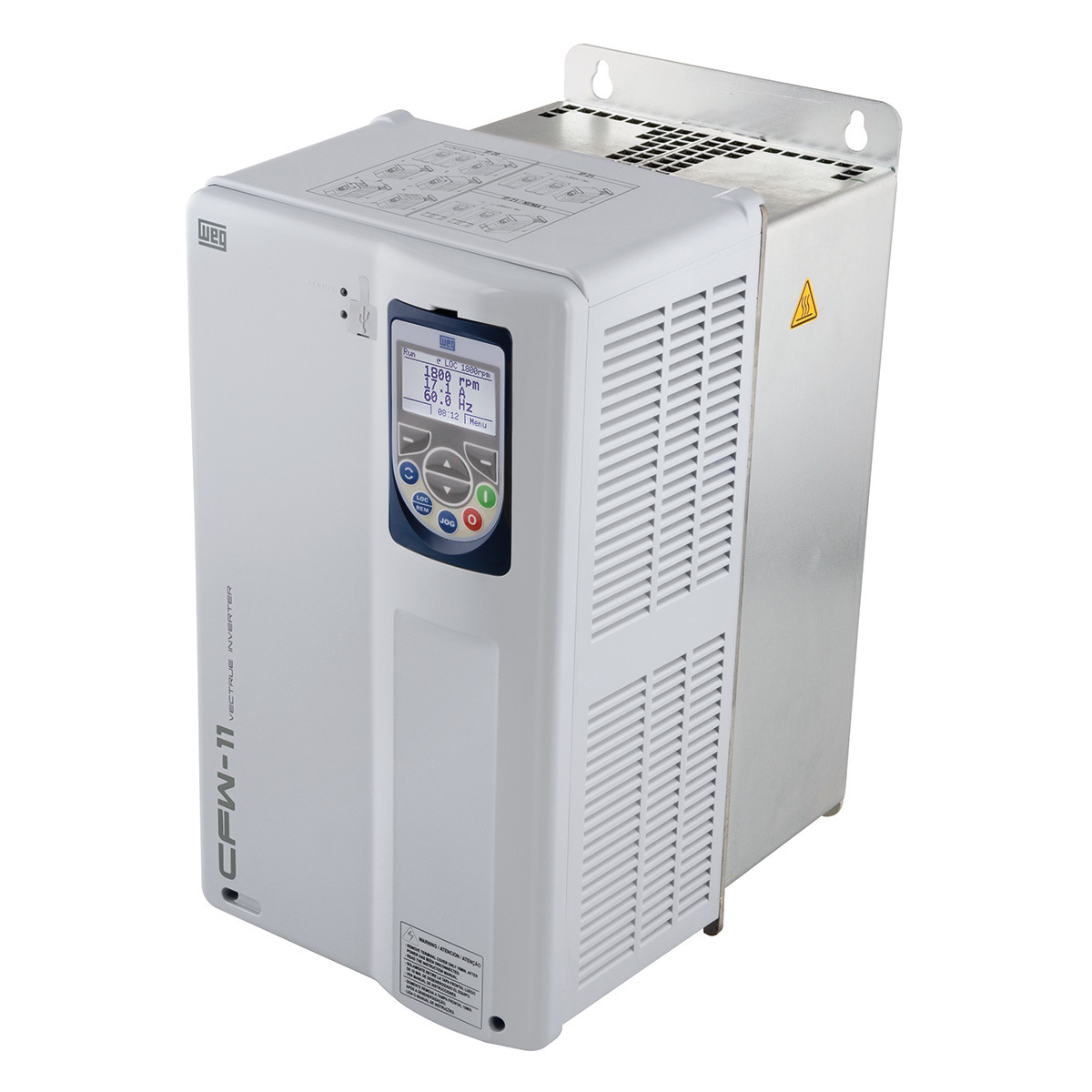

CFW110058T4ON1Z-PGS

DRIVE CFW110058T4ON1Z-PGS

WEG

I55AE255F10V11002S

Lenze I55AE255F10V11002S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H250mm x W90mm x D130mm. The communication protocol supported is CANopen. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. Rated current specifications are 15.6A (light-duty; 400Vac), 13.2A (light-duty; 480Vac), 13A (heavy-duty; 400Vac), and 11A (heavy-duty; 480Vac). It operates on a supply voltage of 400Vac / 480Vac, suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation is max. 45°C (at a switching frequency of 2kHz or 4kHz) and max. 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It is designed for a 3-phase (3P / 3AC) network, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The unit includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). Rated active power is 7.5kW (light-duty; 400-480Vac) and 5.5kW (heavy-duty; 400-480Vac), with rated power of 10HP (light-duty; 400-480Vac) and 7-1/2HP (heavy-duty; 400-480Vac).

Lenze

M701-07600190A10101AB100

NIDEC M701-07600190A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 23A under normal duty and 19A under heavy-duty conditions. It requires a supply voltage of 500Vac-690Vac (600Vac) and is designed to function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 UL open degree of protection and is compatible with a 3-phase input network, supporting a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It features 2 x analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 3 x digital inputs (0-24Vdc), 3 x digital outputs (0-24Vdc; source) plus 1 x digital output (2A / 240Vac; source; relay contact type), and analog inputs including 1 x differential (0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution) and 2 x single-ended (0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution). The rated active power is 18.5kW for normal duty and 15kW for heavy-duty, with corresponding rated power of 25HP and 20HP, respectively.

Nidec

CFW110142T2O55DSZ

DRIVE CFW110142T2O55DSZ

WEG

M000-11502000TU0100AN100

NIDEC M000-11502000TU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed for heavy-duty applications. It features an AC to DC twin rectifier air cooling design, with dimensions of frame size 11T, measuring H46.9" x W12.2" x D12.3" (H1190mm x W310mm x D312mm). The rated current is 200A, and it operates on a supply voltage of 500Vac-575Vac with a network frequency of 50 Hz. This model offers a degree of protection of IP20 NEMA 1 and supports rated active power ranging from 90kW to 250kW (125HP to 400HP) for heavy-duty operations.

Nidec

H300-03400077A10101AB103

NIDEC H300-03400077A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed with a built-in brake transistor, internal line choke, and air cooling. It features a frame size 3 with dimensions of H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). This model supports Modbus RTU communication protocol and operates with a rated current of 7.7A under normal duty conditions. It is designed for a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20, NEMA 1, UL type 1 degree of protection and is suitable for a 3-phase input network with a supply input frequency of 60 Hz. It includes 2 analog outputs, 6 digital inputs (3 of which are configurable), and 1 additional digital input ranging from 0-24Vdc, alongside 2 digital outputs (relay contact type). Additionally, it features 1 analog input for 4-20mA and another for 0-10Vdc. The rated active power is 3kW, and the rated power is 5HP under normal duty conditions.

Nidec

I55AE322F1AV1100MS

Lenze I55AE322F1AV1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H347mm x W204.5mm x D222mm. This model supports Ethernet/IP communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and motor overtemperature. It has a rated current of 56.4A for light-duty (400Vac and 480Vac) and 48.5A for heavy-duty (400Vac) or 40.4A for heavy-duty (480Vac), with a supply voltage of 400Vac / 480Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection, operates on a 3-phase network (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output, multiple digital inputs with optional uses, 1 x digital output, 2 x analog inputs with optional uses, and offers rated active power of 30kW for light-duty and 22kW for heavy-duty, translating to 40HP and 30HP respectively, across 400-480Vac.

Lenze

C300-01100024A10101AB100

NIDEC C300-01100024A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C300 series designed with dual Safe Torque Off (STO) and air cooling. It operates on a supply voltage of 100Vac-120Vac and has dimensions of frame size 1 H6.3" x W2.95" x D5.1" (H160mm x W75mm x D130mm), with a degree of protection rated at IP20 NEMA 1. The rated current is 2.4A for both normal and heavy-duty operations. It supports Modbus RTU communication protocol over a single-phase input (2P) network with a frequency range of 45-66 Hz for supply input and 0-550 Hz for output. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 additional digital input (0-24Vdc), and 2 digital outputs (one 50mA / 0-24Vdc; source; PWM and another 2A / 240Vac; source; relay contact type). The analog inputs include 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power and power are 0.25kW and 1/2HP for both normal and heavy-duty applications.

Nidec

CFW110211T4ODBYZ

DRIVE CFW110211T4ODBYZ

WEG

QMP155A4R-CC

NIDEC QMP155A4R-CC is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 4 quadrant operation with a conformal coating on the PCB and air cooling. It operates within an ambient air temperature range of 0°C to +55°C and has a rated current of 155A. This model supports a supply voltage range of 208Vac-480Vac, accommodating various configurations such as 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, and 415Vac. The device measures H22.6" x W13" x D9.9" (H578mm x W330mm x D251mm) and has an IP00 degree of protection. It is designed for a single-phase input network (2P) and uses the Modbus RTU communication protocol. The QMP155A4R-CC features 3 digital outputs (240mA total including term.22 / 0-24Vdc; source) and 2 digital outputs (5A / 240Vac; source; relay contact type), along with 1 analog input (-10Vdc to 10Vdc; differential with 14-bit conversion resolution) and 2 analog inputs (0-20mA / 4-20mA / -10Vdc to 10Vdc; single-ended with 10-bit conversion resolution). Additionally, it includes 3 digital inputs (0-24Vdc), a rated active power of 56kW, a rated power of 90HP, and 2 analog outputs (0-20mA / 4-20mA / -10Vdc to 10Vdc; source; single-ended with 10-bit conversion resolution).

Nidec

CFW110070T4O55DSZ

DRIVE CFW110070T4O55DSZ

WEG

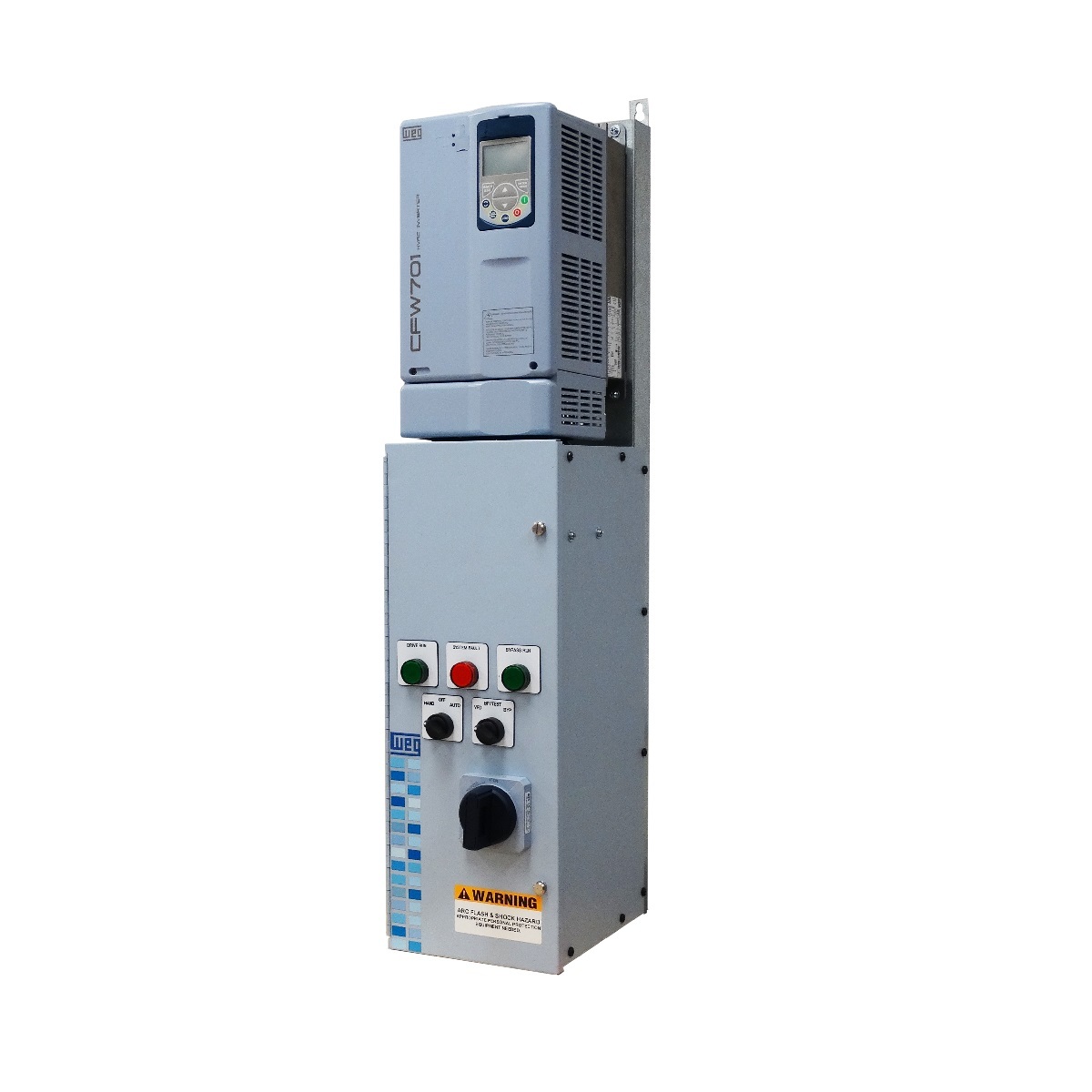

HVW701B024T2N01-J-X

STANDARD PANEL HVW701B024T2N01-J-X

WEG

I55AE375F1AV11004S

Lenze I55AE375F1AV11004S is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H536mm x W250mm x D265mm. This model supports PROFIBUS communication protocol and offers protection against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 180A (light-duty; 400Vac), 149A (light-duty; 480Vac), 150A (heavy-duty; 400Vac), and 124A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C (at 2kHz or 4kHz switching frequency) or 40°C (at 8kHz or 16kHz switching frequency), with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, multiple digital inputs with optional uses, 2 analog inputs with optional voltage or current input, and a digital output. The rated active power is 90kW (light-duty; 400-480Vac) and 75kW (heavy-duty; 400-480Vac), with a rated power of 125HP (light-duty; 400-480Vac) and 100HP (heavy-duty; 400-480Vac).

Lenze

I55AE240F10V1100KS

Lenze I55AE240F10V1100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, standard I.O. conformal coating, and supports EtherCAT communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 11.9A for light-duty at 400Vac, 9.8A for light-duty at 480Vac, 9.5A for heavy-duty at 400Vac, and 8.2A for heavy-duty at 480Vac. The supply voltage is rated for 400Vac / 480Vac, suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation is capped at 45°C for a switching frequency of 2kHz or 4kHz, and 40°C for 8kHz or 16kHz, with a degree of protection of IP20. It is designed for a 3-phase network, with a network frequency of 45-65 Hz input and 0-599 Hz output. The drive includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, supporting a range of control options. The rated active power is 5.5kW for light-duty and 4kW for heavy-duty operations, with a rated power of 7-1/2HP for light-duty and 5HP for heavy-duty, across 400-480Vac.

Lenze

CFW100A01P6S220G2

DRIVE CFW100A01P6S220G2

WEG

M15250B

Lenze M15250B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for general purpose applications. It features dimensions of H324mm x W261mm x D197mm and supports Modbus communication protocol. This model offers thermal overload protection and solid state motor overload protection to safeguard against operational issues. It operates with a rated current of 27A at supply voltages of 480Vac / 590Vac and is suitable for mounting in a control cabinet or on a surface/wall. The ambient air temperature for operation ranges from -10 to +50 °C, and it is designed with a NEMA 1 degree of protection. The M15250B accommodates a 3-phase network, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. It includes 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs for control, 2 digital outputs (NPN; sinking), and 2 analog inputs for external signals (0-10Vdc and 4-20mA). The rated active power is 18.5kW, and the rated power is 25HP at 480Vac / 590Vac.

Lenze

M701-04200137A10101AB100

NIDEC M701-04200137A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 4, measuring H14.37" x W4.88" x D7.87" (H365mm x W124mm x D200mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 18A under normal duty and 13.7A under heavy-duty conditions. It requires a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and is designed to function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 UL open degree of protection and is compatible with a 3-phase input network, supporting a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It features 2 analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), 4 digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type), and 3 analog inputs (1 x differential and 2 x single-ended; 0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution). The rated active power is 4kW for normal duty and 3kW for heavy-duty, with a corresponding rated power of 5HP and 3HP, respectively.

Nidec
