Variable Frequency Drives (VFD)

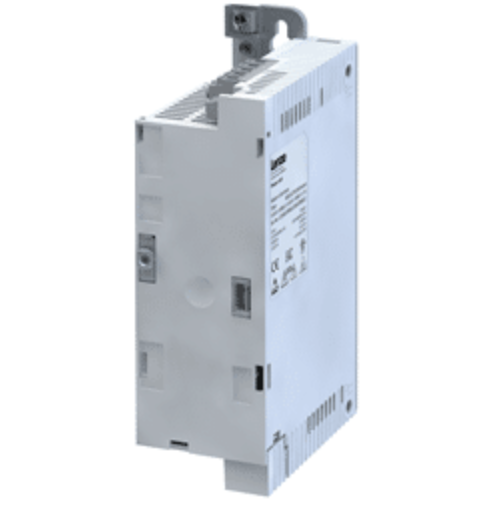

I55AE222F1AV11004S

Lenze I55AE222F1AV11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H250mm x W60mm x D130mm. This model supports PROFIBUS communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 5.6A for heavy-duty operations at 400Vac and 4.8A at 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with optional uses for two of them, 1 digital output, and 2 analog inputs with optional voltage or current input functionality. The rated active power is 2.2kW, and the rated power is 3HP for heavy-duty applications at 400-480Vac.

Lenze

GA80U4477ABM

GA80U4477ABM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 477 A, IP20, General Purpose GA800 Series

Yaskawa

I55AE322F1AV11001S

Lenze I55AE322F1AV11001S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, safe torque off (STO) safety application, I.O. conformal coating, and dimensions of H347mm x W204.5mm x D222mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 56.4A for light-duty (400Vac and 480Vac) and 48.5A for heavy-duty (400Vac), with 40.4A for heavy-duty (480Vac). The supply voltage is 400Vac / 480Vac, suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation is up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with a degree of protection of IP20. It operates on a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 2 x analog outputs, 7 x digital inputs with flexible functionality, 2 x digital outputs, and 2 x analog inputs, supporting a rated active power of 30kW for light-duty and 22kW for heavy-duty, equivalent to 40HP and 30HP respectively.

Lenze

EDP11S088GN3R01000

STANDARD PANEL EDP11S088GN3R01000

WEG

EDP11S054DN1210000

STANDARD PANEL EDP11S054DN1210000

WEG

M701-10601780E10101AN100

NIDEC M701-10601780E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed for variable speed control with a single Safe Torque Off (STO) and requires an external choke for air cooling. It features dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm), and supports RS-485 Modbus RTU communication protocol. The drive operates with a rated current of 197A under normal duty and 178A under heavy-duty conditions, and it is designed for a supply voltage of 500Vac-690Vac (600Vac). It can function within an ambient air temperature range of -20°C to +40°C and has a degree of protection rated at IP20 NEMA 1 UL open. This model is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), 4 digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type), and 3 analog inputs (1 differential and 2 single-ended; 0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution). The rated active power is 185kW for normal duty and 160kW for heavy-duty, equivalent to 250HP and 200HP, respectively.

Nidec

ATV71HD15Y

Schneider Electric ATV71HD15Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features variable speed/frequency drive capabilities, U/F ratio (2 points / 5 points), sensorless flux vector control, ENA System, and vector control with or without speed feedback. The device can deliver 220% of the nominal motor torque for 2 seconds and 170% for 60 seconds. It is equipped with a built-in EMC filter, a built-in heatsink, and a coated version for enhanced chemical resistance. The ATV71HD15Y has an IP20, IP21, and UL type 1 degree of protection, with dimensions of H420mm x W240mm x D236mm. It supports a rated current of 18.5A at 500Vac and 4kHz, 17A at 575Vac and 4kHz, 18.5A at 690Vac and 4kHz, and can handle a maximum current of 27.75A for 60 seconds. For mounting, it is designed for wall installation. Communication is facilitated through Modbus and CANopen protocols. The output network frequency ranges from 0.1 to 599 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input. There are also 1 digital output (C/O SPDT relay contact) and 2 digital outputs (NO relay contacts), alongside 1 analog input (-10...+10Vdc) and 1 analog input (0-10Vdc / 0-20mA). The current consumption is specified as 19.8A at 500Vac for 11kW, 16.7A at 600Vac for 15 HP, and 20.2A at 690Vac for 15kW, with rated active power of 15kW at 690Vac and 11kW at 500Vac, and a rated power of 15HP.

Schneider Electric

EDP11S013GN3R10000

STANDARD PANEL EDP11S013GN3R10000

WEG

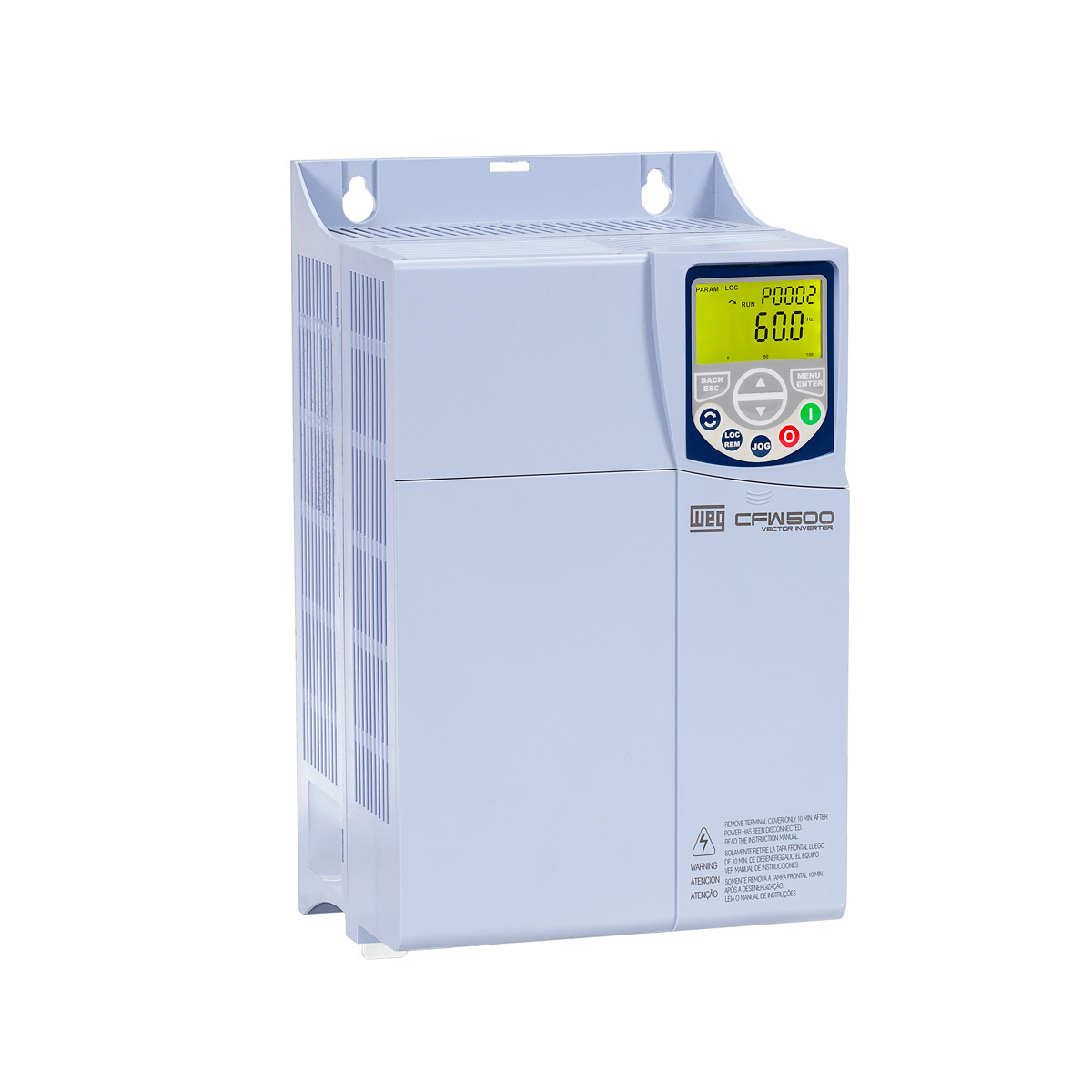

CFW500D28P0T2DB20G2

DRIVE CFW500D28P0T2DB20G2

WEG

I55AE211D10V01003S

Lenze I55AE211D10V01003S is a variable speed/frequency drive (VSD/VFD) or inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and supports Modbus RTU communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 6A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network compatibility includes single-phase or 3-phase with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It features 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, supporting both voltage and current input/output configurations. The rated active power is 1.1kW, and the rated power is 1-1/2HP for heavy-duty applications at 230-240Vac.

Lenze

ATV312HD15S6

Schneider Electric ATV312HD15S6 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 312 series, designed with sensorless flux vector control and an energy-saving ratio of 170-200% of the nominal motor torque. It features a built-in heatsink, operates on a supply voltage of 447-660Vac (480Vac / 500Vac / 525Vac / 600Vac nom.), and has dimensions of H329.5mm x W245mm x D192mm. This model offers an IP21 degree of protection, a rated current of 22A (525Vac; 4kHz) with a maximum current of 33A for 60 seconds, and supports wall mounting. Communication is facilitated through Modbus and CANopen protocols, and it is designed for a 3-phase (3P) network with an output frequency range of 0.1-500 Hz. The ATV312HD15S6 includes 1 analog output (0-10Vdc), 1 analog output (0-20mA), 6 digital inputs (24Vdc; sink/source) (LI1-LI6), 1 digital output (C/O SPDT relay contact) (R1), 1 digital output (NO relay contact) (R2), and 3 analog inputs for versatile connectivity. It has a current consumption of 36.4A (525Vac; Isc = 22kA) or 31.8A (600Vac), with a rated active power of 15kW (20HP) and power dissipation/losses of 335 W.

Schneider Electric

CFW110584T6OYZ-LR

WEG CFW110584T6OYZ-LR - DRIVE CFW110584T6OYZ-LR, CFW11 Drives

WEG

I5DBE240F10V10000S

ACTech-Lenze I5DBE240F10V10000S i500 power unit 5.0 hp 3ph 480V (IP20) Integrated EMC filter Generation 2

Lenze

I5DAE230F10V10000S

Lenze I5DAE230F10V10000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Power units sub-range, designed with a built-in RFI filter. This part does not include a communication interface but is equipped with protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports rated currents of 8.8A for light-duty at 400Vac, 7.6A for light-duty at 480Vac, 7.3A for heavy-duty at 400Vac, and 6.3A for heavy-duty at 480Vac. The supply voltage is compatible with 400Vac / 480Vac systems. The I5DAE230F10V10000S is designed for control cabinet or surface/wall mounting and has an IP20 degree of protection. It operates on a 3-phase (3P / 3AC) network, with a rated active power of 3kW and rated power of 4HP for heavy-duty applications at 400-480Vac.

Lenze

HVW701B024T2N01-X-B

WEG HVW701B024T2N01-X-B - STANDARD PANEL HVW701B024T2N01-X-B, HVAC Enclosed Drives (HVW)

WEG

M600-06400350A10101AB100

NIDEC M600-06400350A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 6, measuring H14.37" x W8.27" x D8.94" (H365mm x W210mm x D227mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 38A under normal duty and 35A under heavy-duty conditions. It requires a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and is designed to function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is compatible with a 3-phase input network, supporting a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 x analog outputs, 3 x digital inputs, 3 x additional digital inputs, 3 x digital outputs, and 1 x digital output of a relay contact type, alongside 3 x analog inputs with varying specifications. The rated active power is 18.5kW under normal duty and 15kW under heavy-duty, with a rated power of 25HP for both conditions.

Nidec

M600-10403200E10101AB100

NIDEC M600-10403200E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed for variable speed control with a built-in brake transistor, single Safe Torque Off (STO), and requires an external choke with air cooling for operation. It features a frame size of 10E with dimensions of H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 361A under normal duty and 320A under heavy-duty conditions. It is designed for a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It includes 2 analog outputs, 6 digital inputs, 4 digital outputs, and 3 analog inputs with varying specifications for comprehensive control and feedback. The rated active power is 200kW under normal duty and 160kW under heavy-duty, equivalent to 300HP and 250HP respectively.

Nidec

SM475

Lenze SM475 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for variable speed control of three-phase motors. It has dimensions of H146mm x W95mm x D171mm and can operate on a supply voltage of either 400Vac or 480Vac, with rated currents of 12.6A at 400Vac and 11A at 460Vac. This device is suitable for mounting in a control cabinet or on a surface/wall. It operates within an ambient air temperature range of 0-40°C. The SM475 does not include a communication interface but supports a network frequency of 48-62 Hz on input and can output frequencies from 0 to 240 Hz. It features 1 digital output (normally open relay; contacts rated 3A at 250Vac), 1 digital output (current-sourcing; rated 50mA at 12Vdc), and 4 digital inputs (active-high) (terminal 1; 13A; 13B; 13E). The device is designed for a 3-phase network (3P / 3AC) and offers a rated active power of 5.5kW (400Vac / 480Vac) or 7-1/2HP (400Vac / 480Vac).

Lenze

I55AE155B1AV1100KS

Lenze I55AE155B1AV1100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H180mm x W60mm x D130mm. This model supports EtherCAT communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 3.2A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network is single-phase / 1P with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, multiple digital inputs with flexible functionality, 1 x digital output, and 2 x analog inputs, all supporting various configurations. The rated active power is 0.55kW, and the rated power is 3/4HP for heavy-duty applications at 230-240Vac.

Lenze

UMI-0075CU-B7

UMI-0075CU-B7 Unitronics - Unitronics VFD - B7 Series, 200-240V, 3 Phase, 7.5kW, 10HP, STO included

Unitronics
