LCD Touch Panels - HMI Panel

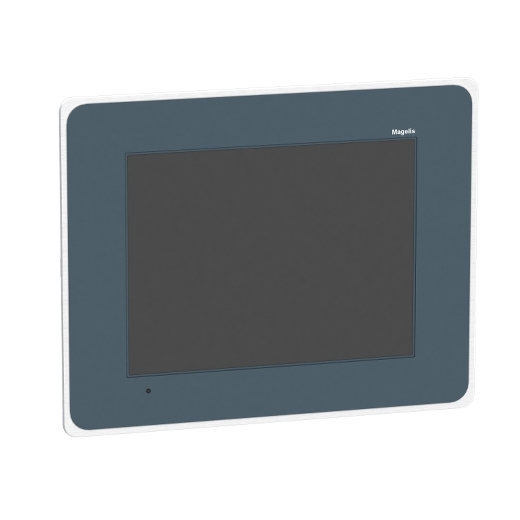

HMIGTO6315FW

Schneider Electric HMIGTO6315FW is a stainless steel operator dialogue touchscreen HMI and Programmable Terminal (PT) designed for industrial applications. It features a 12.1" SVGA TFT display with 65K colors and LED backlight, offering a resolution of 800x600 pixels. The unit is equipped with a variety of connection options including a USB mini-B port, a USB type A port, two RJ45 ports, and a 9-pin D-Sub connector. It supports multiple communication protocols such as Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, and Ethernet TCP/IP. This HMI operates on a 24Vdc supply voltage and is designed for flush mounting. It operates within an ambient air temperature range of 0 to +55°C and offers a storage temperature range of -20 to +60°C. The HMIGTO6315FW is protected to IP66K and NEMA 4X standards, ensuring durability in harsh environments. It has a memory capacity of 96MB for applications and allows for expansion with a 4GB SD card. The device can manage 32 groups of 64 recipes, comprising up to 1024 ingredients, and features recipe curves with a log alarm log and a built-in real-time clock. The electrical durability of the backlight is rated at 50,000 hours, and it runs on the Magelis operating system.

Schneider Electric

HMIGTO1300FCW

Schneider Electric HMIGTO1300FCW is a coated operator dialogue touchscreen HMI/Programmable Terminal (PT) featuring 6 function keys and the capability to manage 32 groups of 64 recipes, totaling up to 1024 ingredients. It supports recipe curves, a log alarm log, and includes a built-in real-time clock. For connectivity, it offers a USB mini-B port, a USB type A port, an RJ45 port, and a 9-pin D-Sub connector. It communicates via Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, and Ethernet TCP/IP protocols. The unit requires a 24Vdc supply voltage and is designed for flush mounting. It operates within an ambient air temperature range of 0 to +50°C and offers a degree of protection rated at IP65, IP67, and NEMA 4X. The HMIGTO1300FCW has a memory capacity of 64MB for applications, a 320x240 pixel count on a 3.5" QVGA TFT 65K color display with LED backlight, and can be stored in temperatures ranging from -20 to +60°C. It runs on the Magelis operating system and has an electrical durability of 50,000 hours for the backlight.

Schneider Electric

USP-104-M10

USP-104-M10 Unitronics - UniStream™ 10.4” Multi-Touch HMI PANEL (must order USC-P-B10)

Unitronics

PFXGP4521TAD

PFXGP4521TAD Pro-face - 10.1" TFT color, Ethernet I/F x1, Serial I/F x 2, USB A/mini-B I/F x 1, SD card I/F x1, Video unit I/F x1, 24VDC, GP4000 Series

Proface

JZ20-J-UN20

JZ20-J-UN20 Unitronics - Flat Fascia, 9 digital inputs, 2 digital/analog inputs, 1 analog input, 1 TC/PT100 input, 5 relay outputs, 2 transistor output, 24VDC

Unitronics

CMT-SVR-102

cMT-SVR-102 Weintek - Human Machine Interface (HMI) with cMT Viewer , N/A Resolution, cMT Series - Faceless HMI with 600MHz Single-Core 256M / 256M CPU - RAM/Flash

Weintek

PFXSP5690WADFU

PFXSP5690WADFU Pro-face - SP5000X Series eXtreme Display 12.1-inch Wide, Outdoor use, Rugged, UV protected, Coated, Sunlight readable TFT, 262,000 colors, WXGA 1280 x 800 pixels, Analog Touch Panel, DC12-24V, SP5000 Series

Proface

V120-22-R1

V120-22-R1 Unitronics - 10 digital inputs, 1 Analog inputs, 6 relay outputs, RS232/485 x 2, 12/24VDC

Unitronics

V430-J-RA22

V430-J-RA22 Unitronics - 8 digital inputs, 2 analog/digital inputs, 2 TC/PT/digital inputs, 8 relay outputs, 2 Analog outputs, RS232/485,24VDC

Unitronics

V350-35-TA24

V350-35-TA24 Unitronics - 8 digital inputs, 2 analog/digital inputs, 2 TC/PT/digital inputs, 10 transistor outputs, 2 Analog outputs, RS232/485, 24VDC, (Standard Series - Silver Bezel)

Unitronics

V120-22-R6C

V120-22-R6C Unitronics - 6 digital inputs, 6 Analog inputs, 6 relay outputs, RS232/485 x 2, CANbus, 24VDC

Unitronics

US5-B10-TA30

US5-B10-TA30 Unitronics - 5" HMI Screen, Pro, 14 digital inputs, 2 analog inputs, 2 TC inputs, 10 transistor outputs, 2 analog outputs

Unitronics

USP-156-B10

USP-156-B10 Unitronics - UniStream™ 15.6” HMI PANEL (must order USC-P-B10)

Unitronics

HMI5102L

10.1" Advanced HMI, 1 Ethernet Port, 1 USB Port, 2 Serial Port, High Resolution Display, Light Grey

Maple Systems

6AV6647-0AF11-3AX0

SIMATIC HMI KTP1000 Basic Color PN, Basic Panel, Key/touch operation, 10" TFT display, 256 colors, PROFINET interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC Basic V10.5/ STEP 7 Basic V10.5, contains open-source software, which is provi

Siemens

LP-A104-T9D8-C6R

LP-A104-T9D8-C6R Autonics - HMI, LP-A104 Series

Autonics

US5-B5-B1

US5-B5-B1 Unitronics - 5” HMI Screen, Standard, no onboard I/O

Unitronics

6AV2128-3UB06-0AX0

SIMATIC HMI MTP1900, Unified Comfort Panel, touch operation, 18.5" widescreen TFT display, 16 million colors, PROFINET interface, configurable from WinCC Unified Comfort V16, contains open-source software, which is provided free of charge See enclosed Blu

Siemens

PFXGP4603TAD

PFXGP4603TAD Pro-face - GP-4603T: 12.1" TFT Color Touch (Analog), SVGA, 2x Serial (1x MPI), Eth, 2x USB, SD, 24VDC, UL/CE, GP4000 Series

Proface

JZ20-J-R31

JZ20-J-R31 Unitronics - Flat Fascia: 16 digital inputs, 2 digital/analog inputs, 2 analog inputs, 11 relay outputs, 24VDC

Unitronics
