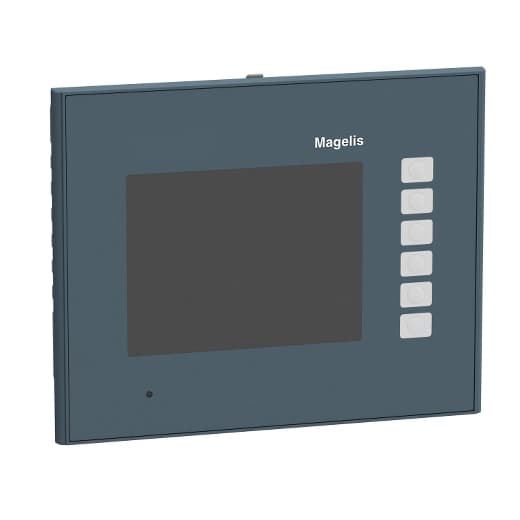

HMIGTO1300FCW Schneider Electric LCD Touch Panels - HMI Panel

Name: HMIGTO1300FCW
Brand: Schneider Electric

Schneider Electric HMIGTO1300FCW Schneider Electric HMIGTO1300FCW is a coated operator dialogue touchscreen HMI/Programmable Terminal (PT) featuring 6 function keys and the capability to manage 32 groups of 64 recipes, totaling up to 1024 ingredients. It supports recipe curves, a log alarm log, and includes a built-in real-time clock. For connectivity, it offers a USB mini-B port, a USB type A port, an RJ45 port, and a 9-pin D-Sub connector. It communicates via Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, and Ethernet TCP/IP protocols. The unit requires a 24Vdc supply voltage and is designed for flush mounting. It operates within an ambient air temperature range of 0 to +50°C and offers a degree of protection rated at IP65, IP67, and NEMA 4X. The HMIGTO1300FCW has a memory capacity of 64MB for applications, a 320x240 pixel count on a 3.5" QVGA TFT 65K color display with LED backlight, and can be stored in temperatures ranging from -20 to +60°C. It runs on the Magelis operating system and has an electrical durability of 50,000 hours for the backlight.

Part#:HMIGTO1300FCW

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

Schneider Electric HMIGTO1300FCW is a coated operator dialogue touchscreen HMI/Programmable Terminal (PT) featuring 6 function keys and the capability to manage 32 groups of 64 recipes, totaling up to 1024 ingredients. It supports recipe curves, a log alarm log, and includes a built-in real-time clock. For connectivity, it offers a USB mini-B port, a USB type A port, an RJ45 port, and a 9-pin D-Sub connector. It communicates via Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, and Ethernet TCP/IP protocols. The unit requires a 24Vdc supply voltage and is designed for flush mounting. It operates within an ambient air temperature range of 0 to +50°C and offers a degree of protection rated at IP65, IP67, and NEMA 4X. The HMIGTO1300FCW has a memory capacity of 64MB for applications, a 320x240 pixel count on a 3.5" QVGA TFT 65K color display with LED backlight, and can be stored in temperatures ranging from -20 to +60°C. It runs on the Magelis operating system and has an electrical durability of 50,000 hours for the backlight.

About the manufacturer: Schneider Electric is one of the manufacturers that offers LCD Touch Panels - HMI Panel that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the HMIGTO1300FCW Schneider Electric price in the box on the right side or send a quick quote.

Product Details

Control Button Type
6 operation defined using Vijeo Designer push-button key F1...F6
Inrush Current
30 A
Battery Type
Lithium internal RAM 100 days 5 day(s) 10 year(s)
Enclosure Material
PPT
Supply
External source
Height
4.17 in (106 mm)
Display Colour
65536 colours
Terminal Type
Touchscreen display
Net Weight
0.88 lb(US) (0.4 kg)
Memory Description
Flash EPROM, 64 MB
Data Backed Up
128 kB internal RAM SRAM)
Supply Voltage Limits
19.2…28.8 V
Display Resolution
320 x 240 pixels QVGA
Product Mounting
Flush mounting
Display Type
Backlit colour TFT LCD
Backlight Lifespan
50000 hours white 77 °F (25 °C)
Software Designation
Vijeo Designer configuration software >= V6.1
Front Material
PPT
Range Of Product
Harmony GTO
Touch Panel
Resistive film, 1000000 cycles

Fixing Mode

by 4 screw clamps

Display Size

3.5 inch

Touch Sensitive Zone

1024 x 1024

Type Of Cooling

Natural convection

Product Or Component Type

Advanced touchscreen panel

[Us] Rated Supply Voltage

24 V DC

Depth

1.65 in (42 mm)

Width

5.20 in (132 mm)

Brightness

16 levels by touch panel 16 levels by software

Maximum Power Consumption In W

5.2 W when power is not supplied to external devices 4.2 W when backlight is OFF 4.3 W when backlight is dimmed 9.6 W

Local Signalling

Status LED green, steady offline Status LED green, steady operating Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED clear, faded power supply (OFF)

Character Font

Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean Taiwanese (traditional Chinese) ASCII (European characters)

Integrated Connection Type

COM1 serial link SUB-D 9 RS232C 2400...115200 bps COM2 serial link RJ45 RS485 2400...115200 bps COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI USB 2.0 type A USB 2.0 type mini B

Downloadable Protocols

Schneider Electric Modicon Modbus Schneider Electric Modicon Uni-TE Schneider Electric Modicon Modbus Plus Schneider Electric Modicon FIPWAY Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
