HMIGTO5310 Schneider Electric Industrial Automation Components

Name: HMIGTO5310
Brand: Schneider Electric

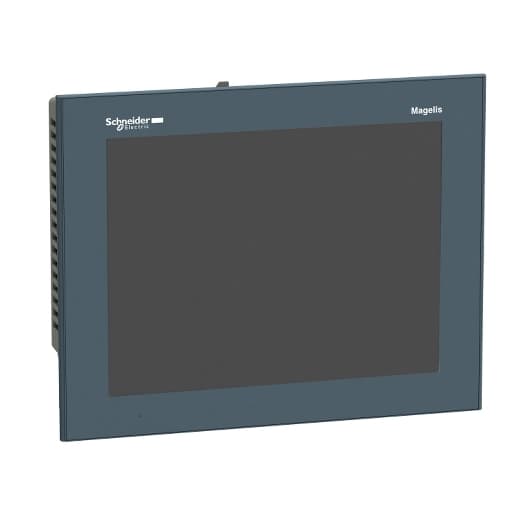

Schneider Electric HMIGTO5310 Schneider Electric HMIGTO5310 is an HMI / Display unit designed for operator dialogue through a touchscreen interface and serves as a Programmable Terminal (PT). It supports up to 32 groups of 64 recipes, totaling a maximum of 1024 ingredients, and includes recipe curves, a log alarm log, and a built-in real-time clock. For connectivity, it features a USB mini-B port, a USB type A port, two RJ45 ports, and a 9-pin D-Sub connector. The HMIGTO5310 communicates via Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, and Ethernet TCP/IP protocols. It requires a 24Vdc power supply and is designed for flush mounting. The operating ambient air temperature range is 0 to +55°C, and it offers a degree of protection rated at IP65, IP67, and NEMA 4X. The unit includes a 4GB SD card for expansion and has a memory capacity of 96MB for applications. The display is a 10.4" VGA TFT with 65K colors and LED backlight, featuring a pixel count of 640x480. It can be stored in temperatures ranging from -20 to +60°C. The operating system is Magelis, and the electrical durability of the backlight is rated for 50,000 hours.

Part#:HMIGTO5310

Manufacturer:Schneider Electric

Product Lifecycle:Active

Get a quick Quote!

Schneider Electric HMIGTO5310 is an HMI / Display unit designed for operator dialogue through a touchscreen interface and serves as a Programmable Terminal (PT). It supports up to 32 groups of 64 recipes, totaling a maximum of 1024 ingredients, and includes recipe curves, a log alarm log, and a built-in real-time clock. For connectivity, it features a USB mini-B port, a USB type A port, two RJ45 ports, and a 9-pin D-Sub connector. The HMIGTO5310 communicates via Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, and Ethernet TCP/IP protocols. It requires a 24Vdc power supply and is designed for flush mounting. The operating ambient air temperature range is 0 to +55°C, and it offers a degree of protection rated at IP65, IP67, and NEMA 4X. The unit includes a 4GB SD card for expansion and has a memory capacity of 96MB for applications. The display is a 10.4" VGA TFT with 65K colors and LED backlight, featuring a pixel count of 640x480. It can be stored in temperatures ranging from -20 to +60°C. The operating system is Magelis, and the electrical durability of the backlight is rated for 50,000 hours.

About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.

Check out the HMIGTO5310 Schneider Electric price in the box on the right side or send a quick quote.

Product Details

Supply
External source
Supply Voltage Limits
19.2…28.8 V
Height
8.44 in (214.5 mm)
Terminal Type
Touchscreen display
[Us] Rated Supply Voltage
24 V DC
Range Of Product
Harmony GTO
Display Resolution
640 x 480 pixels VGA
Net Weight
4.41 lb(US) (2 kg)
Display Colour
65536 colours
Touch Panel
Resistive film, 1000000 cycles
Inrush Current
30 A
Enclosure Material
PPT
Display Type
Backlit colour TFT LCD
Software Designation
Vijeo Designer configuration software >= V6.1
Type Of Cooling
Natural convection
Display Size
10.4 inch
Data Backed Up
512 kB internal RAM SRAM)
Operating System
Harmony
Backlight Lifespan
50000 hours white 77 °F (25 °C)
Width
10.73 in (272.5 mm)

Product Or Component Type

Advanced touchscreen panel

Touch Sensitive Zone

1024 x 1024

Memory Description

Flash EPROM, 96 MB

Product Mounting

Flush mounting

Battery Type

Lithium internal RAM 100 days 5 day(s) 10 year(s)

Front Material

PPT

Depth

2.24 in (57 mm)

Fixing Mode

by 4 screw clamps

Data Storage Equipment

SD card, <= 32 GB SDHC card, <= 32 GB

Brightness

16 levels by touch panel 16 levels by software

Downloadable Protocols

Schneider Electric Modicon Modbus Schneider Electric Modicon Uni-TE Schneider Electric Modicon Modbus Plus Schneider Electric Modicon FIPWAY Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell

Maximum Power Consumption In W

12 W when power is not supplied to external devices 7 W when backlight is OFF 8 W when backlight is dimmed 17 W

Character Font

Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean ASCII Taiwanese (traditional Chinese)

Local Signalling

Status LED green, steady offline Status LED green, steady operating Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED clear, faded power supply (OFF) COM2 LED yellow, steady data

Integrated Connection Type

COM1 serial link SUB-D 9 RS232C 2400...115200 bps COM2 serial link RJ45 RS485 2400...115200 bps COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI Ethernet RJ45 10BASE-T/100BASE-TX Ethernet RJ45 IEEE 802.3 USB 2.0 type A USB

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
