I/O Modules

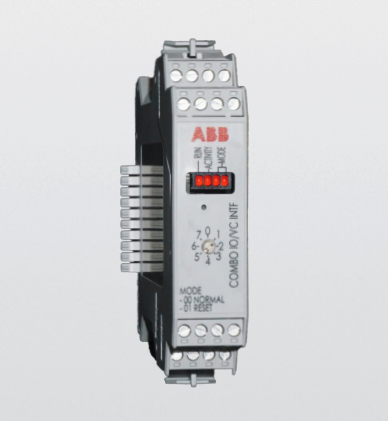

2100412

Configurable (software) combination I/O module specifically tailored for valve control applications, incorporates six general-purpose digital/pulse input/outputs, with two source mode digital outputs and one 4 to 20 mA sink/source mode analog output.

ABB Control

URD-0008NI

URD-0008NI Unitronics - 8 digital outputs, (sink), 24VDC/2A

Unitronics

DEK100-A2R2-V

Banner DEK100-A2R2-V - DXM100 A2 Controller; Verizon US Only; Multihop Radio 900 MHz; NEMA Rated Enclosure; 4 holes with Glands & Vent; 5W Solar Panel with Battery

Banner

DX80N2X6S-PM2

PM Series Node- LCD for Diagnostics; 2.4 GHz, IP67 /NEMA 6; Inputs:Four selectable NPN/PNP discrete; Two 0-20 mA; Outputs: Four PNP discrete; Two 0-20 mA

Banner

PILZ-328520

Pilz PILZ-328520 is an I/O unit designed for backplane or rackmount installation, featuring digital I/O-Link electronic module with potential isolation between the module supply and the IO-Link ports. It operates within an ambient air temperature range of 0 to +55°C and has a net height of 110.8 mm, adhering to device code 006B. This standard I/O module supports a rated current of 1A for actuator/sensor supply at L+ and offers plug-in/detachable cage-clamp terminal connections depending on the base module. It is protected to IP20, requires a supply voltage of 16.8-30Vdc (24Vdc nominal), and is constructed with a PPE housing. The module accommodates a maximum cable length of 20m for the IO-Link module and has a net width of 12.5 mm. It features a memory capacity of 32Byte per port and 128Byte per module, with a power consumption of 0.25 W (module supply) and 0.2 W with no load. The net depth is 72.5 mm, and it can be stored in temperatures ranging from -40 to +70°C. It includes 4 digital outputs (IO-Link class A-B; 0.2A) and 4 digital inputs (IO-Link port class A-B; 2.5mA; 5.5mA switchable), with short-circuit proof potential isolation. The response time is 2ms / 0.002 s, supporting COM1/COM2/COM3 speeds, and the power dissipation/losses can reach up to 1.9 W.

Pilz

PILZ-328400

Pilz PILZ-328400 is an I/O unit designed as a digital output electronic module with specific capabilities for handling inductive, capacitive, and resistive loads. It features potential isolation between semiconductor output and module supply with functional insulation, rated for a surge voltage of 2500V. This unit is suitable for backplane or rackmount mounting modes and operates within an ambient air temperature range of 0 to +55°C. The device, with a net height of 110.8 mm and a design code of 0016h, offers 8 ST output bits plus 8 ST status bits. It supports a rated current range from 0 to 0.625A for permitted output current, with a residual current of 0.001mA at a "0" signal, and can handle a maximum transient pulsed output current of 0.7A, with an overload threshold at 1.4A. Connection is facilitated through plug-in/detachable cage-clamp terminal connections. As a standard I/O module, it has an IP20 degree of protection and requires a supply voltage of 16.8-30Vdc, with a nominal 24Vdc. The housing is made of PPE material, and the unit measures 12.5 mm in width and 72.5 mm in depth. It is designed for storage in ambient air temperatures ranging from -40 to +70°C. The module features 8 digital outputs, each being a 1-pole positive-switching semiconductor output operating at 24Vdc with a 0.5A capacity. It includes protection functions against short circuits and potential isolation, with a maximum power dissipation/loss of 1.5 W. The processing time for output signals ranges from a maximum of 0.4 ms for a "1" to "0" signal to 0.42 ms for a "0" to "1" transition, and it experiences an internal voltage drop of 0.07 V.

Pilz

DX80N9DSTS

Wireless Operator Interface Node; 900 MHz 1 W, LCD Display 0-999; Multicolor Capacitive Touch

Banner

6ES7-223-1BL22-0XA0

SIMATIC S7-200, Digital I/O EM 223, only for S7-22X CPU, 16 DI 24 V DC, Sink/Source, 16DO 24 V DC; 0.75 A/channel,source

Siemens

URA-0004Y

URA-0004Y Unitronics - 4 Analog current outputs, 0-20mA, 16 bit

Unitronics

DX80N9X6S-P6-AN

DX80 Performance 900 MHz Node 1 W IP67; 1-Wire Serial Interface; 10-30 V dc; Female M12; Male M12 for Power; Certfied for Australia and New Zealand

Banner

FDNL-L1600-T-0061

FDNL-L1600-T-0061 Turck - FDNL-L1600-T-0061 I/O Module for DeviceNet, 16 digital pnp/npn inputs

Turck

TM5SDI2A

Schneider Electric TM5SDI2A is an AC digital input module within the Modicon TM5 I/O modules sub-range. This unit features two digital inputs (100-240Vac) and utilizes a removable spring terminal block connection type, which is sold separately. It operates with a supply voltage range of 85-264Vac (100-240Vac nominal) and is designed for symmetrical DIN rail mounting. The module is gray and offers an IP20 degree of protection. It has a current consumption of 28mA at 5Vdc via bus and includes short-circuit protection. The TM5SDI2A can operate in ambient air temperatures ranging from +14 to +131°F (-10 to +55°C) for horizontal installation, with a derating factor allowing operation up to +140°F (+60°C), and +14 to +122°F (-10 to +50°C) for vertical installation. It is designed to withstand storage temperatures from -40 to +158°F (-40 to +70°C) and humidity levels of 5-95% without condensation. The power dissipation/losses are rated at 0.69 W.

Schneider Electric

URB-EC1

URB-EC1 Unitronics - EtherCAT Remote IO Adapter, 6 Modules

Unitronics

URD-02PW

URD-02PW Unitronics - 2 Digital outputs, PWM, 24VDC, 0.5A

Unitronics

TBEN-LL-16DOP

Turck

TBIP-LL-FDIO1-2IOL

Turck

CBL-M12LM5-OP-2

CBL-M12LM5-OP-2 Unitronics - CABLE,M12-L,M,5P,OPEN,2m

Unitronics

TM171VEVA2

Schneider Electric TM171VEVA2 is an I/O unit categorized under the Modicon M171 electronic expansion valve drivers sub-range. This part is designed to function as an electronic expansion valve driver (EEVD) and features a connection type of removable screw terminal block, which is sold separately. It operates on a supply voltage of 19-30Vdc, with a nominal voltage of 24Vdc, and is mounted using a DIN rail (35mm). The TM171VEVA2 is designed to operate within an ambient air temperature range of +23...+122°F / -5...+50 °C and has a degree of protection rated at IP20. It includes 1 x digital output (open collector) and 1 x analog input (NTC 4-20mA; 0-5Vdc / 0-10Vdc).

Schneider Electric

DXM150-B1

DXM150 Controller; I/O Base Board Only; Inputs: 2 Discrete, 8 Universal; Outputs: 2 Relay, 4 Discrete, 2 Analog; SAM4 Processor, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller

Banner

AFP7HSC2T

Panasonic AFP7HSC2T is an I/O unit designed as a high-speed counter unit that supports the capture of count values along with finite difference calculation of capture values. It features interrupt capabilities using comparison match, including both comparison match and band comparison. Additionally, it facilitates the measurement of frequency and number of revolutions. The unit allows for the reset of Z number and preset, as well as reset and preset of external signals. It incorporates 2 digital inputs, configured as 2-channels high-speed counters, and offers built-in clock selection for enhanced functionality.

Panasonic
