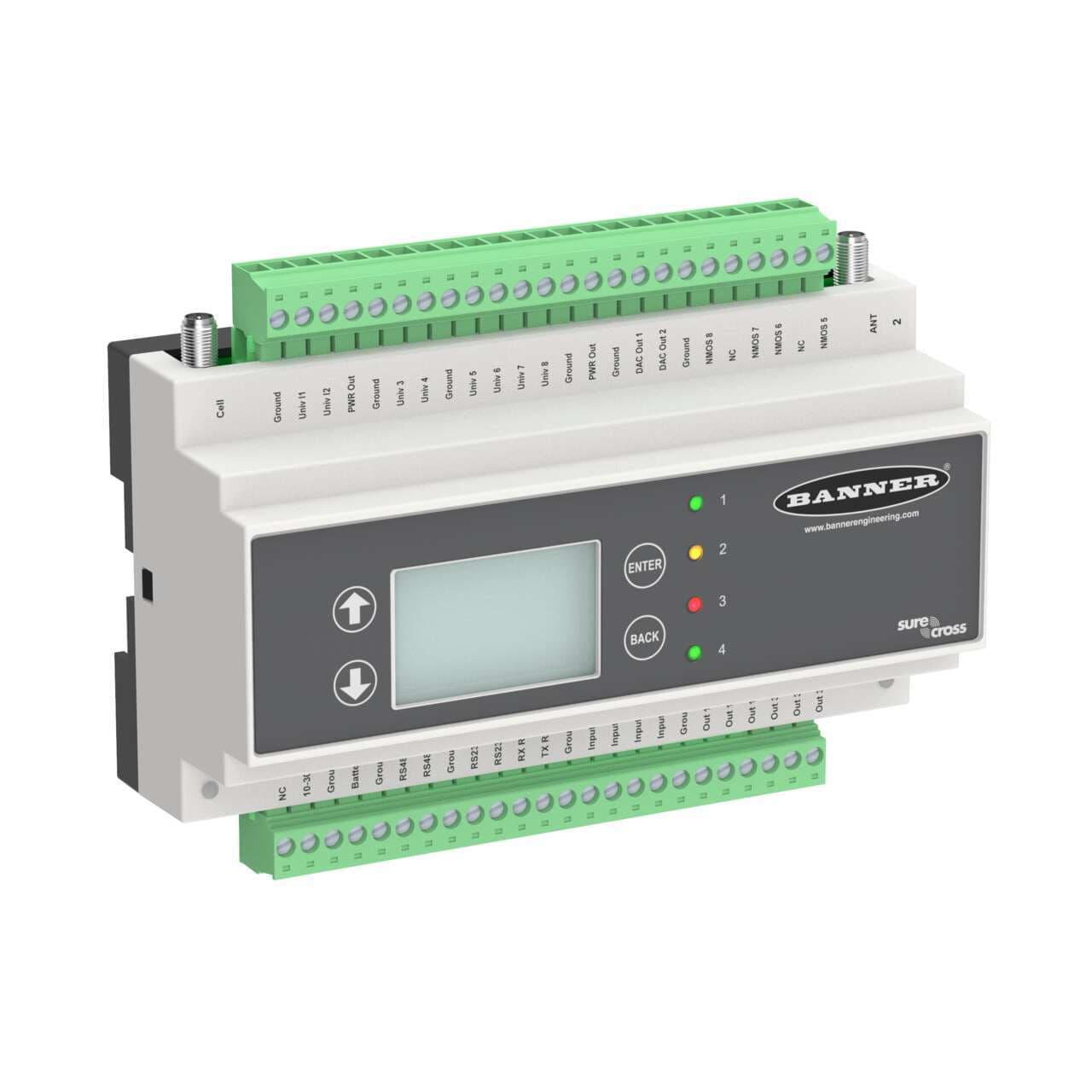

DXM150-B1 Banner I/O Modules
Part#:DXM150-B1
Manufacturer:Banner
Alt. Part#:803743
Product Lifecycle:Active
Get a quick Quote!
DXM150 Controller; I/O Base Board Only; Inputs: 2 Discrete, 8 Universal; Outputs: 2 Relay, 4 Discrete, 2 Analog; SAM4 Processor, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM150-B1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight589.6696 g
- Country Of OriginUS
- Power DC
- Environmental Rating (IP) IP20
- LCD Display Yes
- Relative Humidity 95%
- Feature: Hazardous Area No
- Modbus RTU Yes
- EtherNet/IP Yes
- RS-232 Yes
- Discrete Inputs Yes
- Input Details 2 Isolated discrete and 8 Universal
- Analog Outputs Yes
- Min Temp Operating Conditions -20
- Dimension Length (mm) 150
- RS-485 Yes
- Housing Style External Terminals
- Power Supply 12-30 V dc
- Discrete Outputs Yes
- Processing Speed (MHz) 100
- Modbus/TCP Yes
- Device Type Wireless Controller
- Max Temp Operating Conditions 60
- PROFINET No
- 1-wire Serial Interface No
- Analog Inputs Yes
- Input/Output Analog & Discrete
- Output Details 2 Relay, 4 NMOS, 2 Analog
- On-Board Memory (MB) 2
- Application: Indicator Light Yes
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM150-B1 Description
Banner Engineering DXM150-B1 is a remote I/O controller designed for DIN rail mounting, featuring a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller has dimensions of H93.9mm x W156mm x D94.6mm. It is equipped with 2 analog outputs (0-20mA / 0-10Vdc), 2 digital outputs (SPDT / Form-C / NO/NC contact type; 16A / 250Vac), and 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), alongside 2 digital inputs (12-30Vdc isolated inputs) and 8 digital inputs (12Vdc-30Vdc; Sink/Source/Counter) which can also function as 8 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM150-B1 series controller serves as a Modbus controller with a design focused on an I/O base board only, featuring a 100MHz processing speed and CAN support. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector, with a supply voltage requirement of 12-30Vdc (12Vdc-24Vdc nom.). It supports RS-485, RS-232, Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Memory capacity is provided by 2MB of on-board memory and an expandable 8GB via SD card.
Related documents DXM150-B1 Specs
