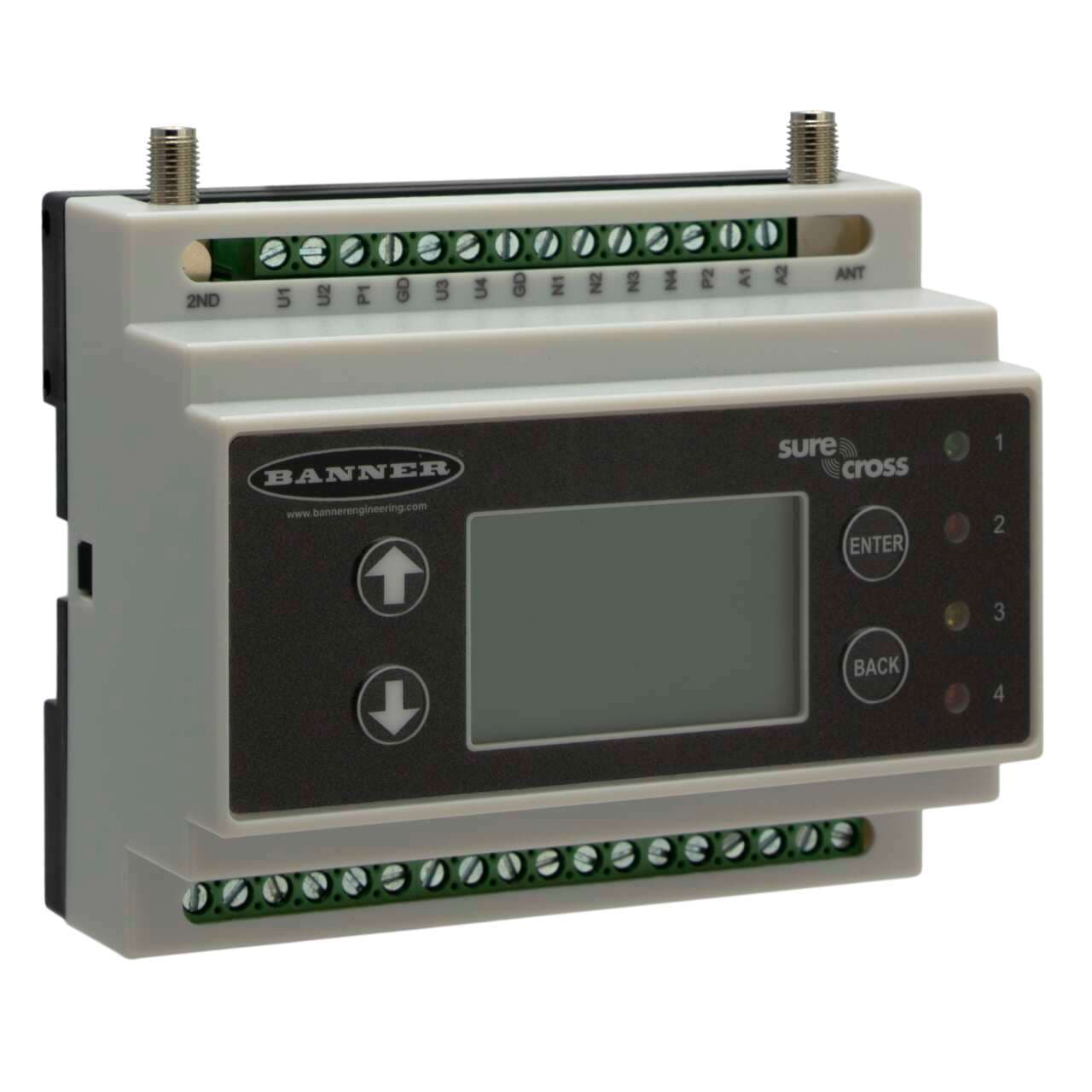

DXM100-B1R1 Banner I/O Modules
Part#:DXM100-B1R1
Manufacturer:Banner
Alt. Part#:95651
Product Lifecycle:Active
Get a quick Quote!
DXM100 Controller; DX80 Performance Gateway 900 MHz 1 W; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; SAM4 processor, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM100-B1R1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight498.9512 g
- Country Of OriginUS
- Discrete Outputs Yes
- Max Temp Operating Conditions 60
- On-Board Memory (MB) 2
- Wireless Yes
- Analog Inputs Yes
- Output Details 4 NMOS Discrete, 2 Selectable Analog
- Star Topology Yes
- Application: Indicator Light Yes
- Input/Output Analog & Discrete
- Power Supply 12-30 V dc
- Dimension Length (mm) 100
- EtherNet/IP Yes
- Housing Style External Terminals
- Environmental Rating (IP) IP20
- Point-to-Point Topology Yes
- Modbus/TCP Yes
- Power DC
- LCD Display Yes
- Relative Humidity 95%
- Modbus RTU Yes
- Device Type Wireless Controller with Performance Gateway
- Min Temp Operating Conditions -20
- Tree Topology No
- RS-232 Yes
- Feature: Hazardous Area No
- EPLAN Cabinet Installable Yes
- Discrete Inputs Yes
- Max Operating Temperature ( °C) 80
- PROFINET No
- Wireless Radio Frequency 900 MHz
- Analog Outputs Yes
- Point-to-Multipoint Topology Yes
- Application: Temperature Input Yes
- RS-485 Yes
- Input Details 4 Universal Inputs
- Min Operating Temperature ( °C) -20
- Application: Object Counting Yes
- 1-wire Serial Interface No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DXM100-B1R1 Description
Banner Engineering DXM100-B1R1 is a remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers 2 analog outputs (4-20mA / 0-10Vdc), with a degree of protection rated at IP20. The dimensions of the DXM100-B1R1 are H61.1mm x W105.3mm x D94.7mm. It includes 4 digital outputs (12Vdc-30Vdc; NMOS; 1A) and 4 digital inputs (12-30Vdc; Sink/Source/Counter) that can also function as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). This Modbus I/O controller is part of the DXM100-B1 series and is designed with a 100MHz processing speed to support data aggregation of sensors and wireless networks using FHSS (Frequency Hopping Spread Spectrum) technology and a SAM4 processor CAN. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. It requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.) and supports communication protocols such as RS-485, RS-232, Modbus RTU, Modbus TCP, and Ethernet/IP. The memory capacity is 2MB for on-board memory and 8GB for an SD card. It operates on a 900MHz ISM band 1W radio (PE5 performance radio; North America) and can achieve a maximum transmission distance of 9.6km at nominal emission power.
Related documents DXM100-B1R1 Specs
1-year warranty
