Contactors

BFX3232

BFX3232 Lovato - Rigid connecting kit for star-delta starters, for contactors BF26...BF38 (line-delta) and BF09-BF25 (star)

Lovato Electric

CA7-23E-01-24E

Sprecher + Schuh CA7-23E-01-24E - CA7 Contactor, 23A, 24V DC Elec. Coil, 1NC

Sprecher + Schuh

LC1DT80A6T7

Schneider Electric LC1DT80A6T7 is a magnetic contactor from the Deca sub-range, featuring an EverLink(TM) terminal design for ring-lugs connections. This 4-pole (4P; 4NO) contactor is designed for a rated current of 80A (AC-1) and can be mounted on a DIN rail. It has a net width of 70 mm and offers a degree of protection of IP20. The control voltage for AC ranges from 384-528Vac (480Vac nominal; 50Hz; 0.8...1.1 x Uc) to 408-528Vac (480Vac nominal; 60Hz; 0.85...1.1 x Uc). It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts, with a contacts type of 1NO+1NC instantaneous auxiliaries. The rated impulse voltage (Uimp) is 6 kV, and it has a mechanical durability of 6,000,000 operations at no load. The rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric

LC2D65A3U7

Schneider Electric LC2D65A3U7 is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal power connections with an Everlink mechanical interlock. It has spring connections and consists of 2 x 3-poles (2x3P; 2x3NO) with a rated current of 80A (AC-1) and 65A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (AC) of 192-264Vac (240Vac nominal; 50Hz; 0.8...1.1 x Uc) and 204-264Vac (240Vac nominal; 60Hz; 0.85...1.1 x Uc). Its rated operating voltage (Ue) is 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 6 kV. The contactor supports a rated active power (kW) of 18.5kW (220-230Vac; AC-3) up to 37kW (660-690Vac; AC-3), and it has 1NO+1NC instantaneous auxiliary contacts per contactor. The rated power (HP) ranges from 5HP (115Vac; single-phase; 50Hz/60Hz; UL/CSA) to 50HP (575-600Vac; 3-phase; 50Hz/60Hz; UL/CSA), with a rated voltage (AC) - phase-to-phase of 690 V.

Schneider Electric

CA7-72-00-480

Sprecher + Schuh CA7-72-00-480 - CA7 Contactor, 72A, 440V 50Hz / 480V 60Hz AC,

Sprecher + Schuh

AF261B2-CE13A2

AF16,NR,3PH,CB,N3R/4/12,480/120V

ABB Control

CWM50-00-30V47

WEG CWM50-00-30V47 - CONTACTOR CWM50-00-30V47, Contactors (CWM)

WEG

CWC016-00-40V56

WEG CWC016-00-40V56 - MINICONTACTOR CWC016-00-40V56, Miniature Contactors (CWC)

WEG

AF091F2-3P1F

ABB Control - AF091F2-3P1F

ABB Control

GJL1211201R0001

ABB GJL1211201R0001 is a magnetic mini contactor from the B6 contactors sub-range, designed with screw-clamp connections and equipped with 4-poles (4NO). It has a rated current of 20A at 380-400Vac (40°C; AC-1), 16A at 380-400Vac (55°C; AC-1), 6A at 690Vac (40°C; AC-1), 6A at 690Vac (55°C; AC-1), 4A at 24-120Vac (AC-15), 4A at 220-240Vac (AC-15), 3A at 380-400Vac (AC-15), and 2A at 500Vac (AC-15). For UL/CSA FLA, it is rated at 5.8A for 115Vac (single-phase), 4.8A for 200Vac (3-phase), 6.8A for 220-240Vac (3-phase), 4.9A for 230Vac (single-phase), 4.8A for 440-480Vac (3-phase), and 1.7A for 550-600Vac (3-phase). The contactor has a rated insulation voltage of 690 V (IEC/VDE) and 600 V (UL/CSA), with a mounting mode on the plate. Its dimensions are 57.5 mm in height, 52.5 mm in width, and 46.5 mm in depth. The current consumption is 3.5VA inrush and holding (coil) with a control voltage of 24Vac (40Hz-450Hz). The rated operating voltage (Ue) is 690 V, with 0 normally open (NO) auxiliary contacts and a rated impulse voltage (Uimp) of 6 kV. The rated active power is 2.2kW at 220-240Vac (AC-3), 4kW at 380-440Vac (AC-3), 4kW at 500Vac (AC-3), and 3kW at 690Vac (AC-3), with 0 normally closed (NC) auxiliary contacts. The rated power (HP) is 2HP at 220-240Vac (3-phase; UL/CSA), 3HP at 440-480Vac (3-phase; UL/CSA), and 1HP at 550-600Vac (3-phase; UL/CSA). The operating rate is 300 cycles/hour (AC-1), 600 cycles/hour (AC-3), 360 cycles/hour (AC-15), 600 cycles/hour (DC-1), 360 cycles/hour (DC-13), and 600 cycles/hour (DC-3).

ABB Control

CN2522220

CN2522220 Lovato - Modular contactor, three-pole or four-pole, 25A AC1, 220...230VAC (2NO+2NC)

Lovato Electric

AF261N2-2UJ

ABB Control - AF261N2-2UJ

ABB Control

AF09-30-10K-14

AF09-30-10K-14 ABB Control - AF09K,3P,1NO0NC,250-500VAC/DC

ABB Control

GJH1213061R6228

ABB GJH1213061R6228 is a magnetic mini contactor from the TKC6 contactors sub-range, designed with an expanded ambient temperature range of -30 to +70°C. It features screw-clamp connections and is a 4-pole (4P; 2NO+2NC) device, supporting a rated current of 4A for 24-240Vac (AC-15), 3A for 400Vac (AC-15), and 2A for 500Vac (AC-15). This contactor is designed for mounting on a plate, with dimensions including a net height of 57.5 mm, width of 52.5 mm, and depth of 46.5 mm. It operates with a control voltage (DC) range of 140-260Vdc, specifically at 200Vdc, 220Vdc, and 250Vdc, and has a current consumption of 5W for both inrush and holding (coil). The rated operating voltage (Ue) is 690 V, with no Normally Open (NO) auxiliary contacts, a rated impulse voltage (Uimp) of 6 kV, and no Normally Closed (NC) auxiliary contacts. The rated power and power consumption are both 2.8 W.

ABB Control

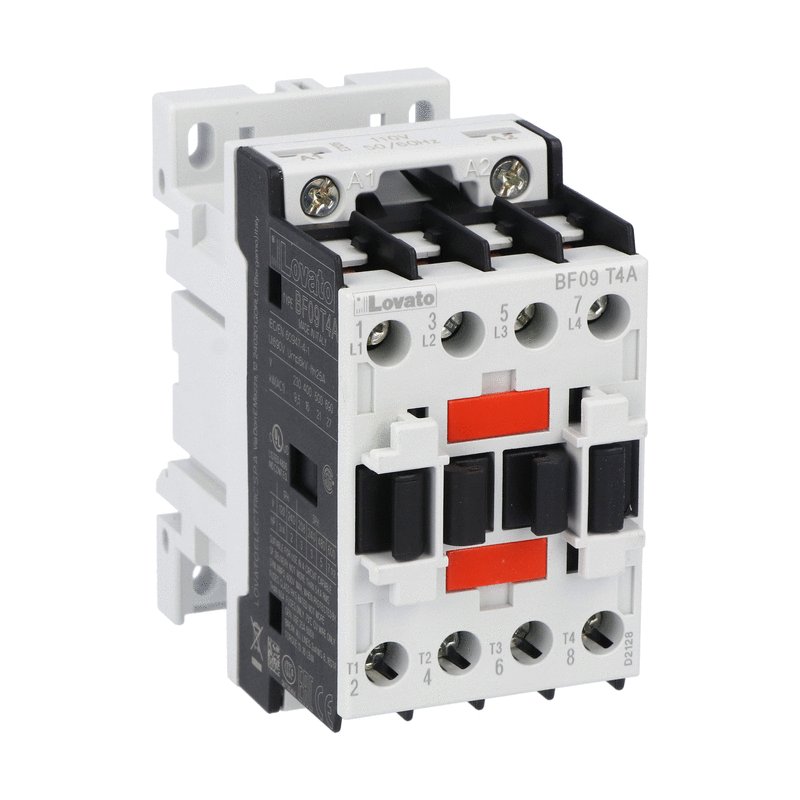

BF09T4A23060

BF09T4A23060 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 25A, AC coil 60Hz, 230VAC

Lovato Electric

LC1DT80A3CD

Schneider Electric LC1DT80A3CD is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design for secure connections. It is equipped with spring connections for control and screw connections for power, ensuring a robust installation. This 4-pole (4NO) contactor is designed to handle a rated current of 80A (AC-1) and can be mounted on a DIN rail. The unit has a net width of 70 mm and offers a degree of protection rated at IP20. It operates with a control voltage (DC) range of 27-45Vdc, with a nominal voltage of 36Vdc, and requires 0.75 to 1.25 times the control voltage (Uc) for optimal performance. The LC1DT80A3CD includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both of the instantaneous type (1NO+1NC). It boasts a mechanical durability of 6 million operations at no load and can handle rated impulse voltages up to 6 kV. The rated voltage for phase-to-phase connections is up to 690 V AC.

Schneider Electric

1SFL487102R1200

ABB 1SFL487102R1200 is a magnetic contactor designed for mounting on plate with lugs/bars connections. It features a rated current of 275A at 690Vac for AC-1 design, with auxiliary contacts rated at 250A for AC-1 and 200A for resistance operations. The contactor operates with a supply voltage of AC-1 and a control voltage range of 48Vdc-130Vdc, specifically 110Vdc. It has a rated impulse voltage (Uimp) of 8 kV and is equipped with 4 poles (4P) and 4 normally open (NO) contacts, with a short circuit breaking rating for 48Vac-130Vac across 50Hz/60Hz frequencies. The dimensions are specified as 196 mm in color, 140 mm in cross-section, and 153 mm in connection capacity. The device supports a primary current for AC-3 operations at various power levels, including 55kW at 220-240Vac, up to 132kW at 690Vac. It is designed for a 3-phase network with a frame current rating for 50Hz/60Hz operations and offers a cable category of 175VA inrush and 4VA holding for AC, with 130W inrush and 2.5W holding for DC. The contactor is capable of 300 cycles/hour at no load and under AC-1 conditions.

ABB Control

LC2D65A3MD

Schneider Electric LC2D65A3MD is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal power connections with an Everlink mechanical interlock. It offers spring connections for control and screw connections for power, with 2 x 3-poles (2x3P; 2x3NO) configuration. The rated current is 80A for AC-1 and 65A for 440Vac AC-3, with a degree of protection of IP20. The control voltage (DC) ranges from 165-275Vdc (220Vdc nominal; 0.75...1.25 x Uc). Its rated operating voltage (Ue) is up to 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts, with a rated impulse voltage (Uimp) of 6 kV. The rated active power (kW) spans from 18.5kW at 220-230Vac AC-3 to 37kW at 660-690Vac AC-3. The contactor also features 1NO+1NC instantaneous auxiliary contacts per contactor. Its rated power (HP) varies from 5HP at 115Vac single-phase to 50HP at 575-600Vac 3-phase, with a rated voltage (AC) - phase-to-phase of 690 V.

Schneider Electric

AF092F2-BK1B

ABB Control - AF092F2-BK1B

ABB Control

BFX3461

BFX3461 Lovato - Rigid connecting kit for changeover, for three-pole contactors BF95...BF150 with BFX5400 or BFX5401 mechanical interlock

Lovato Electric
