Contactors

11B145L0048C48

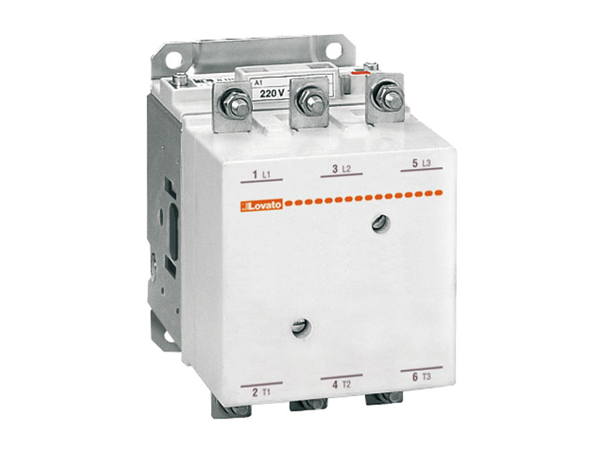

11B145L0048C48 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 150A, AC/DC coil, already fitted with mechanical latch (G495), 48VAC/DC, mechanical latch 48VDC

Lovato Electric

AF261B1-CR2F

ABB Control - AF261B1-CR2F

ABB Control

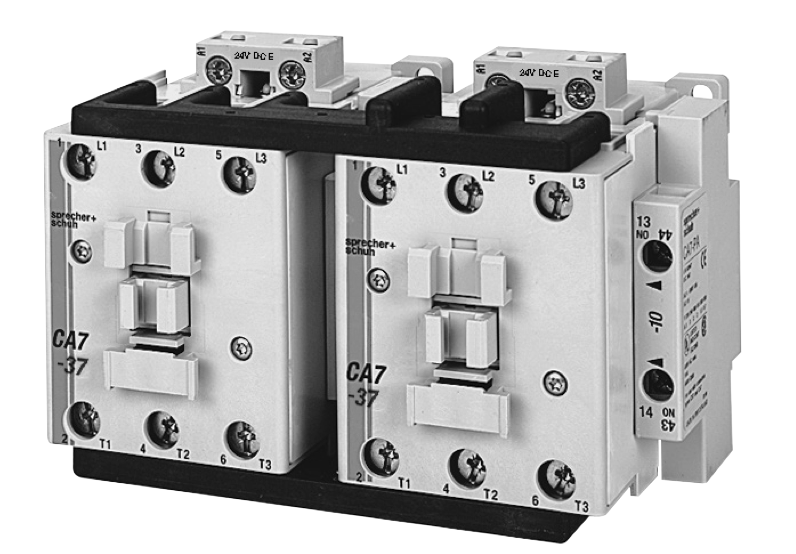

CA7-37E-01-220E

Sprecher + Schuh CA7-37E-01-220E - CA7 Contactor, 37A, 220-250V DC Elec. Coil, 1NC

Sprecher + Schuh

CA7-85-10-480

Sprecher + Schuh CA7-85-10-480 - CA7 Contactor, 85A, 440V 50Hz / 480V 60Hz AC, 1NO

Sprecher + Schuh

LC1DMKE7

Schneider Electric LC1DMKE7 is a magnetic contactor from the Deca sub-range designed for capacitor switching duty. It features screw connections and is equipped with three poles (3P; 3NO) for mounting on a DIN rail. This contactor offers a degree of protection rated at IP20 and operates with a control voltage (AC) of 48Vac (50Hz/60Hz). The rated operating voltage (Ue) is 690 V, and it includes 1 normally open (NO) auxiliary contact and 2 normally closed (NC) auxiliary contacts, with a contact type of 1NO+2NC instantaneous auxiliaries. The LC1DMKE7 has an electrical durability of 300,000 operations at 400Vac and 200,000 operations at 690Vac, with a rated impulse voltage (Uimp) of 6 kV and a phase-to-phase rated voltage (AC) of 690 V.

Schneider Electric

AF30ZM-30-22-21

MI,3P,32.2A,L20-60VDC/24-60VAC,2/2

ABB Control

CWC012-00-22V56

WEG CWC012-00-22V56 - MINICONTACTOR CWC012-00-22V56, Miniature Contactors (CWC)

WEG

CA7-37-120-R17

Sprecher + Schuh CA7-37-120-R17 - CA7 Enc. Contactor FVNR, 37 A, 110V 50Hz / 120V 60Hz AC, Type 3R, Light/HOA SS

Sprecher + Schuh

LC1D115U5

Schneider Electric LC1D115U5 is a magnetic contactor from the Deca sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 200A for AC-1 and 115A for AC-3 at 440Vac. This contactor is suitable for DIN rail mounting and has a net width of 120 mm. It offers a degree of protection of IP20 and operates with a control voltage of 204-264Vac (240Vac nominal; 50Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is up to 1000 V, and it includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 8 kV. Its rated active power ranges from 30kW at 220-230Vac to 80kW at 660-690Vac in AC-3, and it has a rated power in horsepower from 30HP at 200-208Vac to 100HP at 575-600Vac for 3-phase systems under UL/CSA standards. The mechanical durability of the LC1D115U5 is rated at 8 million operations at no load, and its electrical durability is rated at 950,000 operations with load. The rated voltage for phase-to-phase applications is 1000 V.

Schneider Electric

BFA0184223060

BFA0184223060 Lovato - 3P REV. CONTACTOR 18A 1NC 230V AC COIL

Lovato Electric

LC1D65A6JD

Schneider Electric LC1D65A6JD is a magnetic contactor from the Deca sub-range, featuring an EverLink(TM) terminal design and ring-lugs connections. This 3-pole (3P; 3NO) contactor supports a rated current of 80A (AC-1) and 65A (440Vac; AC-3), with a mounting mode suitable for DIN rail installation. It has a net width of 55 mm and offers a degree of protection rated at IP20. The control voltage (DC) ranges from 9-15Vdc (12Vdc nominal; 0.75...1.25 x Uc), and it operates at a rated operating voltage (Ue) of up to 690 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. Its rated active power spans from 18.5kW at 220-230Vac to 37kW at 660-690Vac in AC-3 category. The rated power in horsepower (HP) varies from 5HP at 115Vac in single-phase to 50HP at 575-600Vac in three-phase, under UL/CSA standards. This contactor is designed for mechanical durability of up to 6 million operations and electrical durability of 1.4 million operations with load, at a phase-to-phase rated voltage of 690 V.

Schneider Electric

LC2D093M7

Schneider Electric LC2D093M7 is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring a mechanical interlock design and spring connections. It has 2 x 3-poles (2x3P; 2x3NO) with a rated current of 25A (AC-1) and 9A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (AC) range of 176-242Vac (220Vac nom.; 50Hz; 0.8...1.1 x Uc) and 187-242Vac (220Vac nom.; 60Hz; 0.85...1.1 x Uc). Its rated operating voltage (Ue) is up to 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 6 kV, and it has a rated active power of 2.2kW to 5.5kW across various AC-3 voltage ranges. The contactor also features 1NO+1NC instantaneous auxiliary contacts per contactor and supports rated power (HP) from 0.33HP to 7.5HP across a range of voltages and phases, with a phase-to-phase rated voltage (AC) of 690 V.

Schneider Electric

CAU7-55-22-220W

Sprecher + Schuh CAU7-55-22-220W - CAU7 Contactor FVR, 55A, 200-220V 50Hz / 208-220V 60Hz AC, 2NO 2NC

Sprecher + Schuh

AF2612-2SD

ABB Control - AF2612-2SD

ABB Control

AF091F2-2D11D

ABB Control - AF091F2-2D11D

ABB Control

LP1K1201JD

Schneider Electric LP1K1201JD is a magnetic contactor within the K sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 20A under AC-1 conditions and 12A at 440Vac under AC-3 conditions. The contactor's net width is 45 mm and it offers a degree of protection rated at IP20. The control voltage (DC) specifications are 9.6-13.8Vdc, with a nominal 12Vdc, corresponding to 0.8...1.15 times the control voltage (Uc). It operates at a rated operating voltage (Ue) of up to 690 V and includes 0 normally open (NO) auxiliary contacts and 1 normally closed (NC) auxiliary contact. The rated active power varies with voltage, being 3kW at 220-230Vac, 5.5kW at 380-415Vac and 440Vac, and 4kW at 500Vac and 660-690Vac, all under AC-3 conditions. Its mechanical durability is rated for 10,000,000 operations at no load, and the rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric

CWM9-10-30X47

WEG CWM9-10-30X47 - CONTACTOR CWM9-10-30X47, Contactors (CWM)

WEG

CWC012-00-22R06

WEG CWC012-00-22R06 - MINICONTACTOR CWC012-00-22R06, Miniature Contactors (CWC)

WEG

BFD6500A57560

BFD6500A57560 Lovato - Three-pole contactor, 35A/1000V DC1, AC coil, 575VAC 60Hz

Lovato Electric

CA7-43-01-208

Contactor, 3 Pole, Non-Reversing, 85A, NC Auxiliary Contact, 208 VAC Coil

Sprecher + Schuh
