Contactors

CA9-460-EI-11-120W

Sprecher + Schuh CA9-460-EI-11-120W - CA9 Contactor w/PLC Inputs, 460A, 100-250V 50-60 Hz AC/DC, 1NO1NC

Sprecher + Schuh

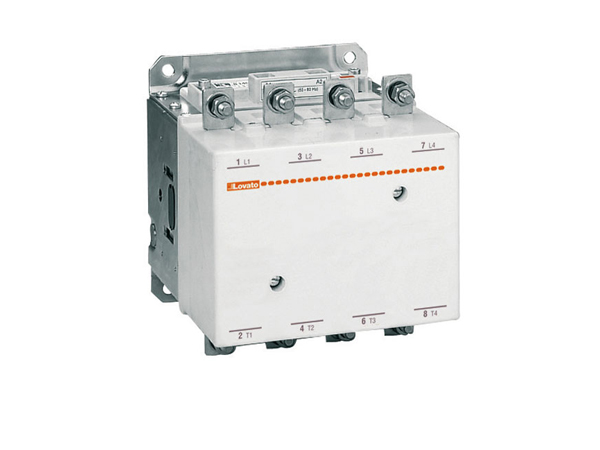

11B145400220

11B145400220 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 250A, AC/DC coil, 220...240VAC/DC

Lovato Electric

LC1D186FE7

Schneider Electric LC1D186FE7 is a magnetic contactor from the Deca sub-range, designed with ring-lugs connections and three poles (3P; 3NO). It has a rated current of 32A for AC-1 and 18A for 440Vac in AC-3, with a mounting mode suitable for DIN rail installation. The net width of the contactor is 45 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 92-126Vac at 50Hz and 98-126Vac at 60Hz, with a nominal control voltage of 115Vac. Its rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV, and it can handle rated active power ranging from 4kW to 10kW across various AC-3 voltage levels. The rated power in horsepower (HP) varies from 1HP to 15HP, accommodating both single-phase and three-phase applications under UL/CSA standards. This contactor is built for mechanical durability up to 15 million operations and electrical durability with load up to 1.6 million operations. The rated voltage for phase-to-phase connections is 690 V.

Schneider Electric

CAU9-265-EI-22-120W

Sprecher + Schuh CAU9-265-EI-22-120W - CAU9 Contactor FVR w/PLC Inputs, 265A, 100-250V 50-60 Hz AC/DC, 2NO2NC

Sprecher + Schuh

AF205-40-00-14

AF205-40-00-14 ABB Control - CONTACTOR AF205 4P 250-500V

ABB Control

AF12M-30-22-13

MI,3P,11A,100-250VAC/DC,2/2

ABB Control

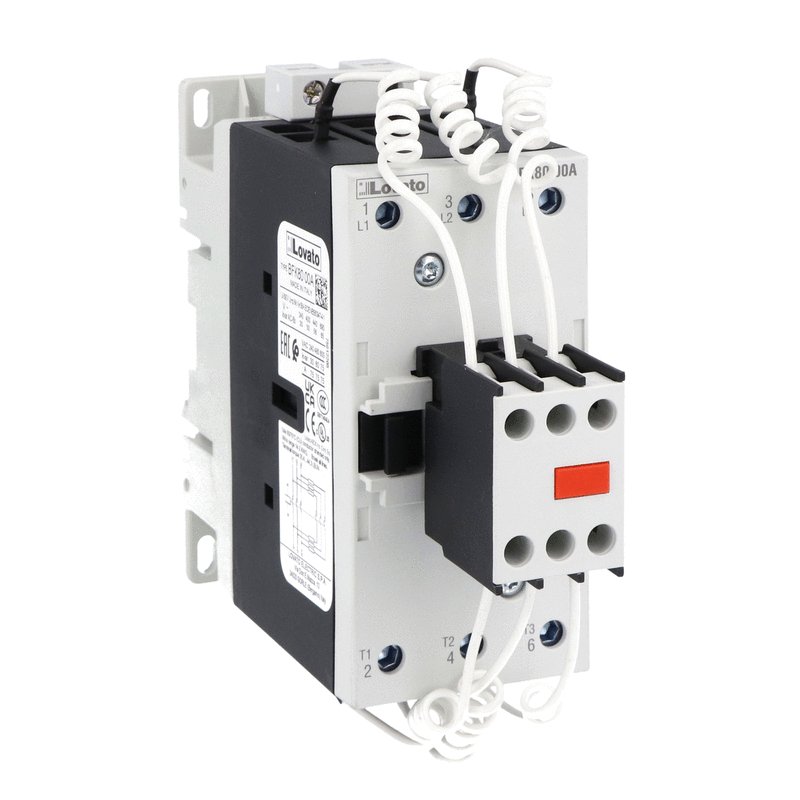

BFK8000A12060

BFK8000A12060 Lovato - Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 50kvar, coil 120VAC 60Hz

Lovato Electric

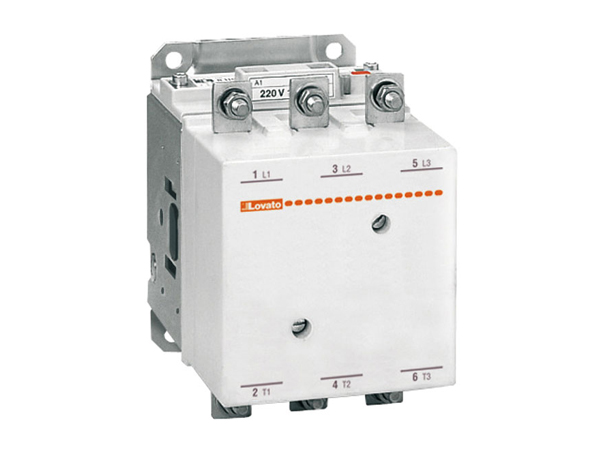

11B31000110

11B31000110 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 320A, AC/DC coil, 110...125VAC/DC

Lovato Electric

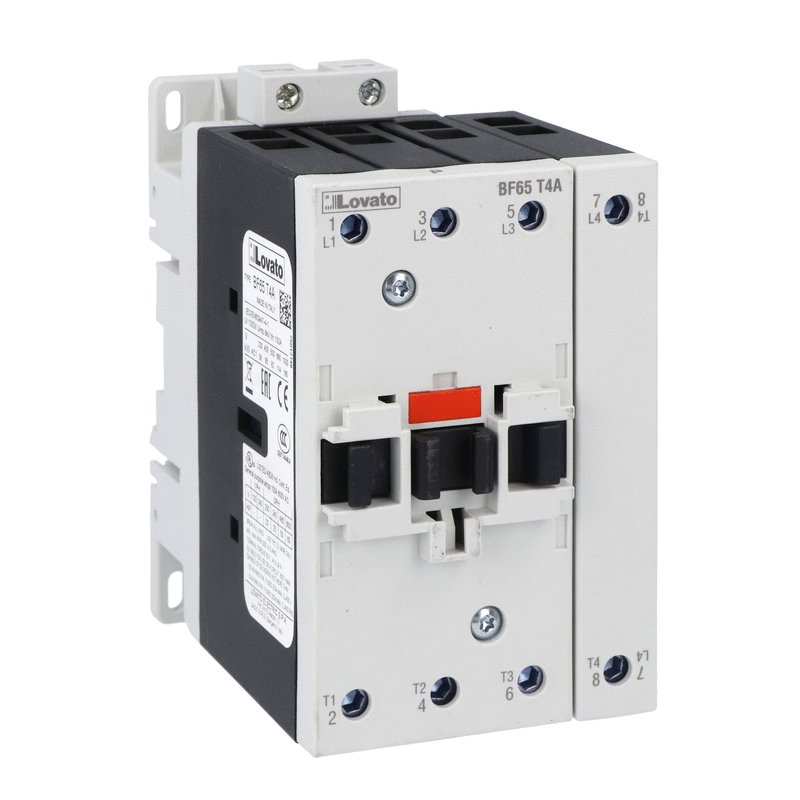

BF65T4A024

BF65T4A024 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 100A, AC coil 50/60Hz, 24VAC

Lovato Electric

AF205R-30-22-12

REV. CONT,3 POLE,200HP 600VAC

ABB Control

LC2D09GD

Schneider Electric LC2D09GD is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring a mechanical interlock and screw connections. It has 2 x 3-poles (2x3P; 2x3NO) and is rated for a current of 25A (AC-1) and 9A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (DC) of 94-156Vdc (125Vdc nom.; 0.75...1.25 x Uc). Its rated operating voltage (Ue) is 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts, with a contacts type of 1NO+1NC instantaneous aux. contacts per contactor. The rated impulse voltage (Uimp) is 6 kV. It supports rated active power (kW) of 2.2kW (220-230Vac; AC-3), 4kW (380-400Vac; AC-3) through 5.5kW (660-690Vac; AC-3), and rated power (HP) ranging from 0.33HP (115Vac; single-phase; 50Hz/60Hz; UL/CSA) to 7.5HP (575-600Vac; 3-phase; 50Hz/60Hz; UL/CSA). The rated voltage (AC) - Phase-to-phase is 690 V.

Schneider Electric

CWM32-00-30D15

WEG CWM32-00-30D15 - CONTACTOR CWM32-00-30D15, Contactors (CWM)

WEG

AF2611-CUF

ABB Control - AF2611-CUF

ABB Control

AF305-30-22-42

AF305-30-22-42 ABB Control - 3P, 400A, 110-120 V 50/60 HZ,2/2

ABB Control

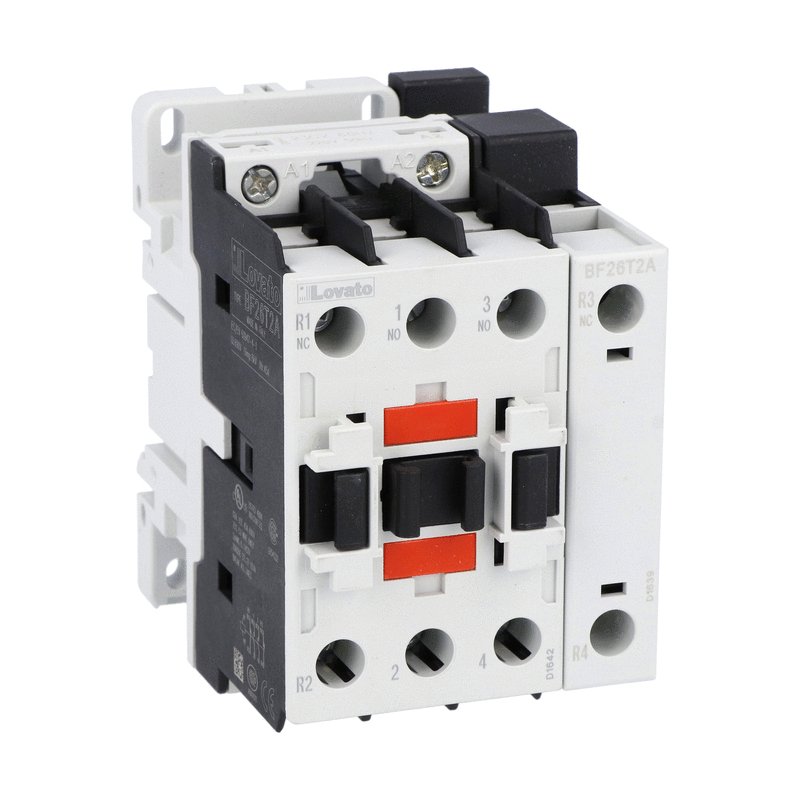

BF26T2A04860

BF26T2A04860 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 45A, AC coil 60Hz, 48VAC, 2NO and 2NC

Lovato Electric

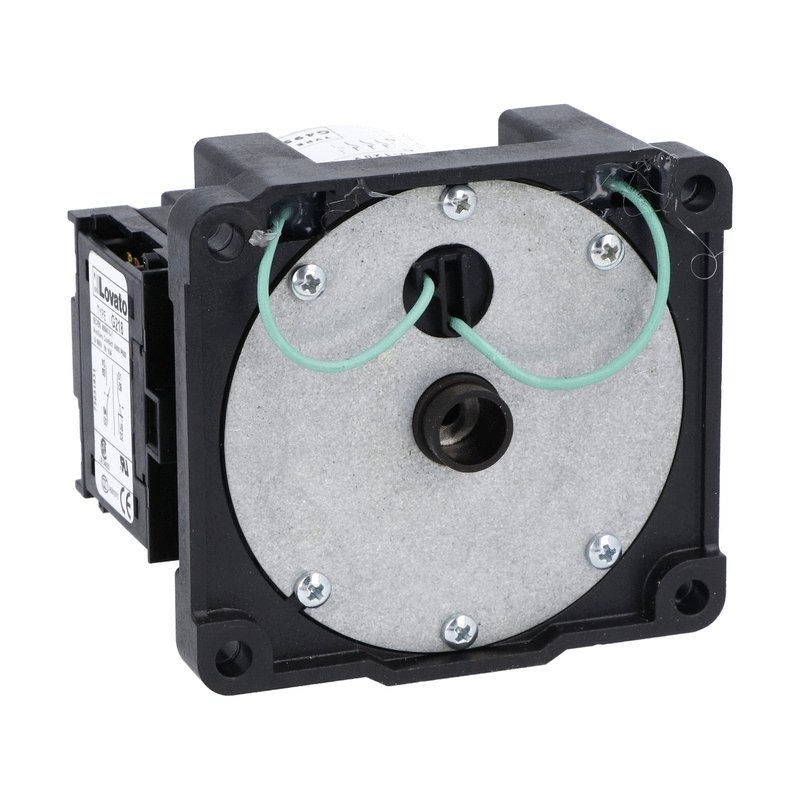

11G49548

11G49548 Lovato - Mechanical latch for B115-B630 contactors

Lovato Electric

AF121SF2-2R1D

AF12,,1PH,FD,N3R/4/12,100-250V

ABB Control

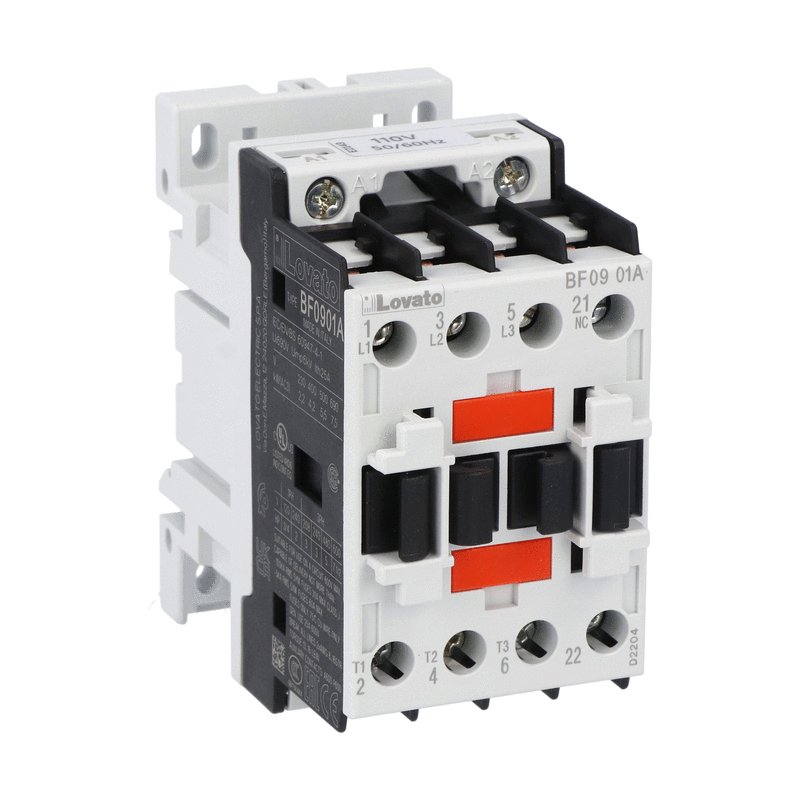

BF0901A048

BF0901A048 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, AC coil 50/60Hz, 48VAC, 1NC auxiliary contact

Lovato Electric

LC1K0601FC7

Schneider Electric LC1K0601FC7 is a magnetic contactor within the K sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It supports a rated current of 20A under AC-1 conditions and 6A at 440Vac under AC-3 conditions. The unit measures 45 mm in net width and offers an IP20 degree of protection. The control voltage (AC) ranges from 102-146Vac (127Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc), with a rated operating voltage (Ue) of up to 690 V. It includes 0 Normally Open (NO) auxiliary contacts and 1 Normally Closed (NC) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV, and the rated active power varies from 1.5kW at 220-230Vac to 3kW at 660-690Vac, all under AC-3 conditions. The mechanical durability of the contactor is rated at 10,000,000 operations at no load, and the rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric

CWB40-11-30C03

WEG CWB40-11-30C03 - CONTACTOR CWB40-11-30C03, Contactors (CWB)

WEG
