Contactors

1SFL427101R1400

ABB 1SFL427101R1400 is a magnetic contactor designed with screw-clamp connections. It has a rated current of 160A at 690Vac for AC-1 design, with variations for different applications and voltages, including 145A at 690Vac with normally open auxiliary contacts, and 130A at 690Vac for resistance applications. The contactor operates with a supply voltage in the AC-1 range and supports a control voltage for UL/CSA general use rating. It features a rated impulse voltage of 0 NO contacts and utilizes technology supporting 250Vdc-500Vdc. The residual current sensitivity is rated at 8 kV. This 4-pole (4P) contactor, made from durable materials, includes normally closed auxiliary contacts rated for IEC/VDE at 1000 V and UL/CSA at 600 V. It has a short circuit breaking rating suitable for 250Vac-500Vac across various voltages and frequencies. Designed for mounting on plates, it has dimensions of 120 mm and a cross-section for 4NO. The rated operating voltage (Ue) spans across multiple voltages for AC-3 applications, with a primary current also designed for AC-3. The frequency is listed as 88861442708 with a UNSPSC code of 39121529. It supports a primary voltage of 3-phase and operates efficiently across a frequency of 50Hz/60Hz. The operating rate is 205VA inrush and 16VA holding for the coil, indicating its performance capabilities in various operational conditions.

ABB Control

CAU7-9E-22-48E

Sprecher + Schuh CAU7-9E-22-48E - CAU7 Contactor FVR, 9A, 48-72V DC Elec. Coil, 2NO 2NC

Sprecher + Schuh

AF116R-30-22-12

REV. CONT,3 POLE,100HP 600VAC

ABB Control

CAU7-55-22-120

Sprecher + Schuh CAU7-55-22-120 - CAU7 Contactor FVR, 55A, 110V 50Hz / 120V 60Hz AC, 2NO 2NC

Sprecher + Schuh

CA8-09-M22-240

Sprecher + Schuh CA8-09-M22-240 - CA8 Miniature Contactor, 9A, 240V 50/60Hz, M22

Sprecher + Schuh

CA7-23-10-12B

CONTACTOR 23A 12VAC 1NO

Sprecher + Schuh

CA7Y2-60-02-480-LW

Sprecher + Schuh CA7Y2-60-02-480-LW - CA7Y2 Contactor Wye-Delta, 60A, 440V 50Hz / 480V 60Hz AC, 2NC,

Sprecher + Schuh

CA7-16-M40-24Z

Sprecher + Schuh CA7-16-M40-24Z - CA7 Contactor, 16A, 24V 50/60Hz AC, 4NO

Sprecher + Schuh

LC2D50A3FE7

Schneider Electric LC2D50A3FE7 is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring EverLink(TM) term. power connection by Everlink mechanical interlock. It has spring connections and consists of 2 x 3-poles (2x3P; 2x3NO) with a rated current of 80A (AC-1) and 50A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (AC) of 92-126Vac (115Vac nom.; 50Hz; 0.8...1.1 x Uc) and 98-126Vac (115Vac nom.; 60Hz; 0.85...1.1 x Uc). Its rated operating voltage (Ue) is 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts, with a rated impulse voltage (Uimp) of 6 kV. The rated active power (kW) spans from 15kW at 220-230Vac to 33kW at 660-690Vac, all under AC-3 classification. Additionally, it features 1NO+1NC instantaneous auxiliary contacts per contactor and supports rated power (HP) for various voltages and phases, including 3HP at 115Vac and up to 40HP at 575-600Vac, adhering to UL/CSA standards. The rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric

AF2102B2-2E3E

ABB Control - AF2102B2-2E3E

ABB Control

AF092F2-CH1B

ABB Control - AF092F2-CH1B

ABB Control

AF301N1-2W

ABB Control - AF301N1-2W

ABB Control

CA8-12-10-208

Sprecher + Schuh CA8-12-10-208 - CA8 Miniature Contactor, 12A, 200-220V 50Hz / 208-220V 60Hz AC, 1NO

Sprecher + Schuh

CA7-16-01-24Z

Sprecher + Schuh CA7-16-01-24Z - CA7 Contactor, 16A, 24V 50/60Hz AC, 1NC

Sprecher + Schuh

J7KNA-AR-22 230

Omron J7KNA-AR-22 230 - 2 pole Contactor

Omron

AF261B2-CP1927

ABB Control - AF261B2-CP1927

ABB Control

CA7-72-00-U120

Sprecher + Schuh CA7-72-00-U120 - CA7 Contactor, 72A, 110V 50Hz / 120V 60Hz AC, , Reversed Coil

Sprecher + Schuh

AF12-30-10K-12

AF12-30-10K-12 ABB Control - AF12K,3P,1NO0NC,48-130VAC/DC

ABB Control

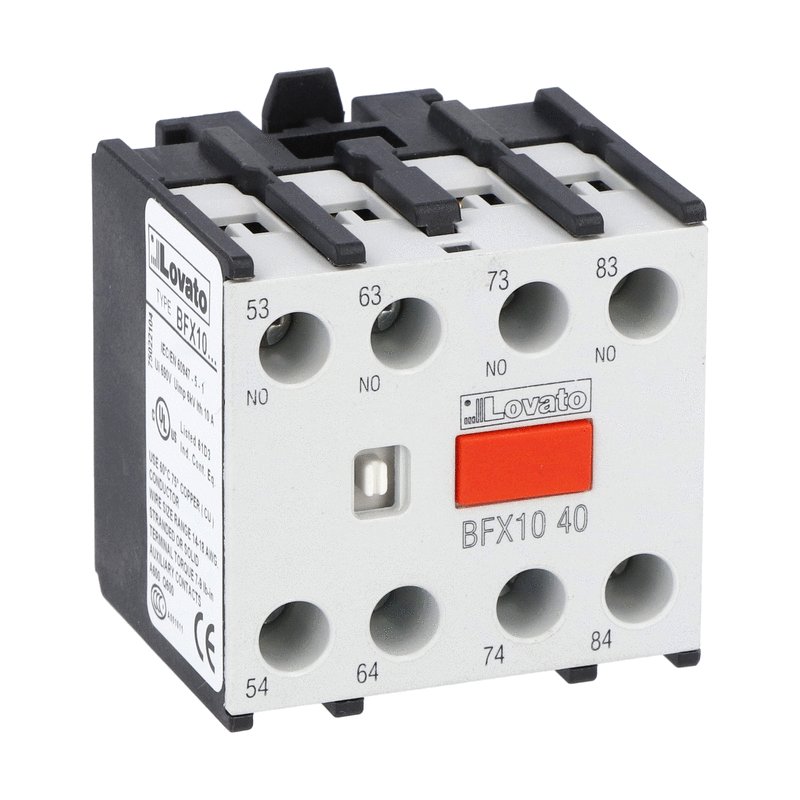

BFX1040

BFX1040 Lovato - Auxiliary contact with front centre mounting. Screw terminals, for BF00, BF09...BF150 series contactors, 4NO

Lovato Electric

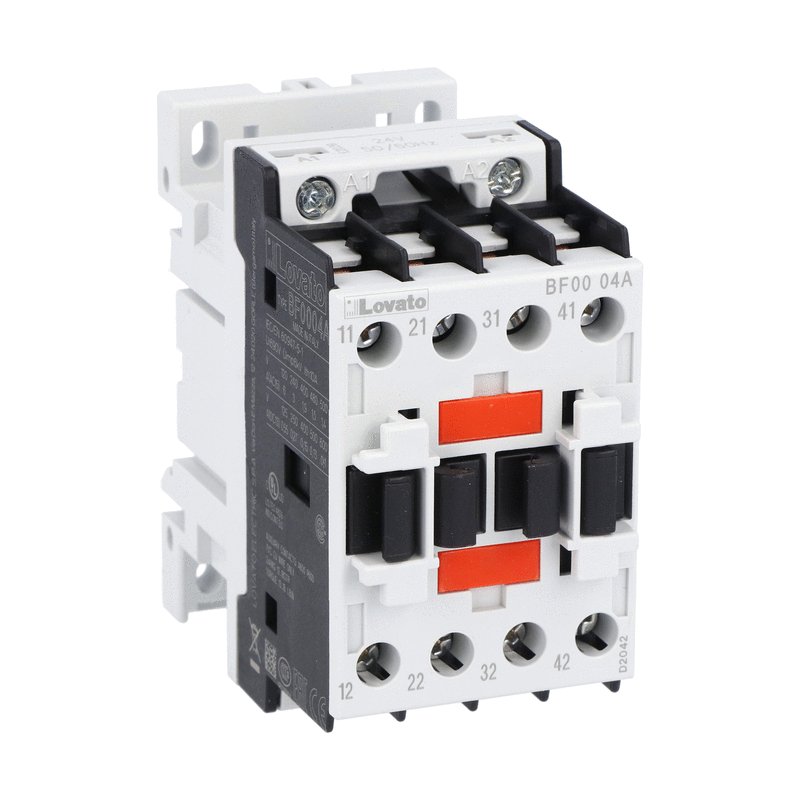

BF0004A110

BF0004A110 Lovato - Control relay with AC coil 50/60Hz, 110VAC, 4NC

Lovato Electric
