Contactors

AF2611-2PA

ABB Control - AF2611-2PA

ABB Control

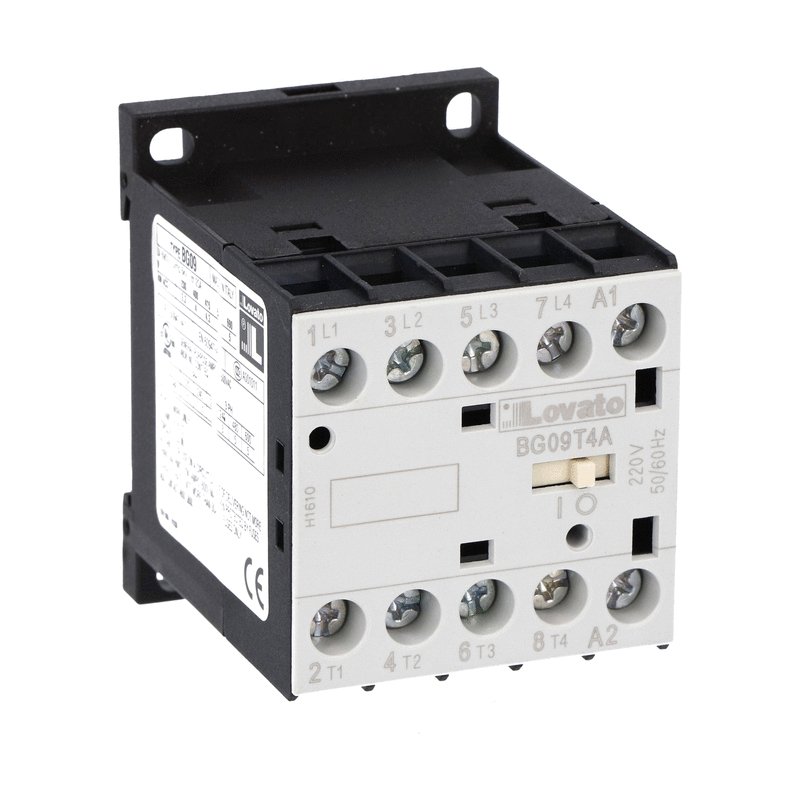

11BG09T4A12060

11BG09T4A12060 Lovato - Four-pole contactor, AC coil 60Hz, 120VAC

Lovato Electric

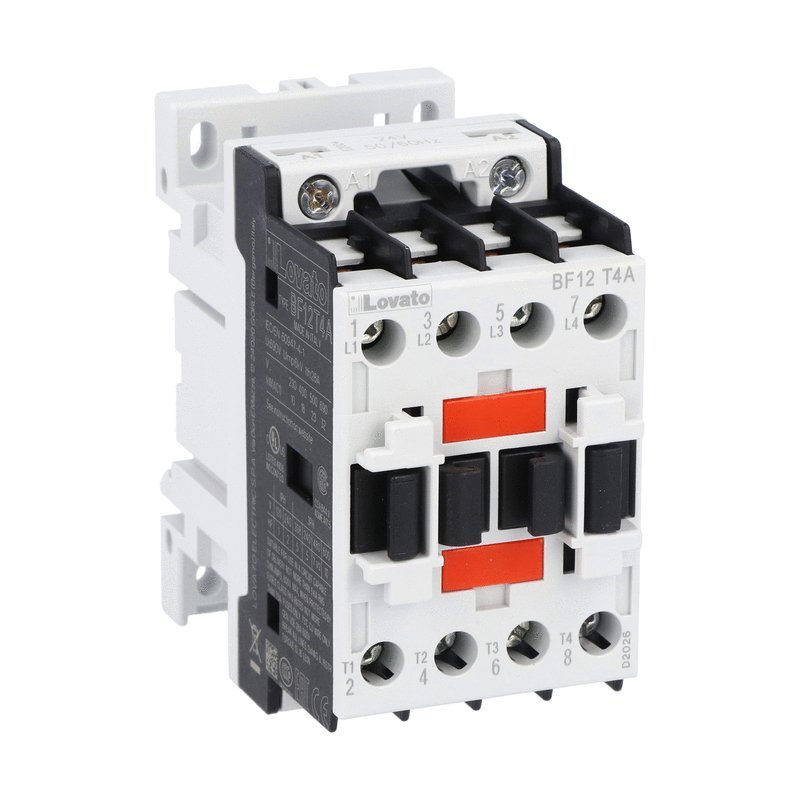

BF12T4A02460

BF12T4A02460 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 28A, AC coil 60Hz, 24VAC

Lovato Electric

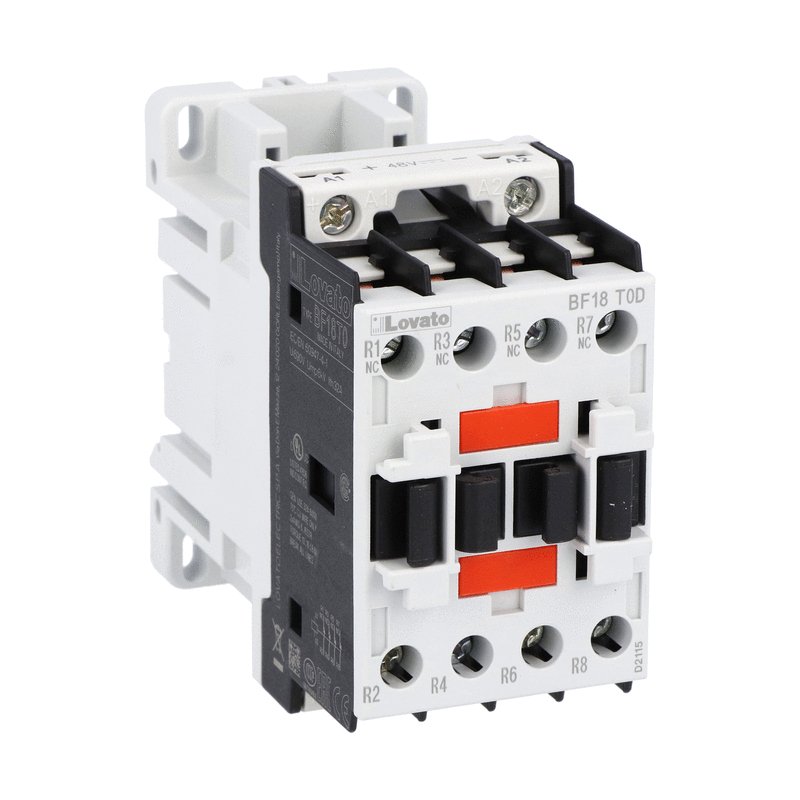

BF18T0D048

BF18T0D048 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 32A, DC coil, 48VDC, 4NC

Lovato Electric

LC2D40A3G7

Schneider Electric LC2D40A3G7 is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring EverLink(TM) term. power connection by Everlink mechanical interlock. It has spring connections and consists of 2 x 3-poles (2x3P; 2x3NO) with a rated current of 60A (AC-1) and 40A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (AC) of 96-132Vac (120Vac nom.; 50Hz; 0.8...1.1 x Uc) and 102-132Vac (120Vac nom.; 60Hz; 0.85...1.1 x Uc). Its rated operating voltage (Ue) is 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 6 kV. The contactor supports a rated active power (kW) of 11kW (220-230Vac; AC-3), 18.5kW (380-400Vac; AC-3), 22kW (415Vac; AC-3), 22kW (440Vac; AC-3), 22kW (500Vac; AC-3), and 30kW (660-690Vac; AC-3). It also features 1NO+1NC instantaneous auxiliary contacts per contactor and has a rated power (HP) of 3HP (115Vac; single-phase; 50Hz/60Hz; UL/CSA), 5HP (230-240Vac; single-phase; 50Hz/60Hz; UL/CSA), 10HP (200-208Vac; 3-phase; 50Hz/60Hz; UL/CSA), 10HP (230-240Vac; 3-phase; 50Hz/60Hz; UL/CSA), 30HP (460-480Vac; 3-phase; 50Hz/60Hz; UL/CSA), and 30HP (575-600Vac; 3-phase; 50Hz/60Hz; UL/CSA). The rated voltage (AC) - Phase-to-phase is 690 V.

Schneider Electric

AF2612-CUF

ABB Control - AF2612-CUF

ABB Control

CWC016-10-30C03

WEG CWC016-10-30C03 - MINICONTACTOR BU CWC016-10-30C03, Miniature Contactors (CWC)

WEG

LC1DT403U7

Schneider Electric LC1DT403U7 is a magnetic contactor within the Deca sub-range, featuring spring connections and a 4-pole (4P; 4NO) configuration. It is designed for a rated current of 40A (AC-1) and can be mounted on a DIN rail. The contactor has a net width of 45 mm and offers a degree of protection rated at IP20. It operates with a control voltage (AC) range of 192-264Vac (240Vac nominal; 50Hz; 0.8...1.1 x Uc) and 204-264Vac (240Vac nominal; 60Hz; 0.85...1.1 x Uc). This model includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). It is capable of withstanding a rated impulse voltage (Uimp) of 6 kV and has a mechanical durability of 15,000,000 operations at no load. The rated voltage (AC) for phase-to-phase connections is 690 V.

Schneider Electric

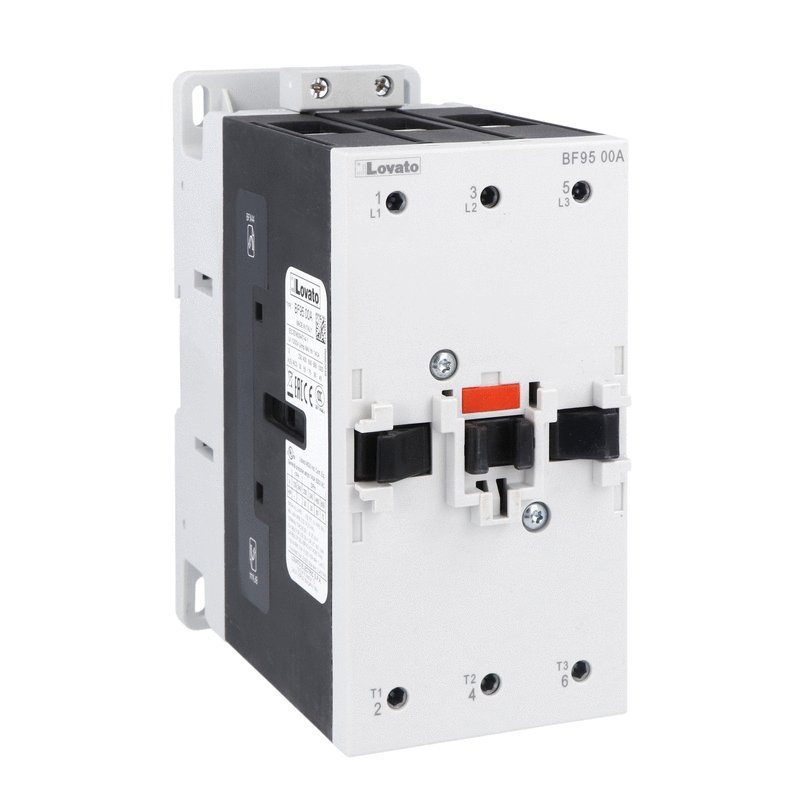

BF9500A04860

BF9500A04860 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 95A, AC coil 60Hz, 48VAC

Lovato Electric

AF2612-ANA

ABB Control - AF2612-ANA

ABB Control

AF21022-CB

ABB Control - AF21022-CB

ABB Control

LC1DT80A3FE7

Schneider Electric LC1DT80A3FE7 is a magnetic contactor from the Deca sub-range, featuring an EverLink(TM) terminal design for secure connections. It is equipped with spring connections for control and screw connections for power, ensuring a reliable installation. This 4-pole (4NO) contactor is designed to handle a rated current of 80A under AC-1 conditions and can be mounted on a DIN rail. The unit has a net width of 70 mm and offers a degree of protection rated at IP20. It operates within control voltage ranges of 92-126Vac at 50Hz and 98-126Vac at 60Hz, with a nominal voltage of 115Vac. The LC1DT80A3FE7 includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact, both of the instantaneous type, and is capable of withstanding a rated impulse voltage of 6 kV. Its mechanical durability is rated for 6 million operations at no load, and it can handle phase-to-phase rated voltages up to 690 V.

Schneider Electric

AF261FX-BU2F

ABB Control - AF261FX-BU2F

ABB Control

CWBS38-33-30C03

WEG CWBS38-33-30C03 - CONTACTOR CWBS38-33-30C03, Contactors (CWB)

WEG

CA7-9E-M40-220E

Sprecher + Schuh CA7-9E-M40-220E - CA7 Contactor, 9A, 220-250V DC Elec. Coil, 4NO

Sprecher + Schuh

AF300R-30-11-70

3P REV CONTR,100-250V AC/DC

ABB Control

CWB18-11-30C15

WEG CWB18-11-30C15 - CONTACTOR CWB18-11-30C15, Contactors (CWB)

WEG

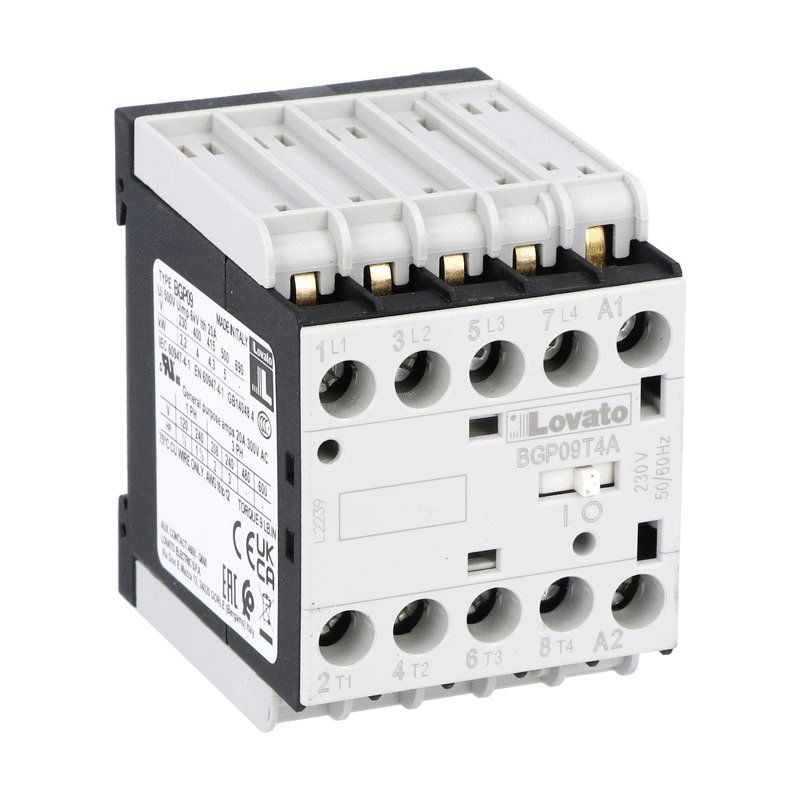

11BGP09T4A02460

11BGP09T4A02460 Lovato - Four-pole contactor, AC coil 60Hz, 24VAC, rear PCB solder pin

Lovato Electric

AF30ZM-30-02-23

MI,3P,32.2A,LOW100-250VAC/DC,2NC

ABB Control

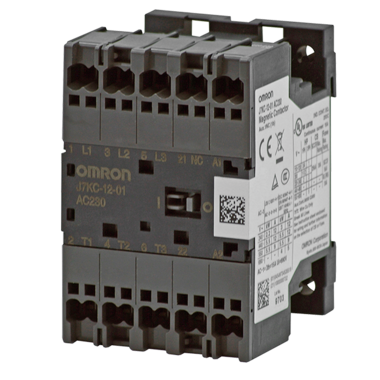

J7KCR-12-10 AC400

J7KCR-12-10 AC400, Magnetic Contactor, Max Load Current: 5-15A, Max Rated Load Voltage : 200-400 VAC, Input Voltage Range: 400-440 VAC

Omron
