Contactors

CWCI07-01-30C02

WEG CWCI07-01-30C02 - MINICONTACTOR CWCI07-01-30C02, Miniature Contactors (CWC)

WEG

CA7-55-10-U120

Sprecher + Schuh CA7-55-10-U120 - CA7 Contactor, 55A, 110V 50Hz / 120V 60Hz AC, 1NO, Reversed Coil

Sprecher + Schuh

J7KN-40 24D

Omron J7KN-40 24D - Contactor

Omron

AF37FD

AF37FD ABB Control - RLP FRONT 37.5 X 20 FLUSH FHB D

ABB Control

LC1DTKV7

Schneider Electric LC1DTKV7 is a magnetic contactor from the Deca sub-range designed for capacitor switching duty. It features screw connections and is equipped with three poles (3P; 3NO) for mounting on a DIN rail. This contactor offers a degree of protection rated at IP20 and operates with a control voltage (AC) of 400Vac at 50Hz/60Hz. The rated operating voltage (Ue) is 690 V, and it includes 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts, with a contact type of 1NO+2NC instantaneous auxiliaries. The LC1DTKV7 has a rated impulse voltage (Uimp) of 6 kV and demonstrates electrical durability of 300,000 operations at 400Vac and 200,000 operations at 690Vac. The rated voltage (AC) for phase-to-phase is 690 V.

Schneider Electric

LC1D150ED

Schneider Electric LC1D150ED is a magnetic contactor from the Deca sub-range, designed with screw connections and three poles (3P; 3NO). It has a rated current of 200A for AC-1 and 150A for 440Vac in AC-3 conditions. This contactor is suitable for DIN rail mounting and features a net width of 120 mm. It offers a degree of protection rated at IP20 and operates with a control voltage (DC) range of 36-57.6Vdc, nominally at 48Vdc. The LC1D150ED is capable of handling a rated operating voltage (Ue) up to 1000 V, includes 1 normally open (NO) auxiliary contact, and has a rated impulse voltage (Uimp) of 8 kV. Its rated active power spans from 40kW at 220-230Vac to 100kW at 660-690Vac in AC-3 conditions. Additionally, it features 1 normally closed (NC) auxiliary contact with a contact type of 1NO+1NC instantaneous aux. The rated power in horsepower (HP) ranges from 40HP at 200-208Vac to 125HP at 575-600Vac for 3-phase, 50Hz/60Hz, UL/CSA conditions. Its mechanical durability is rated at 8 million operations at no load, and its electrical durability at 850,000 operations with load. The rated voltage for phase-to-phase AC conditions is 1000 V.

Schneider Electric

CWM32-00-30V10

WEG CWM32-00-30V10 - CONTACTOR CWM32-00-30V10, Contactors (CWM)

WEG

AF2612-CRV927

ABB Control - AF2612-CRV927

ABB Control

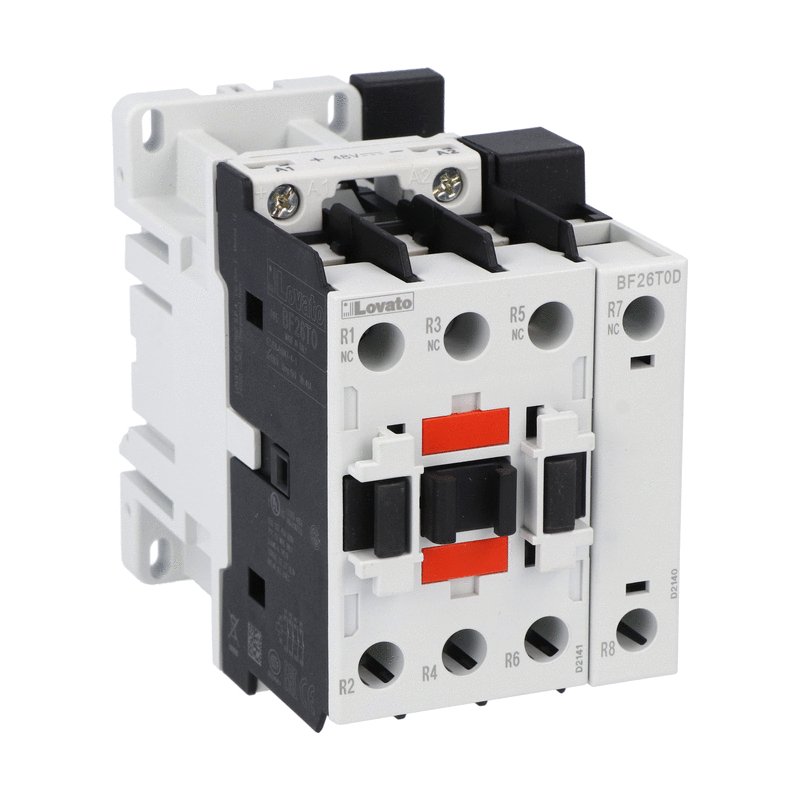

BF26T0D060

BF26T0D060 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 45A, DC coil, 60VDC, 4NC

Lovato Electric

LC1D099U7

Schneider Electric LC1D099U7 is a magnetic contactor from the Deca sub-range, designed for DIN rail mounting. It features Faston spade connections and has three poles (3P; 3NO) with a rated current of 25A (AC-1) and 9A (440Vac; AC-3). The contactor offers a net width of 45 mm and is protected to a degree of IP20. It operates within a control voltage range of 192-264Vac (240Vac nominal; 50Hz; 0.8...1.1 x Uc) and 204-264Vac (240Vac nominal; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 690 V. The unit includes 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). It is capable of handling rated active power up to 5.5kW (660-690Vac; AC-3) and rated power in horsepower as specified for various voltages and phases, including up to 7.5HP (575-600Vac; 3-phase; 50Hz/60Hz; UL/CSA). The LC1D099U7 is designed for mechanical durability of 15 million operations at no load and electrical durability of 2 million operations with load, featuring a rated impulse voltage (Uimp) of 6 kV.

Schneider Electric

LC2K09105F7

Schneider Electric LC2K09105F7 is a pre-assembled reversing magnetic contactor within the K sub-range, featuring a mechanical interlock for standard applications. It is equipped with solder pins connections and has 2 x 3-poles (2x3P; 2x3NO) with a rated current of 20A (AC-1) and 9A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (AC) of 88-126Vac (110Vac nom.; 50Hz/60Hz; 0.8...1.15 x Uc). Its rated operating voltage (Ue) is 690 V, and it includes 2 Normally Open (NO) auxiliary contacts. The rated impulse voltage (Uimp) is 8 kV, and the rated active power (kW) ranges from 2.2kW at 220-230Vac to 4kW at 660-690Vac, all in AC-3 classification. This model has no Normally Closed (NC) auxiliary contacts and features contact types of 1NO (contactor A) + 1NO (contactor B). Its mechanical durability at no load is rated for 5,000,000 operations, and the rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric

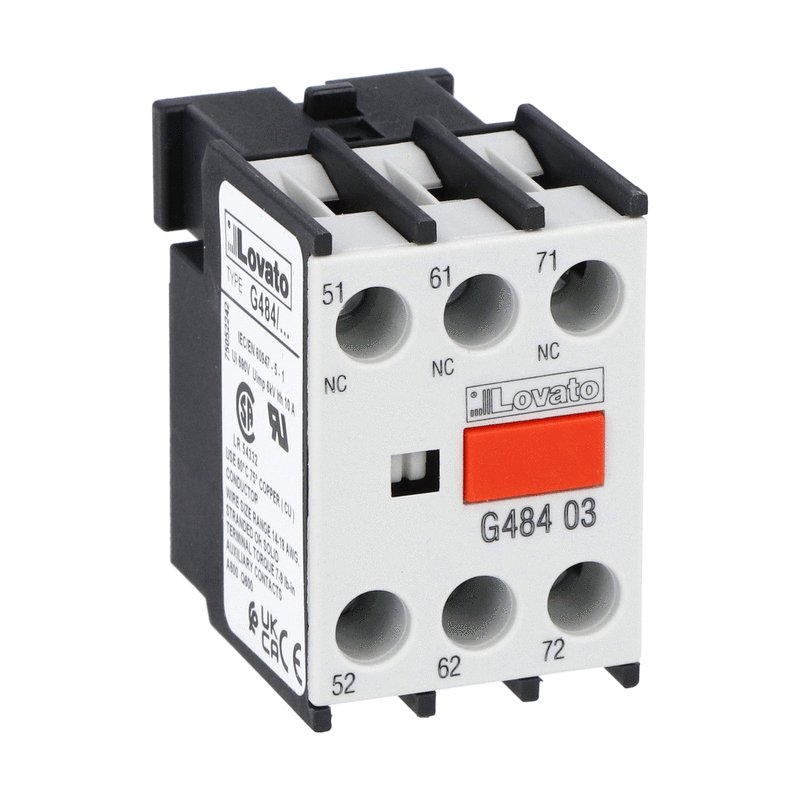

11G48403

11G48403 Lovato - Auxiliary contact with front centre mounting. Screw terminals, for BF... series contactors, 3NC

Lovato Electric

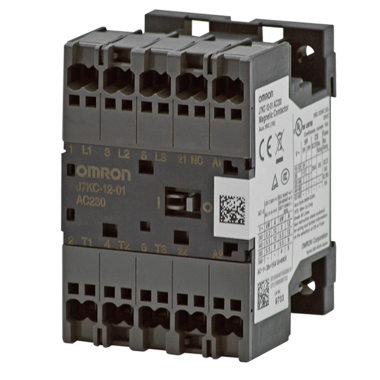

J7KC-12-10 AC400

J7KC-12-10 AC400, Magnetic Contactor, Max Load Current: 5-15A, Max Rated Load Voltage : 200-400 VAC, Input Voltage Range: 400-440 VAC

Omron

CA7-37-10-220W

Sprecher + Schuh CA7-37-10-220W - CA7 Contactor, 37A, 200-220V 50Hz / 208-220V 60Hz AC, 1NO

Sprecher + Schuh

11BGP0910D024

11BGP0910D024 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, DC coil, 24VDC, 1NO auxiliary contact, rear PCB solder pin

Lovato Electric

J7KN-18D-10 24

Omron J7KN-18D-10 24 - Contactor, 3 poles, Aux. 1NO

Omron

CA7-12-10-480

Sprecher + Schuh CA7-12-10-480 - CA7 Contactor, 12A, 440V 50Hz / 480V 60Hz AC, 1NO

Sprecher + Schuh

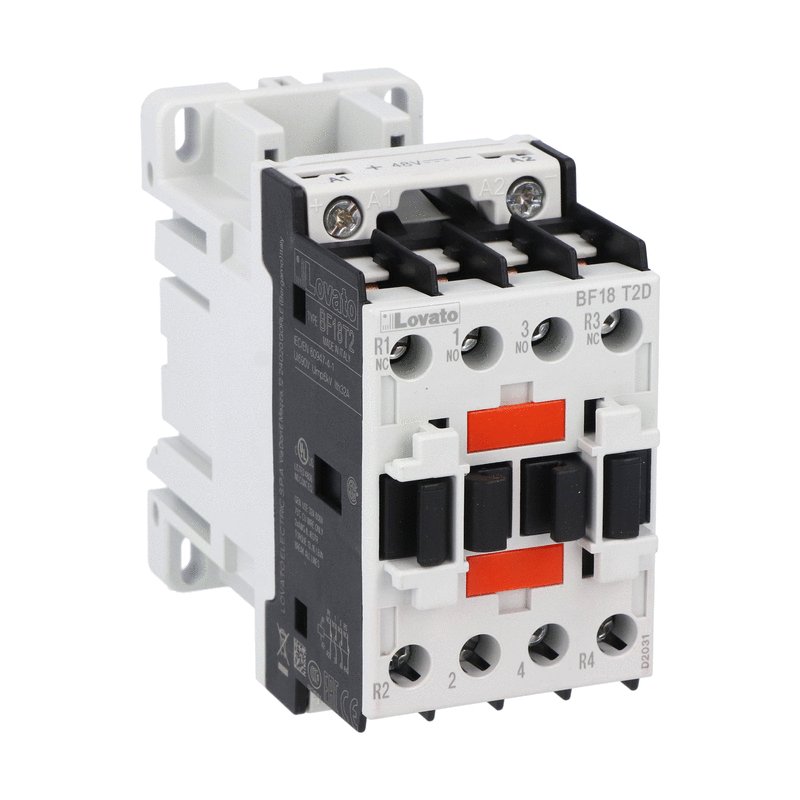

BF18T2D048

BF18T2D048 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 32A, DC coil, 48VDC, 2NO and 2NC

Lovato Electric

AF26N1R-30-22-12

AF26N1R-30-22-12 ABB Control - N.REV, 3P, SZ1, 48-130VAC/DC, 2/2

ABB Control

LC1DT60AQ7

Schneider Electric LC1DT60AQ7 is a magnetic contactor from the Deca sub-range, featuring an EverLink(TM) terminal design and screw connections for secure installation. This 4-pole (4P; 4NO) contactor is designed to handle a rated current of 60A (AC-1) and can be mounted on a DIN rail. It has a net width of 70 mm and offers a degree of protection rated at IP20. The control voltage for this unit ranges from 304-418Vac at 50Hz and 323-418Vac at 60Hz, with a nominal voltage of 380Vac. It supports a rated operating voltage (Ue) of up to 690 V and comes equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both rated for instantaneous operation. The contacts type is specified as 1NO+1NC instantaneous aux. This contactor is designed for mechanical durability up to 6,000,000 operations at no load and has a rated impulse voltage (Uimp) of 6 kV. The rated voltage (AC) for phase-to-phase applications is 690 V.

Schneider Electric
