Contactors

LC1DT60A3Y7

Schneider Electric LC1DT60A3Y7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design for secure connections. It is equipped with spring connections for control and screw connections for power, ensuring a reliable setup. This 4-pole (4NO) contactor is designed to handle a rated current of 60A (AC-1) and can be mounted on a DIN rail. With a net width of 70 mm and an IP20 degree of protection, it is compact and offers basic protection against touch. The control voltage ranges from 552-759Vac at 50Hz and 586.5-759Vac at 60Hz, with a nominal voltage of 690Vac. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both rated for 6 kV impulse voltage and designed for instantaneous operation. The contactor boasts a mechanical durability of 6 million operations at no load and can operate at a phase-to-phase rated voltage of 690 V.

Schneider Electric

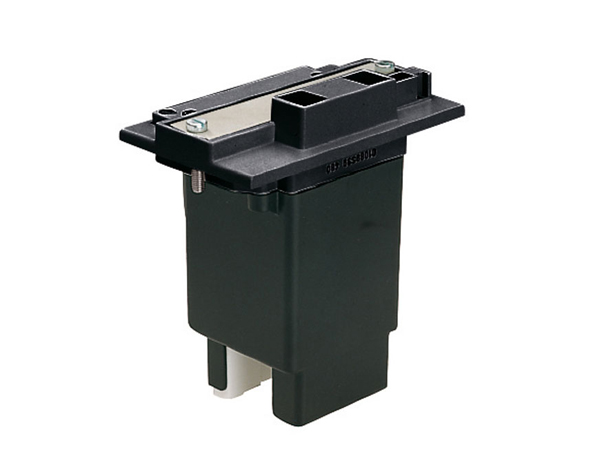

11BA154624

11BA154624 Lovato - AC/DC coil assembly (coil, rectifier and coil protection) for B115-B145-B180 contactors

Lovato Electric

AF121F1-CR1D

ABB Control - AF121F1-CR1D

ABB Control

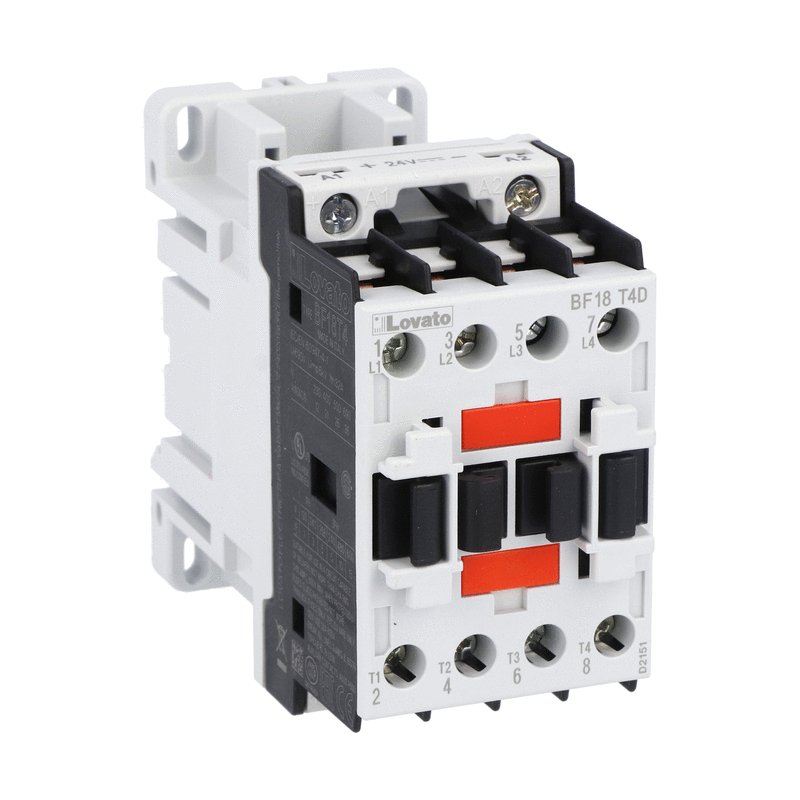

BF18T4D110

BF18T4D110 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 32A, DC coil, 110VDC

Lovato Electric

LC1D65004M5

Schneider Electric LC1D65004M5 is a magnetic contactor from the Deca sub-range, designed with screw connections and four poles (4P; 4NO). It has a rated current of 80A (AC-1) and is suitable for DIN rail mounting. The net width of the contactor is 85 mm, and it offers a degree of protection of IP20. The control voltage (AC) ranges from 176-242Vac (220Vac nominal; 50Hz; 0.8...1.1 x Uc), with a rated operating voltage (Ue) of 690 V. This model comes without normally open (NO) or normally closed (NC) auxiliary contacts. It is capable of withstanding a rated impulse voltage (Uimp) of 6 kV and has a mechanical durability of 15,000,000 operations at no load. The rated voltage (AC) for phase-to-phase connections is also 690 V.

Schneider Electric

LC1D65A3UD

Schneider Electric LC1D65A3UD is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design. It is equipped with spring connections for control and screw connections for power, and it operates with 3 poles (3P; 3NO). This contactor is designed for a rated current of 80A under AC-1 conditions and 65A at 440Vac under AC-3 conditions. It supports DIN rail mounting and has a net width of 55 mm. The LC1D65A3UD offers an IP20 degree of protection and operates with a control voltage range of 187.5-312.5Vdc (250Vdc nominal; 0.75...1.25 x Uc). Its rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV. This contactor can handle rated active power ranging from 18.5kW at 220-230Vac to 37kW at 660-690Vac under AC-3 conditions. It also features 1 normally closed (NC) auxiliary contact with 1NO+1NC instantaneous auxiliary contacts type. The rated power in horsepower (HP) varies from 5HP at 115Vac in single-phase to 50HP at 575-600Vac in three-phase, under UL/CSA standards. Its mechanical durability is rated at 6 million operations, and its electrical durability with load is 1.4 million operations. The rated voltage for phase-to-phase is 690 V.

Schneider Electric

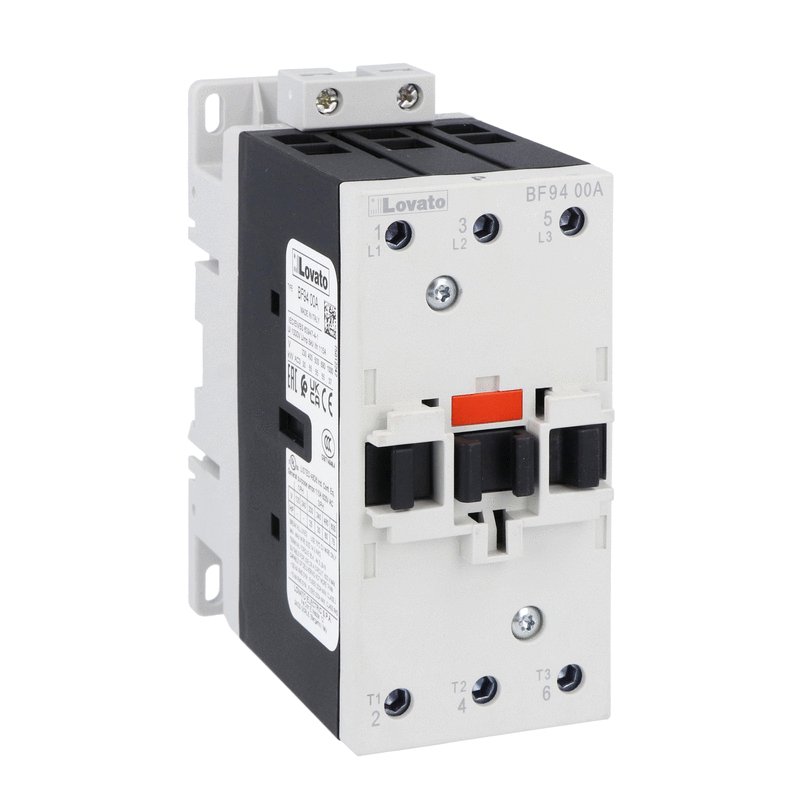

BF9400A23060

BF9400A23060 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 94A, AC coil 60Hz, 230VAC

Lovato Electric

11BG0040A46060

11BG0040A46060 Lovato - Control relay with AC coil 60Hz, 460VAC, 4NO

Lovato Electric

LC1D40A3L7

Schneider Electric LC1D40A3L7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design for secure connections. It is equipped with spring connections for control and screw connections for power, designed for 3-pole (3NO) operation. This contactor supports a rated current of 60A for AC-1 applications and 40A for 440Vac in AC-3 scenarios. It is suitable for DIN rail mounting and has a net width of 55 mm. The device offers an IP20 degree of protection and operates with a control voltage of 160-220Vac at 50Hz and 170-220Vac at 60Hz. The rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV. It can handle rated active power up to 30kW for 660-690Vac in AC-3 conditions. Additionally, it has 1 normally closed (NC) auxiliary contact with a contact type of 1NO+1NC instantaneous aux. The rated power in horsepower varies from 3HP in single-phase to 30HP in three-phase applications, under UL/CSA standards. Its mechanical durability is rated at 6 million operations, and its electrical durability, with load, reaches 1.5 million operations. The rated voltage for phase-to-phase applications is 690 V.

Schneider Electric

AF30ZR-30-22-21

REV,3P,32.2A,L20-60VDC/24-60VAC,2/2

ABB Control

AF261B2-CS3A

ABB Control - AF261B2-CS3A

ABB Control

AF2622-CM

ABB Control - AF2622-CM

ABB Control

AF2612-CND

ABB Control - AF2612-CND

ABB Control

AF26N1R-30-22-13

AF26N1R-30-22-13 ABB Control - N.REV, 3P, SZ1, 100-250VAC/DC, 2/2

ABB Control

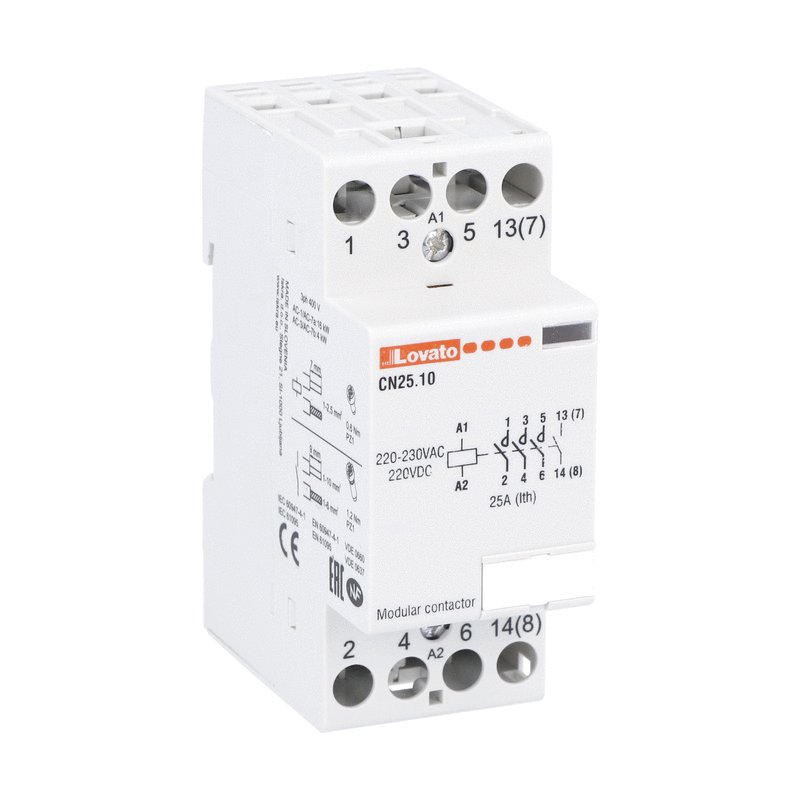

CN2510220

CN2510220 Lovato - Modular contactor, three-pole or four-pole, 25A AC1, 220...230VAC (4NO)

Lovato Electric

BFK5000A024

BFK5000A024 Lovato - Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 40kvar, coil 24VAC 50/60Hz

Lovato Electric

CWM18N-01-30V18

WEG CWM18N-01-30V18 - CONTACTOR CWM18N-01-30V18, Contactors (CWM)

WEG

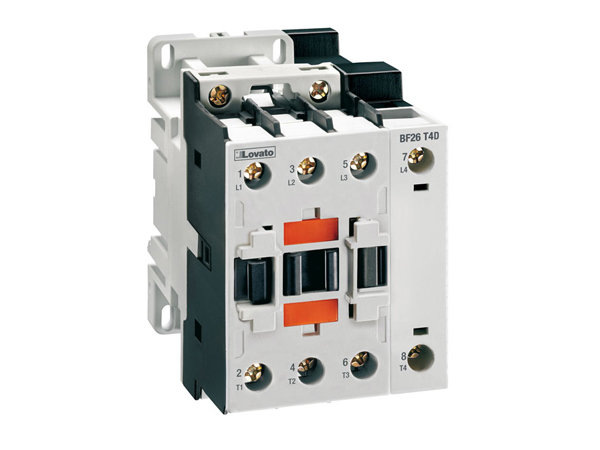

BF26T2L048

BF26T2L048 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 45A, DC coil low consumption, 48VDC, 2NO and 2NC

Lovato Electric

AF121F2-1R1

ABB Control - AF121F2-1R1

ABB Control

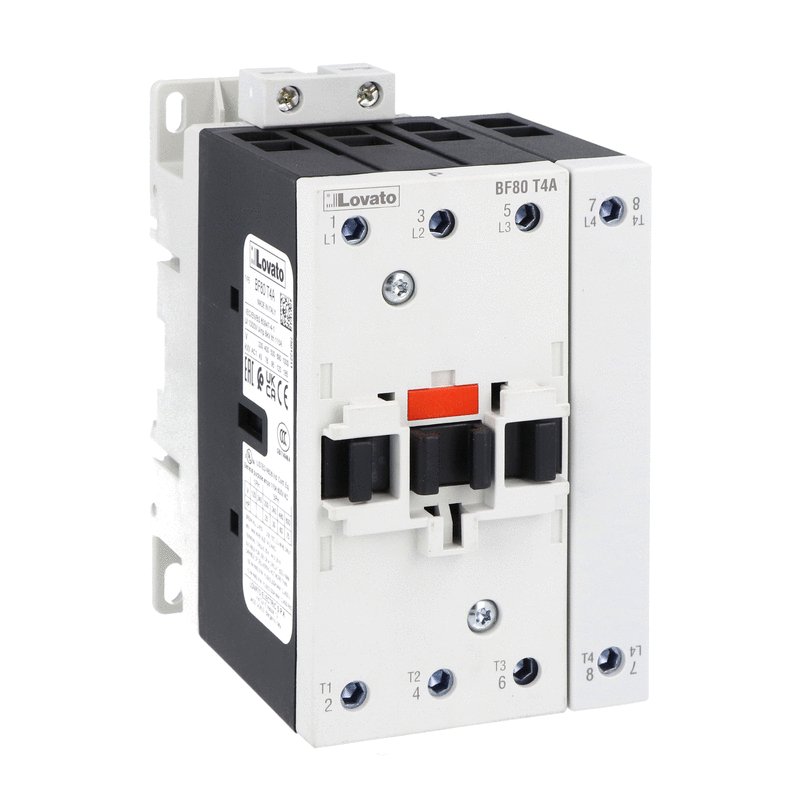

BF80T4A02460

BF80T4A02460 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 115A, AC coil 60Hz, 24VAC

Lovato Electric
