Contactors

LC1D326E7

Schneider Electric LC1D326E7 is a magnetic contactor from the Deca sub-range, designed with ring-lugs connections and three poles (3P; 3NO). It has a rated current of 50A for AC-1 and 32A for 440Vac in AC-3 conditions. This contactor is suitable for DIN rail mounting and has a net width of 45 mm. It offers a degree of protection rated at IP20 and operates with a control voltage (AC) range of 38.4-52.8Vac at 50Hz and 40.8-52.8Vac at 60Hz. The rated operating voltage (Ue) is up to 690 V, and it features 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV, and it can handle rated active power up to 18.5kW for 660-690Vac in AC-3 conditions. It also includes 1 normally closed (NC) auxiliary contact with contacts type of 1NO+1NC instantaneous aux. The rated power (HP) varies from 2HP at 115Vac in single-phase to 25HP at 575-600Vac in three-phase, under UL/CSA standards. Its mechanical durability is up to 15,000,000 operations, and electrical durability with load reaches 1,600,000 operations. The rated voltage (AC) for phase-to-phase is 690 V.

Schneider Electric

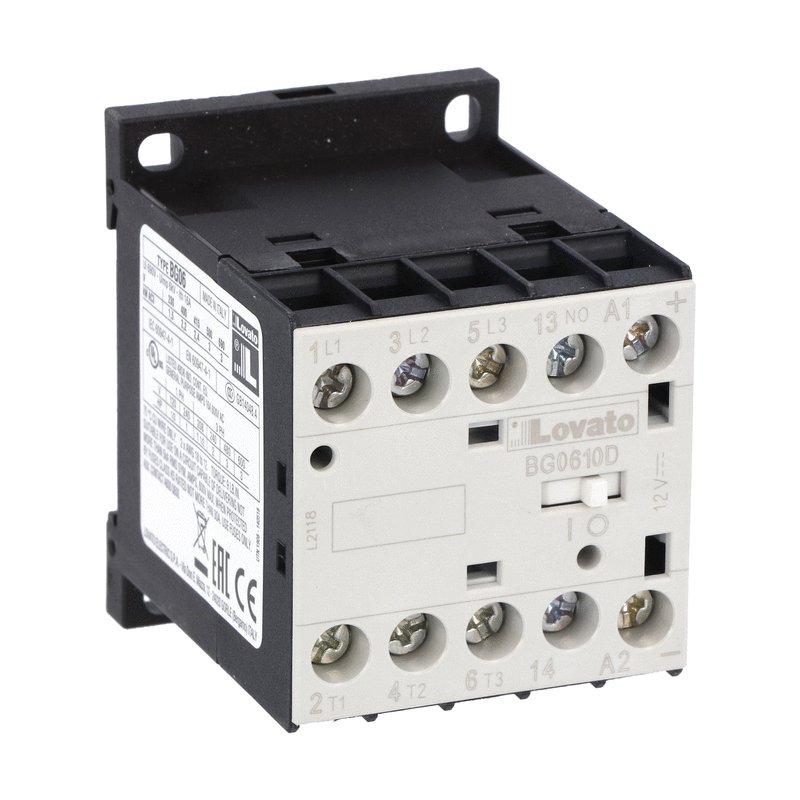

11BG0610D048

11BG0610D048 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 6A, DC coil, 48VDC, 1NO auxiliary contact

Lovato Electric

GJL1211201R0003

ABB GJL1211201R0003 is a magnetic mini contactor from the B6 contactors sub-range, designed with screw-clamp connections and equipped with 4 poles (4NO). It supports a rated current of 20A at 380-400Vac (40°C; AC-1), 16A at 380-400Vac (55°C; AC-1), 6A at 690Vac (40°C; AC-1), 6A at 690Vac (55°C; AC-1), with AC-15 ratings of 4A at 24-120Vac, 4A at 220-240Vac, 3A at 380-400Vac, and 2A at 500Vac. Additionally, it has UL/CSA FLA ratings of 5.8A at 115Vac (single-phase), 4.8A at 200Vac (3-phase), 6.8A at 220-240Vac (3-phase), 4.9A at 230Vac (single-phase), 4.8A at 440-480Vac (3-phase), and 1.7A at 550-600Vac (3-phase). The rated insulation voltage is 690 V (IEC/VDE) and 600 V (UL/CSA), with a mounting mode on plate. Its dimensions are 57.5 mm in height, 52.5 mm in width, and 46.5 mm in depth. The current consumption is 3.5VA inrush and holding (coil), with a control voltage of 48Vac (40Hz-450Hz). The rated operating voltage (Ue) is 690 V, with 0 NO and 0 NC auxiliary contacts, a rated impulse voltage (Uimp) of 6 kV, and rated active power of 2.2kW at 220-240Vac (AC-3), 4kW at 380-440Vac (AC-3), 4kW at 500Vac (AC-3), and 3kW at 690Vac (AC-3). It also has rated power (HP) of 2HP at 220-240Vac (3-phase; UL/CSA), 3HP at 440-480Vac (3-phase; UL/CSA), and 1HP at 550-600Vac (3-phase; UL/CSA), with operating rates of 300 cycles/hour (AC-1), 600 cycles/hour (AC-3), 360 cycles/hour (AC-15), 600 cycles/hour (DC-1), 360 cycles/hour (DC-13), and 600 cycles/hour (DC-3).

ABB Control

LC1D50A6MD

Schneider Electric LC1D50A6MD is a magnetic contactor from the Deca sub-range featuring EverLink(TM) terminal design for ring-lugs connections. This 3-pole (3P; 3NO) contactor supports a rated current of 80A for AC-1 applications and 50A for 440Vac AC-3 applications. It is designed for DIN rail mounting with a net width of 55 mm and offers an IP20 degree of protection. The control voltage (DC) ranges from 165-275Vdc (220Vdc nominal; 0.75...1.25 x Uc), with a rated operating voltage (Ue) of up to 690 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. Its rated active power spans from 15kW at 220-230Vac to 33kW at 660-690Vac in AC-3 applications. The rated power in horsepower (HP) varies from 3HP at 115Vac in single-phase to 40HP at 575-600Vac in three-phase applications, according to UL/CSA standards. The mechanical durability of the LC1D50A6MD is rated at 6 million operations, and its electrical durability with load is 1.45 million operations. The rated voltage (AC) for phase-to-phase applications is 690 V.

Schneider Electric

LC2D50AQ7

Schneider Electric LC2D50AQ7 is a pre-assembled reversing magnetic contactor from the Deca sub-range. It features EverLink(TM) terminals and a mechanical interlock, with screw connections for installation. This contactor has 2 x 3-poles (2x3P; 2x3NO) configuration and is rated for currents of 80A (AC-1) and 50A (440Vac; AC-3). It offers a degree of protection rated at IP20 and operates with control voltages of 304-418Vac (380Vac nominal; 50Hz; 0.8...1.1 x Uc) and 323-418Vac (380Vac nominal; 60Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts, with a contact type of 1NO+1NC instantaneous auxiliary contacts per contactor. The rated impulse voltage (Uimp) is 6 kV. Its rated active power ranges from 15kW (220-230Vac; AC-3) to 33kW (660-690Vac; AC-3), and the rated power in horsepower (HP) spans from 3HP (115Vac; single-phase; 50Hz/60Hz; UL/CSA) to 40HP (575-600Vac; 3-phase; 50Hz/60Hz; UL/CSA). The rated voltage (AC) for phase-to-phase applications is 690 V.

Schneider Electric

CA7-23E-01-12E

Sprecher + Schuh CA7-23E-01-12E - CA7 Contactor, 23A, 12V DC Elec. Coil, 1NC

Sprecher + Schuh

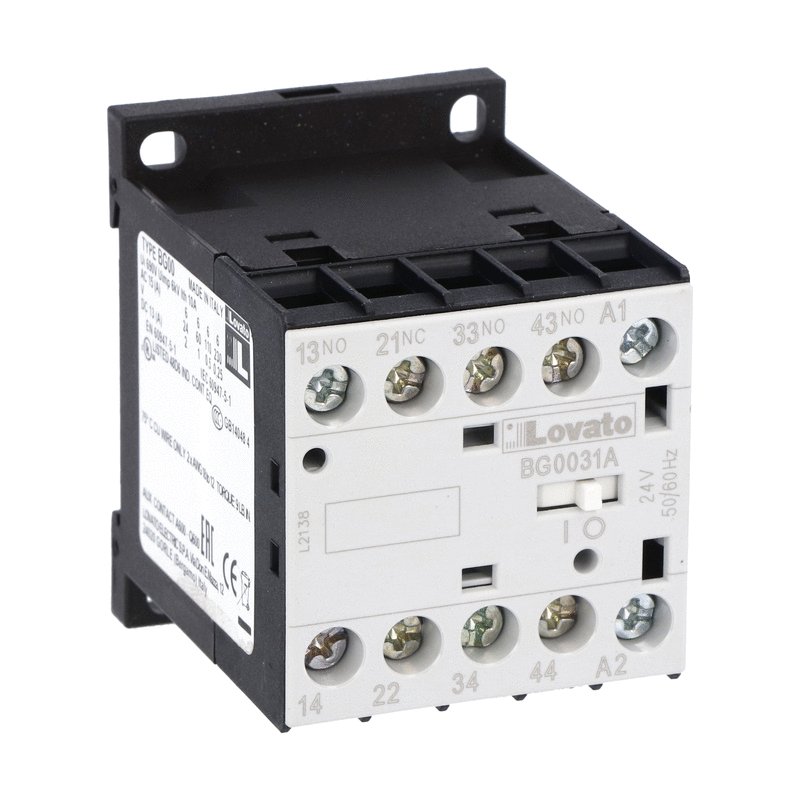

11BG0031A230

11BG0031A230 Lovato - Control relay with AC coil 50/60Hz, 230VAC, 3NO and 1NC

Lovato Electric

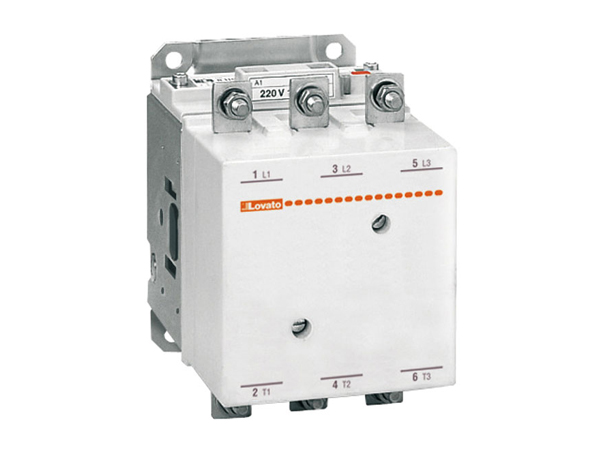

11B115L0022048

11B115L0022048 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 110A, AC/DC coil, already fitted with mechanical latch (G495), 220...240VAC/DC, mechanical latch 48VAC

Lovato Electric

AF261B1-CS3J

AF16,NR,3PH,CB,N1,480/120V

ABB Control

LC1DT323M7

Schneider Electric LC1DT323M7 is a magnetic contactor from the Deca sub-range, featuring spring connections and designed with 4 poles (4NO) for circuit control. It has a rated current of 32A (AC-1) and is suitable for DIN rail mounting. The dimensions include a net width of 45 mm, and it offers a degree of protection rated at IP20. The control voltage for AC ranges between 176-242Vac (220Vac nominal; 50Hz; 0.8...1.1 x Uc) and 187-242Vac (220Vac nominal; 60Hz; 0.85...1.1 x Uc). This contactor is equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both types being instantaneous (1NO+1NC). It has a rated impulse voltage (Uimp) of 6 kV and a mechanical durability of 15,000,000 operations at no load. The rated voltage (AC) for phase-to-phase connections is up to 690 V.

Schneider Electric

AF301B2-CE27

ABB Control - AF301B2-CE27

ABB Control

CWM95N-11-30V24

WEG CWM95N-11-30V24 - CONTACTOR CWM95N-11-30V24, Contactors (CWM)

WEG

LC1D40A3U7

Schneider Electric LC1D40A3U7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design for secure connections. It is equipped with spring connections for control and screw connections for power, supporting a 3-pole (3P; 3NO) configuration. The contactor is rated for 60A under AC-1 conditions and 40A at 440Vac under AC-3 conditions. It is designed for DIN rail mounting and has a net width of 55 mm. The device offers an IP20 degree of protection and operates with a control voltage of 192-264Vac at 50Hz or 204-264Vac at 60Hz. The rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. It can handle rated active power ranging from 11kW at 220-230Vac to 30kW at 660-690Vac under AC-3 conditions. The rated power in horsepower (HP) varies from 3HP at 115Vac in single-phase to 30HP at 575-600Vac in three-phase, according to UL/CSA standards. The mechanical durability of the contactor is rated at 6 million operations at no load, and its electrical durability is rated at 1.5 million operations with load. The rated voltage for phase-to-phase connections is 690 V.

Schneider Electric

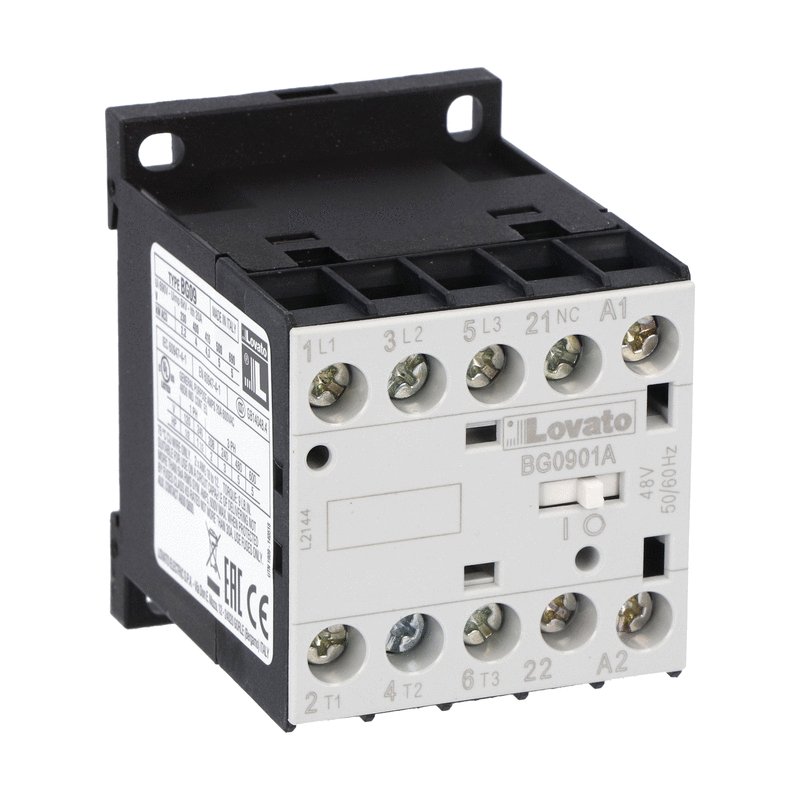

11BG0901A024

11BG0901A024 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, AC coil 50/60Hz, 24VAC, 1NC auxiliary contact

Lovato Electric

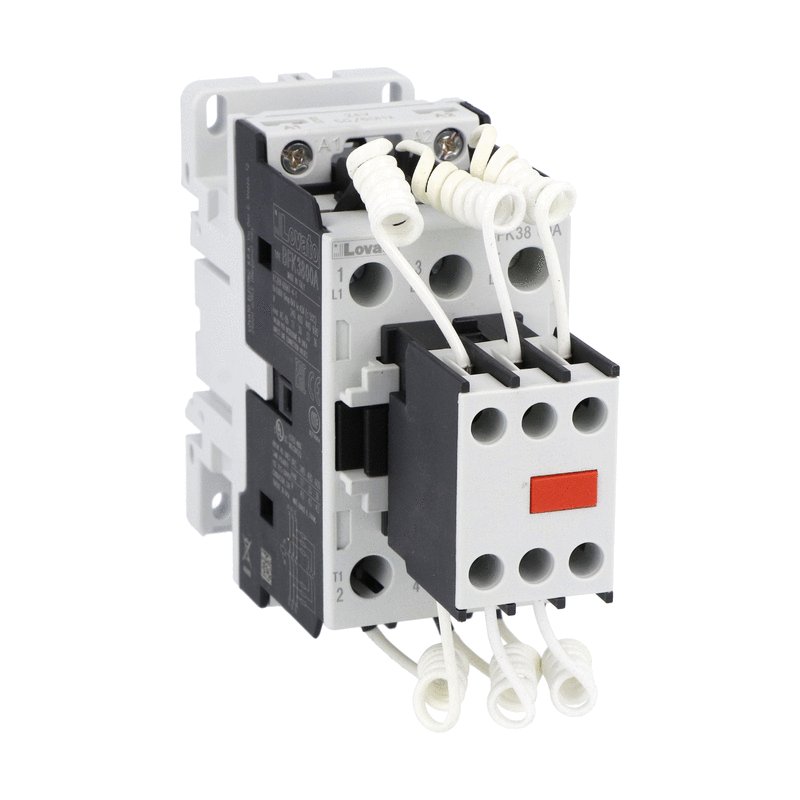

BFK3800A048

BFK3800A048 Lovato - Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 30kvar, coil 48VAC 50/60Hz

Lovato Electric

AF2612-CKD9

ABB Control - AF2612-CKD9

ABB Control

BF265T4E110

BF265T4E110 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 450A, AC/DC coil, 60...130VAC/DC

Lovato Electric

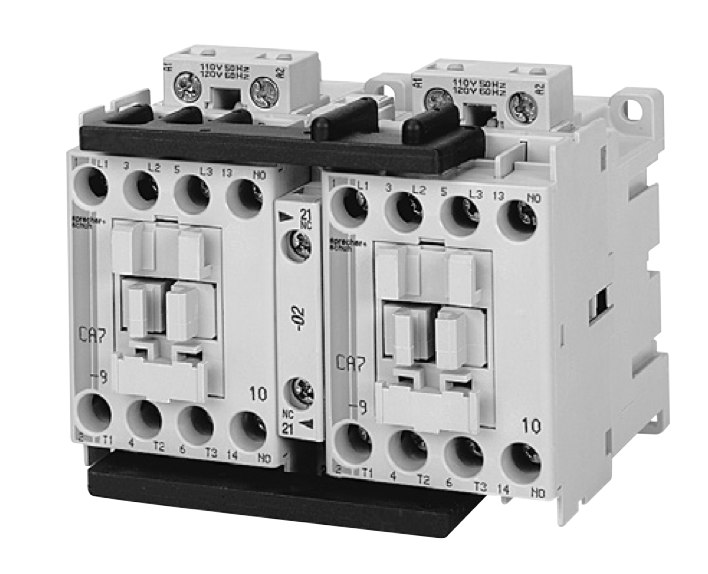

CAU7-12-22-24Z

Sprecher + Schuh CAU7-12-22-24Z - CAU7 Contactor FVR, 12A, 24V 50/60Hz AC, 2NO 2NC

Sprecher + Schuh

LC1DT60A3GD

Schneider Electric LC1DT60A3GD is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design for secure connections. It is equipped with spring connections for control and screw connections for power, ensuring a robust connection system. This 4-pole (4NO) contactor is designed to handle a rated current of 60A under AC-1 conditions and can be mounted on a DIN rail. The unit has a net width of 70 mm and offers a degree of protection rated at IP20. It operates with a control voltage range of 94-156Vdc, with a nominal voltage of 125Vdc, allowing for a voltage fluctuation range of 0.75 to 1.25 times the control voltage (Uc). The LC1DT60A3GD includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact, both of the instantaneous type, and is capable of withstanding a rated impulse voltage (Uimp) of 6 kV. It supports a rated voltage for phase-to-phase connections up to 690 V and boasts a mechanical durability of 6 million operations at no load, ensuring long-term performance.

Schneider Electric

AF38Z-40-00-22

AF38Z-40-00-22 ABB Control - AF38Z 4P CONTR, 48-130VAC/DC

ABB Control
