Contactors

CAU7-97D-22-220D

Sprecher + Schuh CAU7-97D-22-220D - Contactor FVR 97 A

Sprecher + Schuh

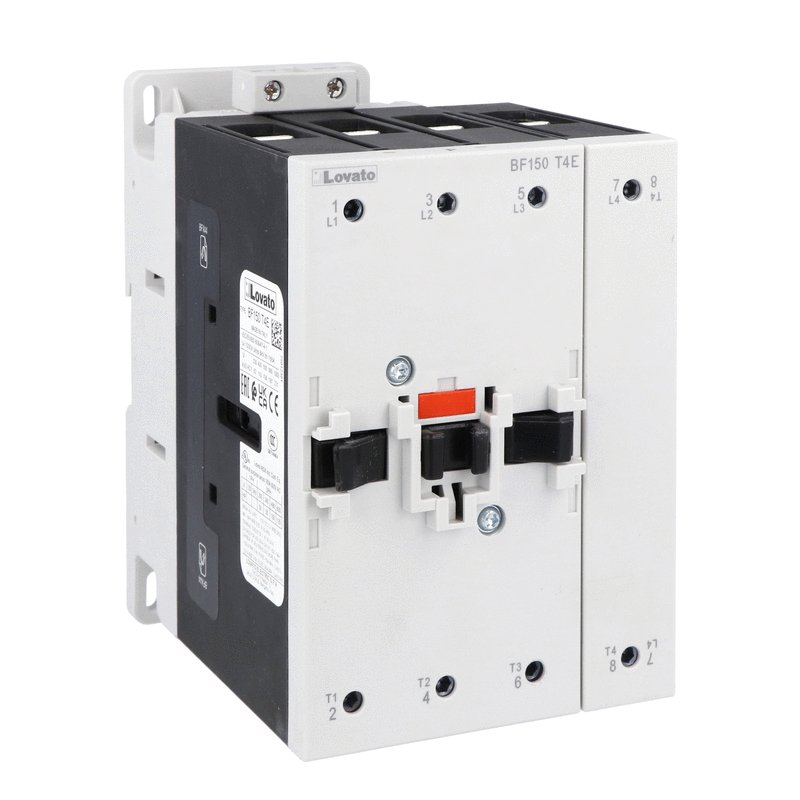

BF150T4E230

BF150T4E230 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 160A, AC/DC coil, 230VAC/DC

Lovato Electric

J7KC-12-10 DC200

J7KC-12-10 DC200, Magnetic Contactor, Max Load Current: 5-15A, Max Rated Load Voltage : 200-400 VAC, Input Voltage Range: 170-220 VDC

Omron

CA7-23-M31-24Z

Sprecher + Schuh CA7-23-M31-24Z - CA7 Contactor, 23A, 24V 50/60Hz AC, 3NO 1NC

Sprecher + Schuh

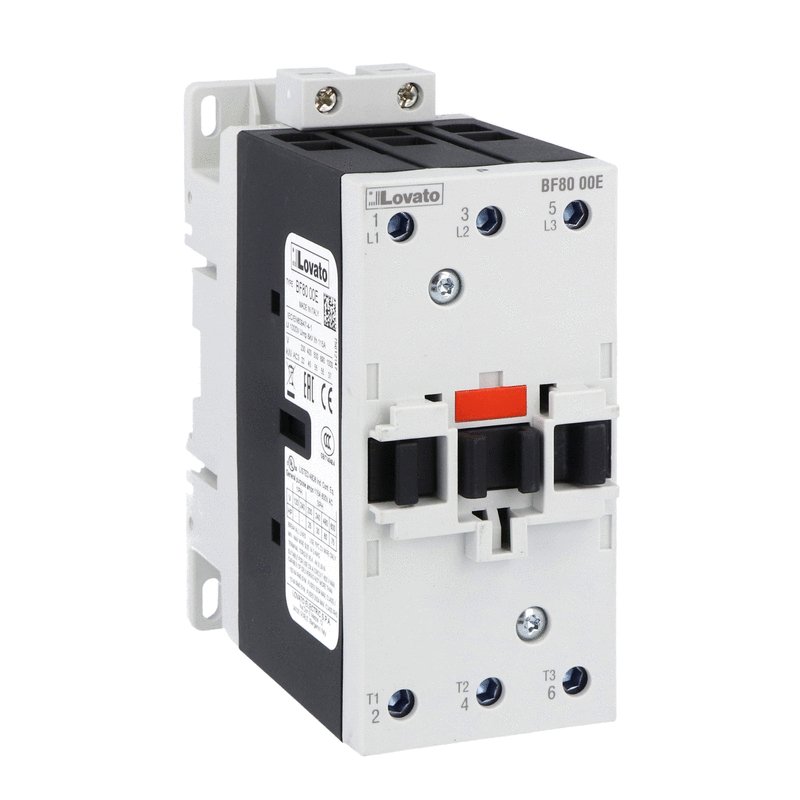

BF8000E110

BF8000E110 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 80A, AC/DC coil, 60...110VAC/DC

Lovato Electric

AF301B2-CV7H

ABB Control - AF301B2-CV7H

ABB Control

CWM9N-10-30V47

WEG CWM9N-10-30V47 - CONTACTOR CWM9N-10-30V47, Contactors (CWM)

WEG

J7KNA-09-01 24

Omron J7KNA-09-01 24 - Contr,9A, 0NO,1NC,AC24V50/60Hz

Omron

AF09ZB-30-10RT-23

AF09ZB-30-10RT-23 ABB Control - 3P CONT AF09ZB 100-250V50/60HZ-D

ABB Control

LC1D50AY7

Schneider Electric LC1D50AY7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminals and screw connections. This 3-pole (3P; 3NO) contactor is designed for DIN rail mounting and has a net width of 55 mm. It offers a degree of protection of IP20 and operates with a control voltage (AC) range of 552-759Vac (690Vac nominal; 50Hz; 0.8...1.1 x Uc) and 586.5-759Vac (690Vac nominal; 60Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 690 V, and it includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. It supports rated active power (kW) of 15kW at 220-230Vac, 22kW at 380-400Vac, 25kW at 415Vac, 30kW at 440Vac and 500Vac, and 33kW at 660-690Vac, all under AC-3 category. The rated power (HP) under UL/CSA standards includes 3HP at 115Vac single-phase, 7.5HP at 230-240Vac single-phase, 15HP at 200-208Vac and 230-240Vac 3-phase, and 40HP at 460-480Vac and 575-600Vac 3-phase. It has a mechanical durability of 6,000,000 operations and an electrical durability of 1,450,000 operations with load. The rated current is 80A for AC-1 and 50A for 440Vac AC-3, with a phase-to-phase rated voltage (AC) of 690 V.

Schneider Electric

LC1D50A3K7

Schneider Electric LC1D50A3K7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design for secure connections. It is equipped with spring connections for control and screw connections for power, and operates with 3 poles (3P; 3NO). The contactor is rated for currents of 80A under AC-1 conditions and 50A at 440Vac under AC-3 conditions. It is designed for DIN rail mounting and has a net width of 55 mm. The LC1D50A3K7 offers an IP20 degree of protection and operates with a control voltage of 80-110Vac at 50Hz and 85-110Vac at 60Hz. Its rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. This contactor can handle rated active power ranging from 15kW at 220-230Vac to 33kW at 660-690Vac under AC-3 conditions. It also supports rated power in horsepower (HP) for various voltages and phases, including 3HP at 115Vac and up to 40HP at 575-600Vac. The mechanical durability of the LC1D50A3K7 is rated at 6 million operations at no load, and its electrical durability is rated at 1.45 million operations with load. The rated voltage for phase-to-phase connections is 690 V.

Schneider Electric

CWBS32-33-30D15

WEG CWBS32-33-30D15 - CONTACTOR CWBS32-33-30D15, Contactors (CWB)

WEG

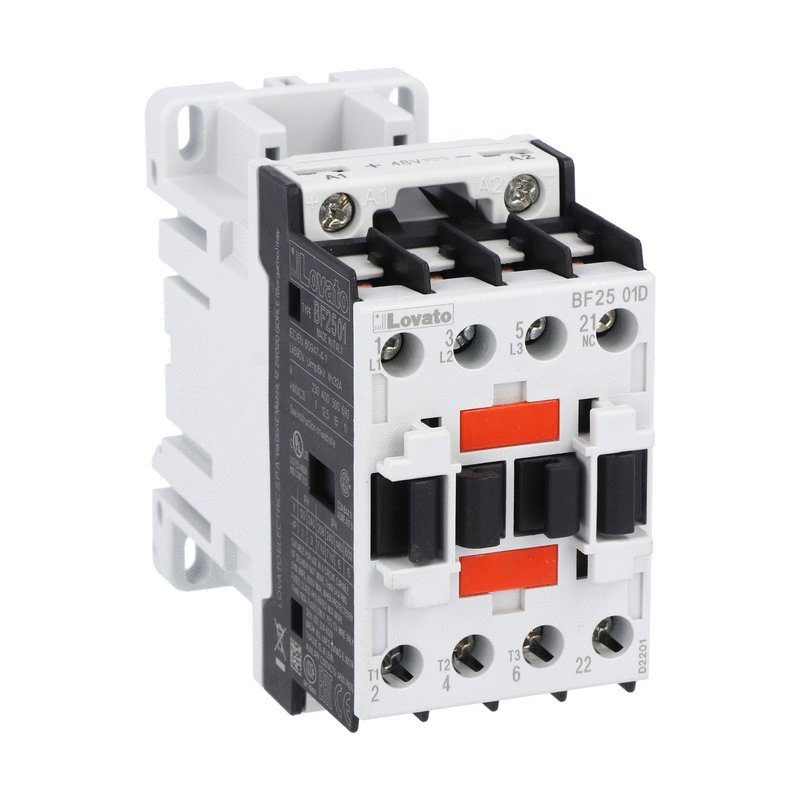

BF2501D125

BF2501D125 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 25A, DC coil, 125VDC, 1NC auxiliary contact

Lovato Electric

LC1DFKR7

Schneider Electric LC1DFKR7 is a magnetic contactor from the Deca sub-range designed for capacitor switching duty. It features screw connections and is equipped with three poles (3P; 3NO) for mounting on a DIN rail. This contactor offers a degree of protection rated at IP20 and operates with a control voltage (AC) of 440Vac at frequencies of 50Hz or 60Hz. The rated operating voltage (Ue) is 690 V, and it includes 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts, with the contacts type being 1NO+2NC instantaneous auxiliaries. The LC1DFKR7 has an electrical durability of 300,000 operations at 400Vac and 200,000 operations at 690Vac, with a rated impulse voltage (Uimp) of 6 kV and a phase-to-phase rated voltage (AC) of 690 V.

Schneider Electric

LC2D65AJD

Schneider Electric LC2D65AJD is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminals and a mechanical interlock. It has screw connections and consists of 2 x 3-poles (2x3P; 2x3NO) with a rated current of 80A (AC-1) and 65A (440Vac; AC-3). The contactor is designed with an IP20 degree of protection and operates with a control voltage (DC) of 9-15Vdc (12Vdc nom.; 0.75...1.25 x Uc). Its rated operating voltage (Ue) is up to 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 6 kV. The rated active power (kW) spans from 18.5kW at 220-230Vac to 37kW at 660-690Vac, all within AC-3 classification. It also features 1NO+1NC instantaneous auxiliary contacts per contactor. The rated power (HP) varies from 5HP at 115Vac in single-phase to 50HP at 575-600Vac in three-phase, with phase-to-phase rated voltage (AC) at 690 V.

Schneider Electric

J7KC-12-01 DC60

J7KC-12-01 DC60, Magnetic Contactor, Max Load Current: 5-15A, Max Rated Load Voltage : 200-400 VAC, Input Voltage Range: 51-56 VDC

Omron

AF301F2-2W2F9

ABB Control - AF301F2-2W2F9

ABB Control

LC1DT80A6E7

Schneider Electric LC1DT80A6E7 is a magnetic contactor from the Deca sub-range featuring EverLink(TM) terminal design for secure connections. This contactor is equipped with ring-lugs connections and has a 4-pole (4P; 4NO) configuration. It is designed to handle a rated current of 80A (AC-1) and can be mounted on a DIN rail. The net width of the contactor is 70 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 38.4-52.8Vac at 50Hz (48Vac nominal; 0.8...1.1 x Uc) to 40.8-52.8Vac at 60Hz (48Vac nominal; 0.85...1.1 x Uc). It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, with the contacts type being 1NO+1NC instantaneous auxiliaries. The mechanical durability of the contactor is rated at 6,000,000 operations at no load, and it can operate at a rated impulse voltage (Uimp) of 6 kV. The rated voltage (AC) for phase-to-phase connections is up to 690 V.

Schneider Electric

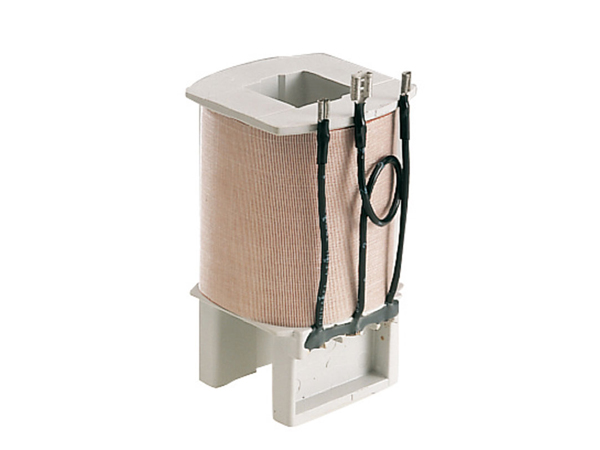

11BA1699440

11BA1699440 Lovato - AC/DC coil for B250-B310-B400 contactors, 440...480VAC/DC

Lovato Electric

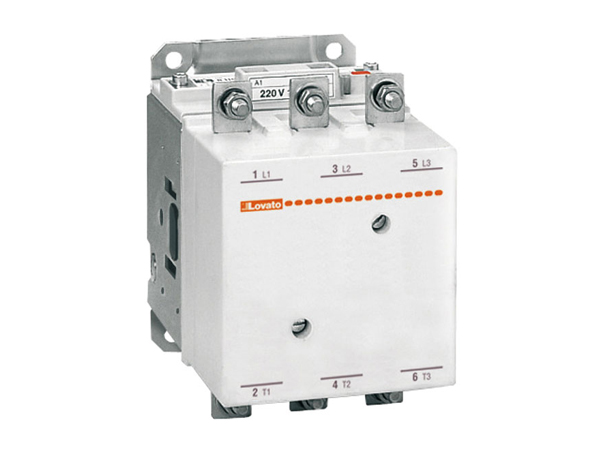

11B1450060

11B1450060 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 150A, AC/DC coil, 60VAC/DC

Lovato Electric
