Contactors

J7KCR-12-10 DC24

J7KCR-12-10 DC24, Magnetic Contactor, Max Load Current: 5-15A, Max Rated Load Voltage : 200-400 VAC, Input Voltage Range: 21-27 VDC

Omron

CA7-55-00-240

Contactor, 3 Pole, Non-Reversing, 85A, 220/240 VAC Coil

Sprecher + Schuh

LP5K0910EW3

Schneider Electric LP5K0910EW3 is a pre-assembled reversing magnetic contactor within the K sub-range, featuring a mechanical interlock design and screw connections. It comprises 2 x 3-poles (2x3P; 2x3NO) with a rated current of 20A (AC-1) and 9A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (DC) range of 33.6-62.4Vdc (48Vdc nominal; 0.7...1.3 x Uc). Its rated operating voltage (Ue) is up to 690 V, and it includes 2 Normally Open (NO) auxiliary contacts but no Normally Closed (NC) auxiliary contacts. The rated active power varies from 2.2kW at 220-230Vac to 4kW at 660-690Vac, all within AC-3 classification. The contacts type configuration is 1NO (contactor A) + 1NO (contactor B), and it boasts a mechanical durability of 5 million operations at no load. The rated voltage (AC) phase-to-phase is 690 V, with a power consumption of 1.8 W.

Schneider Electric

GJH1211001R8405

ABB GJH1211001R8405 is a magnetic mini contactor from the K6 contactors sub-range, designed with screw-clamp connections and equipped with 4 poles (4NO). It has a rated current of 4A for 24-240Vac (AC-15), 3A for 440Vac (AC-15), 2A for 500Vac (AC-15), and 5A for 600Vac under UL/CSA general use rating. The rated insulation voltage is 690 V according to IEC/VDE and 600 V according to UL/CSA. This contactor is designed for mounting on a plate, with dimensions of 57.5 mm in height, 52.5 mm in width, and 46.5 mm in depth. It consumes 3.5VA during both inrush and holding phases of the coil, operates with a control voltage of 380Vac-415Vac (400Vac) within a frequency range of 40Hz-450Hz, and has a rated operating voltage (Ue) of 690 V. The unit does not include normally open (NO) or normally closed (NC) auxiliary contacts. It is rated for an impulse voltage (Uimp) of 6 kV and can operate at a rate of 600 cycles/hour (DC-13).

ABB Control

CWM18-10-30V04

WEG CWM18-10-30V04 - CONTACTOR CWM18-10-30V04, Contactors (CWM)

WEG

CWM250-22-30E13

WEG CWM250-22-30E13 - CONTACTOR CWM250-22-30E13, Contactors (CWM)

WEG

LC1D253FE7

Schneider Electric LC1D253FE7 is a magnetic contactor from the Deca sub-range, featuring spring connections and designed with 3 poles (3P; 3NO). It has a rated current of 25A for both AC-1 and AC-3 (440Vac) applications. This contactor is suitable for DIN rail mounting and has a net width of 45 mm. It offers a degree of protection rated at IP20 and operates within control voltage ranges of 92-126Vac (115Vac nominal; 50Hz; 0.8...1.1 x Uc) and 98-126Vac (115Vac nominal; 60Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV. Its rated active power spans from 5.5kW at 220-230Vac to 15kW at 660-690Vac in AC-3 category. Additionally, it has 1 normally closed (NC) auxiliary contact and instantaneous auxiliary contacts type of 1NO+1NC. The rated power in horsepower (HP) varies from 2HP at 115Vac to 20HP at 575-600Vac, covering single-phase and three-phase applications under UL/CSA standards. Its mechanical durability is rated at 15 million operations, and its electrical durability with load reaches 1.6 million operations. The rated voltage for phase-to-phase applications is 690 V.

Schneider Electric

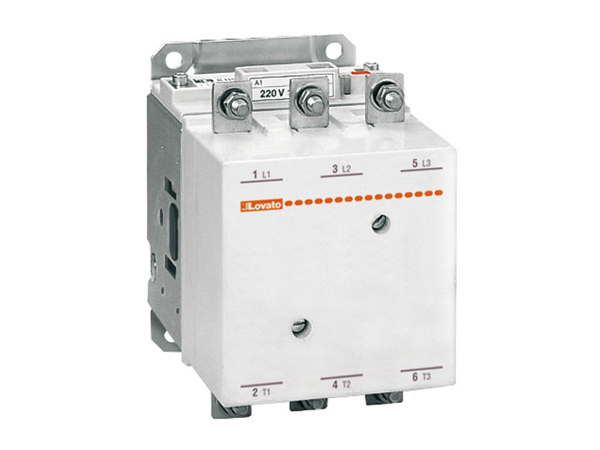

11B250L00220220

11B250L00220220 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 265A, AC/DC coil, already fitted with mechanical latch (G495), 220...240VAC/DC, mechanical latch 220...240VAC

Lovato Electric

CWC09-01-30V24-X50

WEG CWC09-01-30V24-X50 - MINICONTACTOR BU CWC09-01-30V24-X50, Miniature Contactors (CWC)

WEG

CWB50-11-30C03

WEG CWB50-11-30C03 - CONTACTOR CWB50-11-30C03, Contactors (CWB)

WEG

CA9-190-EI-11-480W

Sprecher + Schuh CA9-190-EI-11-480W - CA9 Contactor w/PLC Inputs, 190A, 250-500V 50-60 Hz AC/DC, 1NO1NC

Sprecher + Schuh

11B31040060

11B31040060 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 450A, AC/DC coil, 60VAC/DC

Lovato Electric

LC1DGKQ7

Schneider Electric LC1DGKQ7 is a magnetic contactor from the Deca sub-range designed for capacitor switching duty. It features screw connections and is equipped with three poles (3P; 3NO) for mounting on a DIN rail. This contactor offers a degree of protection rated at IP20 and operates with a control voltage (AC) of 380Vac at 50Hz/60Hz. The rated operating voltage (Ue) is 690 V, and it includes 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts, with a contact type of 1NO+2NC instantaneous auxiliaries. The LC1DGKQ7 has a rated impulse voltage (Uimp) of 6 kV and demonstrates electrical durability of 300,000 operations at 400Vac and 200,000 operations at 690Vac. The rated voltage (AC) for phase-to-phase connections is 690 V.

Schneider Electric

11BGF0031L024

11BGF0031L024 Lovato - Control relay with DC coil low consumption, 24VDC, 3NO and 1NC, Faston terminals

Lovato Electric

AF091FX-2M1A

ABB Control - AF091FX-2M1A

ABB Control

AF305R-30-22-11

REV. CONT,3 POLE,300HP 600VAC

ABB Control

AF2612-CD1D

ABB Control - AF2612-CD1D

ABB Control

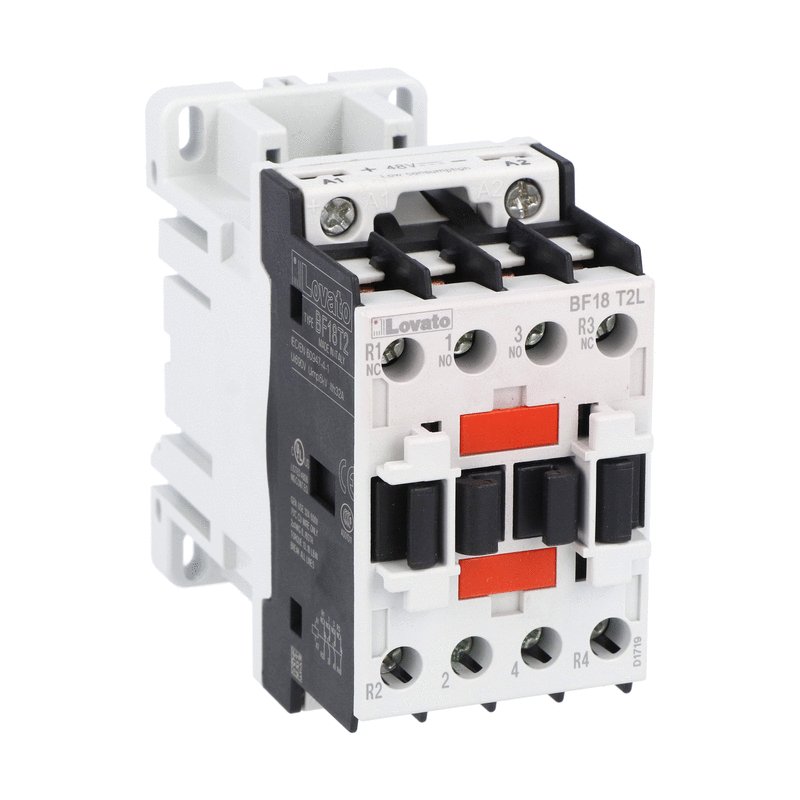

BF18T2L024

BF18T2L024 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 32A, DC coil low consumption, 24VDC, 2NO and 2NC

Lovato Electric

CA7-72D-01-24DD

Sprecher + Schuh CA7-72D-01-24DD - CA7 Contactor, 72A, 24V DC w/Diode, 1NC

Sprecher + Schuh

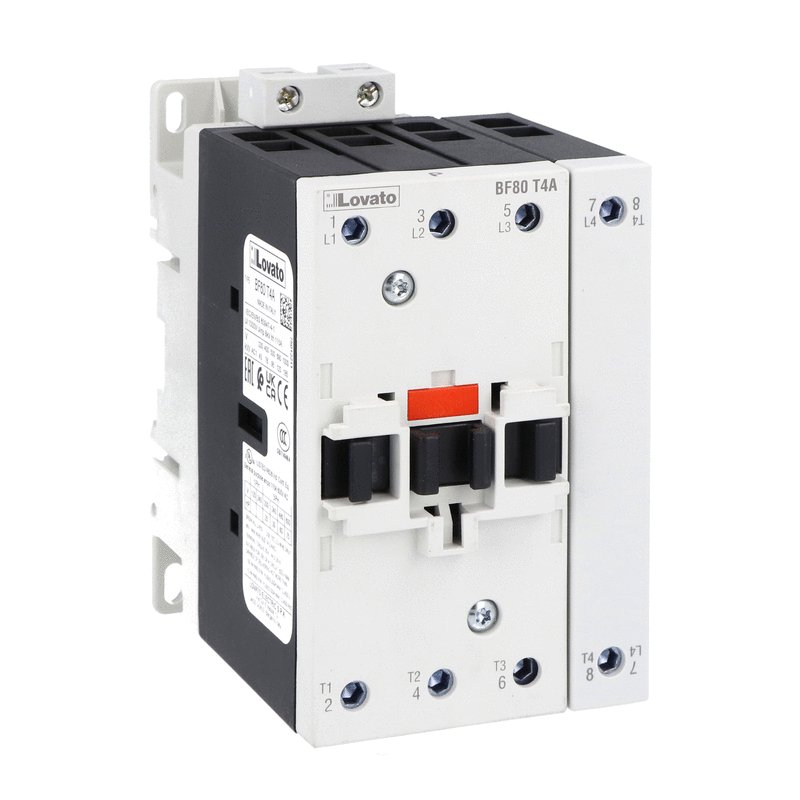

BF80T4A048

BF80T4A048 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 115A, AC coil 50/60Hz, 48VAC

Lovato Electric
