Contactors

LC1DPKR7

Schneider Electric LC1DPKR7 is a magnetic contactor from the Deca sub-range designed for capacitor switching duty. It features screw connections and is equipped with 3 poles (3P; 3NO) for mounting on a DIN rail. This contactor offers a degree of protection of IP20 and operates with a control voltage (AC) of 440Vac at 50Hz/60Hz. The rated operating voltage (Ue) is 690 V, and it includes 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts, with a contact type of 1NO+2NC instantaneous auxiliaries. The LC1DPKR7 has a rated impulse voltage (Uimp) of 6 kV and demonstrates electrical durability of 300,000 operations at 400Vac and 200,000 operations at 690Vac. The rated voltage (AC) for phase-to-phase is 690 V.

Schneider Electric

CA8-09-M31-600

Sprecher + Schuh CA8-09-M31-600 - CA8 Miniature Contactor, 9A, 525V 50Hz/ 600V 60Hz AC, M31

Sprecher + Schuh

CAU7-97-22-120

Sprecher + Schuh CAU7-97-22-120 - CAU7 Contactor FVR, 97A, 110V 50Hz / 120V 60Hz AC, 2NO 2NC

Sprecher + Schuh

CAN7-43-10-220W

Sprecher + Schuh CAN7-43-10-220W - CAN7 NEMA Contactor, Size 2, 200-220V 50Hz / 208-220V 60Hz AC, 1NO

Sprecher + Schuh

CA7-43-01-380

Sprecher + Schuh CA7-43-01-380 -

Sprecher + Schuh

AF30-30-22-13

AF30-30-22-13 ABB Control - CTR,3P,32.2A,100-250VAC/DC,2/2

ABB Control

LC1DT25W7

Schneider Electric LC1DT25W7 is a magnetic contactor from the Deca sub-range designed for DIN rail mounting. It features screw connections and is equipped with 4 poles (4NO) capable of handling a rated current of 25A (AC-1). The contactor has a net width of 45 mm and offers a degree of protection rated at IP20. It operates within a control voltage range of 222-304Vac (277Vac nominal; 50Hz; 0.8...1.1 x Uc) and 236-304Vac (277Vac nominal; 60Hz; 0.85...1.1 x Uc). This model includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, with the contacts type being 1NO+1NC instantaneous auxiliaries. It boasts a mechanical durability of 15,000,000 operations at no load and can handle a rated impulse voltage (Uimp) of 6 kV. The rated voltage (AC) for phase-to-phase connections is up to 690 V.

Schneider Electric

LC2D65A3F7

Schneider Electric LC2D65A3F7 is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring an EverLink(TM) term. power connection by Everlink mechanical interlock. It has spring connections and consists of 2 x 3-poles (2x3P; 2x3NO) with a rated current of 80A (AC-1) and 65A (440Vac; AC-3). The degree of protection provided is IP20. The control voltage (AC) ranges from 88-121Vac (110Vac nom.; 50Hz; 0.8...1.1 x Uc) to 93.5-121Vac (110Vac nom.; 60Hz; 0.85...1.1 x Uc), and the rated operating voltage (Ue) is up to 690 V. It includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts, with a rated impulse voltage (Uimp) of 6 kV. The rated active power (kW) spans from 18.5kW at 220-230Vac to 37kW at 660-690Vac (all AC-3), and the contacts type is 1NO+1NC instantaneous aux. contacts per contactor. The rated power (HP) varies from 5HP at 115Vac in single-phase to 50HP at 575-600Vac in three-phase, under UL/CSA standards, with a phase-to-phase rated voltage (AC) of 690 V.

Schneider Electric

11B6300048

11B6300048 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 630A, AC/DC coil, 48VAC/DC

Lovato Electric

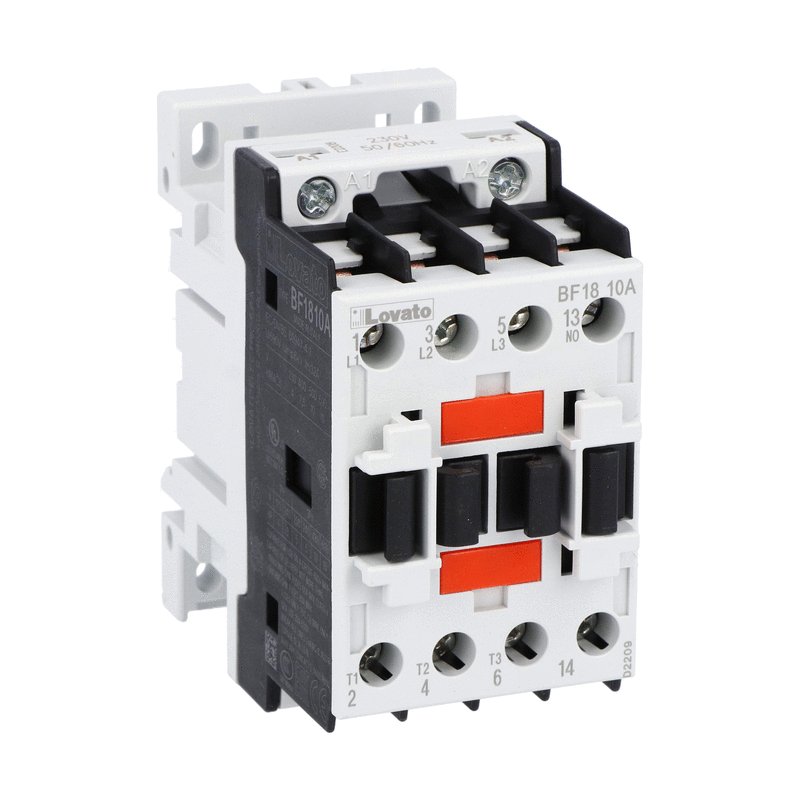

BF1810A57560

BF1810A57560 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 18A, AC coil 60Hz, 575VAC, 1NO auxiliary contact

Lovato Electric

AF091F1-GP1P

AF09,NR,3PH,FD,N1,480/24V

ABB Control

CA8-09C-01-110D

Sprecher + Schuh CA8-09C-01-110D - CA8 Miniature Contactor, 9A, 110V DC, 1NC

Sprecher + Schuh

CA7-85-00-277

Sprecher + Schuh CA7-85-00-277 - CA7 Contactor, 85A, 240V 50Hz / 277V 60Hz AC,

Sprecher + Schuh

CWCA0-04-00C03

WEG CWCA0-04-00C03 - MINICONTACTOR BU CWCA0-04-00C03, Miniature Contactors (CWC)

WEG

11BA1713

11BA1713 Lovato - Arc chute for B250-B310-B400 contactors

Lovato Electric

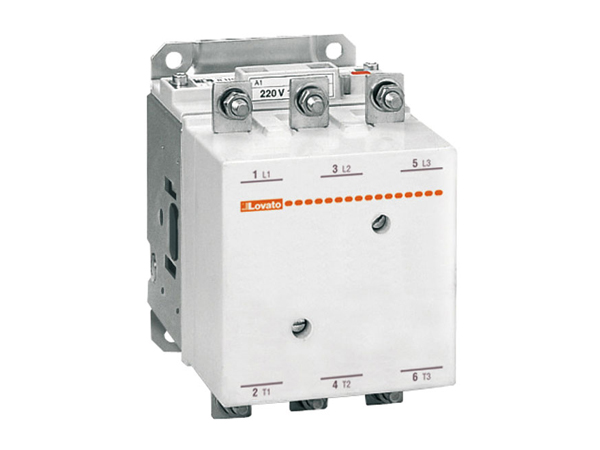

11B2500024

11B2500024 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 265A, AC/DC coil, 24VAC/DC

Lovato Electric

AF301B2-CV7Q

ABB Control - AF301B2-CV7Q

ABB Control

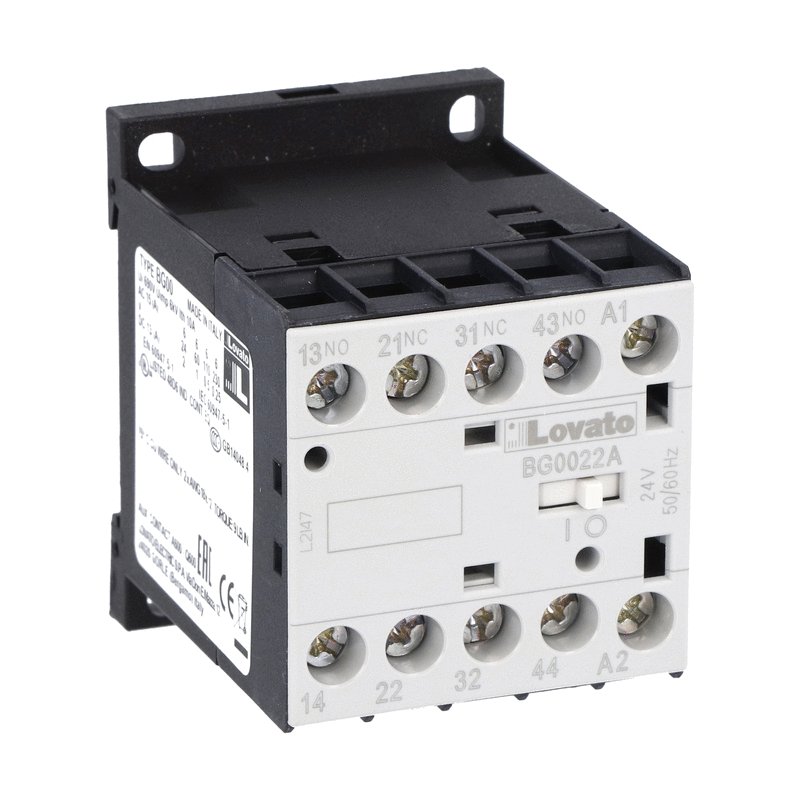

11BG0022A048

11BG0022A048 Lovato - Control relay with AC coil 50/60Hz, 48VAC, 2NO and 2NC

Lovato Electric

1SFL447101R1300

ABB 1SFL447101R1300 is a magnetic contactor designed with screw-clamp connections. It features a rated current of 200A at 690Vac for AC-1 design and varies for AC-3 design as follows: 160A at 690Vac, 140A at 220-440Vac, 130A at 500Vac, and 80A at 690Vac, with a supply voltage for AC-3. The control voltage (DC) ranges from 100-250Vdc, including 110Vdc and 220Vdc options. This contactor is equipped with 0 Normally Open (NO) contacts and has a net depth of 150 mm. It utilizes a technology with a power consumption of 8 kV and comes with a UPC code of 88861442727. The dimensions are specified as 128 mm in cross-section and 120 mm in length, with a material response time suitable for mounting on a plate. The connection capacity and rated operating voltage (Ue) support AC-3 design across various power ratings up to 90kW at 500Vac. It is designed for a mounting location in AF140 contactors and has been replaced by product number 39121529. The mechanical durability at no load is specified for 3-phase operations across different voltages and horsepower ratings, indicating its suitability for UL/CSA general use. The protection function codes include 130VA inrush and 6VA holding for AC, with 135W inrush and 3W holding for DC. The operating rate at no load is 300 Cycles/hour for both AC-1 and AC-3 designs.

ABB Control

LC2D126F7

Schneider Electric LC2D126F7 is a pre-assembled reversing magnetic contactor from the Deca sub-range, featuring a mechanical interlock and ring-lugs connections. It has 2 x 3-poles (2x3P; 2x3NO) configuration with a rated current of 25A (AC-1) and 12A (440Vac; AC-3). The contactor offers a degree of protection of IP20 and operates with a control voltage (AC) of 88-121Vac (110Vac nominal; 50Hz; 0.8...1.1 x Uc) and 93.5-121Vac (110Vac nominal; 60Hz; 0.85...1.1 x Uc). Its rated operating voltage (Ue) is 690 V, and it includes 2 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 6 kV. The rated active power (kW) spans from 3kW at 220-230Vac to 7.5kW at 660-690Vac (all AC-3). It also features 1NO+1NC instantaneous auxiliary contacts per contactor. The rated power (HP) ranges from 0.5HP at 115Vac to 10HP at 575-600Vac, accommodating various single-phase and 3-phase applications under UL/CSA standards. The rated voltage (AC) for phase-to-phase applications is 690 V.

Schneider Electric
