Contactors

AF261B2-CK1F

ABB Control - AF261B2-CK1F

ABB Control

CA7-85D-10-110DD

Sprecher + Schuh CA7-85D-10-110DD - CA7 Contactor, 85A, 110V DC w/ Diode, 1NO

Sprecher + Schuh

LC1K0910UE7

Schneider Electric LC1K0910UE7 is a magnetic contactor within the K sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 20A under AC-1 conditions and 9A at 440Vac under AC-3 conditions. The contactor's net width is 45 mm and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 222-318Vac (277Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc), with a rated operating voltage (Ue) of 690 V. It includes 1 Normally Open (NO) auxiliary contact, has a rated impulse voltage (Uimp) of 8 kV, and supports rated active power (kW) of 2.2kW at 220-230Vac, 4kW at 380-415Vac, 4kW at 440Vac, 4kW at 500Vac, and 4kW at 660-690Vac, all under AC-3 conditions. This model does not have Normally Closed (NC) auxiliary contacts. Its mechanical durability at no load is rated for 10,000,000 operations, and the rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric

AF210-30-11-68

AF210 3P CONTR,2

ABB Control

AF301B2-AW7A

AF30,NR,3PH,CB,N3R/4/12,200/120V

ABB Control

LC1DLKE7

Schneider Electric LC1DLKE7 is a magnetic contactor from the Deca sub-range designed for capacitor switching duty. It features screw connections and is equipped with three poles (3P; 3NO) for mounting on a DIN rail. This contactor offers a degree of protection of IP20 and operates with a control voltage (AC) of 48Vac (50Hz/60Hz). The rated operating voltage (Ue) is 690 V, and it includes 1 normally open (NO) auxiliary contact and 2 normally closed (NC) auxiliary contacts, with a contact type of 1NO+2NC instantaneous auxiliaries. The LC1DLKE7 has an electrical durability of 300,000 operations at 400Vac and 200,000 operations at 690Vac, with a rated impulse voltage (Uimp) of 6 kV. The rated voltage (AC) for phase-to-phase connections is 690 V.

Schneider Electric

AF26M-30-02-12

MI,3P,25.3A,48-130VAC/DC,2NC

ABB Control

CA7-16E-M22-36E

Sprecher + Schuh CA7-16E-M22-36E - CA7 Contactor, 16A, 36-48V DC Elec. Coil, 2NO 2NC

Sprecher + Schuh

J7KC-12-10 AC230

J7KC-12-10 AC230, Magnetic Contactor, Max Load Current: 5-15A, Max Rated Load Voltage : 200-400 VAC, Input Voltage Range: 230 VAC

Omron

GJH1211001R8225

ABB GJH1211001R8225 is a magnetic mini contactor from the K6 contactors sub-range, designed with screw-clamp connections and featuring 4 poles (2NO+2NC). It has a rated current of 4A for 24-240Vac (AC-15), 3A for 440Vac (AC-15), 2A for 500Vac (AC-15), and 5A for 600Vac (UL/CSA general use rating). The rated insulation voltage is 690 V according to IEC/VDE and 600 V according to UL/CSA. This contactor is suitable for mounting on a plate, with dimensions of 57.5 mm in height, 52.5 mm in width, and 46.5 mm in depth. It consumes 3.5VA during both inrush and holding phases of the coil, operates with a control voltage of 380Vac-415Vac (400Vac) within a frequency range of 40Hz-450Hz, and has a rated operating voltage (Ue) of 690 V. The unit is equipped with 0 normally open (NO) and 0 normally closed (NC) auxiliary contacts, can withstand a rated impulse voltage (Uimp) of 6 kV, and supports an operating rate of 600 cycles/hour under DC-13 conditions.

ABB Control

AF205-40-22-14

AF205-40-22-14 ABB Control - CONTACTOR AF205 4P 2NO2NC 250-500V

ABB Control

AF09ZB-30-01S-21

AF09ZB-30-01S-21 ABB Control - CONTACTOR, 3P 20A, COIL 20-60VDC

ABB Control

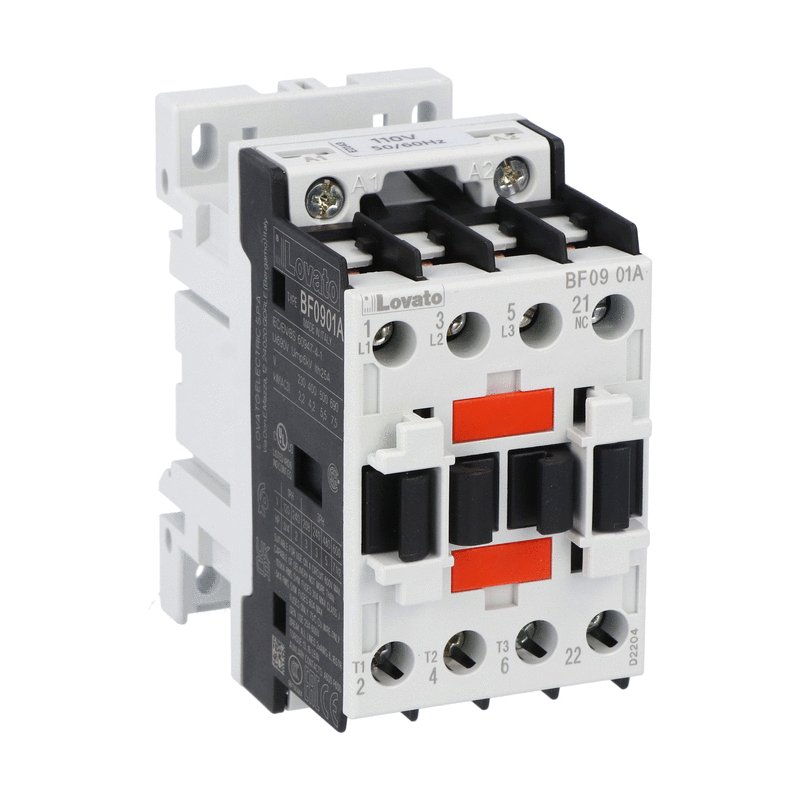

BF0901A22060

BF0901A22060 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, AC coil 60Hz, 220VAC, 1NC auxiliary contact

Lovato Electric

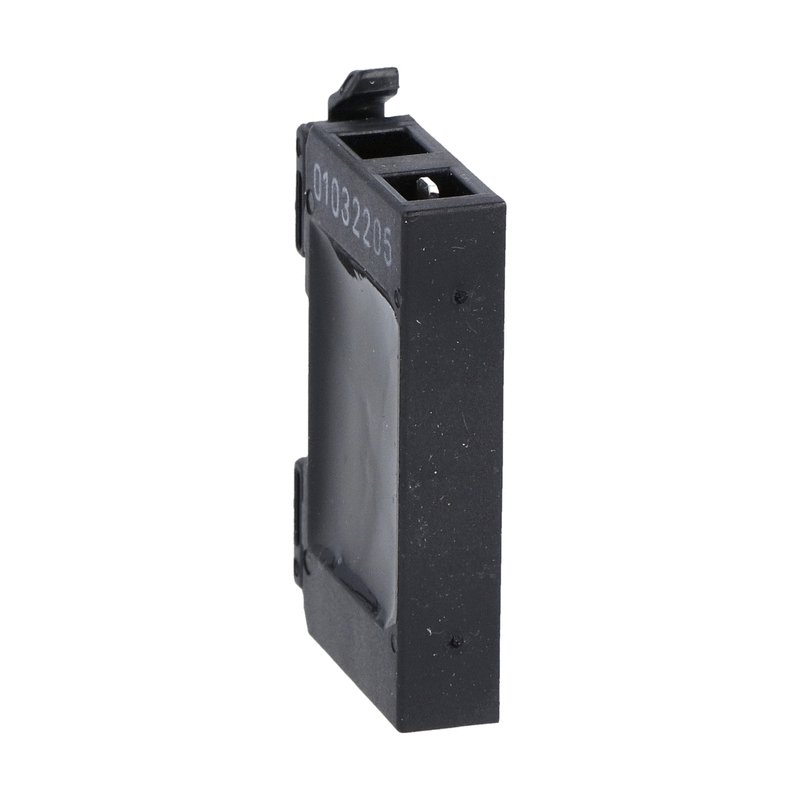

11G322220

11G322220 Lovato - Surge suppressor for BF50-BF110 contactors, front mount. Faston terminals, 48-240VAC (resistor-capacitor)

Lovato Electric

CA7-37E-01-24E

Sprecher + Schuh CA7-37E-01-24E - CA7 Contactor, 37A, 24V DC Elec. Coil, 1NC

Sprecher + Schuh

GJL1317201R0001

ABB GJL1317201R0001 is a magnetic mini contactor from the B7D contactors sub-range, featuring screw-clamp connections and a 4-pole (4NO) configuration. It has a rated current of 20A at 380-400Vac (40°C; AC-1), 16A at 380-400Vac (55°C; AC-1), 6A at 690Vac (40°C; AC-1), 6A at 690Vac (55°C; AC-1), with AC-15 ratings of 4A at 24-120Vac, 4A at 220-240Vac, 3A at 380-400Vac, and 2A at 500Vac. UL/CSA FLA ratings include 13.8A at 115Vac (single-phase), 7.8A at 200Vac (3-phase), 9.6A at 220-240Vac (3-phase), 10A at 230Vac (single-phase), 7.6A at 440-480Vac (3-phase), and 6.1A at 550-600Vac (3-phase). The rated insulation voltage is 690 V (IEC/VDE) and 600 V (UL/CSA), with a mounting mode on plate. Dimensions are 57.5 mm in height, 52.5 mm in width, and 46.5 mm in depth. Control voltage is 24Vdc, with a current consumption of 3.5W for both inrush and holding (coil). Rated operating voltage (Ue) is 690 V, with 0 normally open (NO) auxiliary contacts, a rated impulse voltage (Uimp) of 6 kV, and no normally closed (NC) auxiliary contacts. Rated active power is 3kW at 220-240Vac (AC-3), 5.5kW at 380-440Vac (AC-3), 5.5kW at 500Vac (AC-3), and 3kW at 690Vac (AC-3). Rated power (HP) for UL/CSA is 3HP at 220-240Vac (3-phase), 5HP at 440-480Vac (3-phase), and 5HP at 550-600Vac (3-phase). Operating rates are 300 cycles/hour (AC-1), 600 cycles/hour (AC-3), 360 cycles/hour (AC-15), 600 cycles/hour (DC-1), 360 cycles/hour (DC-13), and 600 cycles/hour (DC-3).

ABB Control

AF261B2-CE12Q

ABB Control - AF261B2-CE12Q

ABB Control

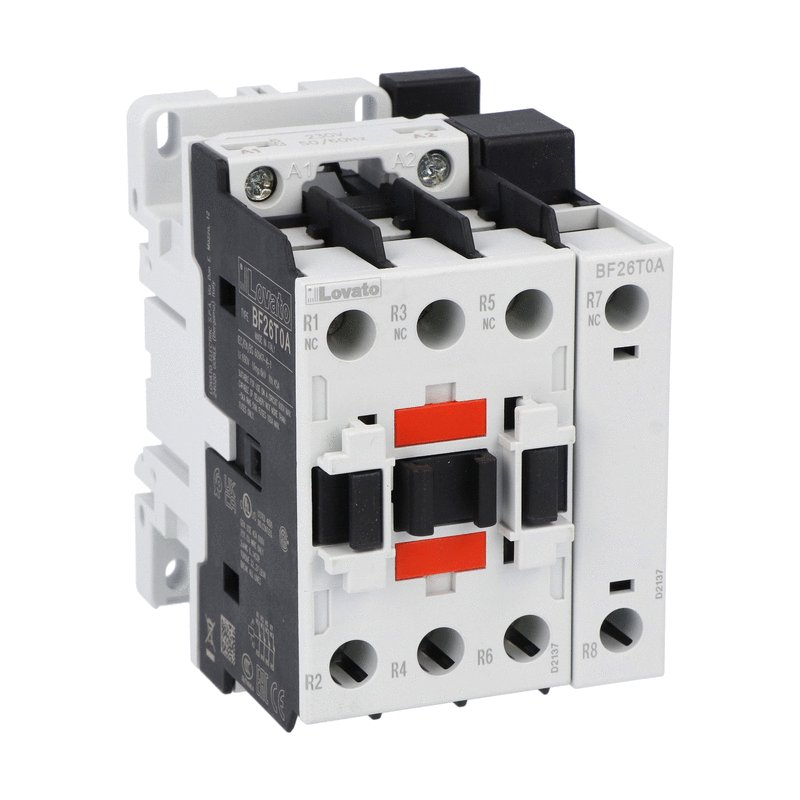

BF26T0A230

BF26T0A230 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 45A, AC coil 50/60Hz, 230VAC, 4NC

Lovato Electric

LC1DT60A3T7

Schneider Electric LC1DT60A3T7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design for secure connections. It is equipped with spring connections for control and screw connections for power, ensuring a robust connection system. This 4-pole (4P; 4NO) contactor is designed to handle a rated current of 60A (AC-1) and can be mounted on a DIN rail. The unit has a net width of 70 mm and offers a degree of protection rated at IP20. It operates within a control voltage range of 384-528Vac at 50Hz and 408-528Vac at 60Hz, with a nominal voltage of 480Vac. The LC1DT60A3T7 includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both rated for 6 kV impulse voltage and designed for instantaneous operation. The contactor's mechanical durability is rated at 6 million operations at no load, and it can handle phase-to-phase rated voltages up to 690 V.

Schneider Electric

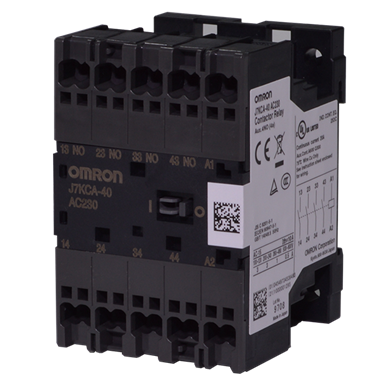

J7KCA-22 AC120

J7KCA Auxiliary Contact Relay

Omron
