Contactors

CWM32N-00-30V04

WEG CWM32N-00-30V04 - CONTACTOR CWM32N-00-30V04, Contactors (CWM)

WEG

CA7-16-10-120-L40

Sprecher + Schuh CA7-16-10-120-L40 - CA7 Contactor, 16A, 110V 50Hz / 120V 60Hz AC, 1NO, 4NO Aux

Sprecher + Schuh

11BGF0901D012

11BGF0901D012 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, DC coil, 12VDC, 1NC auxiliary contact, Faston terminals

Lovato Electric

CWB125-11-30E04

WEG CWB125-11-30E04 - CONTACTOR CWB125-11-30E04, Contactors (CWB)

WEG

LP1D65008BW

Schneider Electric LP1D65008BW is a magnetic contactor from the Deca sub-range, designed with a wide-range coil (0.75-1.2 x Uc) for flexibility in control voltage, which ranges from 18-28.8Vdc (24Vdc nominal; 0.75...1.2 x Uc). It features screw connections for secure installation and is equipped with 4 poles (2NO+2NC), supporting a rated current of 80A (AC-1). The contactor's net width is 85 mm, and it offers a degree of protection rated at IP20. Capable of operating at a rated impulse voltage of 8 kV and a rated operating voltage (Ue) of 690 V, it has no normally open (NO) or normally closed (NC) auxiliary contacts. Its mechanical durability is notable, with up to 15,000,000 operations at no load, and it is designed to handle a phase-to-phase rated voltage (AC) of 690 V.

Schneider Electric

AF30R-30-22-41

REV,3P,32.2A,24-60VAC,2/2

ABB Control

AF12ZM-30-22-23

MI,3P,11A,LOW100-250VAC/DC,2/2

ABB Control

AF261BX-BS3J

ABB Control - AF261BX-BS3J

ABB Control

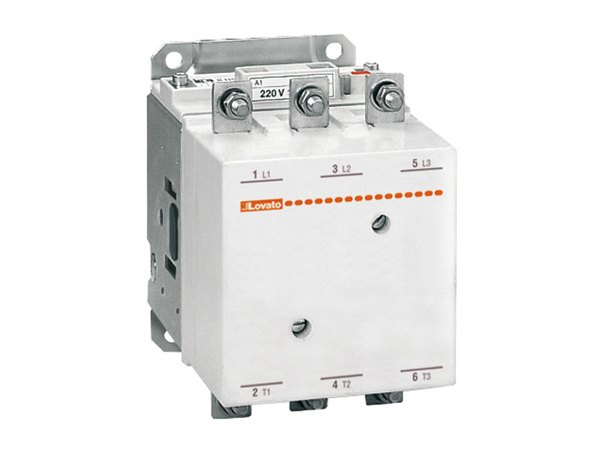

11B5000060

11B5000060 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 520A, AC/DC coil, 60VAC/DC

Lovato Electric

GJH1211003R0221

ABB GJH1211003R0221 is a magnetic mini contactor from the K6 contactors sub-range, designed with 4 poles (2NO+2NC) and flat pin / Faston connections for mounting on plate. It supports a rated current of 4A for 24-240Vac (AC-15), 3A for 440Vac (AC-15), 2A for 500Vac (AC-15), and 5A for 600Vac (UL/CSA general use rating). The rated insulation voltage is 690 V according to IEC/VDE and 600 V according to UL/CSA, with a rated operating voltage (Ue) of 690 V. This contactor has a control voltage (AC) of 24Vac (40Hz-450Hz), a rated impulse voltage (Uimp) of 6 kV, and an operating rate of 600 cycles/hour (DC-13). It consumes 3.5VA for both inrush and holding (coil). The unit's dimensions are 57.5 mm in height, 52.5 mm in width, and 46.5 mm in depth, with no normally open (NO) or normally closed (NC) auxiliary contacts.

ABB Control

J7KCA-40 DC110

J7KCA Auxiliary Contact Relay

Omron

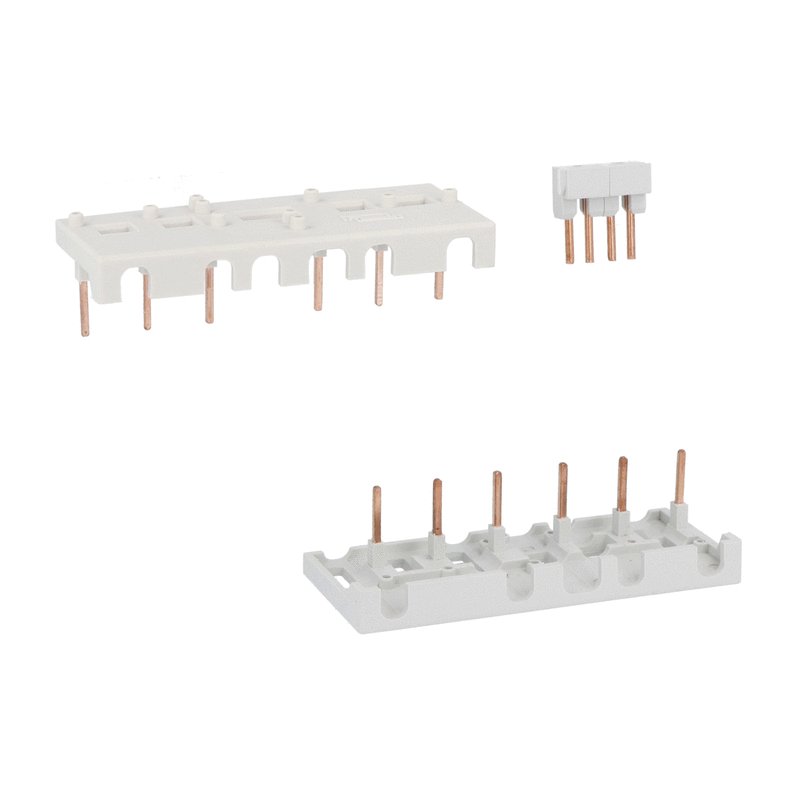

BFX3231

BFX3231 Lovato - Rigid connecting kit for star-delta starters, for contactors BF26...BF38 (line-star-delta)

Lovato Electric

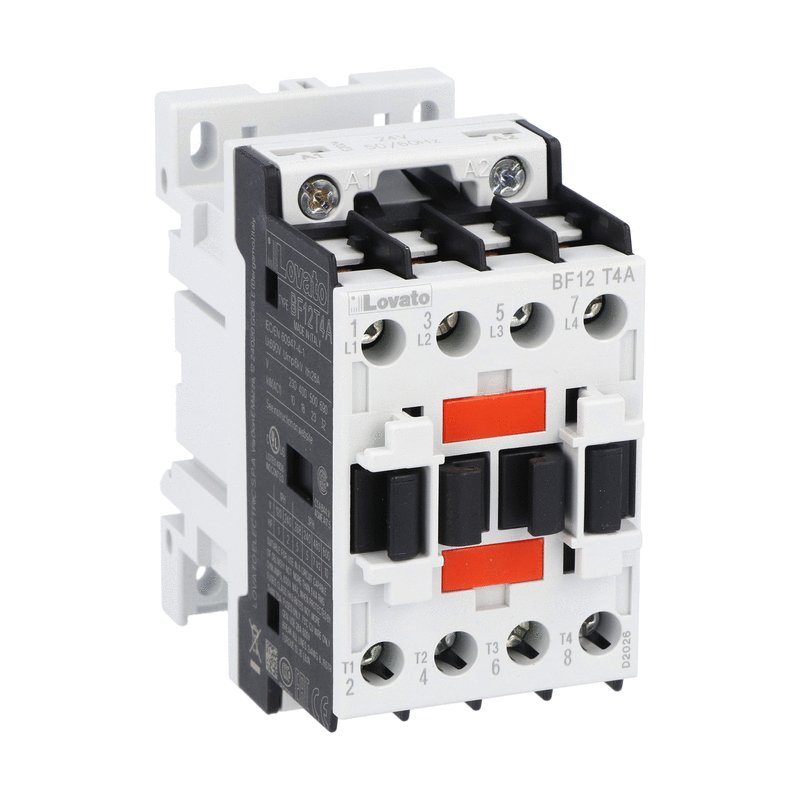

BF12T4A230

BF12T4A230 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 28A, AC coil 50/60Hz, 230VAC

Lovato Electric

CAN7-16-10-600

Sprecher + Schuh CAN7-16-10-600 - CAN7 NEMA Contactor, Size 0, 550V 50Hz / 600V 60Hz AC, 1NO

Sprecher + Schuh

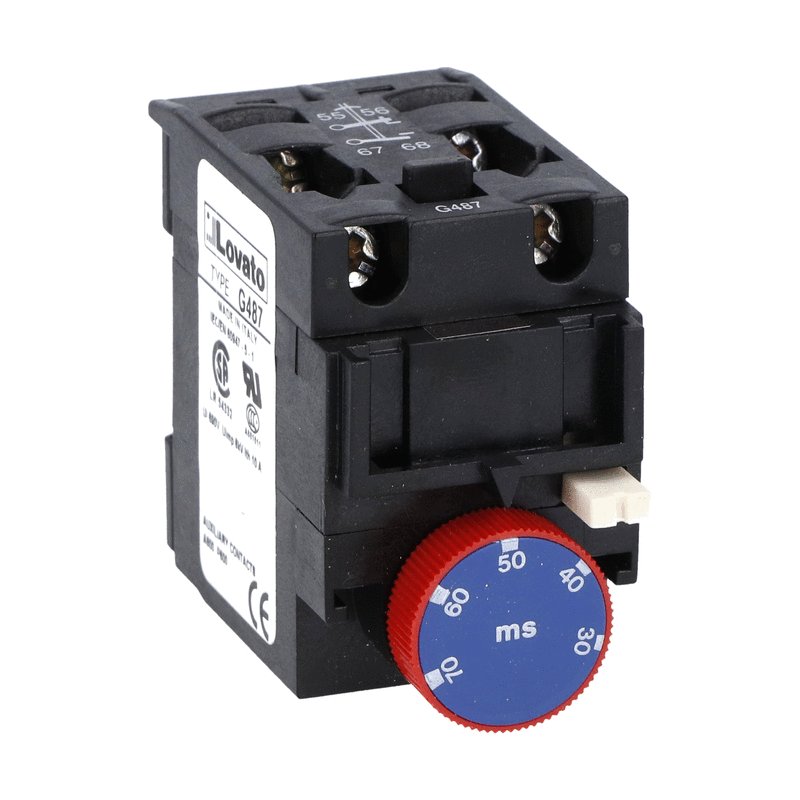

11G4856

11G4856 Lovato - Delayed auxiliary contact 1NO+1NC (pneumatic operation) on energisation for front centre mounting. Screw terminals, for BF... series contactors, 6S

Lovato Electric

LC1DT60A3FC7

Schneider Electric LC1DT60A3FC7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design for secure connections. It is equipped with spring connections for control and screw connections for power, ensuring a robust connection system. This 4-pole (4NO) contactor is designed to handle a rated current of 60A under AC-1 conditions and can be mounted on a DIN rail. The unit has a net width of 70 mm and offers a degree of protection rated at IP20. It operates within a control voltage range of 102-139Vac at 50Hz and 108-139Vac at 60Hz, with a nominal voltage of 127Vac. The LC1DT60A3FC7 includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, both of the instantaneous type, and has a mechanical durability of 6 million operations at no load. Its rated impulse voltage stands at 6 kV, and it can handle phase-to-phase rated voltages up to 690 V AC.

Schneider Electric

CWM12-00-20V18

WEG CWM12-00-20V18 - CONTACTOR CWM12-00-20V18, Contactors (CWM)

WEG

LC1D40Q7

Schneider Electric LC1D40Q7 is a magnetic contactor from the Deca sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 60A (AC-1) and 40A (440Vac; AC-3), with a mounting mode suitable for DIN rail installation. This contactor offers a degree of protection rated at IP20 and operates with a control voltage (AC) range of 304-418Vac (380Vac nominal; 50Hz; 0.8...1.1 x Uc) and 323-418Vac (380Vac nominal; 60Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 690 V, and it includes 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. Its rated active power (kW) spans from 11kW at 220-230Vac to 30kW at 660-690Vac, all under AC-3 classification. The rated power (HP) ranges from 3HP at 115Vac in single-phase to 30HP at 575-600Vac in three-phase, compliant with UL/CSA standards. The mechanical durability of this contactor is rated at 15 million operations at no load, and it supports a phase-to-phase rated voltage (AC) of 690 V.

Schneider Electric

11B63000440

11B63000440 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 630A, AC/DC coil, 440...480VAC/DC

Lovato Electric

LC1D40AFD

Schneider Electric LC1D40AFD is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design and screw connections. This 3-pole (3P; 3NO) contactor supports a rated current of 60A for AC-1 and 40A for AC-3 at 440Vac. It is designed for DIN rail mounting and has a net width of 55 mm. The LC1D40AFD offers a degree of protection of IP20 and operates with a control voltage (DC) range of 82.5-137.5Vdc (110Vdc nominal; 0.75...1.25 x Uc). Its rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. This contactor can handle rated active power ranging from 11kW at 220-230Vac to 30kW at 660-690Vac in AC-3. It also supports rated power in horsepower (HP) for various voltages and phases under UL/CSA standards. The mechanical durability of the LC1D40AFD is rated at 6 million operations at no load, and its electrical durability is rated at 1.5 million operations with load. The rated voltage (AC) for phase-to-phase connections is 690 V.

Schneider Electric
