Contactors

CA7-97-10-600-L01

Sprecher + Schuh CA7-97-10-600-L01 - CA7 Contactor, 97A, 550V 50Hz / 600V 60Hz AC, 1NO, 1NC Aux

Sprecher + Schuh

11B115400380

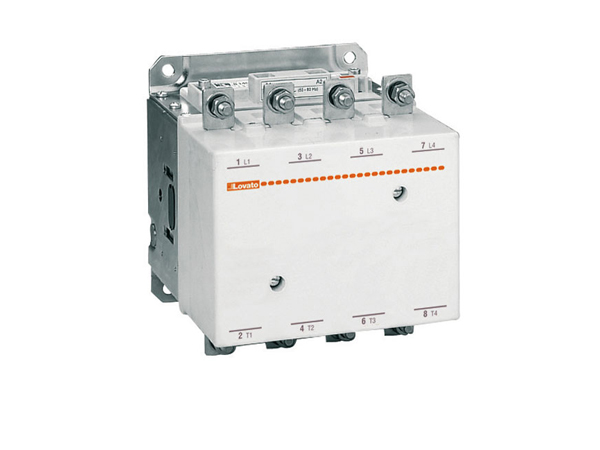

11B115400380 Lovato - Four-pole contactor, IEC operating current Ith (AC1) = 160A, AC/DC coil, 380...415VAC/DC

Lovato Electric

AF092F2-CD11B

ABB Control - AF092F2-CD11B

ABB Control

11BG0901A46060

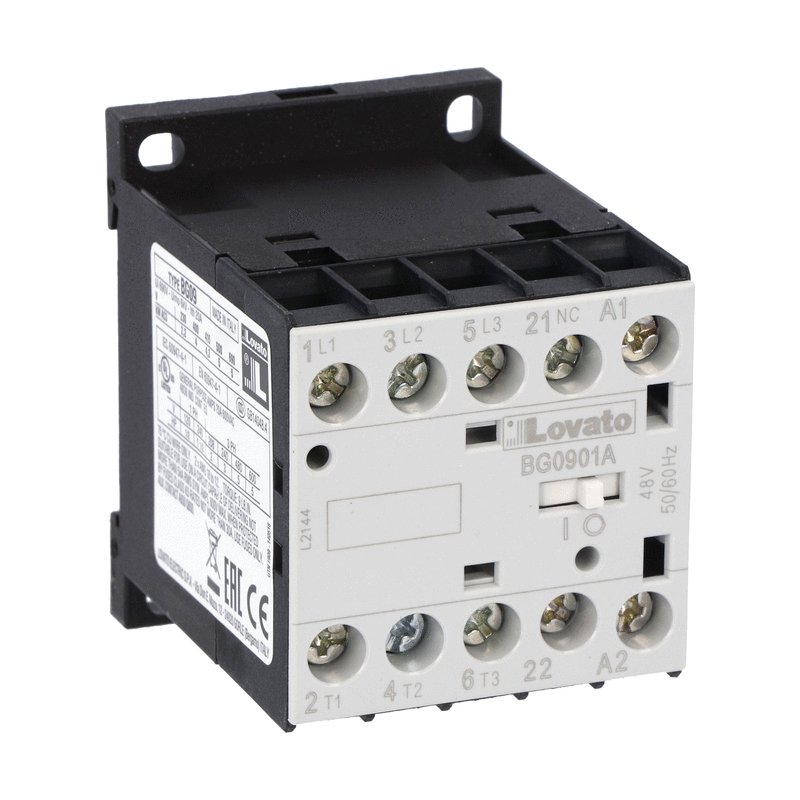

11BG0901A46060 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, AC coil 60Hz, 460VAC, 1NC auxiliary contact

Lovato Electric

11G360

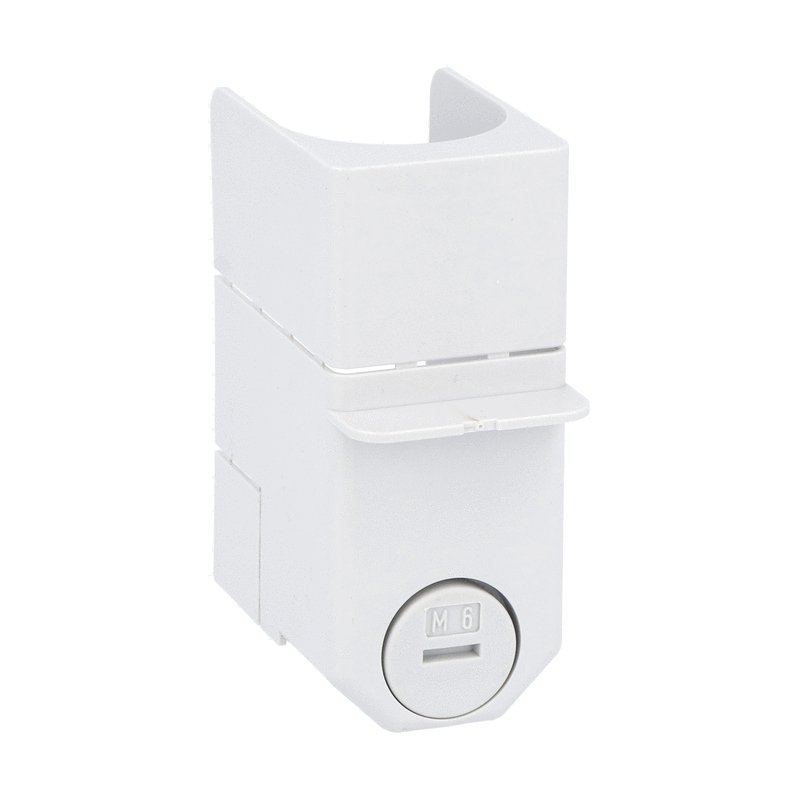

11G360 Lovato - Power terminal protection for contactors B115...

Lovato Electric

GJH1213001R0224

ABB GJH1213001R0224 is a magnetic mini contactor from the KC6 contactors sub-range. It features screw-clamp connections and is designed with 4 poles (2NO+2NC). The rated current varies by voltage: 4A for 24-240Vac (AC-15), 3A for 440Vac (AC-15), 2A for 500Vac (AC-15), and 5A for 600Vac under UL/CSA general use rating. The rated insulation voltage is 690 V according to IEC/VDE standards and 600 V according to UL/CSA standards. This contactor is designed for mounting on a plate, with dimensions of 57.5 mm in height, 52.5 mm in width, and 46.5 mm in depth. It operates with a control voltage of 110Vdc-125Vdc and consumes 3.5W both in inrush and holding states for the coil. The rated operating voltage (Ue) is 690 V, and it has no normally open (NO) or normally closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 6 kV, and it supports an operating rate of 600 cycles/hour under DC-13 conditions.

ABB Control

BF9400A02460

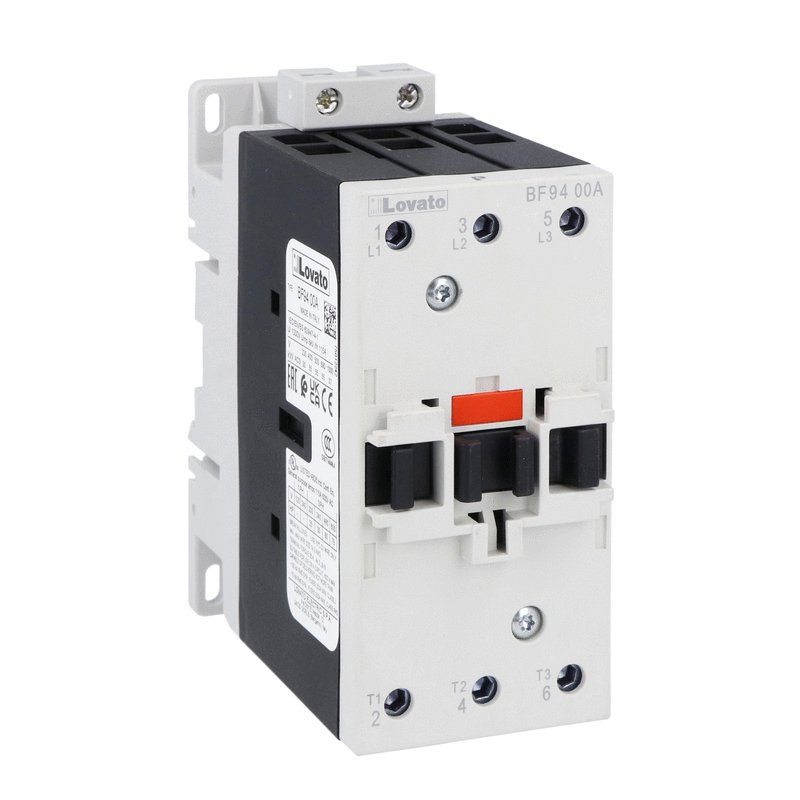

BF9400A02460 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 94A, AC coil 60Hz, 24VAC

Lovato Electric

CA7-23-M22-120

Sprecher + Schuh CA7-23-M22-120 - CA7 Contactor, 23A, 110V 50Hz / 120V 60Hz AC, 2NO 2NC

Sprecher + Schuh

LC1D256E7

Schneider Electric LC1D256E7 is a magnetic contactor from the Deca sub-range, designed with ring-lugs connections and three poles (3P; 3NO). It has a rated current of 40A for AC-1 and 25A for 440Vac in AC-3 conditions. This contactor is suitable for DIN rail mounting and has a net width of 45 mm. It offers a degree of protection rated at IP20 and operates within control voltage ranges of 38.4-52.8Vac at 50Hz and 40.8-52.8Vac at 60Hz, with a nominal control voltage of 48Vac. The rated operating voltage (Ue) is up to 690 V, and it features 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type. The rated impulse voltage (Uimp) is 6 kV. Its rated active power reaches up to 15kW for 500Vac and 660-690Vac in AC-3 conditions. The contactor also supports rated power in horsepower, with capacities ranging from 2HP at 115Vac to 20HP at 575-600Vac across various configurations. It boasts a mechanical durability of 15 million operations at no load and an electrical durability of 1.6 million operations with load, ensuring its capability to handle phase-to-phase rated voltages up to 690 V.

Schneider Electric

CWCH07-10-30V18

WEG CWCH07-10-30V18 - MINICONTACTOR CWCH07-10-30V18, Miniature Contactors (CWC)

WEG

CA9-1260-EI-11-48W

Sprecher + Schuh CA9-1260-EI-11-48W - CA9 Contactor w/PLC Inputs, A, 48-130V 50-60 Hz AC/DC, 1NO1NC

Sprecher + Schuh

CWM18-10-30V47

WEG CWM18-10-30V47 - CONTACTOR CWM18-10-30V47, Contactors (CWM)

WEG

BFK9400A048

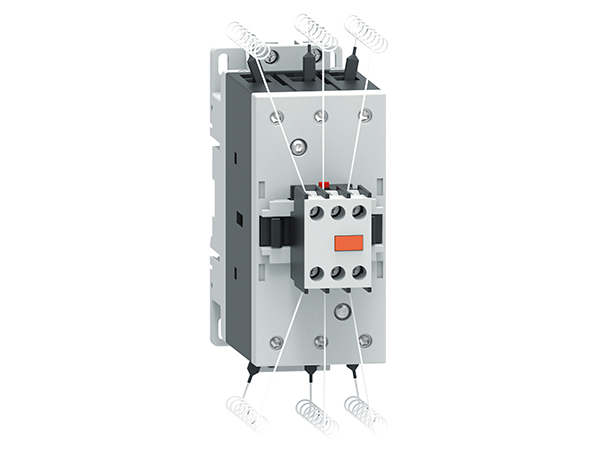

BFK9400A048 Lovato - Contactor for power factor correction with AC control circuit, including limiting resistors, maximum IEC operational power 400V = 60kvar, coil 48VAC 50/60Hz

Lovato Electric

BF0031D024

BF0031D024 Lovato - Control relay with DC coil, 24VDC, 3NO and 1NC

Lovato Electric

AF301B1-CV7A27

ABB Control - AF301B1-CV7A27

ABB Control

11BGF0031A400

11BGF0031A400 Lovato - Control relay with AC coil 50/60Hz, 400VAC, 3NO and 1NC, Faston terminals

Lovato Electric

LC1DT80A3K7

Schneider Electric LC1DT80A3K7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design for secure connections. It is equipped with spring connections for control and screw connections for power, ensuring a robust connection system. This 4-pole (4NO) contactor is designed to handle a rated current of 80A (AC-1) and can be mounted on a DIN rail. With a net width of 70 mm and an IP20 degree of protection, it is compact and offers a basic level of protection against touch. The control voltage ranges from 80-110Vac at 50Hz and 85-110Vac at 60Hz, with a nominal voltage of 100Vac. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both of the instantaneous type, and is capable of withstanding a rated impulse voltage (Uimp) of 6 kV. The mechanical durability of this contactor is rated at 6 million operations at no load, and it can operate at a phase-to-phase rated voltage up to 690 V.

Schneider Electric

CA7-37-10-48

CONTACTOR 37A 48VAC 1NO

Sprecher + Schuh

J7KNA-09-4 24D

Omron J7KNA-09-4 24D - Contr,9A,4main pole,DC24V

Omron

CA7-30E-10-220E

Sprecher + Schuh CA7-30E-10-220E - CA7 Contactor, 30A, 220-250V DC Elec. Coil, 1NO

Sprecher + Schuh
