Contactors

AF261B2-2U5

ABB Control - AF261B2-2U5

ABB Control

J7KCR-12-01 DC220

J7KCR-12-01 DC220, Magnetic Contactor, Max Load Current: 5-15A, Max Rated Load Voltage : 200-400 VAC, Input Voltage Range: 187-242 VDC

Omron

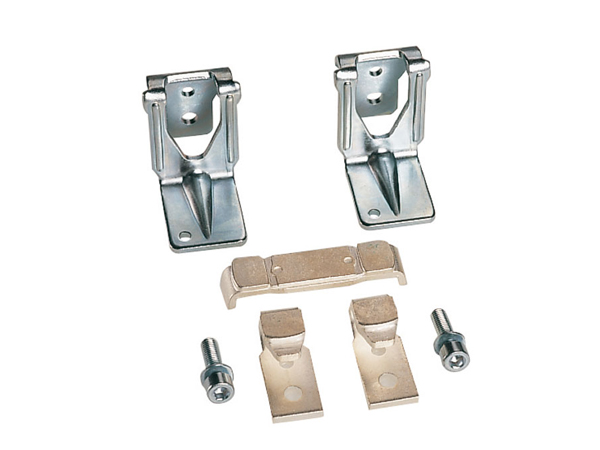

11G539

11G539 Lovato - Main contacts 3 or 4 pole set complete with Allen screws and key for contact replacement for B160024

Lovato Electric

AF261B2-CE11Q9

ABB Control - AF261B2-CE11Q9

ABB Control

GJH1211001R0311

ABB GJH1211001R0311 is a magnetic mini contactor from the K6 contactors sub-range, designed with screw-clamp connections and featuring 4 poles (3NO+1NC). It has a rated current of 4A for 24-240Vac (AC-15), 3A for 440Vac (AC-15), 2A for 500Vac (AC-15), and a 5A UL/CSA general use rating for 600Vac. The rated insulation voltage is 690 V according to IEC/VDE standards and 600 V as per UL/CSA. This contactor is suitable for mounting on a plate, with dimensions of 57.5 mm in height, 52.5 mm in width, and 46.5 mm in depth. It consumes 3.5VA for both inrush and holding coil operations, operates with a control voltage of 24Vac (40Hz-450Hz), and has a rated operating voltage (Ue) of 690 V. The unit is equipped with 0 normally open (NO) auxiliary contacts, 0 normally closed (NC) auxiliary contacts, can handle an operating rate of 600 cycles/hour (DC-13), and withstands a rated impulse voltage (Uimp) of 6 kV.

ABB Control

AF092F2-3L1

ABB Control - AF092F2-3L1

ABB Control

BFX8904

BFX8904 Lovato - METAL BRACKET FOR DP CONTACTOR W/OVERLOAD

Lovato Electric

LC1D50A6S7

Schneider Electric LC1D50A6S7 is a magnetic contactor from the Deca sub-range featuring an EverLink(TM) terminal design and ring-lugs connections. This 3-pole (3P; 3NO) contactor has a rated current of 80A for AC-1 applications and 50A for 440Vac AC-3 applications. It is designed for DIN rail mounting and has a net width of 55 mm. The LC1D50A6S7 offers a degree of protection of IP20 and operates with a control voltage range of 400-550Vac at 50Hz and 425-550Vac at 60Hz. Its rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. This contactor supports rated active power outputs of 15kW to 33kW across various AC-3 voltage ranges and rated power in horsepower from 3HP to 40HP under UL/CSA standards for single-phase and three-phase applications. It boasts a mechanical durability of 6 million operations and an electrical durability of 1.45 million operations at load, with a phase-to-phase rated voltage of 690 V.

Schneider Electric

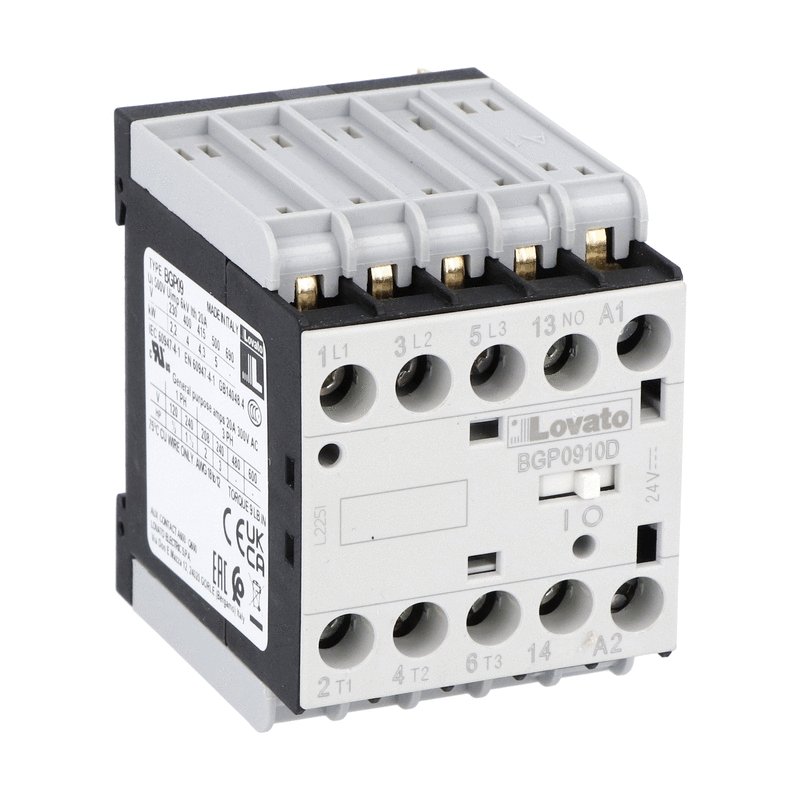

11BGP0910D012

11BGP0910D012 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 9A, DC coil, 12VDC, 1NO auxiliary contact, rear PCB solder pin

Lovato Electric

CA8-12-M40-208

Sprecher + Schuh CA8-12-M40-208 - CA8 Miniature Contactor, 12A, 200-220V 50Hz / 208-220V 60Hz AC, 4NO

Sprecher + Schuh

AF12N0-30-01-41

AF12N0-30-01-41 ABB Control - AF12N0-30-01-41 24-60V50/60HZ Contactor

ABB Control

AF121F2-2R1F

AF12,NR,3PH,FD,N3R/4/12,100-250V

ABB Control

1SFL547102R1200

ABB 1SFL547102R1200 is a magnetic contactor designed for various applications, featuring lugs/bars connections for easy installation. It supports a rated current of up to 400A at 690Vac for AC-1 design conditions, with a rated voltage for DC operations classified as C. The contactor is equipped with normally open auxiliary contacts rated at 55°. It can handle rated power in AC-1 conditions up to 350A at 690Vac and offers a resistance of 70Ω. The supply voltage is compatible with AC-1 specifications, and it can operate efficiently within an ambient air temperature range suitable for AC-3 conditions. The device is capable of handling a rated active power of 48Vdc-130Vdc at 110Vdc, with a power consumption specified at 225 mm. It comes in a color coded for 8 kV, with dimensions tailored for 4-pole (4P) installations, featuring 4NO contacts. The response time adheres to IEC/VDE 1000 V and UL/CSA 600 V standards, with a connection capacity accommodating 48Vac-130Vac across various frequencies. It is designed for mounting on a plate, with a short circuit breaking rating and manufacturer product specifications indicating a range of operational capacities up to 200kW at 690Vac for AC-3 conditions. The primary current and voltage are designed for 3-phase operations, with a frequency of 50Hz/60Hz. The device ensures an operating rate of 340VA inrush and 17VA holding for AC operations, with a significant inrush and holding power for DC operations as well.

ABB Control

J7KN-62 110

Omron J7KN-62 110 - 3 Pole, 62A, 110VAC

Omron

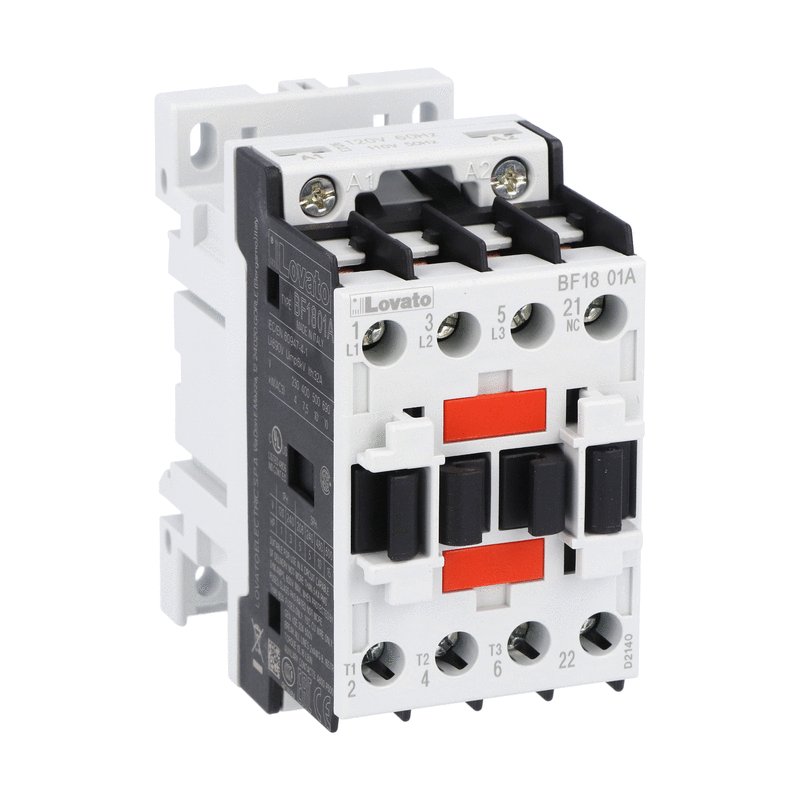

BF1801A46060

BF1801A46060 Lovato - Three-pole contactor, IEC operating current Ie (AC3) = 18A, AC coil 60Hz, 460VAC, 1NC auxiliary contact

Lovato Electric

AF2612-2U

ABB Control - AF2612-2U

ABB Control

LC2K0601L7

Schneider Electric LC2K0601L7 is a pre-assembled reversing magnetic contactor within the K sub-range, featuring a mechanical interlock for standard applications. It is equipped with screw connections and has 2 x 3-poles (2x3P; 2x3NO) configuration. The rated current is 6A at 440Vac under AC-3 utilization category, and it offers a degree of protection of IP20. The control voltage (AC) ranges from 160-230Vac (200/208Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc). Its rated operating voltage (Ue) reaches up to 690 V, and it has 0 normally open (NO) auxiliary contacts and 2 normally closed (NC) auxiliary contacts, with contact types being 1NC (contactor A) + 1NC (contactor B). The rated impulse voltage (Uimp) is 8 kV. This contactor supports rated active power of 1.5kW at 220-230Vac, 2.2kW at 380-415Vac, and 3kW at 440Vac, 500Vac, and 660-690Vac, all under AC-3. It boasts a mechanical durability of 5 million operations at no load, and the rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric

AF091F2-EE11J

ABB Control - AF091F2-EE11J

ABB Control

CAN7-85-10-120-L01

Sprecher + Schuh CAN7-85-10-120-L01 - CAN7 NEMA Contactor, Size 3, 110V 50Hz / 120V 60Hz AC, 1NO, 1NC Aux

Sprecher + Schuh

CWCH016-01-30C02

WEG CWCH016-01-30C02 - MINICONTACTOR CWCH016-01-30C02, Miniature Contactors (CWC)

WEG
