AC/DC Power Supplies

UHP-2500-48-CAN

AC-DC Slim Single output enclosed power supply with PFC; Output 48Vdc at 52.1A; Remote ON/OFF and DC OK signal; protocol CANBus

MEAN WELL

85011

85011 Murrelektronik - EVOLUTION+ POWER SUPPLY 3-PHASE, Alarm Contact and varnished PCB, IN: 360-520VAC OUT: 48-56V/20ADC, Allows continuous two-phase- operation

Murr Elektronik

XT40.362

PULS XT40.362 is a power supply unit part of the X-series, designed to convert AC to DC power with a semi-regulated 25% power reserve. It features a DC-OK relay contact output and operates on a supply voltage of 3x432-528Vac (440Vac / 480Vac / 500Vac / 525Vac nominal; 47-63Hz), with a turn-on voltage of 3 x 390Vac and a shutdown voltage of 3 x 355Vac. The unit is housed in an aluminium casing, measures W96mm x H124mm x D159mm, and uses screw-clamp connections for installation. It is rated for a current of 26.6A at 36Vdc and is designed for DIN rail mounting in a 3-phase (3AC) network. The ambient air temperature for operation ranges from -25 to +70°C. The XT40.362 has a peak inrush current consumption of 4A (at 3x480Vac input), a rated power of 960W at 36 Vdc (1200W for typ. 15s with derating applicable from +60°C to +70°C), and includes protection functions such as output overvoltage protection (42.5Vdc max.), active input inrush current limiter, and overload/short-circuit current protection. It is not suitable for parallel operation to increase output power but supports 1+1 redundancy for higher system availability. The unit is resistant to back-feeding loads up to 41.1V, has an efficiency of 0.955 (at 3x480Vac input), a start-up delay of 350ms, and a rise time of 40ms (70ms with 27mF load capacitance) at nominal input. The fixed output voltage is 36Vdc with a 700mV turn-ON overshoot, a hold time of 2.6ms at 3x480Vdc input, and power dissipation/losses of 45.2W at full output load. Its electrical durability is rated at 55000 hours (at 40°C; 26.6A output; 3AC 480Vdc input), with higher durability at reduced loads or temperatures. The output stage capacitance is 11100µF, and the ripple is 2000mVpp (20Hz...2KHz; 50Ω).

Puls

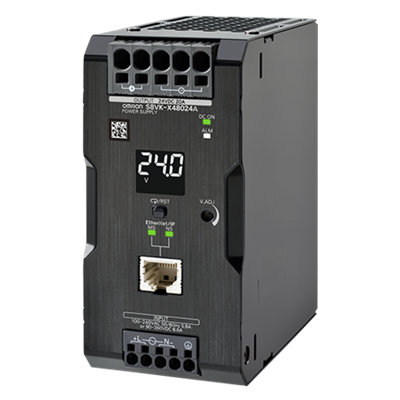

S8VK-X06024-EIP

S8VK-X Switch Mode Power Supply

Omron

QP-375-5E

AC-DC Quad output enclosed power supply; Output 5Vdc at 40A +12Vdc at 16A +-24Vdc at 4A +-24Vdc at 3A; QP-375-5E is succeeded by MP450.

MEAN WELL

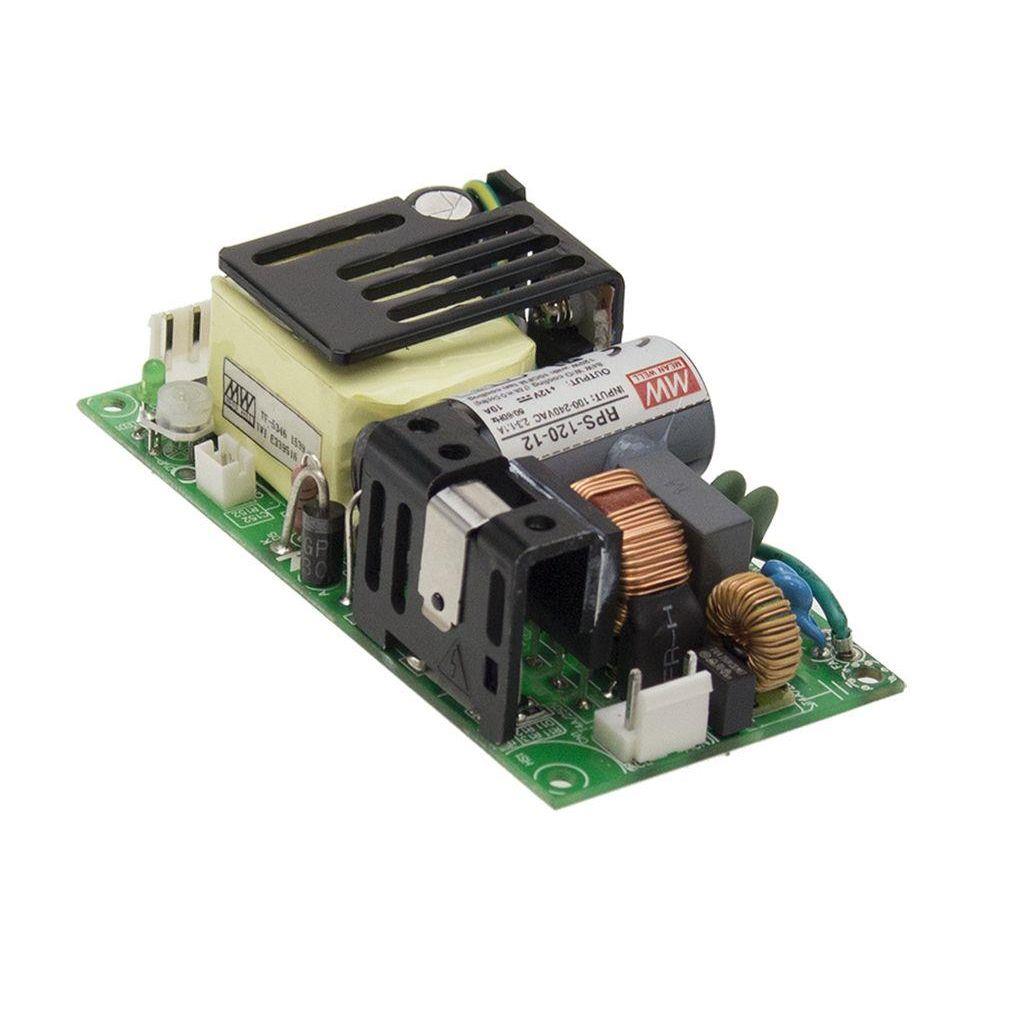

RPS-120-27

AC-DC Open frame Medical power supply; Output 27VDC at 3.15A; EN60601 2xMOPP; compact size 4 inch x 2 inch

MEAN WELL

CP10.241-R2-C1

PULS CP10.241-R2-C1 is a power supply unit designed for DIN rail mounting with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit has a net width of 39 mm and features current consumption rates of 1.14A with a 230Vac input, 2.17A with a 120Vac input, 2.63A with a 100Vac input, and 2.35A with a 110Vdc input, all at full output. It offers a peak max. inrush of 11A at 230Vac input and 7A at 120Vac input. With an IP20 degree of protection and an efficiency of 0.947 at 230Vac input, this power supply unit is also chemically resistant with a conformal coated PCB. Its dimensions are W39mm x H124mm x D117mm. The time delay for start-up is 240-300ms for 100-230Vac input, with a rise time of 30ms at nominal input for a full constant current load without load capacitance and 75ms with 2mF load capacitance. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation for increased output voltages or redundancy. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 13.4 W at 230Vac input and 18.1 W at 120Vac input, with an output stage capacitance of 4400 µF. Electrical durability ranges from 47,000 to 531,000 hours depending on conditions. The ripple is 50mVpp. This AC/DC power supply unit is part of the CP-series and is designed with built-in decoupling MOSFET for 1+1 or N+1 redundancy, hot-swappable connectors, conformal coating, and a 20% power reserve. It features a DC-OK relay contact output and supports a supply voltage range of 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with a rated current of 12A at 48Vdc up to +45°C. The rated power is 288W up to +45°C, and the output voltage is adjustable between 24Vdc and 25.4Vdc. The hold time is 37ms at 120/230Vac input.

Puls

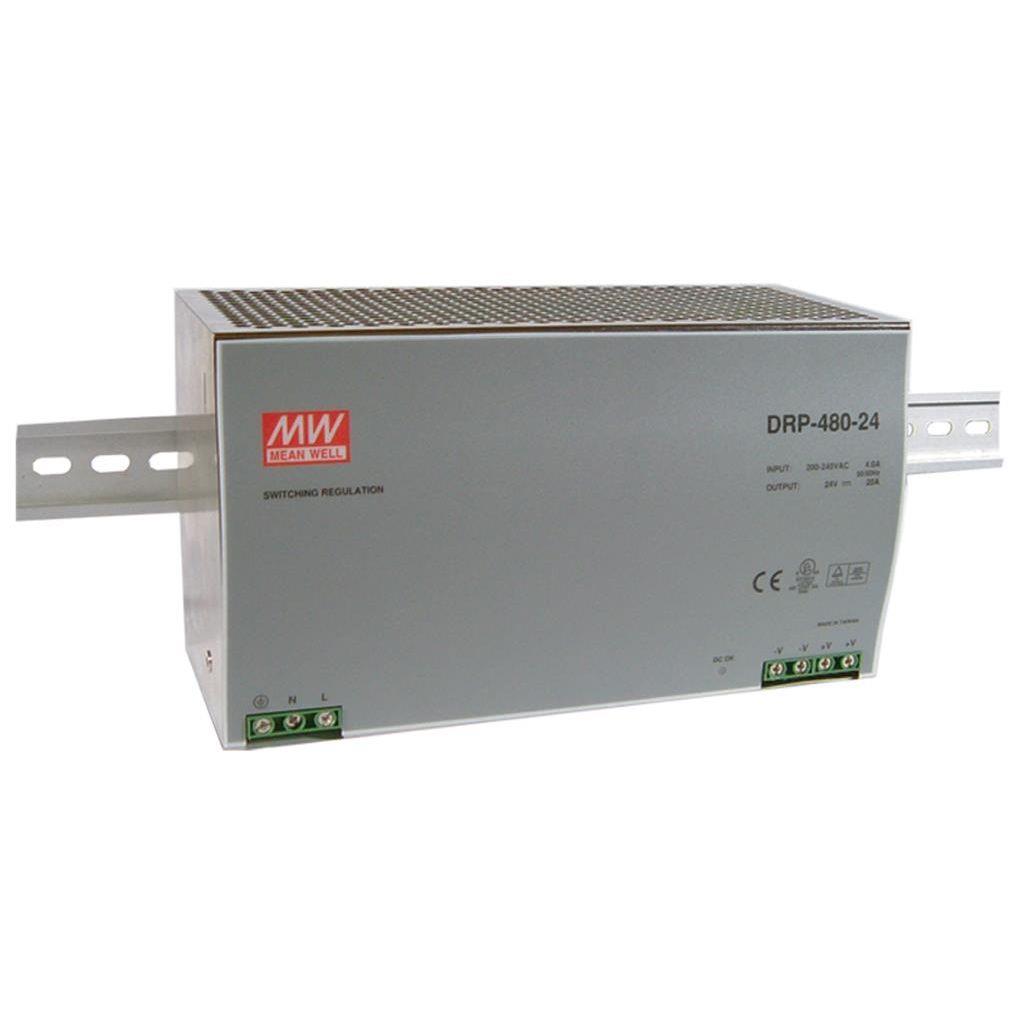

DRP-480-48

AC-DC Industrial DIN rail power supply; Output 48Vdc at 10A; metal case; DRP-480-48 is succeeded by NDR-480-48.

MEAN WELL

CPS20.481

PULS CPS20.481 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 65mm. The unit consumes 2.33A with a 230Vac input for full 48Vdc output, 4.36A with a 120Vac input, and 5.25A with a 100Vac input, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It features an IP20 degree of protection and achieves efficiencies of 0.939, 0.926, and 0.92 at 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions of the CPS20.481 are W65mm x H124mm x D127mm. It has a start-up delay of 850ms and rise times of 90ms and 230ms under specified conditions. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, and supports series/parallel operation for increased output power. It can handle back-feeding loads up to 63V without malfunctioning. Power dissipation/losses are rated at 31.2W, and the output stage capacitance is 2450µF. Electrical durability varies with conditions, reaching up to 475000 hours. The ripple is specified at 50mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and comes with ATEX approval and a DC-OK relay contact output. Connection is made via screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 10A at 48Vdc with derating above 60°C. Designed for single-phase networks, it provides a rated power of 576W with PowerBoost below 45°C and 480W below 60°C. The output voltage is adjustable between 48Vdc and 56Vdc, with a 200mV turn-ON overshoot and a hold time of 26ms.

Puls

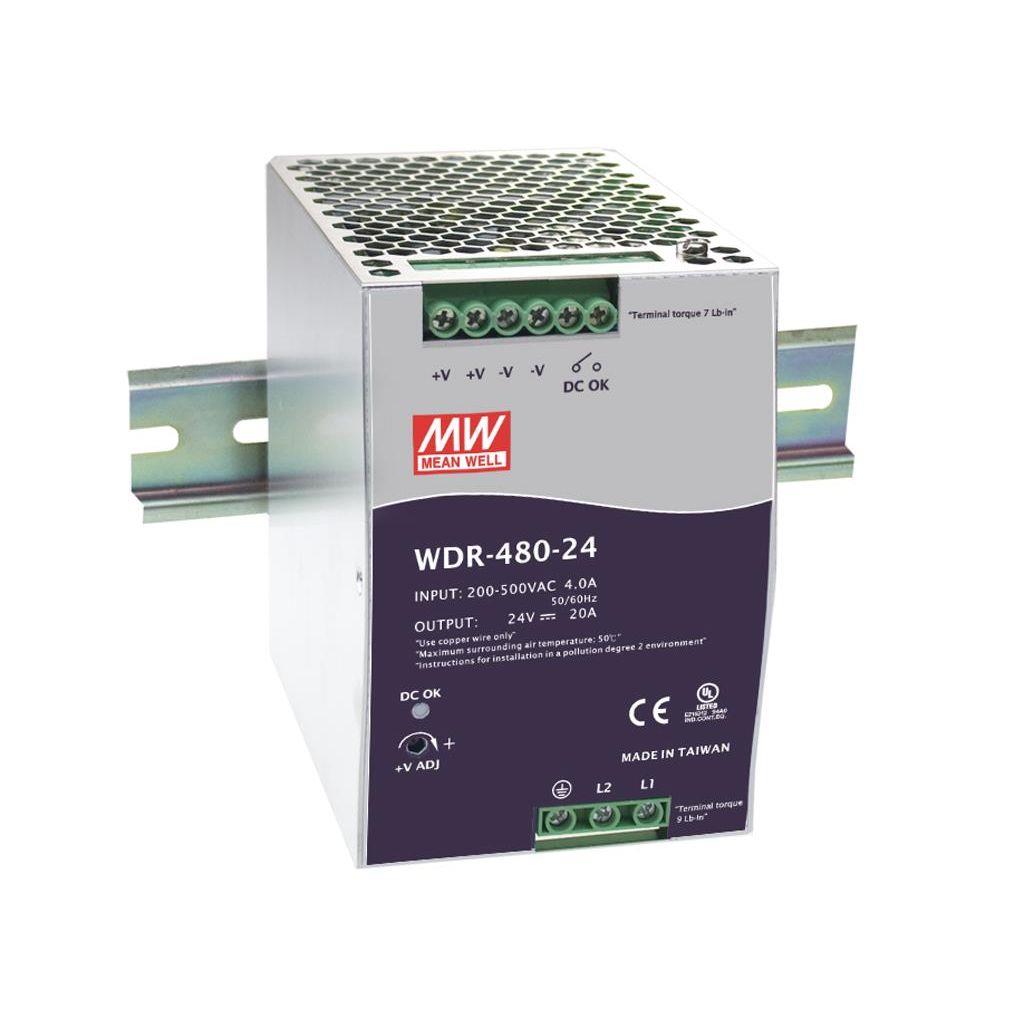

WDR-480-24

AC-DC Industrial DIN rail power supply; Output 24Vdc at 20A; metal case; Ultra wide input 180-550Vac for single and two phase mains network

MEAN WELL

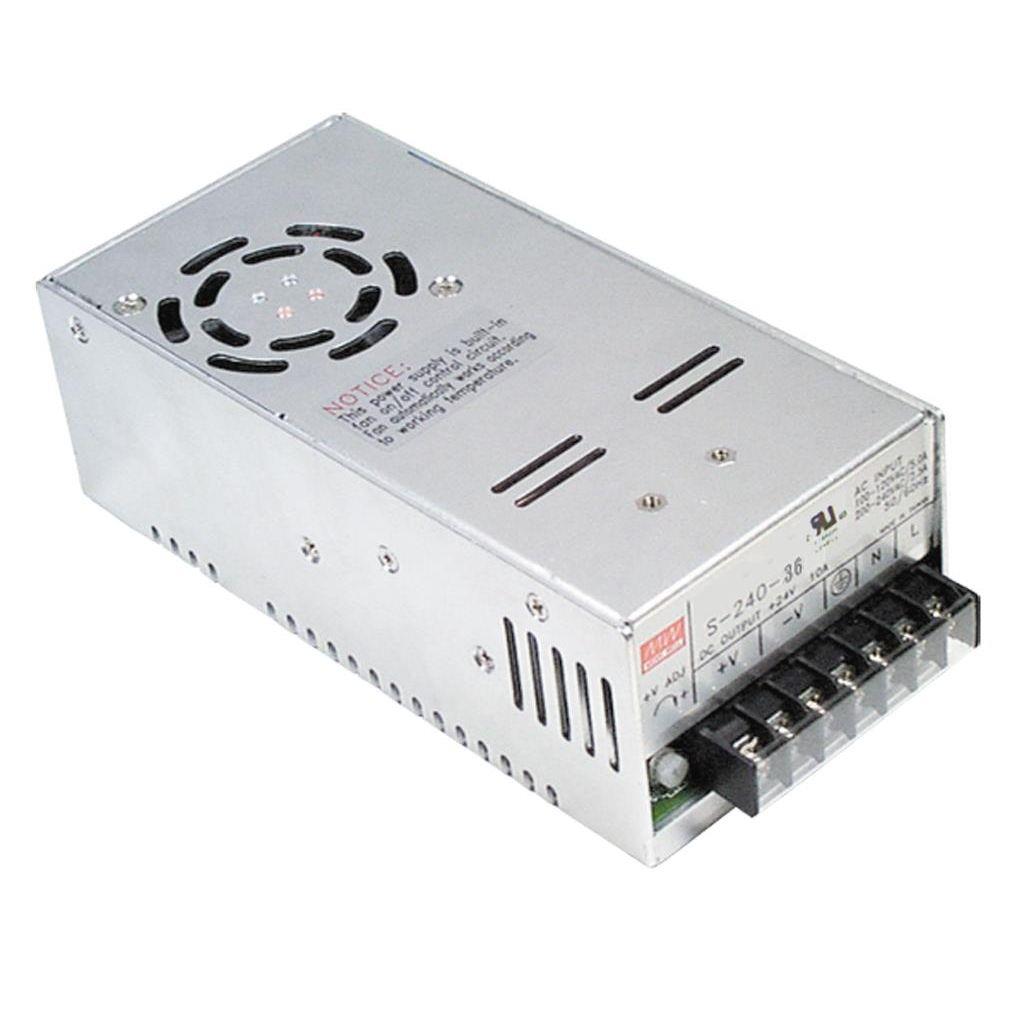

S-240-48

AC-DC Enclosed power supply; Output +48Vdc at 5A; S-240-48 is succeeded by RSP-200-12.

MEAN WELL

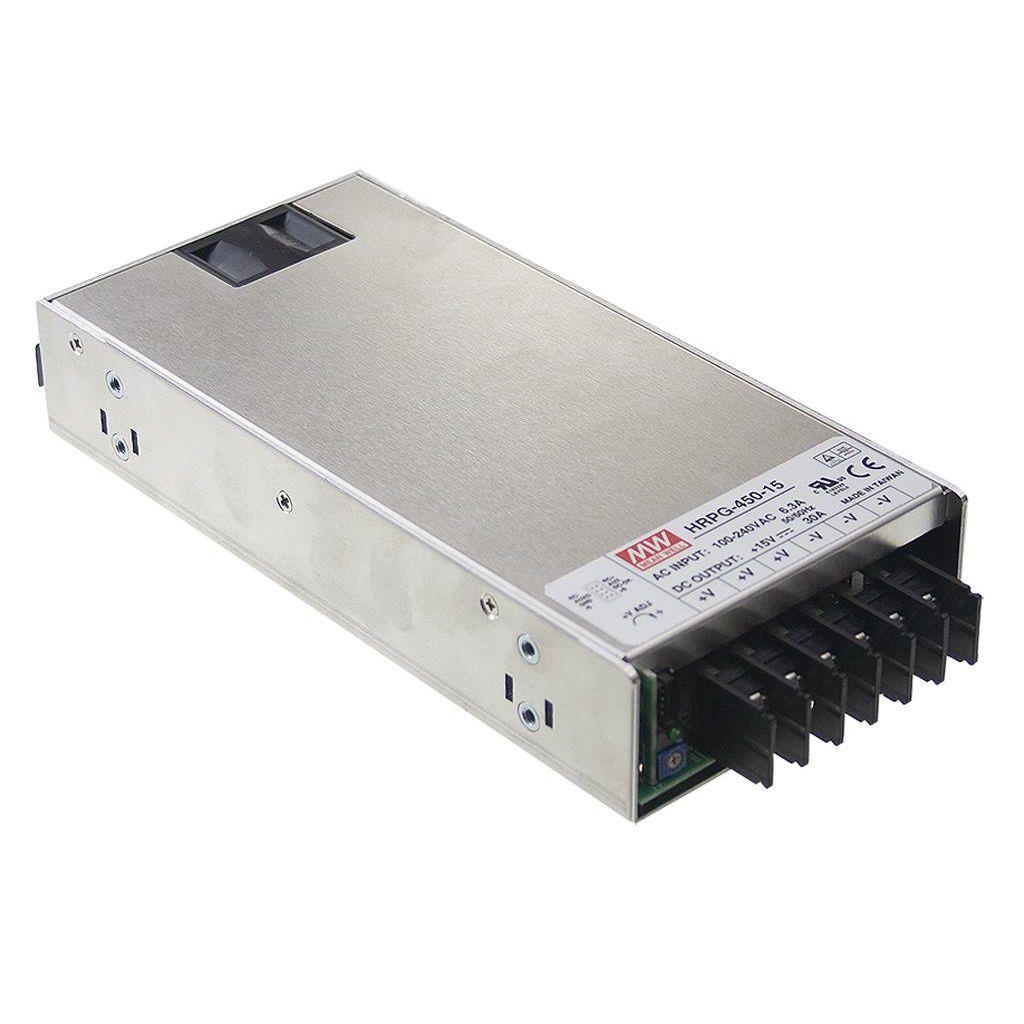

HRPG-450-36

AC-DC Single output enclosed power supply; Output 36Vdc at 12.5A; 1U low profile; fan cooling; remote on/off + 5Vdc at 0.3A standby

MEAN WELL

RS-100-15

AC-DC Single Output Enclosed power supply; Output 15VDC Single Output at 7A; free air convection

MEAN WELL

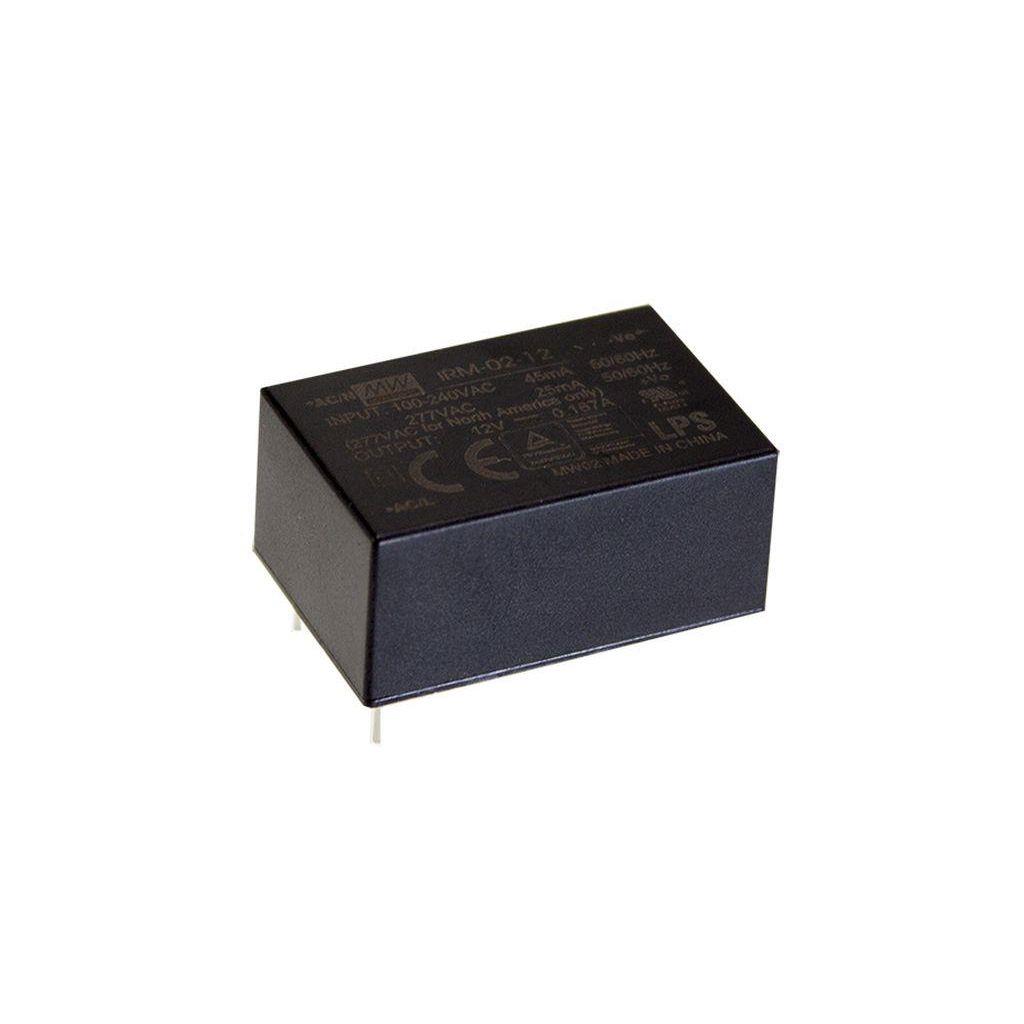

IRM-02-5

AC-DC Single Output Encapsulated power supply, PCB mount; Input range 85-305VAC; Output 5VDC at 0.4A; Compact size

MEAN WELL

HEP-600-36

AC-DC Single output industrial power supply with PFC; Output 36Vdc at 16.7A; Input-output by terminal block; Withstand up to 10G Vibration

MEAN WELL

SLA8.100

PULS SLA8.100 is a power supply unit designed with a DC-OK relay contact output and functions as an AS-Interface PSU. It is encased in a robust metal housing and utilizes screw-clamp connections for secure installation. The dimensions of this unit are W91mm x H124mm x D102mm. It supports a wide range of supply voltages, including AC inputs from 85Vac to 132Vac and 187Vac to 264Vac, as well as DC inputs from 230Vdc to 375Vdc, with manual selection available for specific nominal voltages. The rated current is 8A at 30.6Vdc, with a derating at 6W/+60°C to +70°C. Designed for DIN rail mounting, it operates efficiently within an ambient air temperature range of -10 to +70 °C. The SLA8.100 experiences a peak inrush current consumption of 27A at 240Vac input and 14A at 120Vac input. It is compatible with single-phase (1AC) or DC networks and incorporates protection functions against output overvoltage (up to 55Vdc max.), with an active input inrush current limiter and overload/short-circuit protection ranging from min. 12A to max. 25A. However, series or parallel operation is not supported. The output voltage is fixed at 30.6Vdc, with an efficiency of 0.92 at 230Vac input. The hold time is 10ms at 100Vac input, with power dissipation/losses at 21.2W under full output load at 230Vac input. Ripple is maintained at 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

MSP-200-36

AC-DC Single output Medical Enclosed power supply; Output 36Vdc at 5.7A; 1xMOOP; 2xMOOP

MEAN WELL

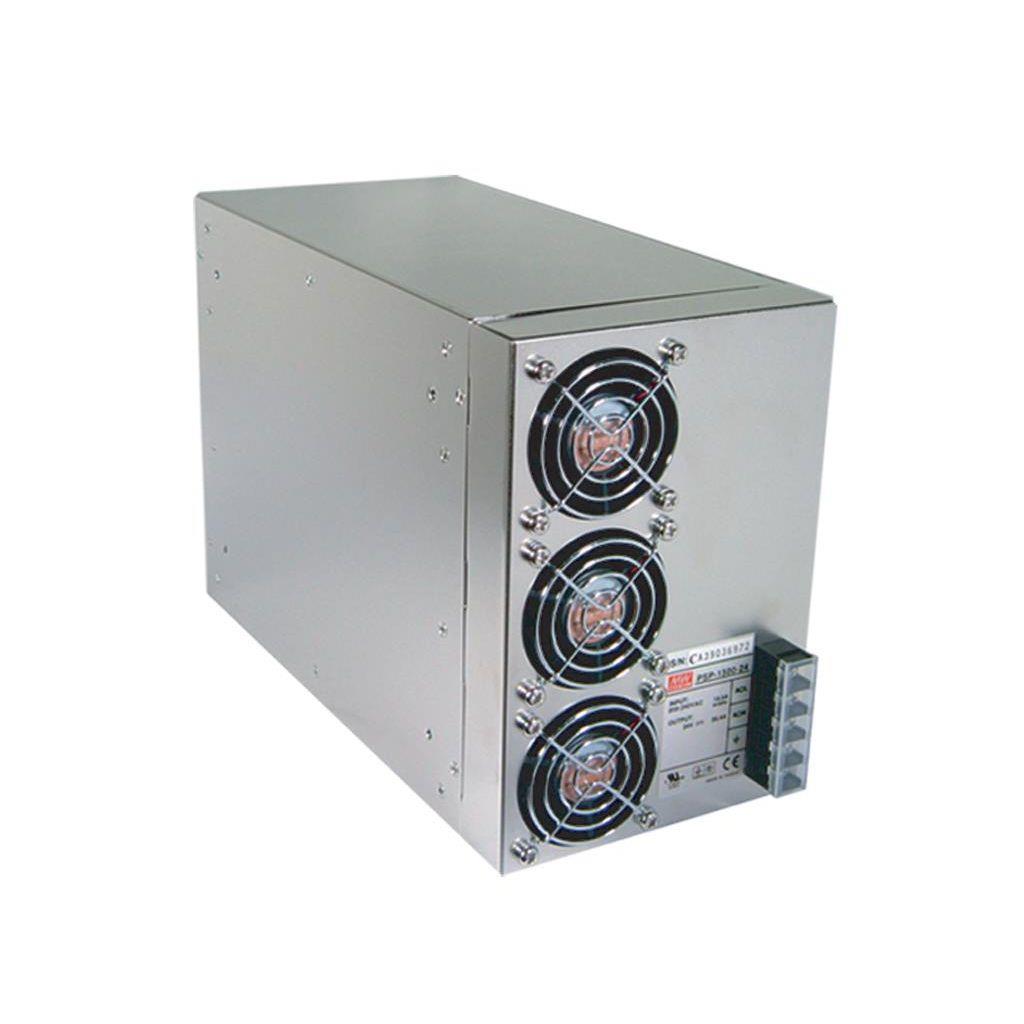

PSP-1500-24

AC-DC Single output Enclosed power supply; Output 24Vdc at 56.4A; PFC + parallel; PSP-1500-24 is succeeded by RSP-1600-24.

MEAN WELL

EPP-100-48

AC-DC Single output Open frame power supply; Output 48Vdc at 1.6A

MEAN WELL

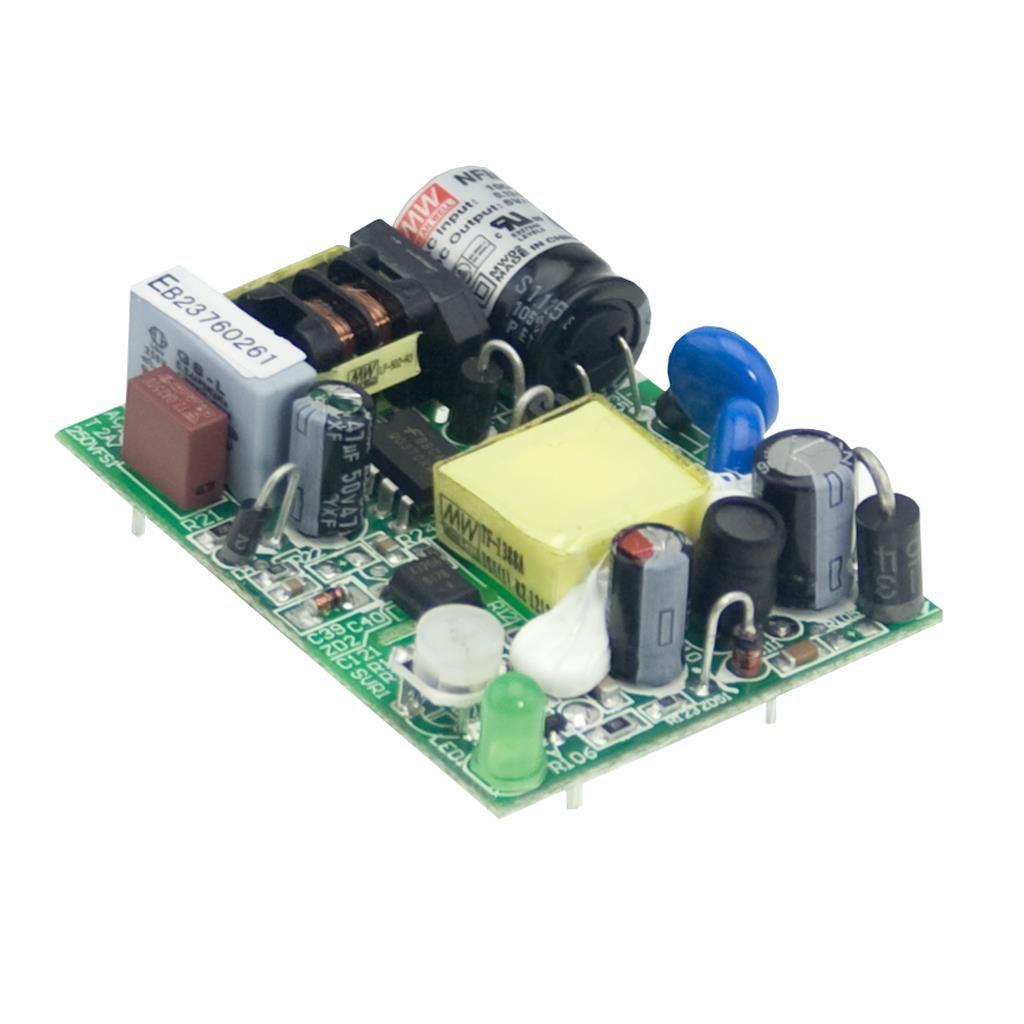

NFM-05-15

AC-DC Single output Medical Open frame power supply; Output 15Vdc at 0.33A; PCB mount; 2xMOPP; NFM-05-15 is succeeded by MFM-05-15.

MEAN WELL
