AC/DC Power Supplies

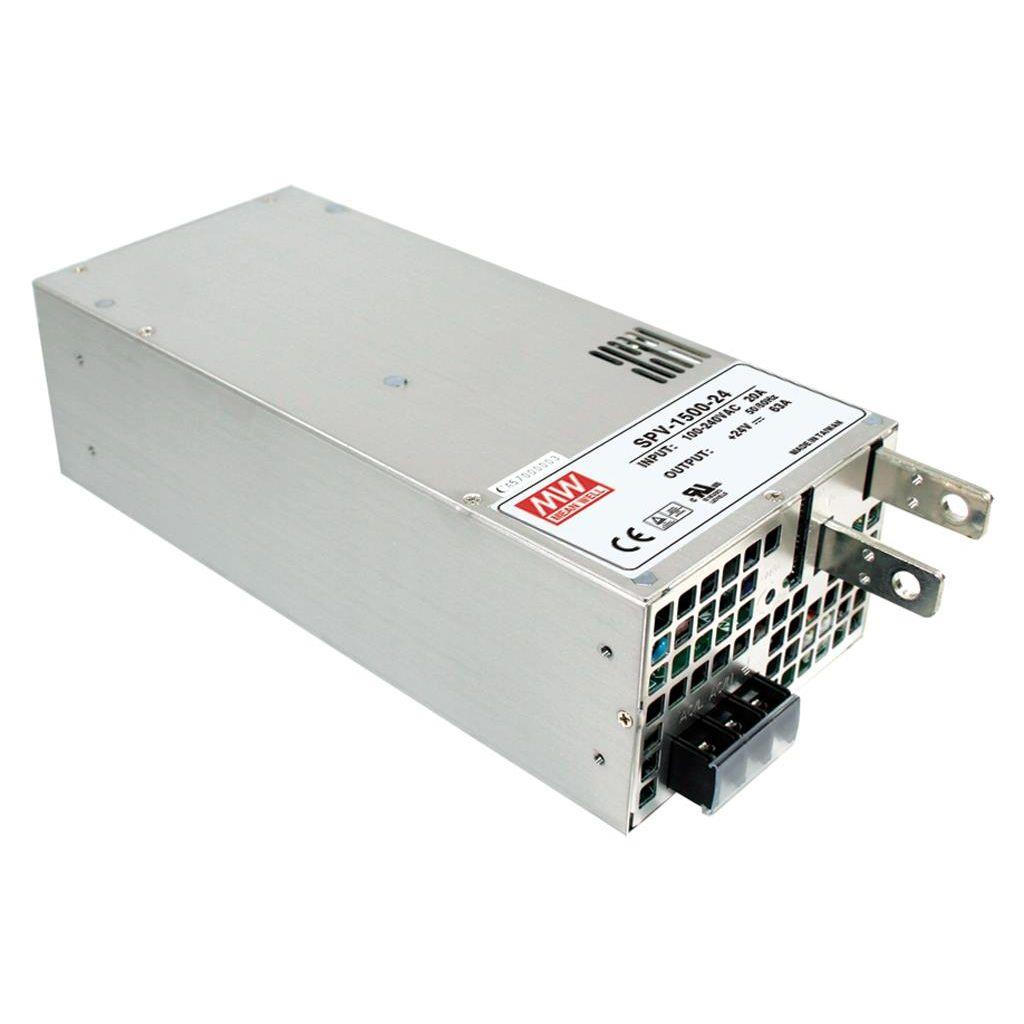

SPV-1500-48

AC-DC Enclosed power supply; Output 48Vdc at 32A; forced air cooling; Programmable output 20-110%; SPV-1500-48 is succeeded by RSP-1600-48.

MEAN WELL

ML50.109

PULS ML50.109 is a power supply unit designed for AC/DC conversion and is suitable for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and features a NEC Class 2 conformal coating with a DC-OK relay contact output. The unit provides a rated current of 2.1A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac for AC (with specific nominal values and a 65Vac turn-ON voltage and 55Vac shutdown voltage) and from 82Vdc to 380Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The ML50.109 measures 45mm in width, 75mm in height, and 91mm in depth, and is housed in a PC/ABS blend material. It delivers a rated power of 50W with an adjustable output voltage range of 24Vdc to 28Vdc. The unit is designed with protection functions including an NTC for input inrush current limiting and boasts an efficiency of up to 0.89 depending on the input voltage. It has a maximum current consumption of 17A at 120Vac input and 35A peak at 230Vac input, with a power dissipation/loss of 6.2W. The electrical durability of the ML50.109 is rated at a minimum of 54,000 hours at +40°C, and it features a ripple of 50mVpp across a frequency range of 20Hz to 20MHz. The output stage capacitance is 1600µF, ensuring stable operation across its service life.

Puls

S8FS-G30048C

S8FS-G Switch Mode Power Supply

Omron

IRM-05-5

AC-DC Single output Encapsulated power supply; Input 85-264Vac; Input 85-264Vac; Output 5Vdc at 1.0A; PCB mount; miniature size

MEAN WELL

HRP-150N-12

AC-DC Single output enclosed power supply; Output 12Vdc at 13A; 1U low profile; free air convection; 200% peak load in 5 seconds

MEAN WELL

S8FS-G15024C-500

Omron S8FS-G15024C-500 - 150W PS, 24VDC, Cover

Omron

T-60C

AC-DC Enclosed triple output power supply; Output +5Vdc at 5A +15Vdc at 2A -15Vdc at 0.5A; T-60C is succeeded by RT-65C.

MEAN WELL

HRP-600-7.5

AC-DC Single output enclosed power supply; Output 7.5Vdc at 80A; fan cooling

MEAN WELL

S8FS-G10005C

S8FS-G Switch Mode Power Supply

Omron

CT5.121

PULS CT5.121 is a power supply unit designed for DIN rail mounting with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 40mm. The unit consumes 0.56A with a 480Vac input and 0.64A with a 400Vac input for a full 12Vdc output, with a peak inrush current of 10A for both input voltages. It features an efficiency of 0.858 at 480Vac input and 0.854 at 400Vac input. The dimensions are W40mm x H124mm x D117mm. It includes a 75ms start-up delay and a rise time of 50ms under nominal input with a constant full current load and 0mF load capacitance, extending to 85ms with 8mF load capacitance. The unit is equipped with protection functions including output overvoltage protection and an active input inrush current limiter, supporting overload/short-circuit conditions with a continuous current of max. 15A. It allows for series/parallel operation to increase output power, with a back-feeding load resistance up to 25V. Power dissipation losses are 15.9W and 16.4W for 480Vac and 400Vac inputs, respectively, under full output load. The output stage capacitance is 5200µF. Electrical durability ranges from 51,000 to 430,000 hours, depending on operating conditions. Ripple is maintained at 100mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit, part of the CT-series, features a DC-OK relay contact output and screw-clamp connections. It supports a wide supply voltage range of 323Vac to 576Vac, with various shutdown voltages based on load conditions. The rated current is 8A at 12Vdc within a -25 to +60°C range, adjusting with temperature and output voltage. The rated power is 96W, with an adjustable output voltage of 12Vdc to 15Vdc and minimal turn-on overshoot. Hold time is specified at 63ms and 43ms for 480Vac and 400Vac inputs, respectively.

Puls

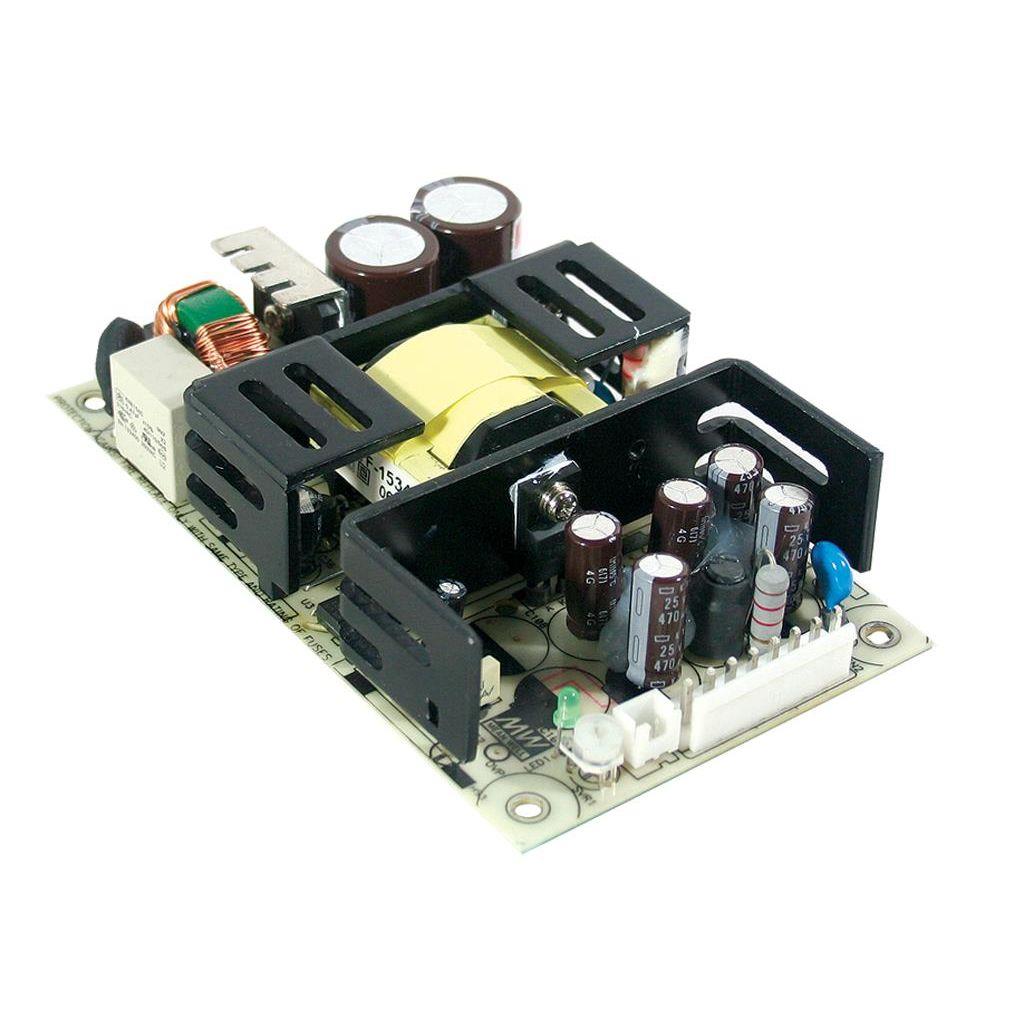

RPS-75-15

AC-DC Open frame Medical power supply; Output 15Vdc at 5A; EN60601 2xMOPP; compact size 4 x 2 inch

MEAN WELL

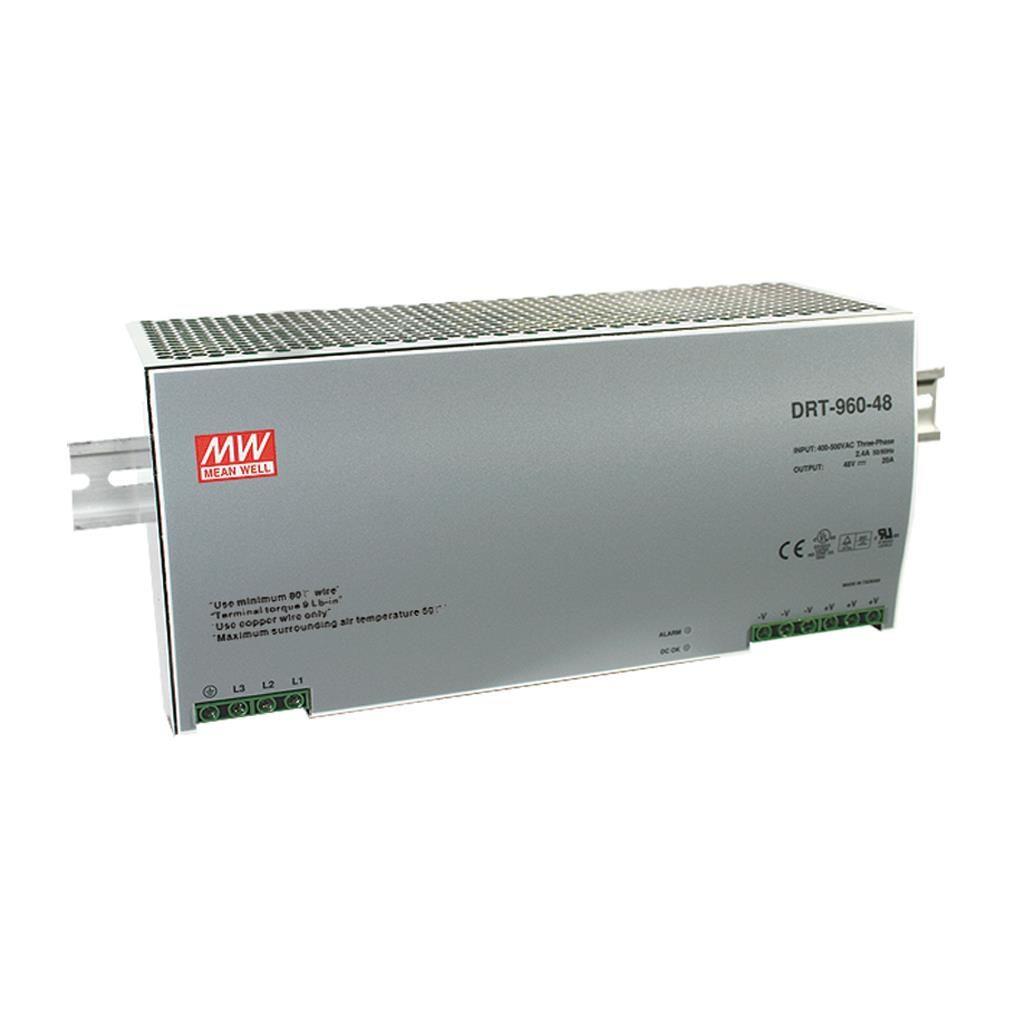

DRT-960-48

AC-DC Industrial DIN rail power supply; Output 48Vdc at 20A; metal case; 3-phase input; DRT-960-48 is succeeded by TDR-960-48.

MEAN WELL

ENP-360-12

AC-DC Single output power supply with PFC; 3 stage charging; Universal AC input; Output 13.8VDC at 26A

MEAN WELL

LRS-100-12

AC-DC Single output enclosed power supply; Universal AC input; Output 12Vdc at 8.5A; Up to 5G vibration; 1U low profile

MEAN WELL

MPQ-120E

AC-DC Quad output Medical Open frame power supply; Output 5Vdc at 10A +12Vdc at 3A; 2xMOPP; MPQ-120E is succeeded by MPQ-200F.

MEAN WELL

RS-50-12

AC-DC Single Output Enclosed power supply; Output 12VDC Single Output at 4.2A; free air convection

MEAN WELL

UHP-2500-24-CAN

AC-DC Slim Single output enclosed power supply with PFC; Output 24Vdc at 104.2A; Remote ON/OFF and DC OK signal; protocol CANBus

MEAN WELL

SP-75-5

AC-DC Enclosed power supply; Output 5Vdc at 15A; PFC; free air convection; SP-75-5 is succeeded by RSP-75-5.

MEAN WELL

PQ-100D

AC-DC Quad output open frame power supply; Output 5Vdc at 5A +12Vdc at 4.5A +24Vdc at 2A -12Vdc at 1A; PQ-100D is succeeded by QP-150-3D.

MEAN WELL

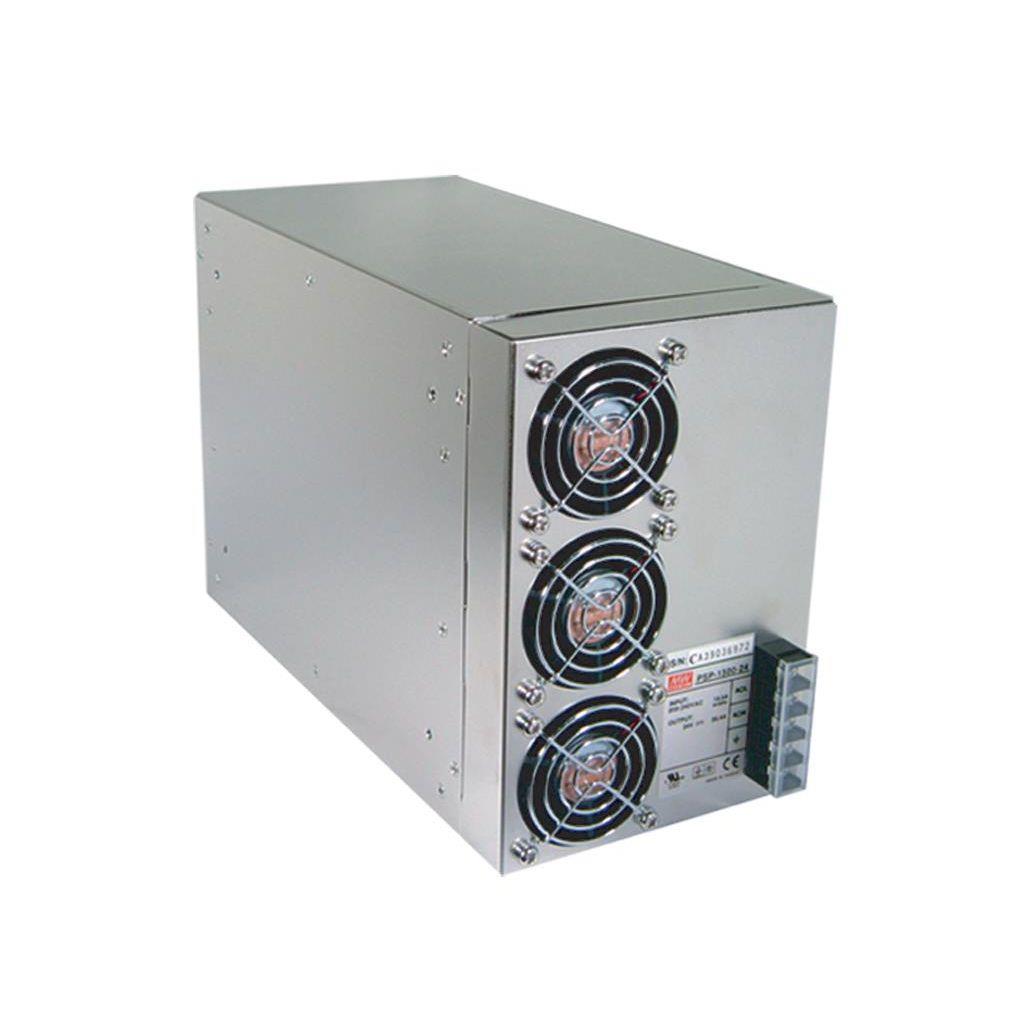

PSP-1500-27

AC-DC Single output Enclosed power supply; Output 27Vdc at 50.4A; PFC + parallel; PSP-1500-27 is succeeded by RSP-1600-27.

MEAN WELL
